Unity 自定义Postprocess 景深和散景模糊

前言

本篇将介绍如何通过添加RenderFeature实现自定义的postprocess——散景模糊(Bokeh Blur)和景深

关于RenderFeature的基础可以看这篇https://www.cnblogs.com/chenglixue/p/17816447.html

景深

定义：聚焦清晰的焦点前后可接受的清晰区域，也就是画面中景象清晰的范围

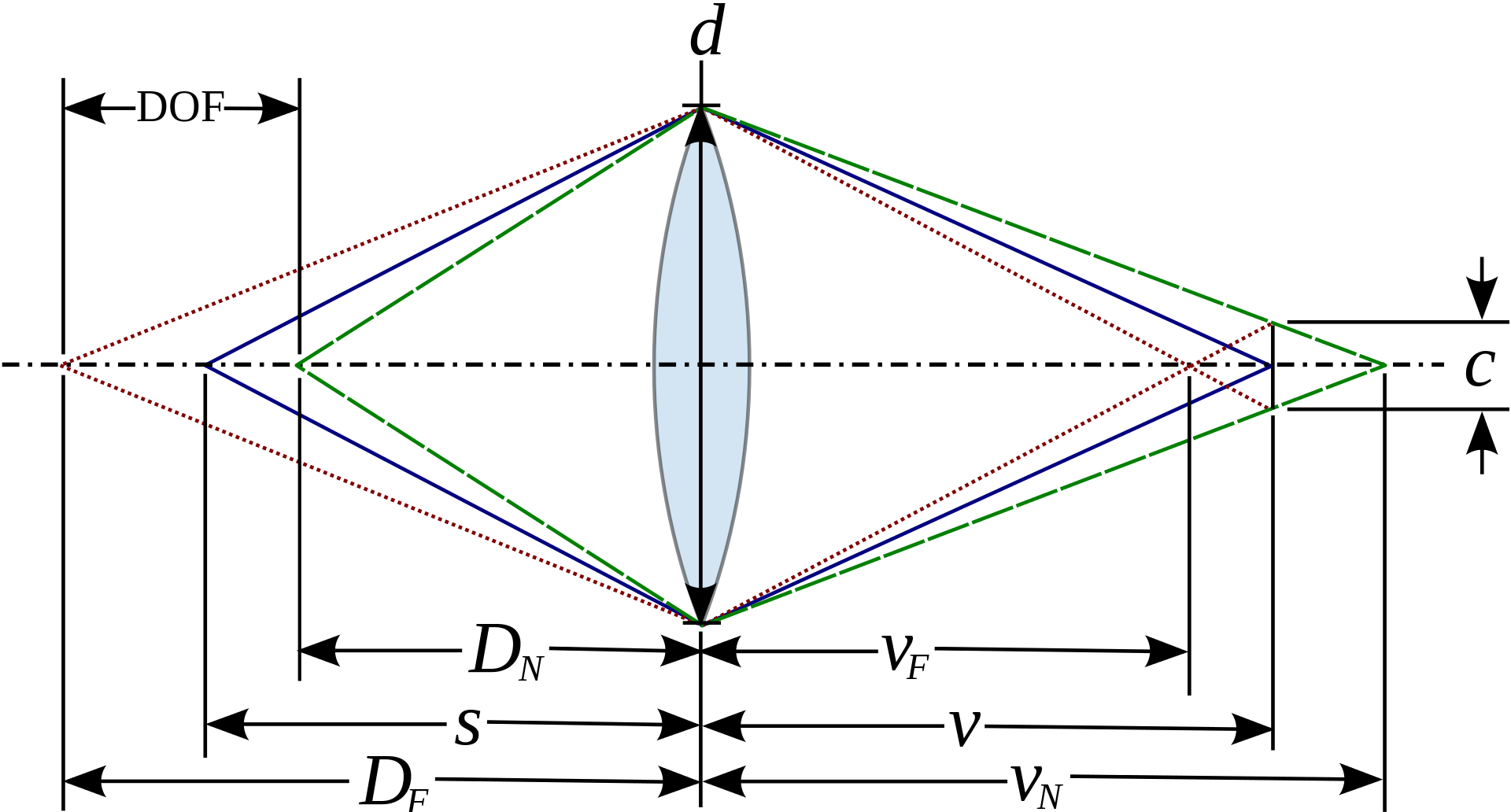

如下图相机景深原理图所示，DOF为景深范围，S为被拍摄物体的距离，\(D_n\)为近点距离，\(D_F\)为远点距离，DOF左边(\(D_F\) - S)为后景深，DOF右边(S - \(D_n\))为前景深
但实际上，在shader可以无需模拟相机的成像，只需根据深度图来确定相机的模糊范围即可

散景模糊

定义：落在景深以外的画面，会有逐渐产生松散模糊的效果

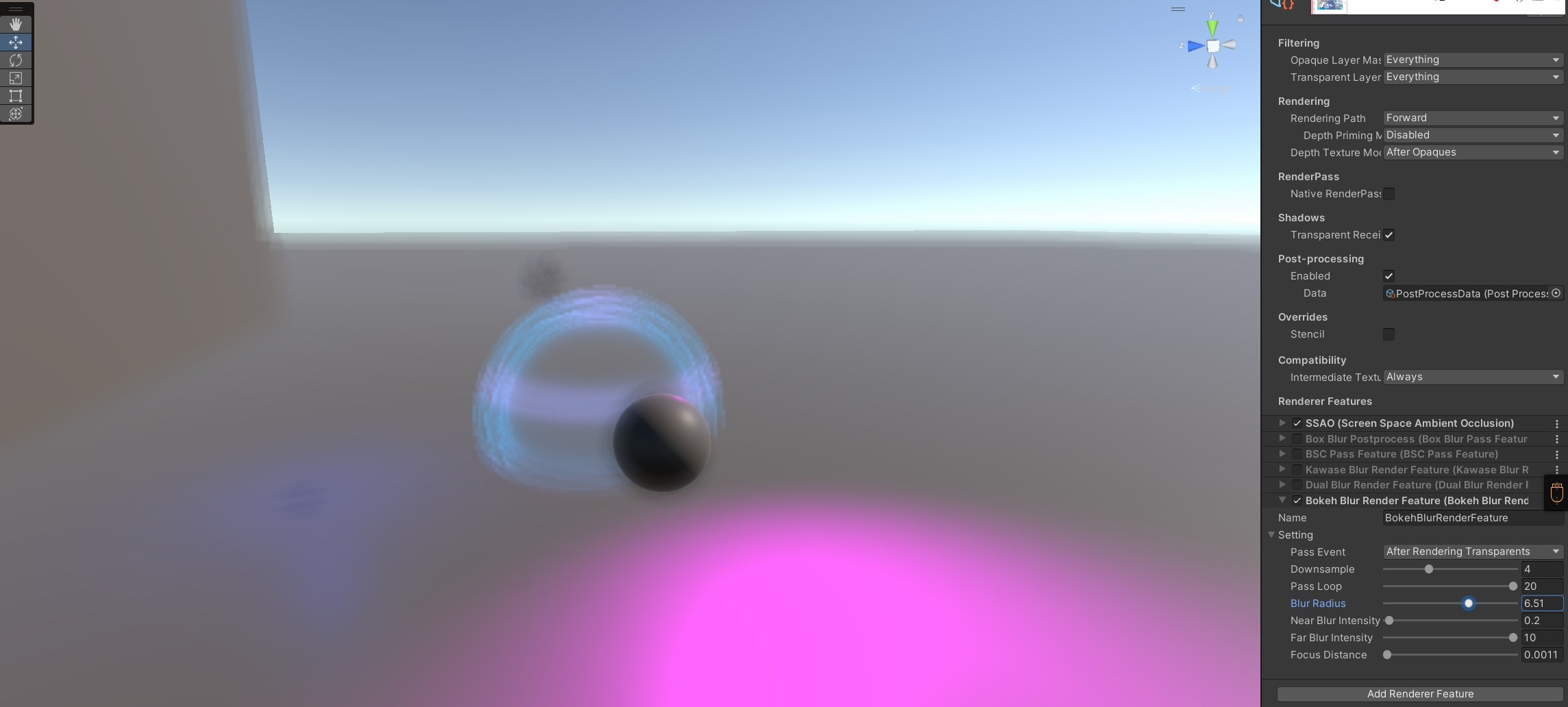

下图中带有模糊的甜甜圈形状正是散景模糊的效果

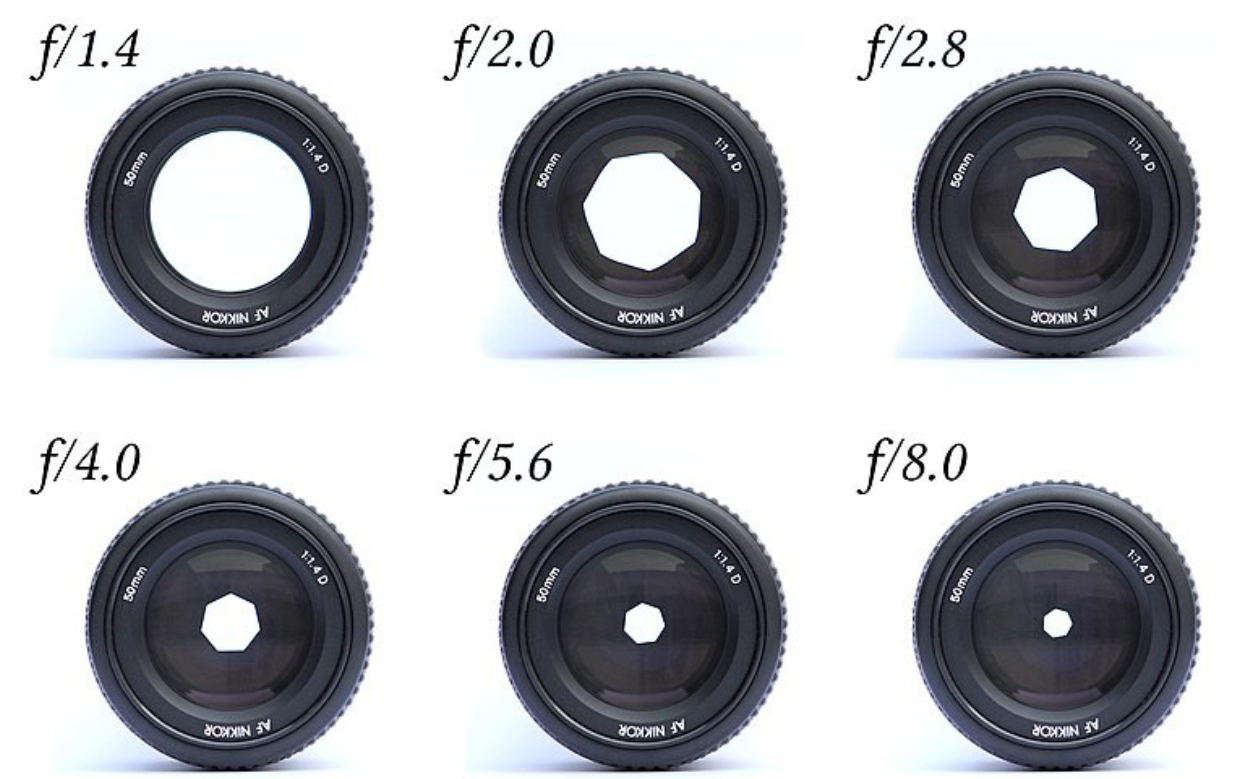

不过这一形状不是固定的，它主要受镜头的光圈叶片数的影响，所形成的光圈孔形状不同
同样，我们无需模拟相机的成像，而是通过黄金角度、均匀排布来实现
黄金分割(黄金比例)：对一整体切一刀，形成一个较大长度a，较小长度b，黄金比例也就是\(\frac{a}{b} = \frac{b}{a + b} ≈ 0.618\)
黄金角度：黄金角度也是使用的黄金比例的公式，只不过是对2\(\pi\)进行切割，a为较小角度，b为较大角度，求得a = 137.5°
- 黄金角度有何用处？

  其实在大自然界，许多现象都与黄金角度有关：大部分花朵的花瓣以137.5°的角度旋转；植物的果实也以137.5°的角度进行生长
双螺旋均匀分布

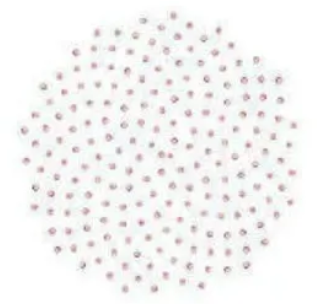

假设现在最中心有一个像素，逐渐向外移动并以黄金角度进行旋转，就会形成如下图所示完美的双螺旋均匀分布

奇特的是，就算角度有1°之差，双螺旋现象就会被打破
实现思路：可以看到，上图所示的均匀排布的形状很像最开始所提到的甜甜圈形状，只是这里都是点。但对这些旋转后的均匀排布图像逐渐进行叠加，即可实现散景模糊

Shader

实现

Shader "Custom/BokehBlur"
{
    Properties
    {
        [HideinInspector] _MainTex("Main Tex", 2D) = "white" {}
    }

    SubShader
    {
        Tags
        {
            "RenderPipeline" = "UniversalRenderPipeline"
            "RenderType" = "Transparent"
        }
        Cull Off
        ZWrite OFF
        ZTest Always

        HLSLINCLUDE
        #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"

        #pragma vertex VS
        #pragma fragment PS

        CBUFFER_START(UnityPerMaterial)
        float4 _MainTex_TexelSize;
        CBUFFER_END

        half _FocusDistance;	//焦点
        half _FarBlurIntensity;	//远景模糊强度
        half _NearBlurIntensity;	// 近景模糊强度
        half _BlurLoop;		   // 散景模糊迭代次数，越大越模糊
        half _BlurRadius;	   // 采样半径，越大甜甜圈越大
        TEXTURE2D(_MainTex);
        SAMPLER(sampler_MainTex);
        TEXTURE2D(_SourTex);   // 模糊前的纹理
        SAMPLER(sampler_SourTex);
        SAMPLER(_CameraDepthTexture);	// viewport的深度纹理

        struct VSInput
        {
            float4 positionL : POSITION;
            float2 uv : TEXCOORD0;
        };

        struct PSInput
        {
            float4 positionH : SV_POSITION;
            float2 uv : TEXCOORD0;
        };

        ENDHLSL

        Pass
        {
            NAME "Boken Blur"

            HLSLPROGRAM

            PSInput VS(VSInput vsInput)
            {
                PSInput vsOutput;

                vsOutput.positionH = TransformObjectToHClip(vsInput.positionL);

                #ifdef UNITY_UV_STARTS_AT_TOP
                if(_MainTex_TexelSize.y < 0)
                    vsInput.uv.y = 1 - vsInput.uv.y;
                #endif
                vsOutput.uv = vsInput.uv;

                return vsOutput;
            }

            float4 PS(PSInput psInput) : SV_TARGET
            {
                float4 outputColor;

                float angle = 2.3398;   // 弧度制的黄金角度
                float2x2 rotation = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));  // 旋转矩阵
                float2 offsetUV = float2(_BlurRadius, 0);	// 每次旋转都需要进行偏移
                float2 targetUV;
                float r;
                for(int i = 1; i < _BlurLoop; ++i)
                {
                    // 甜甜圈的面积是均匀分布，因此r是线性增加的
                    r = sqrt(i);
                    offsetUV = mul(rotation, offsetUV);
                    targetUV = psInput.uv + _MainTex_TexelSize.xy * offsetUV * r;
                    // 暗处模糊不会很明显，但明处会
                    outputColor += SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, targetUV);
                }

                return outputColor / (_BlurLoop - 1);	// 模糊基操
            }

            ENDHLSL
        }

        Pass
        {
            NAME "depth of field"
            HLSLPROGRAM
            PSInput VS(VSInput vsInput)
            {
                PSInput vsOutput;

                vsOutput.positionH = TransformObjectToHClip(vsInput.positionL);

                #ifdef UNITY_UV_STARTS_AT_TOP
                if(_MainTex_TexelSize.y < 0)
                    vsInput.uv.y = 1 - vsInput.uv.y;
                #endif
                vsOutput.uv = vsInput.uv;

                return vsOutput;
            }

            float4 PS(PSInput psInput) : SV_TARGET
            {

                float4 blurTex = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, psInput.uv);
                float4 sourceTex = SAMPLE_TEXTURE2D(_SourTex, sampler_SourTex, psInput.uv);  // 未模糊的纹理

                // 转换为线性深度，且由近到远，值从0到1
                float depth = Linear01Depth(tex2D(_CameraDepthTexture, psInput.uv).r , _ZBufferParams);
                float distance;
                // 分为远处模糊和近处模糊
                if(depth > _FocusDistance)
                {
                    // 因为深度是线性的，但我们想要的是焦点处清晰，但前后逐渐模糊，所以这里采用二次函数
                    distance = saturate((depth - _FocusDistance) * (depth - _FocusDistance) * _FarBlurIntensity);
                }
                else
                {
                    distance = saturate((depth - _FocusDistance) * (depth - _FocusDistance) * _NearBlurIntensity);
                }

                // 最后模糊图和原图基于距离进行lerp
                return lerp(sourceTex, blurTex, distance);
            }
            ENDHLSL
        }
    }
}

RenderFeature

都是些老朋友，这里放重要部分

PassSetting

[System.Serializable]
public class PassSetting
{
    [Tooltip("profiler tag will show up in frame debugger")]
    public readonly string m_ProfilerTag = "Dual Blur Pass";

    [Tooltip("Pass insert position")]
    public RenderPassEvent m_passEvent = RenderPassEvent.AfterRenderingTransparents;

    [Tooltip("resolution ratio of sample")]
    [Range(1, 10)]
    public int m_Downsample = 1;

    [Tooltip("Loop of sample")]
    [Range(2, 7)]
    public int m_PassLoop = 2;

    [Tooltip("Radius of sample")]
    [Range(0, 10)]
    public float m_BlurRadius = 1;

    [Tooltip("Near Blur Intensity of DOF")]
    [Range(0, 10)]
    public float m_NearBlurIntensity = 1;

    [Tooltip("Far Blur Intensity of DOF")]
    [Range(0,10)]
    public float m_FarBlurIntensity = 1;

    [Tooltip("Camera Focus Point")]
    [Range(0, 1)]
    public float m_FocusDistance = 1;

}

全部实现

public class BokehBlurRenderFeature : ScriptableRendererFeature
{
    // render feature 显示内容
    [System.Serializable]
    public class PassSetting
    {
        [Tooltip("profiler tag will show up in frame debugger")]
        public readonly string m_ProfilerTag = "Dual Blur Pass";

        [Tooltip("Pass insert position")]
        public RenderPassEvent m_passEvent = RenderPassEvent.AfterRenderingTransparents;

        [Tooltip("resolution ratio of sample")]
        [Range(1, 10)]
        public int m_Downsample = 1;

        [Tooltip("Loop of sample")]
        [Range(2, 7)]
        public int m_PassLoop = 2;

        [Tooltip("Radius of sample")]
        [Range(0, 10)]
        public float m_BlurRadius = 1;

        [Tooltip("Near Blur Intensity of DOF")]
        [Range(0, 10)]
        public float m_NearBlurIntensity = 1;

        [Tooltip("Far Blur Intensity of DOF")]
        [Range(0,10)]
        public float m_FarBlurIntensity = 1;

        [Tooltip("Camera Focus Point")]
        [Range(0, 1)]
        public float m_FocusDistance = 1;

    }

    public PassSetting m_Setting = new PassSetting();
    BokehBlurRenderPass m_BokehBlurPass;

    // 初始化
    public override void Create()
    {
        m_BokehBlurPass = new BokehBlurRenderPass(m_Setting);
    }

    // Here you can inject one or multiple render passes in the renderer.
    // This method is called when setting up the renderer once per-camera.
    public override void AddRenderPasses(ScriptableRenderer renderer, ref RenderingData renderingData)
    {
        // can queue up multiple passes after each other
        renderer.EnqueuePass(m_BokehBlurPass);
    }
}

RenderPass

ShaderIDs

static class ShaderIDs
{
    // int 相较于 string可以获得更好的性能，因为这是预处理的
    internal static readonly int  m_BlurRadiusProperty = Shader.PropertyToID("_BlurRadius");
    internal static readonly int  m_NearBlurIntensityProperty = Shader.PropertyToID("_NearBlurIntensity");
    internal static readonly int  m_FarBlurIntensityProperty = Shader.PropertyToID("_FarBlurIntensity");
    internal static readonly int  m_PassLoopProperty = Shader.PropertyToID("_BlurLoop");
    internal static readonly int m_FocusDistanceProperty = Shader.PropertyToID("_FocusDistance");

    // Blur RT and source RT
    internal static readonly int m_BlurRTProperty = Shader.PropertyToID("_BufferRT1");
    internal static readonly int m_SourRTProperty = Shader.PropertyToID("_SourTex");
}

构造函数

// 用于设置material 属性
public BokehBlurRenderPass(BokehBlurRenderFeature.PassSetting passSetting)
{
    this.m_passSetting = passSetting;

    renderPassEvent = m_passSetting.m_passEvent;

    if (m_Material == null) m_Material = CoreUtils.CreateEngineMaterial("Custom/BokehBlur");

    // 基于pass setting设置material Properties
    m_Material.SetFloat(ShaderIDs.m_BlurRadiusProperty, m_passSetting.m_BlurRadius);
    m_Material.SetFloat(ShaderIDs.m_NearBlurIntensityProperty, m_passSetting.m_NearBlurIntensity);
    m_Material.SetFloat(ShaderIDs.m_FarBlurIntensityProperty, m_passSetting.m_FarBlurIntensity);
    m_Material.SetFloat(ShaderIDs.m_FocusDistanceProperty, m_passSetting.m_FocusDistance);
    m_Material.SetInt(ShaderIDs.m_PassLoopProperty, m_passSetting.m_PassLoop);
}

OnCameraSetup

public override void OnCameraSetup(CommandBuffer cmd, ref RenderingData renderingData)
{
    // Grab the color buffer from the renderer camera color target
    m_TargetBuffer = renderingData.cameraData.renderer.cameraColorTarget;

    // camera target descriptor will be used when creating a temporary render texture
    RenderTextureDescriptor descriptor = renderingData.cameraData.cameraTargetDescriptor;
    // 设置 temporary render texture的depth buffer的精度
    descriptor.depthBufferBits = 0;
    // 注意！因为申请RT后，RT的分辨率不可改变，而该Source RT在后续由于camera render targt会复制一份给他，所以这里不能用降采样的分辨率
    cmd.GetTemporaryRT(ShaderIDs.m_SourRTProperty, descriptor, FilterMode.Bilinear);
    // 降采样
    descriptor.width /= m_passSetting.m_Downsample;
    descriptor.height /= m_passSetting.m_Downsample;
    cmd.GetTemporaryRT(ShaderIDs.m_BlurRTProperty, descriptor, FilterMode.Bilinear);
}

Execute

// The actual execution of the pass. This is where custom rendering occurs
public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
{
    // Grab a command buffer. We put the actual execution of the pass inside of a profiling scope
    CommandBuffer cmd = CommandBufferPool.Get();

    using (new ProfilingScope(cmd, new ProfilingSampler(m_passSetting.m_ProfilerTag)))
    {
        // 将camera texture复制给sour RT，同时发送给shader中的_SourTex
        cmd.CopyTexture(m_TargetBuffer, ShaderIDs.m_SourRTProperty);
        // 进行 bokenh blur并复制给Blur RT
        cmd.Blit(m_TargetBuffer, ShaderIDs.m_BlurRTProperty, m_Material, 0);
        // 将blur后且进行景深计算的RT复制给输出的RT
        cmd.Blit(ShaderIDs.m_BlurRTProperty, m_TargetBuffer, m_Material, 1);
    }

    // Execute the command buffer and release it
    context.ExecuteCommandBuffer(cmd);
    CommandBufferPool.Release(cmd);
}

OnCameraCleanUp

// Called when the camera has finished rendering
// release/cleanup any allocated resources that were created by this pass
public override void OnCameraCleanup(CommandBuffer cmd)
{
    if(cmd == null) throw new ArgumentNullException("cmd");

    cmd.ReleaseTemporaryRT(ShaderIDs.m_BlurRTProperty);
    cmd.ReleaseTemporaryRT(ShaderIDs.m_SourRTProperty);
}
