移远AT指令笔记

# 测试
AT - 测试AT指令功能是否正常

# 模块相关
ATI - 查询模块信息
AT+CGMI - 查询模块制造商标识
AT+CGMM - 查询模块型号
AT+CGMR - 查询模块固件版本号

# 网络相关
AT+QCCID - 查询集成电路卡识别码（ICCID）
AT+GSN / AT+CGSN - 查询国际移动设备识别码（IMEI）
AT+CNUM - 查询手机号
AT+CPIN? - 查询SIM卡是否正常，返回ready则表示SIM卡正常
AT+COPS? - 查询当前注册的网络运营商
AT+CSQ - 查询模组的信号强度，第一个值为0-31则正常(99为无信号），数值越大表明信号质量越好（但是前提必须限定在0-31内）
AT+CGATT? - 查询是否成功注册网络，直到收到 +CGATT: 1；
AT+CREG? / AT+CGREG? - 查询模组是否注册上GSM网络，+CREG:0,1 表示已注册上本地网，+CREG:0,5表示注册上漫游网。

# 配置与激活PDP上下文
AT+CGDCONT=1,"IP","CMNET" - 配置PDP上下文参数（APN）移动 CMNET，联通 UNINET
AT+CGACT=1,1 - 激活PDP
AT+CGPADDR=1 - 显示PDP地址
AT+QIOPEN=1,0,"TCP","134.175.123.194",6501,0,0 - 建立TCP连接
AT+QICLOSE=0 - 关闭连接

[2025-09-17 15:51:16.784]# SEND ASCII>
ATI


[2025-09-17 15:51:16.833]# RECV ASCII>

Quectel
EC800MCN_LE
Revision: LTE01R06A16_C_SDK_A

OK


[2025-09-17 15:51:30.546]# SEND ASCII>
AT+QCCID


[2025-09-17 15:51:30.593]# RECV ASCII>

+QCCID: 89852019925050205256

OK


[2025-09-17 15:51:36.279]# SEND ASCII>
AT+GSN


[2025-09-17 15:51:36.328]# RECV ASCII>

864461073429440

OK


[2025-09-17 15:51:41.081]# SEND ASCII>
AT+CNUM


[2025-09-17 15:51:41.129]# RECV ASCII>

+CNUM: "","+853688393585725",145

OK


[2025-09-17 15:51:47.656]# SEND ASCII>
AT+CPIN?


[2025-09-17 15:51:47.704]# RECV ASCII>

+CPIN: READY

OK


[2025-09-17 15:51:53.648]# SEND ASCII>
AT+COPS?


[2025-09-17 15:51:53.712]# RECV ASCII>

+COPS: 0,2,"46000",7

OK


[2025-09-17 15:51:59.858]# SEND ASCII>
AT+CSQ


[2025-09-17 15:51:59.905]# RECV ASCII>

+CSQ: 29,99

OK


[2025-09-17 15:52:05.961]# SEND ASCII>
AT+CGATT?


[2025-09-17 15:52:06.009]# RECV ASCII>

+CGATT: 1

OK


[2025-09-17 15:52:11.137]# SEND ASCII>
AT+CREG?


[2025-09-17 15:52:11.186]# RECV ASCII>

+CREG: 0,1

OK


[2025-09-17 15:52:20.417]# SEND ASCII>
AT+CGDCONT=1,"IP","CMNET"


[2025-09-17 15:52:20.716]# RECV ASCII>

OK


[2025-09-17 15:52:25.433]# SEND ASCII>
AT+CGACT=1,1


[2025-09-17 15:52:25.565]# RECV ASCII>

+CME ERROR: 133


[2025-09-17 15:52:30.664]# SEND ASCII>
AT+CGPADDR=1


[2025-09-17 15:52:30.714]# RECV ASCII>

+CGPADDR: 1,"10.115.74.129"

OK


[2025-09-17 15:52:36.689]# SEND ASCII>
AT+QIOPEN=1,0,"TCP","134.175.123.194",6501,0,0


[2025-09-17 15:52:36.736]# RECV ASCII>

OK


[2025-09-17 15:52:36.832]# RECV ASCII>

+QIOPEN: 0,0


[2025-09-17 15:52:42.385]# SEND ASCII>
AT+QICLOSE=0


[2025-09-17 15:52:42.435]# RECV ASCII>

OK

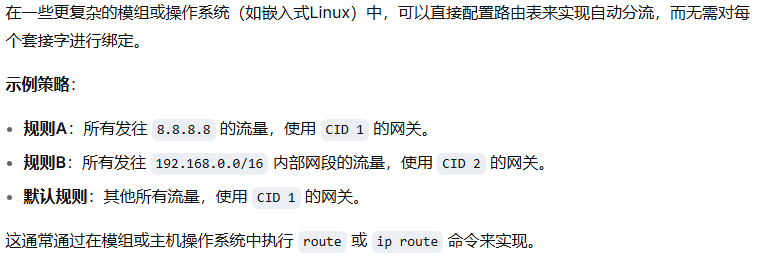

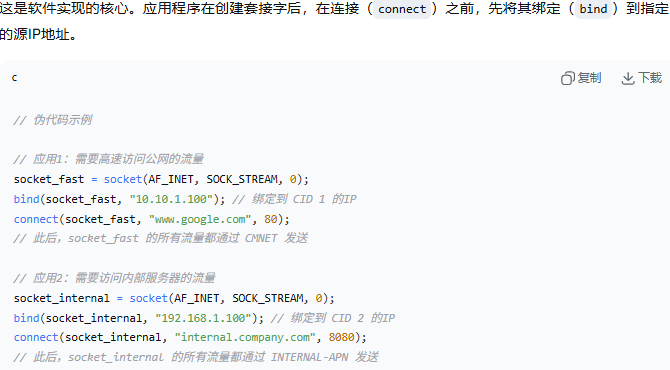

多APN设置及APN分离

[2025-11-11 15:54:43.917]# SEND ASCII>
AT+CGDCONT=1,"IP","CMNET"


[2025-11-11 15:54:43.968]# RECV ASCII>
AT+CGDCONT=1,"IP","CMNET"

OK


[2025-11-11 15:54:48.749]# SEND ASCII>
AT+CGDCONT=2,"IP","IMS"


[2025-11-11 15:54:48.800]# RECV ASCII>
AT+CGDCONT=2,"IP","IMS"

OK


[2025-11-11 15:54:54.093]# SEND ASCII>
AT+CGDCONT=3,"IPV4V6","CMNET"


[2025-11-11 15:54:54.145]# RECV ASCII>
AT+CGDCONT=3,"IPV4V6","CMNET"

OK


[2025-11-11 15:54:59.278]# SEND ASCII>

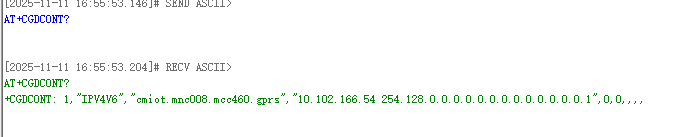

AT+CGDCONT?


[2025-11-11 15:54:59.376]# RECV ASCII>
AT+CGDCONT?

+CGDCONT: 1,"IP","CMNET"
+CGDCONT: 2,"IP","IMS"
+CGDCONT: 3,"IPV4V6","CMNET"

OK


[2025-11-11 15:56:44.766]# SEND ASCII>
AT+CGACT=1,1


[2025-11-11 15:56:44.816]# RECV ASCII>
AT+CGACT=1,1


[2025-11-11 15:56:46.372]# RECV ASCII>

OK

CONNECT


[2025-11-11 15:56:46.532]# RECV ASCII>

+ZCONSTAT: 0,1


[2025-11-11 15:56:48.280]# RECV ASCII>

+ZCONSTAT: 1,1

+ZGIPDNS: 1,"IP","10.40.139.105","10.40.139.106","211.143.147.120","112.5.230.54","","","",""


[2025-11-11 15:56:54.759]# SEND ASCII>
AT+CGACT=1,2


[2025-11-11 15:56:54.810]# RECV ASCII>
AT+CGACT=1,2


[2025-11-11 15:56:55.105]# RECV ASCII>

OK

CONNECT
