记录一个简单的零停机后端部署方案（Gunicorn + Caddy 蓝绿部署）

项目背景：
后端 Python/django 框架，单实例 VPS

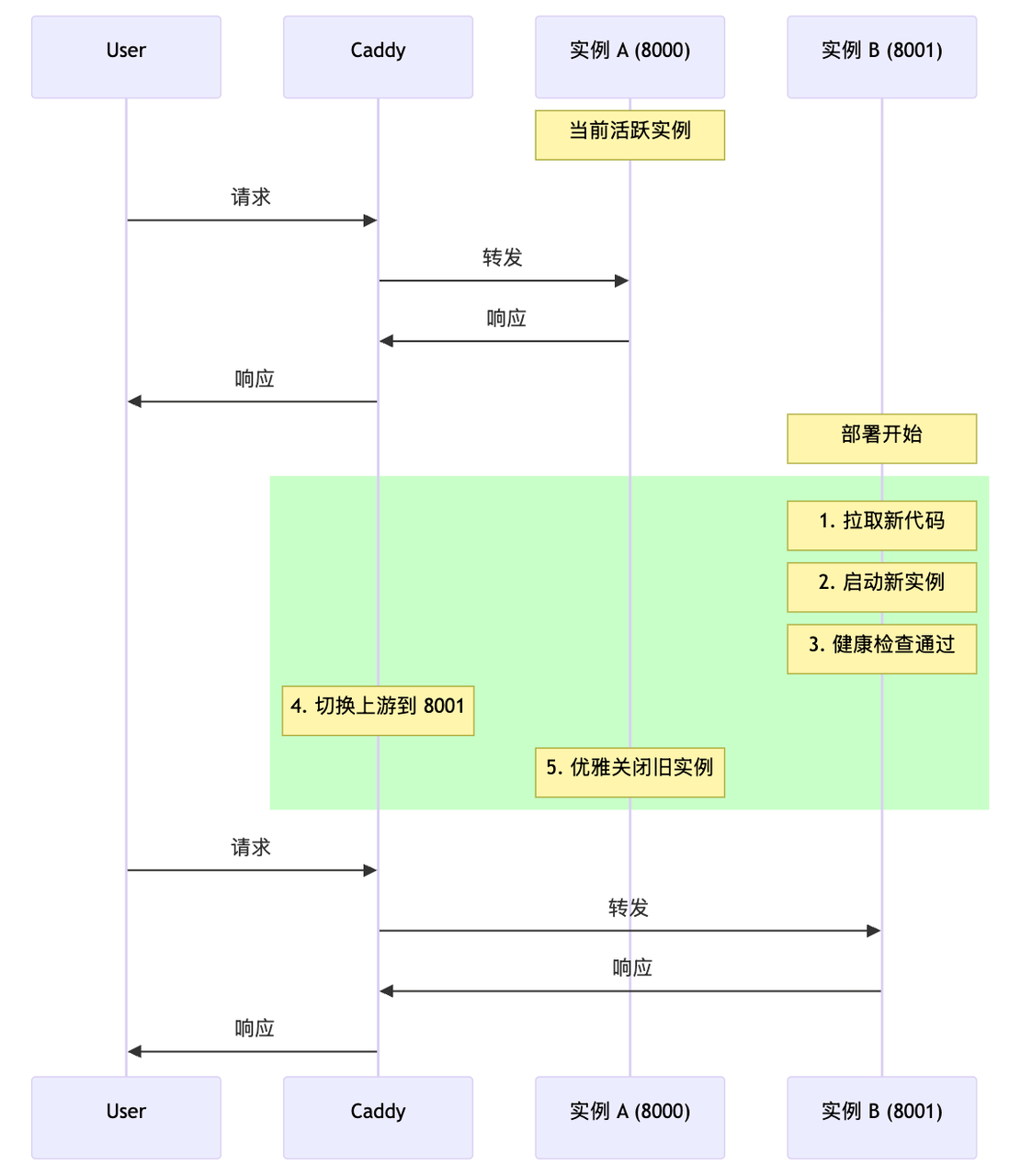

方案概述

通过同时运行两个 Gunicorn 实例（蓝绿部署模式），在更新代码时实现零停机：

1. 在备用端口启动新实例
2. 健康检查通过后，Caddy 切换流量到新实例
3. 优雅关闭旧实例

整个部署过程中始终至少有一个可用的服务实例，对外服务不中断。

脚本配置

app-server-blue.service

[Unit]
Description=Product server (Blue Instance - Port 8000)
After=network.target

[Service]
Type=simple
User=root
WorkingDirectory=/app/test_project/app-server
ExecStart=/home/azureuser/miniconda3/envs/appenv/bin/gunicorn \
    --preload \
    --workers 8 \
    --bind 127.0.0.1:8000 \
    --timeout 120 \
    --access-logfile /app/test_project/app-server/logs/gunicorn_access_blue.log \
    --error-logfile /app/test_project/app-server/logs/gunicorn_error_blue.log \
    app.wsgi:application
Restart=on-failure
RestartSec=10
KillSignal=SIGQUIT
TimeoutStopSec=30

Environment="DB_PORT=3306"
Environment="OPENAI_BASE_URL=https://api.openai.com/v1"
Environment="OPENAI_API_KEY=***"
Environment="OPENAI_MODEL=gpt-5.1-chat-latest"
Environment="PERPLEXITY_API_KEY=***"
Environment="APPLE_SHARED_SECRET=***"
Environment="FEATURE_FLAGS_PATH=/app/keys/feature_flags.json"
Environment="APPLE_CLIENT_ID=com.example.app.dev"
Environment="APNS_BUNDLE_ID=com.example.app.dev"

[Install]
WantedBy=multi-user.target

---

app-server-green.service

[Unit]
Description=Product server (Green Instance - Port 8100)
After=network.target

[Service]
Type=simple
User=root
WorkingDirectory=/app/test_project/app-server
ExecStart=/home/azureuser/miniconda3/envs/appenv/bin/gunicorn \
    --preload \
    --workers 8 \
    --bind 127.0.0.1:8100 \
    --timeout 120 \
    --access-logfile /app/test_project/app-server/logs/gunicorn_access_green.log \
    --error-logfile /app/test_project/app-server/logs/gunicorn_error_green.log \
    app.wsgi:application
Restart=on-failure
RestartSec=10
KillSignal=SIGQUIT
TimeoutStopSec=30

Environment="DB_PORT=3306"
Environment="OPENAI_BASE_URL=https://api.openai.com/v1"
Environment="OPENAI_API_KEY=***"
Environment="OPENAI_MODEL=gpt-5.1-chat-latest"
Environment="PERPLEXITY_API_KEY=***"
Environment="APPLE_SHARED_SECRET=***"
Environment="FEATURE_FLAGS_PATH=/app/keys/feature_flags.json"
Environment="APPLE_CLIENT_ID=com.example.app.dev"
Environment="APNS_BUNDLE_ID=com.example.app.dev"

[Install]
WantedBy=multi-user.target

---

Caddyfile.new

api.example.com {
  encode zstd gzip

  @static path /static/*
  handle @static {
    root * /app/test_project/app-server/staticfiles
    file_server
  }

  @media path /media/*
  handle @media {
    root * /app/test_project/app-server/media
    file_server
  }

  reverse_proxy {
    import /etc/caddy/upstream.txt
  }
}

---

蓝绿部署初始化脚本

setup_bluegreen.sh

#!/bin/bash

set -e

echo "Initializing blue-green deployment..."

sudo cp /app/test_project/app-server-blue.service /etc/systemd/system/
sudo cp /app/test_project/app-server-green.service /etc/systemd/system/

echo "to 127.0.0.1:8000" | sudo tee /etc/caddy/upstream.txt > /dev/null

sudo cp /etc/caddy/Caddyfile /etc/caddy/Caddyfile.backup
sudo cp /app/test_project/Caddyfile.new /etc/caddy/Caddyfile

sudo systemctl daemon-reload

if sudo systemctl is-active --quiet app-server-prod.service 2>/dev/null; then
  sudo systemctl stop app-server-prod.service
  sudo systemctl disable app-server-prod.service
fi

sudo systemctl start app-server-blue.service
sudo systemctl enable app-server-blue.service

sudo systemctl reload caddy

echo "Blue-green deployment initialized"

---

零停机部署脚本

restart_app.sh

#!/bin/bash

set -e

BLUE_PORT=8000
GREEN_PORT=8100
BLUE_SERVICE="app-server-blue.service"
GREEN_SERVICE="app-server-green.service"
UPSTREAM_FILE="/etc/caddy/upstream.txt"
PROJECT_DIR="/app/test_project"
HEALTH_CHECK_URL="http://127.0.0.1"
HEALTH_CHECK_ENDPOINT="/v1/config/feature-flags/"
MAX_HEALTH_RETRIES=30
HEALTH_RETRY_INTERVAL=2

---

首次设置

cd /app/test_project
sudo ./setup_bluegreen.sh

该脚本将：

1. 复制 systemd service 文件
2. 创建 /etc/caddy/upstream.txt
3. 更新 Caddyfile
4. 启动 Blue 实例
5. 禁用旧的单实例服务

---

后续部署/更新代码

cd /app/test_project
./restart_app.sh dev   # dev 可替换为待部署的分支名称

---

查询服务状态

sudo systemctl is-active app-server-blue.service
sudo systemctl is-active app-server-green.service
cat /etc/caddy/upstream.txt

验证服务不中断

客户端测试脚本：

while true; do
  result=$(curl -s -o /dev/null -w "%{http_code} %{time_total}s" https://api.example.com/v1/config/feature-flags/ 2>&1)
  echo "$(date '+%H:%M:%S') $result"
  sleep 0.5
done

在整个部署过程中，请求应持续返回 200，不会出现连接中断。
