java闹钟小程序

　　第一次分享，也不知道怎么介绍一番，那么就按照程序思路贴代码吧，如有不足烦请多多指教！

　　开发环境：MyEclipse8.5，JDK1.6，jxl.jar，Dom4j.jar

　　java知识点：Interface接口、Thread线程、TreeSet集合等。

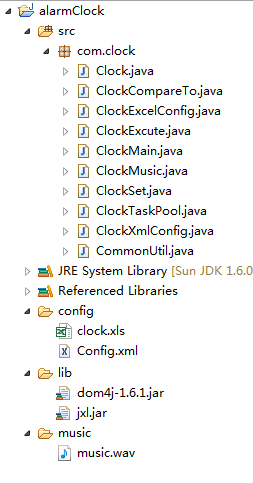

一、java project 结构如下：

二、config文件夹中的文件截图

config.xml

 1 <?xml version="1.0" encoding="GBK"?>
 2 <ConfigParam version="1.0">
 3     <!--系统配置变量 -->
 4     <rundate>
 5         <name>画画</name>
 6         <!-- 开始分析时间 如0700为早上7点整开始-->
 7         <startTime>0600</startTime>
 8         <!-- 音乐文件名，默认后缀是 .wav 格式-->
 9         <music>music</music>
10     </rundate>
11     <rundate>
12         <name>画画</name>
13         <startTime>1000</startTime>
14         <music>music</music>
15     </rundate>
16     <rundate>
17         <name>跆拳道</name>
18         <startTime>0900</startTime>
19         <music>music</music>
20     </rundate>
21 </ConfigParam>

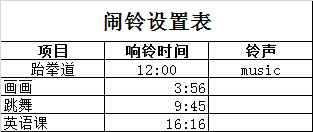

excel

三、代码

 1 /***
 2  * main主函数
 3  * @author caojsvm
 4  * 2022.01.13
 5  */
 6 public class ClockMain {
 7
 8     /**
 9      * @param args
10      */
11     public static void main(String[] args) {
12         System.out.println("启动程序");
13         try {
14
15             /**
16              * 替换方法(xml 、excel可修改此处替换使用)
17              */
18             //ClockXmlConfig appCfg = ClockXmlConfig.getInstance();
19             ClockExcelConfig appCfg = new ClockExcelConfig();
20
21
22             //初始化闹钟
23             appCfg.initConfig();
24
25             ClockTaskPool ctp= new ClockTaskPool();
26             Thread taskPoolThread = new Thread(ctp);
27
28             //启动闹钟任务池线程
29             taskPoolThread.start();
30
31             //启动闹钟响铃检测线程
32             ClockExcute ec = new ClockExcute(ctp);
33             Thread t1 = new Thread(ec);
34             Thread t2 = new Thread(ec);
35
36             t1.start();
37
38             CommonUtil.sleep("main",1);
39
40             t2.start();
41
42         } catch (Exception e) {
43             System.out.println("Error:初始化配置Config.xml失败");
44             e.printStackTrace();
45             System.exit(0);
46         }
47     }
48 }

 1 public class Clock {
 2     private String time;
 3     private String clockName;
 4     private String musicName ;
 5     private boolean clockFlag = false;
 6
 7     Clock(){
 8
 9     }
10
11     Clock(String time,String clockName,String musicName){
12         this.clockName = clockName;
13         this.musicName = musicName;
14         this.time = time;
15
16     }
17
18
19     public boolean isClockFlag() {
20         return clockFlag;
21     }
22
23     public void setClockFlag(boolean clockFlag) {
24         this.clockFlag = clockFlag;
25     }
26
27     public String getTime() {
28         return time;
29     }
30     public void setTime(String time) {
31         if("".equals(time))
32             throw new RuntimeException("设置的闹钟时间错误，请检查。");
33         this.time = time;
34     }
35     public String getClockName() {
36         return clockName;
37     }
38     public void setClockName(String clockName) {
39         if("".equals(clockName))
40             throw new RuntimeException("设置的闹钟名称错误，请检查。");
41         this.clockName = clockName;
42     }
43     public String getMusicName() {
44         return musicName;
45     }
46     public void setMusicName(String musicName) {
47         if("".equals(musicName))
48             this.musicName = "music";
49         else{
50             this.musicName = musicName;
51         }
52     }
53
54     @Override
55     public String toString() {
56         return this.clockName+"："+this.time+" ,musicName:"+this.musicName+" , IsExcute:"+this.clockFlag;
57     }
58
59
60     public String toClockString() {
61         return this.clockName+"："+this.time.substring(0, 2)+":"+this.time.substring(2, 4)+"\n闹铃音乐:"+this.musicName;
62     }
63 }

 1 import java.util.Comparator;
 2
 3 public class ClockCompareTo implements Comparator<Clock>{
 4
 5     public int compare(Clock o1, Clock o2) {
 6         int compare = o1.getTime().compareTo(o2.getTime()) ;
 7         if(compare == 0 ){
 8             return o1.getClockName().compareTo(o2.getClockName());
 9         }
10         return compare;
11     }
12
13 }

 1 import java.io.File;
 2 import java.io.FileNotFoundException;
 3 import java.io.IOException;
 4 import java.util.TreeSet;
 5
 6 import jxl.Cell;
 7 import jxl.Sheet;
 8 import jxl.Workbook;
 9 import jxl.read.biff.BiffException;
10
11 import org.dom4j.DocumentException;
12
13 public class ClockExcelConfig implements ClockSet {
14     private TreeSet<Clock> clockSet ;
15
16     public ClockExcelConfig(){
17         this.clockSet = new TreeSet<Clock>(new ClockCompareTo());
18     }
19
20     @Override
21     public TreeSet<Clock> getClockSet() {
22         // TODO Auto-generated method stub
23         return clockSet;
24     }
25
26     @Override
27     public void initConfig() throws DocumentException {
28         String filePath = CommonUtil.WORK_PATH + "config" + File.separator + "clock.xls";
29
30         System.out.println(filePath);
31         try {
32             File excel = new File(filePath);
33             Workbook book = Workbook.getWorkbook(excel);// 创建workbook
34
35             if(book.getNumberOfSheets() < 1){
36                 return;
37             }
38
39             Sheet sheet=book.getSheet(0); //获得第一个工作表对象
40
41             if(sheet.getRows() < 3){  //如果sheet小于3行视为无效的闹铃设置（默认第一、二行为标题，第三行开始是闹铃设置内容。）
42                 return;
43             }
44
45             for(int i = 2; i<sheet.getRows(); i++){
46                 //System.out.println(i);
47
48                 //可用for循环读取各行每列单元格数据，此处读取配置文件，一共固定的三列，所以没有用循环。
49                 Cell cell_1=sheet.getCell(0, i); //获得第i行第1列的单元格
50                 Cell cell_2=sheet.getCell(1, i); //获得第i行第2列的单元格
51                 Cell cell_3=sheet.getCell(2, i); //获得第i行第3列的单元格
52
53                 if(cell_1.getContents().trim().length()!=0 && cell_1.getContents().trim().length()!=0 ){   //如果等于0 ，说明港航数据无效，直接跳过。
54                     Clock clock = new Clock();
55                     clock.setClockName(cell_1.getContents());
56                     clock.setTime(CommonUtil.changeTime(cell_2.getContents()));
57                     clock.setMusicName(cell_3.getContents());
58                     this.clockSet.add(clock);
59                 }
60             }
61         } catch (BiffException e) {
62             System.out.println("error:读取excel失败2");
63             e.printStackTrace();
64         } catch (FileNotFoundException e) {
65             System.out.println("设置闹钟的excel文件(.xls)不存在，请您检查！");
66             e.printStackTrace();
67         } catch (IOException e) {
68             System.out.println("error:读取excel失败2");
69             e.printStackTrace();
70         }
71
72     }
73 }

 1 public class ClockExcute implements Runnable{
 2     private boolean flag = true;
 3     private ClockTaskPool ctp = null;
 4
 5     public ClockExcute(ClockTaskPool ctp){
 6         this.ctp = ctp;
 7     }
 8
 9     @Override
10     public void run() {
11         while(flag){
12             System.out.println("ExcuteClock.............");
13             this.ctp.clock();
14             CommonUtil.sleep("ExcuteClock",10);
15         }
16     }
17 }

import java.applet.Applet;
import java.applet.AudioClip;
import java.awt.FlowLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.ItemEvent;
import java.awt.event.ItemListener;
import java.awt.event.WindowEvent;
import java.awt.event.WindowListener;
import java.io.File;
import java.net.MalformedURLException;
import java.net.URI;
import java.net.URL;

import javax.swing.JButton;
import javax.swing.JDialog;
import javax.swing.JFrame;
import javax.swing.JTextArea;

@SuppressWarnings("serial")
public class ClockMusic extends JDialog implements ActionListener,ItemListener,Runnable,WindowListener{
    JButton btn_play,btn_stop,btn_loop;
    JTextArea testAreaClockIno;
    AudioClip clip;
    Thread thead;
    private String musicFileStr ;

    public ClockMusic(Clock clock,String musicFileStr) {
        clock(clock,musicFileStr);
    }

    public void clock(Clock clock,String musicFileStr){
        setSize(350, 200);
        setLayout(new FlowLayout());
        testAreaClockIno = new JTextArea("闹铃信息:\n"+clock.toClockString(),5,2);
        btn_stop = new JButton("停止");

        this.musicFileStr = musicFileStr;
        addWindowListener(this);  //添加监听函数，引发WindowEvent事件

        thead  = new Thread(this);
        thead.isDaemon();//守护线程

        add(testAreaClockIno);
        add(btn_stop);
        btn_stop.addActionListener(this);

        setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
        setVisible(true);

        //启动响铃线程
        itemStateChanged();
    }

    public void run() {
        try {
            File file = new File(this.musicFileStr);//创建一个file对象
            URI uri = file.toURI();//创建一个URI对象
            URL url = uri.toURL();//创建一个URL对象
            clip = Applet.newAudioClip(url);//创建一个音频对象

            //响铃
            clip.play();

        } catch (MalformedURLException e) {
            e.printStackTrace();
        }
    }

    public void itemStateChanged(ItemEvent e) {
        System.out.println("itemStateChanged(ItemEvent e).....run");
        if(!(thead.isAlive())){
            thead = new Thread(this);
        }
        try{
            //守护线程
            //thead.isDaemon();

            thead.start();
        }catch(Exception ee){
            System.out.println("线程异常");
        }
    }

    public void itemStateChanged() {
        if(!(thead.isAlive())){
            thead = new Thread(this);
        }
        try{
            thead.start();
        }catch(Exception ee){
            System.out.println("线程异常");
        }
    }

    @Override
    public void actionPerformed(ActionEvent e) {
        if(e.getSource() == btn_play){
            clip.play();
        }else if(e.getSource() == btn_stop){
            clip.stop();
        }else if(e.getSource() == btn_loop){
            clip.loop();
        }
    }
    @Override
    public void windowActivated(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowClosed(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowClosing(WindowEvent e) {
        (e.getWindow()).dispose();
        if (clip != null){
            clip.stop();
            clip = null;
        }

    }

    @Override
    public void windowDeactivated(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowDeiconified(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowIconified(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowOpened(WindowEvent e) {
        // TODO Auto-generated method stub

    }
}

 1 import java.util.TreeSet;
 2 import org.dom4j.DocumentException;
 3
 4 /***
 5  *
 6  * @author caojsvm
 7  * 闹铃设置信息获取来源接口，目前实现两种方式：excel、xml
 8  */
 9 public interface ClockSet {
10     TreeSet<Clock> getClockSet();
11     void initConfig()throws DocumentException;
12 }

 1 import java.util.Iterator;
 2 import java.util.TreeSet;
 3 import org.dom4j.DocumentException;
 4
 5 /***
 6  * 响铃的任务池
 7  * @author caojsvm
 8  *
 9  */
10 public class ClockTaskPool implements Runnable{
11     private static TreeSet<Clock> clockTreeSet = new TreeSet<Clock>(new ClockCompareTo());
12     private boolean flag = true;
13
14     public void run() {
15         while(flag){
16             System.out.println("ClockTaskPool.............");
17             getTaskPool();
18         }
19     }
20
21     public void addClock(TreeSet<Clock> ts){
22         for(Iterator<Clock> cIt = ts.iterator();cIt.hasNext();){
23             Clock clock = cIt.next();
24             if(!clock.isClockFlag()){
25                 clockTreeSet.add(clock);
26             }
27         }
28     }
29
30     /***
31      * 获取、更新响铃任务池
32      */
33     public void getTaskPool(){
34
35         /**
36          * 替换方法(xml 、excel替换，需要和ClockMain类中的同时替换方可)
37          */
38         //ClockXmlConfig appCfg = ClockXmlConfig.getInstance();
39         ClockExcelConfig appCfg = new ClockExcelConfig();
40
41
42         //读取闹铃设置信息
43         System.out.println("更新闹铃设置信息");
44         try {
45             appCfg.initConfig();
46             TreeSet<Clock> ts = appCfg.getClockSet();
47             addClock(ts);
48
49             System.out.println("更新：" + clockTreeSet);
50         } catch (DocumentException e) {
51             System.out.println("读取闹铃设置信息失败");
52             e.printStackTrace();
53         }finally{
54             CommonUtil.sleep("ClockTaskPool",1);;  //线程睡眠?秒
55         }
56
57     }
58
59     /***
60      * 响铃
61      */
62     public void clock(){
63         Iterator<Clock> it = clockTreeSet.iterator();
64         String today = CommonUtil.getDate("yyyyMMdd");
65         String todayTime = CommonUtil.getDate("yyyyMMddHHmm");
66
67         while(it.hasNext()){
68             Clock clock = it.next();
69             String clockDateTime = today+clock.getTime();
70             if(clockDateTime.compareTo(todayTime) <= 0 && !clock.isClockFlag()){
71                 new ClockMusic(clock, CommonUtil.musicFileStr + clock.getMusicName() + ".wav");
72                 clock.setClockFlag(true);
73             }
74         }
75
76     }
77
78 }

 1 import java.io.File;
 2 import java.util.Iterator;
 3 import java.util.List;
 4 import java.util.TreeSet;
 5
 6 import org.dom4j.Document;
 7 import org.dom4j.DocumentException;
 8 import org.dom4j.Element;
 9 import org.dom4j.Node;
10 import org.dom4j.io.SAXReader;
11
12
13 /***
14  * 获取xml中的闹铃设置信息
15  * @author caojsvm
16  *
17  */
18 public class ClockXmlConfig implements ClockSet{
19     private static ClockXmlConfig appCfg;
20     private TreeSet<Clock> clockSet ;
21     private ClockXmlConfig(){
22
23     }
24     public static ClockXmlConfig getInstance(){
25         if(appCfg == null){
26             synchronized (Clock.class) {
27                 if(appCfg == null){
28                     appCfg = new ClockXmlConfig();
29                 }
30             }
31         }
32         return appCfg;
33     }
34
35     /***
36      * 读取下xml文档,获得document对象。
37      * @throws DocumentException
38      */
39     @SuppressWarnings("unchecked")
40     public void initConfig() throws DocumentException {
41         SAXReader reader = new SAXReader();
42         String str = CommonUtil.WORK_PATH + "config" + File.separator + "Config.xml";
43
44         System.out.println("获取配置文件:"+str);
45         Document document = reader.read(new File(str));
46
47         /**
48          * 节点对象的操作方法
49          */
50
51         //获取文档根节点
52         Element root = document.getRootElement();
53         System.out.println("获取闹钟项目及设定信息....");
54
55         //获取根节点下面的所有子节点（不包过子节点的子节点）
56         List<Element> list = root.elements() ;
57         //遍历List的方法
58         clockSet = new TreeSet<Clock>(new ClockCompareTo());
59         for (Iterator<Element> it = list.iterator();it.hasNext();){
60             Element rundateEmt = (Element)it.next();
61             List<Element> rundateList = rundateEmt.elements() ;
62             Iterator<?> rundateIte= rundateList.iterator();
63             Clock clock = new Clock();
64             while (rundateIte.hasNext()){
65                 Object obj = (Object)rundateIte.next();
66                 if (obj instanceof Node){
67                     Node node = (Node)obj;
68                     if("name".equals(node.getName())){
69                         clock.setClockName(node.getText());
70                     }else if("startTime".equals(node.getName())){
71                         clock.setTime(node.getText());
72                     }else if("music".equals(node.getName())){
73                         clock.setMusicName(node.getText());
74                     }else{
75                         System.out.println("error,read config error.");
76                     }
77                 }
78             }
79             if(!clockSet.add(clock)){
80                 System.out.println("warning:Alarm clock definition repetition!");
81             }
82         }
83         System.out.println("闹铃信息获取完成。");
84     }
85
86     public TreeSet<Clock> getClockSet() {
87         return clockSet;
88     }
89 }

 1 import java.io.File;
 2 import java.text.SimpleDateFormat;
 3 import java.util.Date;
 4
 5 /***
 6  * 公共方法类
 7  * @author caojsvm
 8  *
 9  */
10 public class CommonUtil {
11     public static String WORK_PATH = System.getProperty("user.dir")+ File.separator;
12     public static String musicFileStr = CommonUtil.WORK_PATH + "music" + File.separator ;
13
14     /***
15      * 获取当天时间
16      * @param strFormat
17      * @return
18      */
19     public static String getDate(String strFormat) {
20         SimpleDateFormat sFormat = new SimpleDateFormat(strFormat);
21         Date date = new Date();
22         String str = sFormat.format(date);
23         return str;
24     }
25
26     /***
27      * 线程睡眠方法
28      * @param tName
29      * @param miao
30      */
31     public static void sleep(String tName,int miao){
32         try {
33             System.out.println("线程睡眠"+miao+"秒。");
34             Thread.sleep(miao*1000);
35         } catch (InterruptedException e) {
36             System.out.println("线程睡眠失败");
37             e.printStackTrace();
38         }
39     }
40
41
42     /***
43      * 转换时间格式，把08:59转化为0859
44      * @param str
45      * @return
46      */
47     public static String changeTime(String str){
48         int hour = Integer.parseInt(str.substring(0, str.indexOf(':')));
49         if(hour > 24){
50             throw new RuntimeException("设置的时间("+str+")格式有误，请检查。");
51         }
52         int size = str.length();
53         if(size == 4 && str.indexOf(':')==1)
54             return "0"+str.replace(":", "");
55         if(size == 5 && str.indexOf(':')==2)
56             return str.replace(":", "");
57
58         throw new RuntimeException("设置的时间("+str+")格式有误，请检查。");
59     }
60 }

以上，就是这个闹钟的全部代码了，虽然是个小程序，但是通过动手还是深入理解了一些知识点。

如有问题可留言哈。谢谢！

posted on 2022-01-13 17:15 新手木林阅读(345) 评论(0) 收藏举报

刷新页面返回顶部

新手木林

java闹钟小程序

导航

公告
