mybatis整合spring

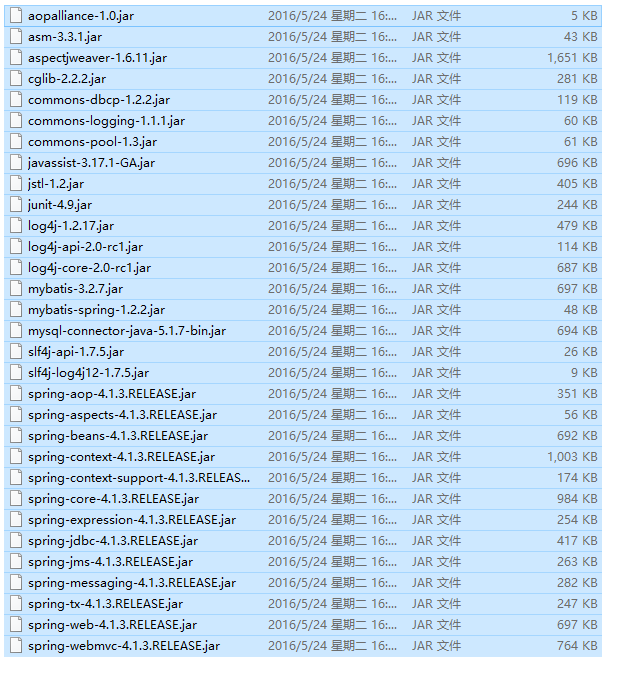

mybatis 整合spring需要的jar包



需要4个配置文件 放在src下即可



applicationContext.xml





<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
    http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
    http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
    http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
    <!-- 数据库配置文件路径 -->
    <context:property-placeholder location="classpath:db.properties"/>
    <!-- dbcp数据源 -->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}" />
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />
        <property name="maxActive" value="10" />
        <property name="maxIdle" value="5" />
    </bean>
    <!-- mybatis工厂 -->
    <bean id="sqlSessionFactoryBean"    class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"></property>
        <!--核心配置文件位置  -->
        <property name="configLocation" value="classpath:SqlMapConfig.xml  "/>
    </bean>
    <!-- mapper动态代理开发  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="mapper"></property>
    </bean>
</beans>





db.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/schoolpro?characterEncoding=utf-8
jdbc.username=root
jdbc.password=123456

log4j.properties

# Global logging configuration
log4j.rootLogger=DEBUG, stdout
# Console output...
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- 扫描包下的所有类 -->
    <typeAliases>
        <package name="pojo"/>
    </typeAliases>

</configuration>

在src下创建pojo包 pojo下创建实体类和包装类

SysUser.java

package pojo;

public class SysUser {
    private static final long serialVersionUID = 1L;
    private Integer Id;
    private String SysUserName;//管理员名字
    private String PassWord;//管理员密码
    @Override
    public String toString() {
        return "SysUser [Id=" + Id + ", SysUserName=" + SysUserName + ", PassWord=" + PassWord + "]";
    }
    public Integer getId() {
        return Id;
    }
    public void setId(Integer id) {
        Id = id;
    }
    public String getSysUserName() {
        return SysUserName;
    }
    public void setSysUserName(String sysUserName) {
        SysUserName = sysUserName;
    }
    public String getPassWord() {
        return PassWord;
    }
    public void setPassWord(String passWord) {
        PassWord = passWord;
    }
    public static long getSerialversionuid() {
        return serialVersionUID;
    }
}

SU.java

package pojo;

import java.io.Serializable;

public class SU implements Serializable{
    private static final long serialVersionUID = 1L;
    private SysUser sysuser;
    public SysUser getSysuser() {
        return sysuser;
    }
    public void setSysuser(SysUser sysuser) {
        this.sysuser = sysuser;
    }
}

在src 下创建Mapper包 在下创建mapper接口

SysUserMapper.java

package mapper;

import pojo.SysUser;

public interface SysUserMapper {
    //Mapper接口需要遵循的四个原则
        //接口方法名== SysUser.xml中Id名
        //返回值类型与Mapper.xml文件中返回值类型要一致
        //方法的入参类型与Mapper.xml中的入参的类型要一致
    public SysUser findUserById(Integer id);
}

在src下创建sqlmap包 下创建SysUser.xml 用于写数据库文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- 写sql语句 -->
<!-- namespace为命名空间 由于跟Spring整合后需填写Mapper接口路径 -->
<mapper namespace="mapper.SysUserMapper">
    <!-- 通过ID查询一个用户  -->
    <select id="findUserById" parameterType="Integer" resultType="SysUser">
        select * from sysUser where id = #{v}
    </select>
</mapper>

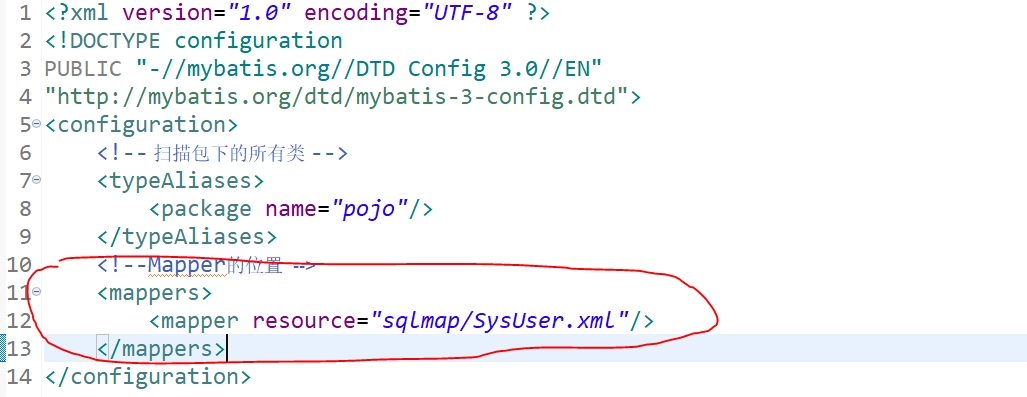

再在SqlMapConfig.xml下添加map







然后写个测试类测试下是否整合成功



package junit;

import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import mapper.SysUserMapper;
import pojo.SysUser;

public class mybatisTest {
    @Test
    public void testmybatis() throws Exception{
        //加载核心配置文件
        ApplicationContext ac = new ClassPathXmlApplicationContext("applicationContext.xml");
        SysUserMapper sysusermapper =  ac.getBean(SysUserMapper.class);
        SysUser sysuser=sysusermapper.findUserById(4);
        System.out.println(sysuser);
    }
}
