someip39

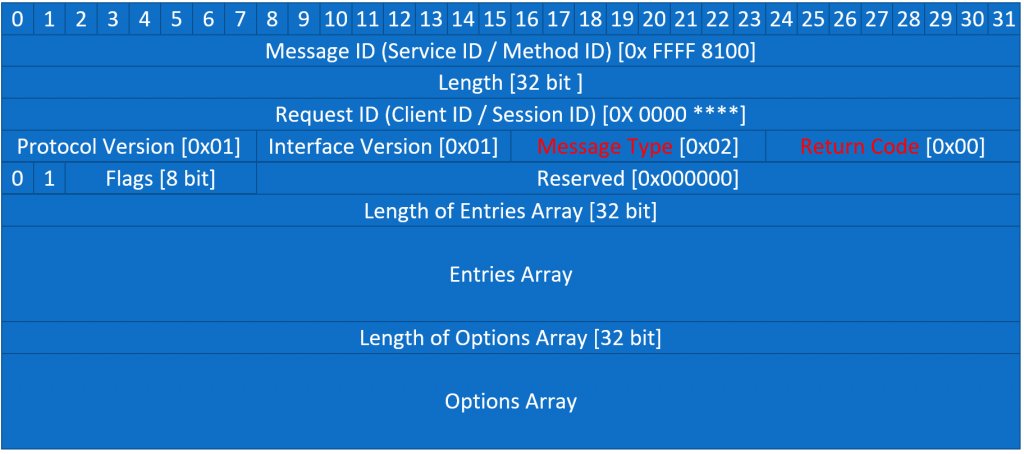

Message Type [8 Bit]



The length of the Message Type field shall be 8 bits.

消息类型字段的长度应为8位。

The Message Type field is used to differentiate the types of SOME/IP messages. SOME/IP-SD uses only event messages; thus, it always uses the same type.

消息类型字段用于区分SOME / IP消息的类型。 SOME / IP-SD仅使用event消息; 因此，它总是使用相同的类型。

The value for the Message Type field shall be statically set to 0x02.

消息类型字段的值应静态设置为0x02。

Return Code [8 Bit]



The length of the Return Code field shall be 8 bits.

返回码字段的长度应为8位。

The Return Code is used to signal whether a request was successfully been processed. This is not applicable for SOME/IP-SD;

返回代码用于表示请求是否已成功处理。 这不适用于SOME / IP-SD;

The Return Code field shall be statically set to 0x00.

返回码字段应静态设置为0x00。
