单臂路由

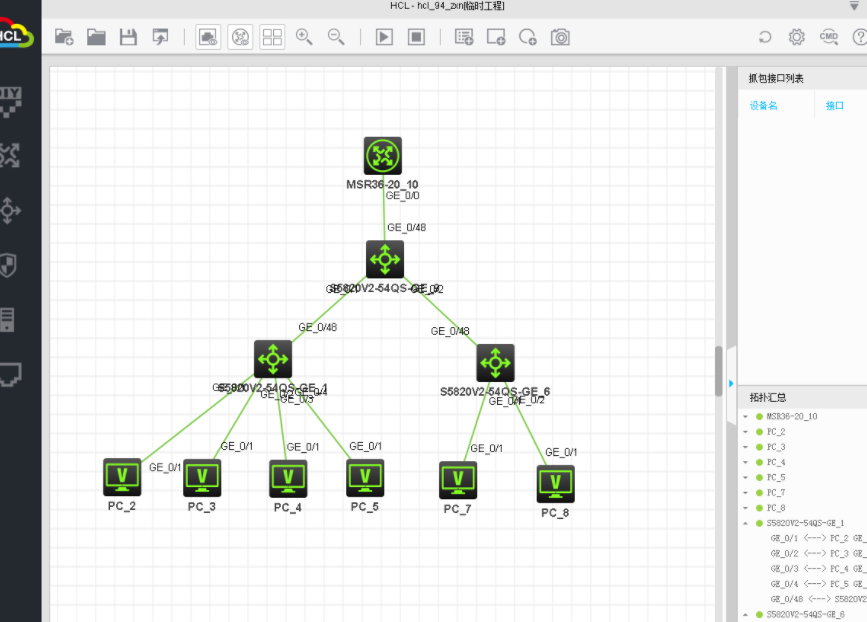

在实验一的基础上加交换机和路由器

交换机代码：

vlan 10
vlan 20
interface range gi 1/0/1 to gi 1/0/2
port link-type trunk
port trunk permit vlan 10 20
interface gi 1/0/48
port link-type trunk
port trunk permit vlan 10 20

s1代码：

sys
sysname s1
intercace gi 0/0.10
vlan-type dot1q vid 10



ip address 192.168.10.254 24
