Android 开发笔记

MessageDlg 询问提示框

示例:

MessageDlg('是否退出？',

System.UITypes.TMsgDlgType.mtConfirmation,

[System.UITypes.TMsgDlgBtn.mbOK, System.UITypes.TMsgDlgBtn.mbCancel],

0,procedure(const AResult: TModalResult)

Begin

if AResult= mrok then

Begin

//这里要把Close的操作再做一次

End;

End

);

普通提示框

MessageDlg('Ok', System.UITypes.TMsgDlgType.mtConfirmation, [System.UITypes.TMsgDlgBtn.mbOk], 0, nil) ;

对话框类型：

mtwarning——含有感叹号的警告对话框

mterror——含有红色叉符号的错误对话框

mtinformation——含有蓝色i符号的信息对话框

mtconfirmation——含有绿色问号的确认对话框

mtcustom——不含图标的一般对话框，对话框的标题是程序的名称

按钮组中的按钮：

mbYes——mrYes或6

mbNo——mrNo或7

mbOk——mrOk或1

mbCancel——mrCancel或2

mbHelp——help按钮

mbAbort——mrAbort或3

mbRetry——mrRetry或4

mbIgnore——mrIgnore或5

mbAll——mrAll或8

mbNoToAll——9

mbYesToAll——10

Edit 常用属性

设置Edit的ReturnKeyType为Search,表示回车键上的字母设置为"Search”(根据情况设置类别)
Edit的KillFocusByReturn设置为True,表示按回车键，Edit就失去焦点，隐藏虚拟键盘，

调用手机浏览器打开网页

需要引用单元

{$IFDEF Android}

Androidapi.Helpers,

FMX.Helpers.Android, Androidapi.JNI.GraphicsContentViewText,

Androidapi.JNI.Net, Androidapi.JNI.JavaTypes,

{$ENDIF}

方法:

procedure TLogin.XOpenURL(AUrl: String);

{$IFDEF Android}

var

Intent: JIntent;

{$ENDIF}

begin

{$IFDEF Android}

Intent := TJIntent.JavaClass.init(TJIntent.JavaClass.ACTION_VIEW,

TJnet_Uri.JavaClass.parse(StringToJString(AUrl)));

SharedActivity.startActivity(Intent);

{$ENDIF}

end;

保持后台运行

if (Key = vkHardwareBack)

//Windows下Escape键模拟返回键

or (Key = vkEscape) then

begin

//返回 (返回的窗口不能为空, 主窗口和登录窗口不允许返回)

if (CurrentFrameHistroy.ToFrame<>nil)

and (CurrentFrameHistroy.ToFrame<>LoginFrame)

and (CurrentFrameHistroy.ToFrame<>MainForm) then

begin

if CanReturnFrame(CurrentFrameHistroy) then

begin

//返回上一页

HideFrame(CurrentFrameHistroy.ToFrame,hfcttBeforeReturnFrame);

ReturnFrame(CurrentFrameHistroy);

//表示不关闭APP

Key:=0;

KeyChar:=#0;

end

else

begin

//表示当前Frame不允许返回

end;

end

else

begin

{$IFDEF ANDROID}

//程序退到后台挂起,需要引用Androidapi.Helpers单元

FMX.Types.Log.d('OrangeUI moveTaskToBack');

SharedActivity.moveTaskToBack(False);

//表示不关闭APP

Key:=0;

KeyChar:=#0;

{$ENDIF}

end;

INI文件操作并保存当前目录 需引用单元 System.IOUtils

// 保存

fIni := TiniFile.Create(TPath.GetPublicPath + '/SD_Config.ini') ;

try

fIni.WriteString('Server','Server', LoginFrame.edServer.Text);

fIni.WriteString('Server','DataBase', LoginFrame.edDataBase.Text);

fIni.WriteString('Server','UserName', LoginFrame.edSQLUser.Text);

fIni.WriteString('Server','Password', LoginFrame.edSQLPwd.Text);

fIni.writeString('Login','User', AUser);

fIni.writeString('Login','pwd', APwd);

finally

fIni.Free;

end;

长按触发事件 OnGesture

必需先设置属性: Touch--InteractiveGestures--LongTap 选中

case EventInfo.GestureID of

igiLongTap:

begin

// do

end;

将Delphi 安装目录下的 consts.pas 单元中提示框的英文改为中文, 编译后将DCU 复制到 delphi目录下的LIB

SMsgDlgWarning = 'Warning';

SMsgDlgError = 'Error';

SMsgDlgInformation = 'Information';

SMsgDlgConfirm = 'Confirm';

SMsgDlgYes = 'Yes';

SMsgDlgNo = 'No';

SMsgDlgOK = 'OK';

SMsgDlgCancel = 'Cancel';

SMsgDlgHelp = 'Help';

SMsgDlgHelpNone = 'No help available';

SMsgDlgHelpHelp = 'Help';

SMsgDlgAbort = 'Abort';

SMsgDlgRetry = 'Retry';

SMsgDlgIgnore = 'Ignore';

SMsgDlgAll = 'All';

SMsgDlgNoToAll = 'No to All';

SMsgDlgYesToAll = 'Yes to &All';

SMsgDlgClose = 'Close';

}

SMsgDlgWarning = '警告';

SMsgDlgError = '错误';

SMsgDlgInformation = '信息';

SMsgDlgConfirm = '确认';

SMsgDlgYes = '是';

SMsgDlgNo = '否';

SMsgDlgOK = '确定';

SMsgDlgCancel = '放弃';

SMsgDlgHelp = '帮助';

SMsgDlgHelpNone = '无效的帮助';

SMsgDlgHelpHelp = '帮助';

SMsgDlgAbort = '放弃';

SMsgDlgRetry = '重试';

SMsgDlgIgnore = '忽略';

SMsgDlgAll = '全部';

SMsgDlgNoToAll = '全不';

SMsgDlgYesToAll = '全是';

SMsgDlgClose = '关闭';

临时文件路径（支持安卓、IOS）

function GeFileName(const AFileName: string): string;

begin

{$IFDEF ANDROID}

Result := TPath.GetTempPath + '/' + AFileName;

{$ELSE}

{$IFDEF IOS}

Result := TPath.GetHomePath + '/Documents/' + AFileName;

{$ELSE}

Result := AFileName;

{$ENDIF}

end;

IOUtils文件说明

路径类

TPath.GetTempPath; {获取临时文件夹路径}

TPath.GetTempFileName; {获取一个临时文件名}

TPath.GetPathRoot(); {提取盘符, 如: c:\}

TPath.GetDirectoryName(); {提取路径}

TPath.GetFileName(); {提取文件名}

TPath.GetExtension(); {提取扩展名}

TPath.GetFileNameWithoutExtension(); {提取无扩展名的文件名}

TPath.ChangeExtension(); {更换扩展名}

TPath.DriveExists(); {检查路径中的驱动器是否存在}

TPath.GetFullPath(); {根据相对路径给出全路径}

TPath.HasExtension(); {判断是否有扩展名}

TPath.IsPathRooted(); {判断是否是绝对路径}

TPath.Combine(); {结合路径}

TPath.GetRandomFileName; {产生一个随机文件名}

TPath.GetGUIDFileName(); {用于产生一个唯一的文件名, 布尔参数决定名称中是否包含 -}

TPath.IsValidPathChar(); {判断给定的字符是否能用于路径名}

TPath.IsValidFileNameChar(); {判断给定的字符是否能用于文件名}

TPath.AltDirectorySeparatorChar; {Windows 下是 "\"}

TPath.AltDirectorySeparatorChar; {Windows 下是 "/"}

TPath.ExtensionSeparatorChar; {Windows 下是 "."}

TPath.PathSeparator; {Windows 下是 ";"}

TPath.VolumeSeparatorChar; {Windows 下是 ":"}

ExtractFilePath(TPath.GetSharedDownloadsPath + '\..') // 获取当前目录的上一级

//目录类

TDirectory.CreateDirectory(); {建立新目录}

TDirectory.Exists(); {判断文件夹是否存在}

TDirectory.IsEmpty(); {判断文件夹是否为空}

TDirectory.Copy(); {复制文件夹}

TDirectory.Move(); {移动文件夹}

TDirectory.Delete(); {删除文件夹, 第二个参数为 True 可删除非空文件夹}

TDirectory.GetDirectoryRoot(); {获取目录的根盘符, 如: C:\}

TDirectory.GetCurrentDirectory; {获取当前目录}

TDirectory.SetCurrentDirectory(); {设置当前目录}

TDirectory.GetLogicalDrives; {获取驱动器列表; 下有举例}

TDirectory.GetAttributes(); {获取文件夹属性, 譬如只读、存档等; 下有举例}

TDirectory.SetAttributes(); {设置文件夹属性; 下有举例}

//文件类

TFile.Exists();//判断指定的文件是否存在

TFile.Copy();//复制文件

TFile.Move();//移动文件

TFile.Delete();//删除文件

TFile.Replace();//替换文件

MotionSensor1: TMotionSensor; 加速传感器

MotionSensor1.Sensor(AngleAccelX、AngleAccelY、AngleAccelZ)加速度

procedure TAccelerometerForm.Timer1Timer(Sender: TObject);

var

LProp: TCustomMotionSensor.TProperty;

begin

for LProp in MotionSensor1.Sensor.AvailableProperties do

begin

{ get the data from the sensor }

case LProp of

TCustomMotionSensor.TProperty.AccelerationX:

begin

lbAccelerationX.Visible := True;

lbAccelerationX.Text := Format('Acceleration X: %6.2f', [MotionSensor1.Sensor.AccelerationX]);

end;

OrientationSensor1: TOrientationSensor;方位传感器

OrientationSensor1.Sensor（TiltX,TiltY,TiltZ）

procedure TOrientationSensorForm.Timer1Timer(Sender: TObject);

begin

{ get the data from the sensor }

lbTiltX.Text := Format('Tilt X: %f', [OrientationSensor1.Sensor.TiltX]);

lbTiltY.Text := Format('Tilt Y: %f', [OrientationSensor1.Sensor.TiltY]);

lbTiltZ.Text := Format('Tilt Z: %f', [OrientationSensor1.Sensor.TiltZ]);

lbHeadingX.Text := Format('Heading X: %f', [OrientationSensor1.Sensor.HeadingX]);

lbHeadingY.Text := Format('Heading Y: %f', [OrientationSensor1.Sensor.HeadingY]);

lbHeadingZ.Text := Format('Heading Z: %f', [OrientationSensor1.Sensor.HeadingZ]);

end;

TSensorManager传感器管理器（包含上述两种传感器，Samples\Object Pascal\Mobile Samples\Device Sensors and Services\SensorInfo）

TSensorCategory = (Location, Environmental, Motion, Orientation, Mechanical, Electrical, Biometric, Light, Scanner);

位置传感器，环境传感器，运动传感器，方向传感器，机械传感器，电传感器，生物传感器，光繁传感器，扫描仪传感器

TActionList组件可以添加标准事件（New Standard Action）

TakePhotoFromCameraAction1: TTakePhotoFromCameraAction; // 通过手机摄像头获取图片

TakePhotoFromLibraryAction1: TTakePhotoFromLibraryAction; //获取手机已存在图片

ShowShareSheetAction1: TShowShareSheetAction;//用其它程序分享图片（Bitmap.Assign();）

获取麦克风设置 FMX.Media

FMicrophone: TAudioCaptureDevice;

FMicrophone := TCaptureDeviceManager.Current.DefaultAudioCaptureDevice;

FMicrophone.FileName 设置路径

FMicrophone.State = TCaptureDeviceState.Capturing 设备状态

FMicrophone.StartCapture; //开始录音

FMicrophone.StopCapture; // 结束录音

MediaPlayer: TMediaPlayer; 媒体播放器

MediaPlayer.FileName 设置路径

MediaPlayer.Play; // 开始播放

MediaPlayer.Stop; // 结束播放

获取手机摄像头

Camera: TCameraComponent;

Camera.Active := True; //打开

Camera.Active := False; //停止

Camera.SampleBufferToBitmap(imgCameraView.Bitmap, True); //保存图片

TThread.Synchronize(TThread.CurrentThread, GetImage); //线程保存图片

Camera.Quality 图像质量

Camera.HasFlash 是否有闪光灯

Camera.TorchMode := TTorchMode.ModeOn; //打开闪光灯 Camera.FlashMode := FMX.Media.TFlashMode.fmFlashOff;

Camera.TorchMode := TTorchMode.ModeOff;//关闭闪光灯 Camera.FlashMode := FMX.Media.TFlashMode.fmFlashOn;

Camera.Kind := FMX.Media.TCameraKind.ckFrontCamera;//前置摄像头

Camera.Kind := FMX.Media.TCameraKind.ckBackCamera;//后置摄像头

获取设备信息

lbDeviceType.Text := Format('Device Type: %s', [JStringToString(TJBuild.JavaClass.MODEL)]);

lbOSName.Text := Format('OS Name: %s', [GetCodename(JStringToString(TJBuild_VERSION.JavaClass.RELEASE))]);

lbOSVersion.Text := Format('OS Version: %s', [JStringToString(TJBuild_VERSION.JavaClass.RELEASE)]);

GestureManager1: TGestureManager; 手势识别组件（igiRotate|旋转、igiZoom|缩放、igiLongTap|长按）

组件关联GestureManager1（Touch.GestureManager，Getures.Standard可以直接添加事件）

procedure TPinchZoom.FormGesture(Sender: TObject; const EventInfo: TGestureEventInfo; var Handled: Boolean);

var

LObj: IControl;

LImage: TImage;

LImageCenter: TPointF;

begin

if EventInfo.GestureID = igiZoom then

begin

LObj := Self.ObjectAtPoint(ClientToScreen(EventInfo.Location));

if LObj is TImage then

begin

if (not(TInteractiveGestureFlag.gfBegin in EventInfo.Flags)) and

(not(TInteractiveGestureFlag.gfEnd in EventInfo.Flags)) then

begin

{ zoom the image }

LImage := TImage(LObj.GetObject);

LImageCenter := LImage.Position.Point + PointF(LImage.Width / 2,

LImage.Height / 2);

LImage.Width := LImage.Width + (EventInfo.Distance - FLastDistance);

LImage.Height := LImage.Height + (EventInfo.Distance - FLastDistance);

LImage.Position.X := LImageCenter.X - LImage.Width / 2;

LImage.Position.Y := LImageCenter.Y - LImage.Height / 2;

end;

FLastDistance := EventInfo.Distance;

end;

获取地理信息

LocationSensor1: TLocationSensor;//定位

LocationSensor1.Active := swLocationSensorActive.IsChecked; //开始

NewLocation.Latitude //经度

NewLocation.Longitude //纬度

FGeocoder: TGeocoder;//地理编码

procedure TLocationForm.LocationSensor1LocationChanged(Sender: TObject;

const OldLocation, NewLocation: TLocationCoord2D);

const

LGoogleMapsURL: String = 'https://maps.google.com/maps?q=%s,%s';

var

ENUSLat, ENUSLong: String; // holders for URL strings

begin

ENUSLat := NewLocation.Latitude.ToString(ffGeneral, 5, 2, TFormatSettings.Create('en-US'));

ENUSLong := NewLocation.Longitude.ToString(ffGeneral, 5, 2, TFormatSettings.Create('en-US'));

{ convert the location to latitude and longitude }

lbLatitude.Text := 'Latitude: ' + ENUSLat;

lbLongitude.Text := 'Longitude: ' + ENUSLong;

{ and track the location via Google Maps }

WebBrowser1.Navigate(Format(LGoogleMapsURL, [ENUSLat, ENUSLong]));

// Setup an instance of TGeocoder

try

if not Assigned(FGeocoder) then

begin

if Assigned(TGeocoder.Current) then

FGeocoder := TGeocoder.Current.Create;

if Assigned(FGeocoder) then

FGeocoder.OnGeocodeReverse := OnGeocodeReverseEvent;

end;

except

ListBoxGroupHeader1.Text := 'Geocoder service error.';

end;

// Translate location to address

if Assigned(FGeocoder) and not FGeocoder.Geocoding then

FGeocoder.GeocodeReverse(NewLocation);

end;

//地理信息

procedure TLocationForm.OnGeocodeReverseEvent(const Address: TCivicAddress);

begin

ListBoxItemAdminArea.ItemData.Detail := Address.AdminArea; //省份

ListBoxItemCountryCode.ItemData.Detail := Address.CountryCode; //国家编码 CN

ListBoxItemCountryName.ItemData.Detail := Address.CountryName; //国家

ListBoxItemFeatureName.ItemData.Detail := Address.FeatureName; //镇

ListBoxItemLocality.ItemData.Detail := Address.Locality; //市

ListBoxItemPostalCode.ItemData.Detail := Address.PostalCode; //邮政编码

ListBoxItemSubAdminArea.ItemData.Detail := Address.SubAdminArea;//子级省

ListBoxItemSubLocality.ItemData.Detail := Address.SubLocality;//子级市

ListBoxItemSubThoroughfare.ItemData.Detail := Address.SubThoroughfare;//街道

ListBoxItemThoroughfare.ItemData.Detail := Address.Thoroughfare;//子街道

end;

获取本机信息

FMX.Android.DeviceInfo.GetInformation;

Memo1.Lines.Add('ID:'+FMX.Android.DeviceInfo.ID);

Memo1.Lines.Add('IMEI:'+FMX.Android.DeviceInfo.IMEI);

Memo1.Lines.Add('User:'+FMX.Android.DeviceInfo.User);

Memo1.Lines.Add('Host:'+FMX.Android.DeviceInfo.Host);

Memo1.Lines.Add('Tags:'+FMX.Android.DeviceInfo.Tags);

Memo1.Lines.Add('Time:'+FMX.Android.DeviceInfo.Time);

Memo1.Lines.Add('AType:'+FMX.Android.DeviceInfo.AType);

Memo1.Lines.Add('Board:'+FMX.Android.DeviceInfo.Board);

Memo1.Lines.Add('Radio:'+FMX.Android.DeviceInfo.Radio);

Memo1.Lines.Add('Brand:'+FMX.Android.DeviceInfo.Brand);

Memo1.Lines.Add('Model:'+FMX.Android.DeviceInfo.Model);

Memo1.Lines.Add('Serial:'+FMX.Android.DeviceInfo.Serial);

Memo1.Lines.Add('Device:'+FMX.Android.DeviceInfo.Device);

Memo1.Lines.Add('CpuABI:'+FMX.Android.DeviceInfo.CpuABI);

Memo1.Lines.Add('CpuABI2:'+FMX.Android.DeviceInfo.CpuABI2);

Memo1.Lines.Add('Display:'+FMX.Android.DeviceInfo.Display);

Memo1.Lines.Add('Product:'+FMX.Android.DeviceInfo.Product);

Memo1.Lines.Add('Hardware:'+FMX.Android.DeviceInfo.Hardware);

Memo1.Lines.Add('Bootloader:'+FMX.Android.DeviceInfo.Bootloader);

Memo1.Lines.Add('FingerPrint:'+FMX.Android.DeviceInfo.FingerPrint);

Memo1.Lines.Add('Manufacturer:'+FMX.Android.DeviceInfo.Manufacturer);

MapView1: TMapView;//地图足迹

WebBrowser1: TWebBrowser; //浏览器

WebBrowser1.Navigate('www.baidu.com'); //打开网页

WebBrowser1.URL := '';//打开网页

WebBrowser1.GoForward; //前进

WebBrowser1.GoBack;//后退

ShowMessage、MessageDlg、InputQuery //对话框很方便

消息提醒（从手机屏幕顶部向下滑动，出现的提示消息）

NotificationC: TNotificationCenter;

procedure TNotificationsForm.btnSendNotificationImmediatelyClick(

Sender: TObject);

var

Notification: TNotification;

begin

{ verify if the service is actually supported }

if NotificationC.Supported then

begin

Notification := NotificationC.CreateNotification;

try

Notification.Name := 'MyNotification';

Notification.AlertBody := 'Delphi for Mobile is here!';

Notification.FireDate := Now; //可修改发送消息时间

{ Send notification in Notification Center }

NotificationC.ScheduleNotification(Notification);

{ also this method is equivalent }

// NotificationService.PresentNotification(Notification);

finally

Notification.DisposeOf;

end;

end

end;

if NotificationC.Supported then

NotificationC.CancelNotification('MyNotification'); //取消消息

NotificationC.CancelAll; //取消所有消息

程序事件服务

var

FMXApplicationEventService: IFMXApplicationEventService;

begin

if TPlatformServices.Current.SupportsPlatformService (IFMXApplicationEventService, IInterface(FMXApplicationEventService)) then

FMXApplicationEventService.SetApplicationEventHandler(HandleAppEvent)

else

flag := false;

end;

function TForm1.HandleAppEvent(AAppEvent: TApplicationEvent; AContext: TObject) : boolean;

begin

if flag = false then

exit;

case AAppEvent of

TApplicationEvent.aeEnteredBackground:

begin

//当程序后台运行了

end;

Result := true;

end;

电话信息(Call拨号)

PhoneDialerService: IFMXPhoneDialerService;

获取电话服务信息

procedure TPhoneDialerForm.btnGetCarrierInfoClick(Sender: TObject);

var

PhoneDialerService: IFMXPhoneDialerService;

begin

{ test whether the PhoneDialer services are supported }

if TPlatformServices.Current.SupportsPlatformService(IFMXPhoneDialerService, IInterface(PhoneDialerService)) then

begin

{ if yes, then update the labels with the retrieved information }

CarrierNameItem.ItemData.Detail := PhoneDialerService.GetCarrier.GetCarrierName;

CountryCodeItem.ItemData.Detail := PhoneDialerService.GetCarrier.GetIsoCountryCode;

NetworkCodeItem.ItemData.Detail := PhoneDialerService.GetCarrier.GetMobileCountryCode;

MobileNetworkItem.ItemData.Detail := PhoneDialerService.GetCarrier.GetMobileNetwork;

end

else

ShowMessage('PhoneDialer service not supported');

end;

拨号

procedure TPhoneDialerForm.btnMakeCallClick(Sender: TObject);

var

PhoneDialerService: IFMXPhoneDialerService;

begin

{ test whether the PhoneDialer services are supported }

if TPlatformServices.Current.SupportsPlatformService(IFMXPhoneDialerService, IInterface(PhoneDialerService)) then

begin

{ if the Telephone Number is entered in the edit box then make the call, else

display an error message }

if edtTelephoneNumber.Text <> '' then

PhoneDialerService.Call(edtTelephoneNumber.Text)

else

begin

ShowMessage('Please type in a telephone number.');

edtTelephoneNumber.SetFocus;

end;

end

else

ShowMessage('PhoneDialer service not supported');

end;

Intent :TJIntent

uses

Androidapi.JNI.GraphicsContentViewText, FMX.Helpers.Android, Androidapi.JNI.Net, Androidapi.Helpers;

procedureCall_URI(constAAction : JString;constAURI: string);

var

uri: Jnet_Uri;

Intent: JIntent;

begin

uri := StrToJURI(AURI);

Intent := TJIntent.JavaClass.init(AAction, uri);

{Intent.putExtra()

//短信

Call_URI(TJIntent.JavaClass.ACTION_SENDTO, 'smsto:137114553XX');

Intent.putExtra(StringToJString('sms_body'), StringToJString('测试短信'));

如果是要发短信等复杂的应用,需要传递各种其他的参数.要用到Intent.putExtra()传递多个参数.

这里只封装最简单的,具体Intent.putExtra()的用法,可以查询Java的资料.大把的

}

SharedActivityContext.startActivity(Intent);

end;

//使用例子:

//打电话

Call_URI(TJIntent.JavaClass.ACTION_CALL, 'tel:137114553XX');

//打开地图显示某个坐标点

Call_URI(TJIntent.JavaClass.ACTION_VIEW, 'geo:38.899533,-77.036476');

//打开网页

Call_URI(TJIntent.JavaClass.ACTION_VIEW, 'www.baidu.com');

//发送电子邮件

Call_URI(TJIntent.JavaClass.ACTION_SENDTO, 'mailto:wr960204@126.com');

//播放音乐

Call_URI(TJIntent.JavaClass.ACTION_VIEW, 'file:///sdcard/download/最炫民族风.mp3');

回到主画面

procedure TForm1.Button3Click(Sender: TObject);

var

Intent: JIntent;

begin

Intent:= TJIntent.Create;

Intent.setAction(TJIntent.JavaClass.ACTION_MAIN);

Intent.addCategory(TJIntent.JavaClass.CATEGORY_HOME);

Intent.setFlags(TJIntent.JavaClass.FLAG_ACTIVITY_NEW_TASK);

MainActivity.startActivity(Intent);

end;

条码扫描（需要安装zxing）

procedure TINVMCForm.btnSCANClick(Sender: TObject);

var

uri: Jnet_Uri; //引用Androidapi.JNI.Net

Intent: JIntent; //引用Androidapi.JNI.GraphicsContentViewText

jstr:JString;

begin

inherited;

uri := StrToJURI('com.google.zxing.client.android.SCAN'); //引用FMX.Helpers.Android

//Intent := TJIntent.JavaClass.init(jstring(('com.google.zxing.client.android.SCAN');

Intent := TJIntent.JavaClass.init(StringToJString('com.google.zxing.client.android.SCAN'));

SharedActivityContext.startActivity(Intent);

end;

function GetZXingIntent: JIntent;

const

GOOGLE_ZXING = 'com.google.zxing.client.android.SCAN';

GOOGLE_ZXING_PACKAGE = 'com.google.zxing.client.android';

begin

Result := TJIntent.JavaClass.init(StringToJString(GOOGLE_ZXING));

Result.setPackage(StringToJString(GOOGLE_ZXING_PACKAGE));

end;

//是否存在对应

function IsIntentCallable(const AIntent: JIntent): Boolean;

var

LJPackageManager: JPackageManager;

begin

Result := False;

if Assigned(AIntent) then

begin

LJPackageManager := SharedActivityContext.getPackageManager;

Result := LJPackageManager.queryIntentActivities(AIntent,

TJPackageManager.JavaClass.MATCH_DEFAULT_ONLY).size <> 0;

end;

获取手机信息

function GetPhoneInfo(): string;

Var

TelephonyManager: JTelephonyManager;

TelephonyServiceNative: JObject;

begin

result := '';

TelephonyServiceNative := SharedActivityContext.getSystemService

(TJContext.JavaClass.TELEPHONY_SERVICE);

if Assigned(TelephonyServiceNative) then

TelephonyManager := TJTelephonyManager.Wrap

((TelephonyServiceNative as ILocalObject).GetObjectID);

result := JStringToString(TelephonyManager.getLine1Number);//取得手机号

//TelephonyManager.getDeviceId 取IMEI

//TelephonyManager.getLine1Number 取MSISDN 手机号,大部分SIM卡中不会写入这个信息

//TelephonyManager.getSimSerialNumber 取ICCID

//TelephonyManager.getSubscriberId 取IMSI 运营商实际上是用这个查询的

end;

手机振动

uses FMX.Helpers.Android, Androidapi.JNI.App, Androidapi.JNI.Os, Androidapi.JNIBridge, FMX.StdCtrls;

procedure TForm1.Button2Click(Sender: TObject);

function GetVibratorArray(const AintArr:array of int64):TJavaArray<int64>;//震动规律函数

var

Lindex:integer;

begin

Result:=TJavaArray<int64>.Create(Length(AintArr));

for Lindex:=Low(AintArr) to High(AintArr) do

Result.Items [Lindex]:= AintArr[Lindex];

end;

var

LVibrator:JVibrator;

LJavaArray:TJavaArray<int64>;

begin

LVibrator:=TJVibrator.Wrap((SharedActivity.getSystemService(TJActivity.javaClass.VIBRATOR_SERVICE ) as iLocalObject).GetObjectID );//引用震动

if not LVibrator.hasVibrator then

begin

showmessage('手机不支持震动');

exit;

end;

LVibrator.vibrate(200);//震动200ms

LVibrator.cancel ;//立刻停止震动

LJavaArray:=GetVibratorArray([200,1000,3000,5000]);//调用震动规律

LVibrator.vibrate(LJavaArray,-1);//不重复，震动一次

LJavaArray:=GetVibratorArray([200,1000,3000,5000]);//调用震动规律

LVibrator.vibrate(LJavaArray,0);//v不停重复，大于0的参数，可以指定震动次数

end;

网络传送文件（类似Server/Client）

TTetheringManager|设备管理、TTetheringAppProfile|文件发送

蓝牙

System.Bluetooth单元中主要包含一下几个类

TBluetoothManager、TBluetoothDeviceList、TBluetoothAdapter、TBluetoothDevice、TBluetoothService、

TBluetoothServiceList、TBluetoothSocket

TBluetoothManager是蓝牙管理器，用于蓝牙设备管理，包括发现蓝牙设备，获取配对设备，处理远程配对请求等功能

TBluetoothDeviceList是蓝牙设备列表，TBluetoothDeviceList = class(TObjectList<TBluetoothDevice>),可以通过TBluetoothManager.GetPairedDevices获得配对设备列表

TBluetoothAdapter本机蓝牙设备，实现配对、取消配对等功能，可通过TBluetoothManager.CurrentAdapter得到当前蓝牙设备

TBluetoothDevice远端蓝牙设备，每个远端设备可以提供若干个服务（TBluetoothService），

TBluetoothService远端蓝牙设备服务，包括服务名和UUID

TBluetoothServiceList服务列表 = class(TList<TBluetoothService>);可通过TBluetoothDevice.GetServices获得远端设备服务列表

TBluetoothSocket蓝牙通讯套接字,通过 TBluetoothDevice.CreateClientSocket(StringToGUID(ServiceGUI), True/False)创建

TimeEdit1: TTimeEdit;//时间选择

HorzScrollBox1: THorzScrollBox;横拉组件

MultiView1: TMultiView;//多余视图（Mode主明细表，可更改弹出方式）

EMSProvider: TEMSProvider;//企业移动服务

BBAS Client(组件组TKinveyProvider、TParseProvider);移动客户端数据连接组件

TabItem1: TTabItem;//多页

退出键不退出程序

procedure TPForm.FormKeyUp(Sender: TObject; var Key: Word; var KeyChar: Char;

Shift: TShiftState);

begin

if Key = vkHardwareBack then

begin

{$IFDEF ANDROID}

MessageDlg('确认退出吗？', System.UITypes.TMsgDlgType.mtInformation,

[

System.UITypes.TMsgDlgBtn.mbYes,

//System.UITypes.TMsgDlgBtn.mbNo,

System.UITypes.TMsgDlgBtn.mbCancel

], 0, System.UITypes.TMsgDlgBtn.mbCancel,

procedure(const AResult: TModalResult)

begin

if AResult = mrYES then

MainActivity.finish; { 退出程序 } // use FMX.Platform.Android

end);

{$ENDIF ANDROID}

//close;

Key := 0;

exit;

end;

Application.FormFactor.Orientations := [TFormOrientation.Landscape]; //坚屏

Application.FormFactor.Orientations := [TFormOrientation.Portrait];//横屏

当前网络状态（Androidapi.JNI.Network.pas）

IsConnected|连接，IsWiFiConnected|Wifi是否连接，IsMobileConnected|移动网络是否连接

剪贴版FClipboardService: IFMXClipboardService;

TPlatformServices.Current.SupportsPlatformService(IFMXClipboardService, IInterface(FClipboardService));

FClipboardService.SetClipboard(Tvalue(Edit1.Text)); //复制

FClipboardService.GetClipboard.ToString; //粘贴

键盘FService: IFMXVirtualKeyboardToolbarService;

if TPlatformServices.Current.SupportsPlatformService (IFMXVirtualKeyboardToolbarService, IInterface(FService)) then

begin

FService.SetToolbarEnabled(true);

FService.SetHideKeyboardButtonVisibility(true);

end;

添加桌面快捷方式

procedure Tform1.Button1Click(Sender: TObject);

{$IFDEF ANDROID}

var

ShortcutIntent: JIntent;

addIntent: JIntent;

wIconIdentifier : integer;

wIconResource : JIntent_ShortcutIconResource;

{$ENDIF}

begin

{$IFDEF ANDROID}

ShortcutIntent := TJIntent.JavaClass.init(SharedActivityContext, SharedActivityContext.getClass);

ShortcutIntent.setAction(TJIntent.JavaClass.ACTION_MAIN);

addIntent := TJIntent.Create;

addIntent.putExtra(TJIntent.JavaClass.EXTRA_SHORTCUT_INTENT, TJParcelable.Wrap((shortcutIntent as ILocalObject).GetObjectID));

addIntent.putExtra(TJIntent.JavaClass.EXTRA_SHORTCUT_NAME, StringToJString(Application.Title));

addIntent.setAction(StringToJString('com.android.launcher.action.INSTALL_SHORTCUT'));

// get icon resource identifier

wIconIdentifier := SharedActivity.getResources.getIdentifier(StringToJString('ic_launcher'), StringToJString('drawable'), StringToJString('com.embarcadero.Project1'));

wIconResource := TJIntent_ShortcutIconResource.JavaClass.fromContext(SharedActivityContext, wIconIdentifier);

// set icon for shortcut

addIntent.putExtra(TJIntent.JavaClass.EXTRA_SHORTCUT_ICON_RESOURCE, TJParcelable.Wrap((wIconResource as ILocalObject).GetObjectID));

SharedActivityContext.sendBroadcast(addIntent);

{$ENDIF}

end;

截取屏幕图片

function MakeScaleScreenshot(Sender: TControl): TBitmap;

function GetScreenScale: Single;

var

ScreenService: IFMXScreenService;

begin

Result := 1;

if TPlatformServices.Current.SupportsPlatformService(IFMXScreenService, IInterface(ScreenService)) then

begin

Result := ScreenService.GetScreenScale;

end;

var

fScreenScale: Single;

begin

fScreenScale := GetScreenScale;

Result := TBitmap.Create(Round(Sender.Width * fScreenScale),

Round(Sender.Height * fScreenScale));

Result.Clear(0);

if Result.Canvas.BeginScene then

try

Sender.PaintTo(Result.Canvas, RectF(0, 0, Result.Width, Result.Height));

finally

Result.Canvas.EndScene;

end;

判断屏幕是否关闭

uses Androidapi.JNI.android.os.PowerManager,
     Androidapi.JNI.GraphicsContentViewText,
     Androidapi.JNI.JavaTypes,
     Androidapi.Helpers,
     Androidapi.JNIBridge;
{$R *.NmXhdpiPh.fmx ANDROID}

function GetPowerManager:JPowerManager ;
var
 Native:JObject ;
begin
 Native:=SharedActivityContext.getSystemService(TJContext.JavaClass.POWER_SERVICE);
 if not Assigned(Native) then
 begin
   raise Exception.Create('Could not locate Connectivity Service');
 end;
 Result:=TJPowerManager.Wrap((Native as ILocalObject).GetObjectID) ;
 if not Assigned(Result) then
 begin
   raise Exception.Create('Could not access Connectivity Manager');
 end;
end;

procedure TForm1.Button1Click(Sender: TObject);
var
 PowerManager:JPowerManager ;
begin
 PowerManager:=GetPowerManager ;
 if PowerManager.isScreenOn then
 begin
   ShowMessage('未关闭状态');
 end
 else
 begin
   ShowMessage('已经关闭状态');
 end;
end;

// 获取版本号

利用IFMXApplicationService接口，访问AppVersion即可取得应用的版本号。

代码如下，Win32,Android测试通过，需要引用FMX.Platform单元。

function GetAppVersion: String;

var

ApplicationService: IFMXApplicationService;

begin

result := '';

if TPlatformServices.Current.SupportsPlatformService(IFMXApplicationService,

ApplicationService) then

begin

result := ApplicationService.AppVersion;

end;

还记得有朋友针对每个平台做过实现，很烦麻，利用这个就简化多了，同时，是Xe8自带的。

后记：

Delphi xe8 update1,Delphi 10对于win32平台，只取出前两位做为版本号，如1.0.0.0,则取出为1.0,原因在这里：

单元FMX.PlatForm.Win：

function TPlatformWin.GetVersionString: string;

const

UndefinedVersionInfo = Cardinal(-1);

var

VersionInfo: Cardinal;

begin

VersionInfo := GetFileVersion(ParamStr(0));

if VersionInfo <> UndefinedVersionInfo then

Result := Format('%d.%d', [HiWord(VersionInfo), LoWord(VersionInfo)])

else

Result := string.Empty;

end;

// 手动关闭/显示虚拟键盘 uses FMX.VirtualKeyboard, FMX.Platform

var

kbd:IFMXVirtualKeyboardService;

begin

kbd:=TPlatformServices.Current.GetPlatformService(IFMXVirtualKeyboardService) as IFMXVirtualKeyboardService;

kbd.ShowVirtualKeyboard(edPwd); //显示虚拟键盘

//kbd.HideVirtualKeyboard; //隐藏虚拟键盘

end

// apk 加固 (马花藤家免费加固) 加固后得用 jarsigner重新签名，

// 判断当前窗体状态

创建时注册

procedure TMainForm.FormCreate(Sender: TObject);

var

SvcEvents: IFMXApplicationEventService;

begin

if TPlatformServices.Current.SupportsPlatformService

(IFMXApplicationEventService, IInterface(SvcEvents))

then

SvcEvents.SetApplicationEventHandler(HandleAppEvent);

end;

// 事件

function TMainForm.HandleAppEvent(AAppEvent: TApplicationEvent;

AContext: TObject): Boolean;

var

fState: string;

begin

case AAppEvent of

TApplicationEvent.FinishedLaunching:

fState := 'FinishedLaunching'; //完成开始?

TApplicationEvent.BecameActive:

fState := 'BecameActive'; // 激活(后台切换过来,或者点亮屏幕,都会触发)

TApplicationEvent.WillBecomeInactive:

fState := 'WillBecomeInactive'; // 将变成后台运行

TApplicationEvent.EnteredBackground:

fState := 'EnteredBackground'; // 输入背景(弹出后台菜单时)

TApplicationEvent.WillBecomeForeground:

fState := 'WillBecomeForeground'; // 将转为前景

TApplicationEvent.WillTerminate:

fState := 'WillTerminate'; // 将终止

TApplicationEvent.LowMemory:

fState := 'LowMemory'; // 内存不足

TApplicationEvent.TimeChange:

fState := 'TimeChange'; // 时间变化

TApplicationEvent.OpenURL:

fState := 'OpenURL'; //打开网址

end;

// 激活窗体时重连数据

if (fState = 'BecameActive') and (_DataConnect.FConnected) then

begin

//ShowHintFrame( self, fState );

_DataConnect.TestConnect;

end;

Result := true;

end;

// Edit 只允许输入数值

1. 设置编辑框的输入格式 FilterChar = 0123456789.

2. 处理多次输入小数点的情况

procedure TForm1.SkinFMXEdit1Validating(Sender: TObject; var Text: string);

var

aText:String;

begin

aText := LeftStr(Text,length(Text)-1);

if (pos('.',aText) > 0 ) and (Text[length(Text)]='.') then

begin

Text := aText;

end;

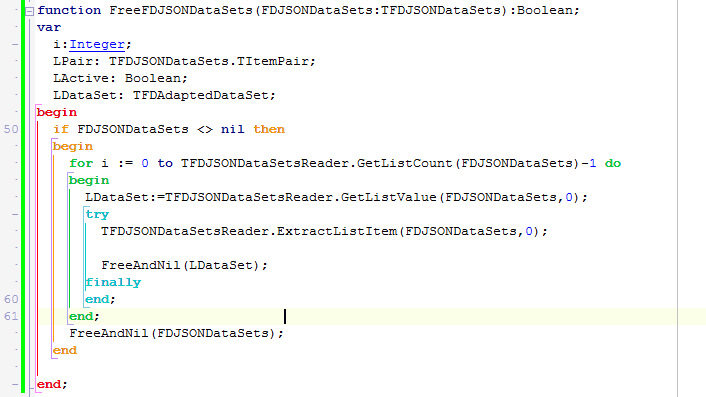

//动态释放 TFDJSONDataSets;

// 调用摄像头

https://www.cnblogs.com/FKdelphi/p/4786799.html

FMX VCL TAlphaColor TColor 互转

function ColorToAlphaColor(AColor: TColor; Alpha:Byte = $FF): TAlphaColor;

begin

TAlphaColorRec(Result).A := Alpha;

TAlphaColorRec(Result).R := TColorRec(AColor).R;

TAlphaColorRec(Result).G := TColorRec(AColor).G;

TAlphaColorRec(Result).B := TColorRec(AColor).B;

end;

function AlphaColorToColor(AAlpahColor: TAlphaColor; IgnoreAlpha: Boolean = True): TColor;

begin

if IgnoreAlpha then

begin

TColorRec(Result).R := TAlphaColorRec(AAlpahColor).R;

TColorRec(Result).G := TAlphaColorRec(AAlpahColor).G;

TColorRec(Result).B := TAlphaColorRec(AAlpahColor).B;

end

else

begin

TColorRec(Result).R := TAlphaColorRec(AAlpahColor).R * TAlphaColorRec(AAlpahColor).A div $FF;

TColorRec(Result).G := TAlphaColorRec(AAlpahColor).G * TAlphaColorRec(AAlpahColor).A div $FF;

TColorRec(Result).B := TAlphaColorRec(AAlpahColor).B * TAlphaColorRec(AAlpahColor).A div $FF;

end;

来源： http://blog.sina.com.cn/s/blog_14c50030e0102y5c9.html

Android 沉浸式状态栏(透明状态栏) 和导航栏方法

<resources xmlns:android="http://schemas.android.com/apk/res/android">
<style name="AppTheme" parent="@android:style/Theme.NoTitleBar">
<item name="android:windowBackground">@drawable/splash_image</item>
<item name="android:windowNoTitle">true</item>
<item name="android:windowFullscreen">true</item>
<item name="android:windowContentOverlay">@null</item>
<item name="android:windowTranslucentStatus">true</item>
<item name="android:windowTranslucentNavigation">false</item>
<item name="android:statusBarColor">@android:color/transparent</item>
</style>
</resources>

来源： https://blog.csdn.net/u011784006/article/details/79570445

修改编译后的 Style.xml 文件添加内容

<item name="android:windowTranslucentStatus">true</item> // 状态栏值为True 代表透明

<item name="android:windowTranslucentNavigation">false</item> // 虚拟导航栏 Ture=透明

// 使用TrueType 字库做图标 iconfont

1.修改Delphi 源码 FMX.FontGlyphs.Android.pas。（文件位于 C:\Program Files (x86)\Embarcadero\Studio\15.0\source\fmx）

A. 添加对 System.IOUtils to 的引用到 uses 部分。

B. 找到 procedure TAndroidFontGlyphManager.LoadResource;

添加一个变量 FontFile: string;
在过程中有一行是：Typeface := TJTypeface.JavaClass.create(FamilyName, TypefaceFlag);
将上面的内容替换为:
FontFile := TPath.GetDocumentsPath + PathDelim + CurrentSettings.Family + '.ttf';

if FileExists(FontFile) then

Typeface := TJTypeface.JavaClass.createFromFile(StringToJString(FontFile))

else

Typeface := TJTypeface.JavaClass.Create(FamilyName, TypefaceFlag);

2.制作ttf图标字库

来到www.iconfont.cn，注册一个用户，这是必须的
然后，你可以选择自己要用的图标，加入购物车。最好从一组图标中选择，保持风格一致。
选择好所有的图标后，进入购物车，在这里，你可以建立一个项目，把选择的图标加入到你建立的项目中。
选择你的项目，下载到本地，你会得到一个download.zip打开他，会看到里面的iconfont.tff文档，这就是我们需要的TrueType字库。
把iconfont.tff拖放到c:\windows\fonts，在windows系统中安装他。

3. 将 iconfont.tff 添加到 Depolyment 中, 设置远程路径为 .\assets\internal\

4. 图标使用方法

设置 TextSettings 的字体家族（FontFamily）属性为 iconfont

运行期间给Text 赋值, 如: lable1.Text := #$e624; // 注意字体图标代码原型是  在Delphi中要将 &#x 要改为 #$ + 后面代码e624

动态转换: char(StrToInt('$'+AItem.Detail5))

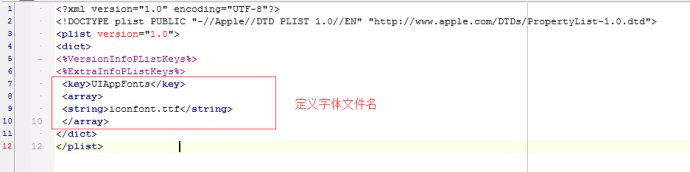

用于IOS 的话要修改配置文件 info.plist.TemplateOS.xml,把字体文件名加进去

<key>UIAppFonts</key>

<array>

<string>iconfont.ttf</string>

</array>

Delphi <wbr>FMX <wbr>开发APP使用TrueType字库做图标

截取指定字符串读取网址的最后文件名如: https://static.pexels.com/photos/792/wood-landscape-mountains-nature.jpg

FFileName := Edit1.Text.Substring(Edit1.Text.LastIndexOf('/') +1); // 结果为 wood-landscape-mountains-nature.jpg

// 调用相机拍照图片不清晰, 如何保持原图质量?

1. 拍照或调用相册前,设置图片最大尺寸

// 初始化图片尺寸, 拍照 / 相册
ActionTakePhotoFromCamera.MaxHeight := 102400;
ActionTakePhotoFromCamera.MaxWidth := 102400;
ActionTakePhotoFromLibrary.MaxHeight := 102400;
ActionTakePhotoFromLibrary.MaxWidth := 102400;


// 初始化图片尺寸, 拍照 / 相册
ActionTakePhotoFromCamera.MaxHeight := 102400;
ActionTakePhotoFromCamera.MaxWidth := 102400;
ActionTakePhotoFromLibrary.MaxHeight := 102400;
ActionTakePhotoFromLibrary.MaxWidth := 102400;

2. Image保存图片时要设置质量参数

var
  Quality:TBitmapCodecSaveParams; // 图片保存
  ...
  quality1.Quality:=100; //100% 图片质量
  Image1.Bitmap.SaveToFile( System.IOUtils.tPath.getsharedcamerapath+'/temp.jpg', @quality1 );


var
  Quality:TBitmapCodecSaveParams; // 图片保存
  ...
  quality1.Quality:=100; //100% 图片质量
  Image1.Bitmap.SaveToFile( System.IOUtils.tPath.getsharedcamerapath+'/temp.jpg', @quality1 );

Delphi跨平台下的GetTickCount,GetCurrentThreadID

在Windows下只要uses Windows,就有这两个API可调用GetTickCount,GetCurrentThreadID

如果我们需要跨平台使用这两个函数，就不能仅仅Uses Windows了。

如果需要跨平台使用GetTickCount,可以uses System.Classes，然后使用类方法：TThread.GetTickCount

如果需要跨平台使用GetCurrentThreadID,则仅需引用不同的单元即可：

uses

{$ifdef MSWINDOWS}

Windows;

{$endif}

{$ifdef POSIX}

Posix.Pthread;

{$endif}

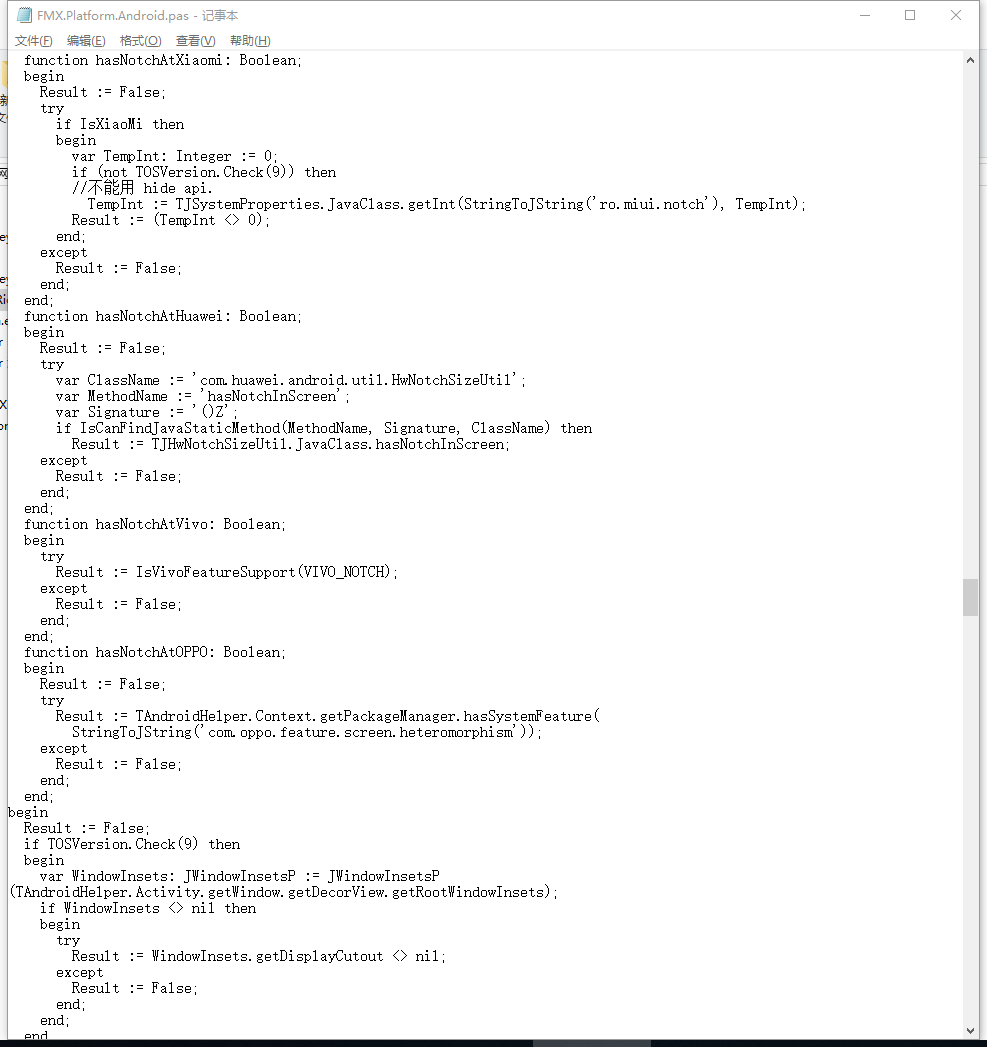

全面屏下方出无法填满

https://blog.csdn.net/weelyy/article/details/79284332?tdsourcetag=s_pctim_aiomsg

建议开发者在自己App AndroidManifest的Application标签下面增加下面一段代码：

// Android 播放声音

调用安卓原生类播放:

JRingtoneManager 类播放







var
  fRing: JRingtoneManager;
  uri: Jnet_Uri;
// TYPE_RINGTONE 电话铃
  // TYPE_NOTIFICATION 提示音（响一下）
  // TYPE_ALARM 闹钟音
  //uri := StrToJURI('file://' + IOUtils.TPath.GetDocumentsPath+PathDelim+'beep.wav');
  // 获取系统默认音频位置
  uri := TJRingtoneManager.JavaClass.getDefaultUri(
    TJRingtoneManager.JavaClass.TYPE_NOTIFICATION
  );
  //加载
  if uri <> nil then
    fRing := TJRingtoneManager.JavaClass.getRingtone( TAndroidHelper.Activity, uri);
  // 播放
  fRing.Play;



// JSoundPool 类播放短音频文件 (占用资源少,推荐提示音调用)

// 实例化 {第一个参数为soundPool可以支持的声音数量，这决定了Android为其开设多大的缓冲区, 第二个参数声音类型, 第三个参数声音质量,越高占用资源也越多}
  fJSoundPool := TJSoundPool.JavaClass.init(1,TJAudioManager.JavaClass.STREAM_NOTIFICATION,5);
  // 加载音频文件 {参数:音频文件路径, 优先级}
  fJSoundPool.load( StringToJString(IOUtils.TPath.GetDocumentsPath+PathDelim+'beep.wav'), 1 );
// 播放
 fJSoundPool.play(1,1, 1, 0, 0, 1);
 //play参数:第一个参数为id，id即为放入到soundPool中的顺序，比如现在beep.wav是第一个，因此它的id就是1。
 //第二个和第三个参数为左右声道的音量控制。第四个参数为优先级，由于只有这一个声音，因此优先级在这里并不重要:优先级，值越大，优先级越高。
 //第五个参数为是否循环播放，0为不循环，-1为循环。最后一个参数为播放比率，从0.5到2，一般为1，表示正常播放。


// 实例化 {第一个参数为soundPool可以支持的声音数量，这决定了Android为其开设多大的缓冲区, 第二个参数声音类型, 第三个参数声音质量,越高占用资源也越多}
  fJSoundPool := TJSoundPool.JavaClass.init(1,TJAudioManager.JavaClass.STREAM_NOTIFICATION,5);
  // 加载音频文件 {参数:音频文件路径, 优先级}
  fJSoundPool.load( StringToJString(IOUtils.TPath.GetDocumentsPath+PathDelim+'beep.wav'), 1 );
// 播放
 fJSoundPool.play(1,1, 1, 0, 0, 1);
 //play参数:第一个参数为id，id即为放入到soundPool中的顺序，比如现在beep.wav是第一个，因此它的id就是1。
 //第二个和第三个参数为左右声道的音量控制。第四个参数为优先级，由于只有这一个声音，因此优先级在这里并不重要:优先级，值越大，优先级越高。
 //第五个参数为是否循环播放，0为不循环，-1为循环。最后一个参数为播放比率，从0.5到2，一般为1，表示正常播放。

https://blog.csdn.net/pku_android/article/details/7625868?utm_source=blogxgwz7

// TMediaPlayer控件播放

// 创建播放器...
  Speaker := TMediaPlayer.Create(Self);

3、使用如下过程播放声音：
//
// 播放声音...
procedure TMainForm.MsgArriveSound;
begin
   Speaker.FileName := IOUtils.TPath.GetDocumentsPath+PathDelim+'beep.wav';
   if Assigned(Speaker.Media) then
     Speaker.Play;
end;


// 创建播放器...
  Speaker := TMediaPlayer.Create(Self);
3、使用如下过程播放声音：
//
// 播放声音...
procedure TMainForm.MsgArriveSound;
begin
   Speaker.FileName := IOUtils.TPath.GetDocumentsPath+PathDelim+'beep.wav';
   if Assigned(Speaker.Media) then
     Speaker.Play;
end;

// 获取系统默认提示音

引用单元
  Androidapi.JNI.Media
  Androidapi.Helpers
  Androidapi.JNI.Net

procedure TfrmWatch.PlayAlertSound;
var
  vRingtone: JRingtone;
  vNotificationRri: Jnet_Uri;
begin
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri(TJRingtoneManager.JavaClass.TYPE_NOTIFICATION);
  vRingtone := TJRingtoneManager.JavaClass.getRingtone(TAndroidHelper.Context.getApplicationContext, vNotificationRri);
  vRingtone.play;
end;

 //提示音
if ComboBox1.Selected.Text='TYPE_ALARM'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_ALARM);

 //电话铃声
if ComboBox1.Selected.Text='TYPE_RINGTONE'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_RINGTONE);

  //消息提示音
 if ComboBox1.Selected.Text='TYPE_NOTIFICATION'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_NOTIFICATION);










引用单元
  Androidapi.JNI.Media
  Androidapi.Helpers
  Androidapi.JNI.Net
procedure TfrmWatch.PlayAlertSound;
var
  vRingtone: JRingtone;
  vNotificationRri: Jnet_Uri;
begin
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri(TJRingtoneManager.JavaClass.TYPE_NOTIFICATION);
  vRingtone := TJRingtoneManager.JavaClass.getRingtone(TAndroidHelper.Context.getApplicationContext, vNotificationRri);
  vRingtone.play;
end;
 //提示音
if ComboBox1.Selected.Text='TYPE_ALARM'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_ALARM);
 //电话铃声
if ComboBox1.Selected.Text='TYPE_RINGTONE'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_RINGTONE);
  //消息提示音
 if ComboBox1.Selected.Text='TYPE_NOTIFICATION'
then
  vNotificationRri := TJRingtoneManager.JavaClass.getDefaultUri
  (TJRingtoneManager.JavaClass.TYPE_NOTIFICATION);



// 定义广播接收器

引用单元 uses
Androidapi.JNIBridge, Androidapi.JNI.App,
Androidapi.JNI.GraphicsContentViewText,
Androidapi.JNI.JavaTypes, Androidapi.Helpers, Androidapi.JNI.Embarcadero

//
type
  // 接收广播的类
	TScanBroadcastReceiver = class(TJavaLocal, JFMXBroadcastReceiverListener)
  public
    // 重写广播接收事件
    procedure onReceive(context: JContext; intent: JIntent); cdecl;
  end;

  // 变量
 FListener: TScanBroadcastReceiver;
 FReceiver: JFMXBroadcastReceiver;
 FFilter: JIntentFilter;

//
procedure TForm2.FormCreate(Sender: TObject);
begin
  // 创建接收者
	FListener := TScanBroadcastReceiver.Create();
  if not Assigned(FListener) then
    Exit;

  FReceiver := TJFMXBroadcastReceiver.JavaClass.init(FListener);
  if not Assigned(FReceiver) then
    Exit;

	// 通知意图过滤器  RES_ACTION = 需要过滤的事件 如: 'android.intent.action.SCREEN_ON' 监听屏幕点亮事件
	FFilter := TJIntentFilter.JavaClass.init(StringToJString('RES_ACTION'));
	if not Assigned(FFilter) then
    Exit;
	FFilter.addAction(StringToJString('RES_ACTION'));
	FFilter.addCategory(StringToJString('android.intent.category.DEFAULT'));

	// 动态注册广播接受者
	SharedActivityContext.registerReceiver(FReceiver, FFilter);
end;

//释放
procedure TForm2.FormClose(Sender: TObject; var Action: TCloseAction);
begin
  SharedActivityContext.unregisterReceiver(FReceiver);
end;










引用单元 uses
Androidapi.JNIBridge, Androidapi.JNI.App,
Androidapi.JNI.GraphicsContentViewText,
Androidapi.JNI.JavaTypes, Androidapi.Helpers, Androidapi.JNI.Embarcadero
//
type
  // 接收广播的类
TScanBroadcastReceiver = class(TJavaLocal, JFMXBroadcastReceiverListener)
  public
    // 重写广播接收事件
    procedure onReceive(context: JContext; intent: JIntent); cdecl;
  end;
  // 变量
 FListener: TScanBroadcastReceiver;
 FReceiver: JFMXBroadcastReceiver;
 FFilter: JIntentFilter;
//
procedure TForm2.FormCreate(Sender: TObject);
begin
  // 创建接收者
FListener := TScanBroadcastReceiver.Create();
  if not Assigned(FListener) then
    Exit;
  FReceiver := TJFMXBroadcastReceiver.JavaClass.init(FListener);
  if not Assigned(FReceiver) then
    Exit;
// 通知意图过滤器  RES_ACTION = 需要过滤的事件 如: 'android.intent.action.SCREEN_ON' 监听屏幕点亮事件
FFilter := TJIntentFilter.JavaClass.init(StringToJString('RES_ACTION'));
if not Assigned(FFilter) then
    Exit;
FFilter.addAction(StringToJString('RES_ACTION'));
FFilter.addCategory(StringToJString('android.intent.category.DEFAULT'));
// 动态注册广播接受者
SharedActivityContext.registerReceiver(FReceiver, FFilter);
end;
//释放
procedure TForm2.FormClose(Sender: TObject; var Action: TCloseAction);
begin
  SharedActivityContext.unregisterReceiver(FReceiver);
end;



多线程

TThread.Synchronize();

TThread.CreateAnonymousThread().start;

TTask.Run();

//在这里不能直接访问UI,启动定时器,在定时器里面进行操作

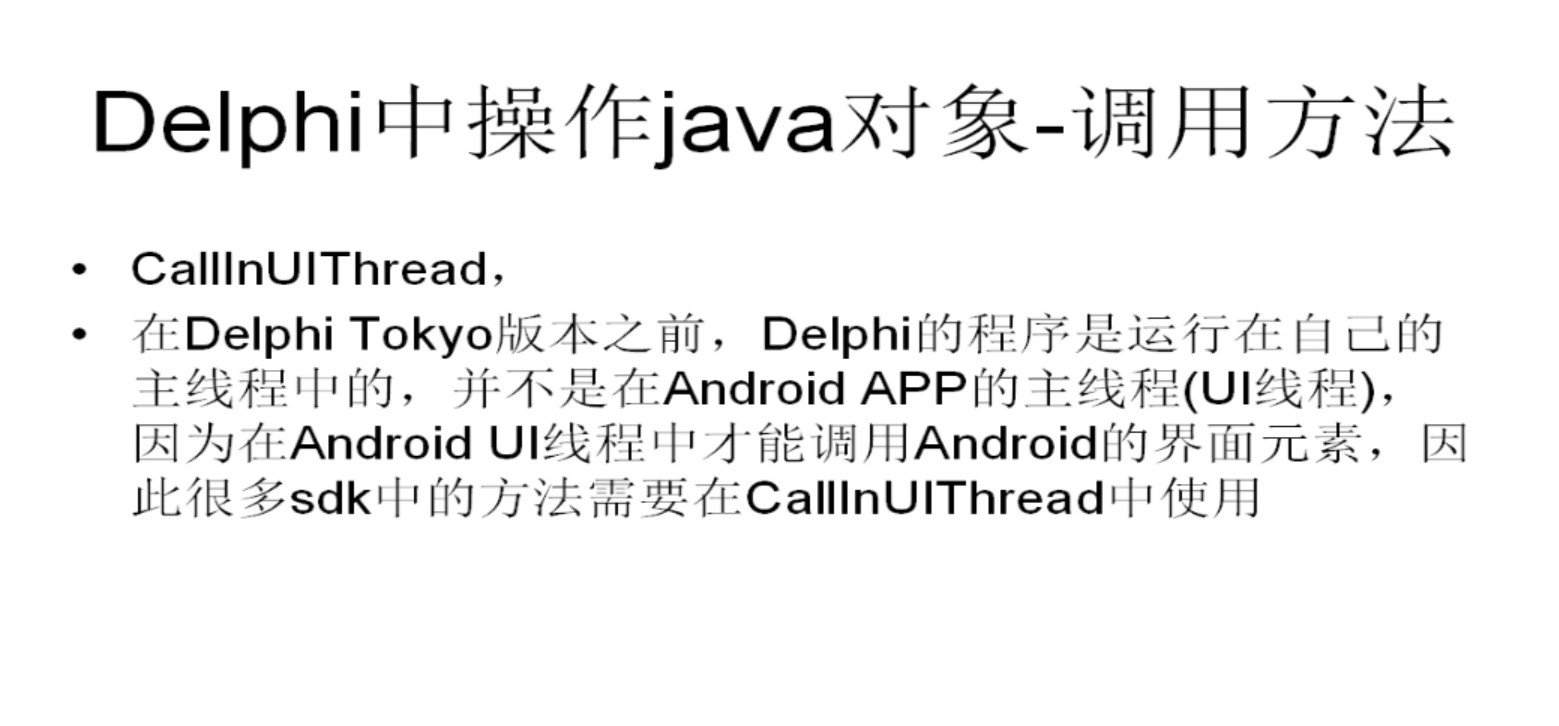

CallInUIThread(

procedure

begin

tmrScanResult.Enabled:=True;

end);

Android 发送邮件中文乱码问题

 IdMessage1.Clear;
  idmessage1.CharSet := 'gb2312'; // 这句不能解决乱码的问题
  IdMessage1.Encoding := meDefault;
  IdMessage1.From.address := 'xxxx@sina.com'; // 发件人地址
  IdMessage1.Recipients.EMailAddresses := 'xxxxxxxxxx'; // 收信人地址
  IdMessage1.Subject := '测试'; // 邮件标题
  IdMessage1.Priority := mphigh; //优先级
  IdMessage1.Body.Text := '这是一封测试邮件'; //邮件内容
  try
     IdSMTP1.Send(IdMessage1);
  finally
     IdSMTP1.Disconnect;
  end;
  ShowMessage('发送完毕!');

  // 问题解决了!只要这里改一下就行,也不用Android的代码,只用Indy的代码.
  IdMessage1.Subject := '';  // 邮件标题
  IdMessage1.ExtraHeaders.Values['Subject'] := EncodeHeader(UTF8Encode('测试'), '',  'Q', 'UTF-8');










 IdMessage1.Clear;
  idmessage1.CharSet := 'gb2312'; // 这句不能解决乱码的问题
  IdMessage1.Encoding := meDefault;
  IdMessage1.From.address := 'xxxx@sina.com'; // 发件人地址
  IdMessage1.Recipients.EMailAddresses := 'xxxxxxxxxx'; // 收信人地址
  IdMessage1.Subject := '测试'; // 邮件标题
  IdMessage1.Priority := mphigh; //优先级
  IdMessage1.Body.Text := '这是一封测试邮件'; //邮件内容
  try
     IdSMTP1.Send(IdMessage1);
  finally
     IdSMTP1.Disconnect;
  end;
  ShowMessage('发送完毕!');
  // 问题解决了!只要这里改一下就行,也不用Android的代码,只用Indy的代码.
  IdMessage1.Subject := '';  // 邮件标题
  IdMessage1.ExtraHeaders.Values['Subject'] := EncodeHeader(UTF8Encode('测试'), '',  'Q', 'UTF-8');



 // 解决安卓下 ProcessMesage 失效的问题
 将 Application.ProcessMessage 改为 Application.HandleMessage


 // 解决安卓下 ProcessMesage 失效的问题
 将 Application.ProcessMessage 改为 Application.HandleMessage

// 安卓 Android.Settings 引用单元: Androidapi.JNI.Provider

// 跳转未知应用安装权限

// 需要设置权限 <uses-permission android:name="android.permission.REQUEST_INSTALL_PACKAGES" />

var
  intent: Jintent;
  packageURI: Jnet_Uri;
  Str: Jstring;
begin

  // 测试升级

  try
    // 判断是否有安装未知应用权限

    if SharedActivityContext.getPackageManager.canRequestPackageInstalls then
    begin
      mLog.Lines.Add('canRequestPackageInstalls = yes');
    end
    else
    begin
      // 需要开启安装未知来源权限
      mLog.Lines.Add('canRequestPackageInstalls = no');

      // 打开   安装未知来源权限
      Str := StringToJString('package:'+ JStringToString(SharedActivityContext.getPackageName) );
      packageURI := TJnet_Uri.JavaClass.parse( Str );
      intent := TJintent.JavaClass.init(TJSettings.JavaClass.ACTION_MANAGE_UNKNOWN_APP_SOURCES, packageURI);

      SharedActivityContext.startActivity(intent);

    end;

  except on E:Exception do
    mLog.Lines.Add('canRequestPackageInstalls:'+e.Message);
  end;










var
  intent: Jintent;
  packageURI: Jnet_Uri;
  Str: Jstring;
begin
  // 测试升级
  try
    // 判断是否有安装未知应用权限
    if SharedActivityContext.getPackageManager.canRequestPackageInstalls then
    begin
      mLog.Lines.Add('canRequestPackageInstalls = yes');
    end
    else
    begin
      // 需要开启安装未知来源权限
      mLog.Lines.Add('canRequestPackageInstalls = no');
      // 打开   安装未知来源权限
      Str := StringToJString('package:'+ JStringToString(SharedActivityContext.getPackageName) );
      packageURI := TJnet_Uri.JavaClass.parse( Str );
      intent := TJintent.JavaClass.init(TJSettings.JavaClass.ACTION_MANAGE_UNKNOWN_APP_SOURCES, packageURI);
      SharedActivityContext.startActivity(intent);
    end;
  except on E:Exception do
    mLog.Lines.Add('canRequestPackageInstalls:'+e.Message);
  end;



Android 9 http请求无效

//保存图片到相册 基本就是这两个方法了
function MediaScanner2(const ImageFileName: string; const DisplayError: Boolean = False): Boolean;
var
  c: Integer;
  JMediaScannerCon: Androidapi.Jni.Media.JMediaScannerConnection;
  JMediaScannerCon_Client: Androidapi.Jni.Media.JMediaScannerConnection_MediaScannerConnectionClient;
begin
  Result := False;
  try
    JMediaScannerCon:=TJMediaScannerConnection.JavaClass.init(GetContext, JMediaScannerCon_Client);
    JMediaScannerCon.connect;
    c:=0;
    while not JMediaScannerCon.isConnected do begin
      Sleep(50);
      inc(c);
      if (c > 20) then break;
    end;
    if (JMediaScannerCon.isConnected) then begin
      JMediaScannerCon.scanFile(StringToJString(ImageFileName), nil);
      JMediaScannerCon.disconnect;
      Result := True;
    end;
  except
    on E: Exception do begin
      if DisplayError then ShowMessage('Error: ' + e.Message);

      PostLog(llError, Format('MediaScanner Error: [%s]%s', [E.ClassName, E.Message]));
    end;
  end;
end;

//https://blog.csdn.net/ChinaWallace/article/details/48547965
//https://blog.csdn.net/wolfking0608/article/details/79138716
function MediaScanner(const ImageFileName: string; const DisplayError: Boolean = False): Boolean;
var
  Intent: JIntent;
begin
  Result := False;

  // There may be an issue with the geo: prefix and URLEncode.
  // will need to research
  if TJBuild_VERSION.JavaClass.SDK_INT >= 19 then
    Intent := TJIntent.JavaClass.init(TJIntent.JavaClass.ACTION_MEDIA_SCANNER_SCAN_FILE)
  else
    Intent := TJIntent.JavaClass.init(TJIntent.JavaClass.ACTION_MEDIA_MOUNTED);
  try
    Intent.setData(TAndroidHelperEx.UriFromFileName(ImageFileName));
    TAndroidHelper.Activity.sendBroadcast(Intent);
    Result := True;
  except
    on E: Exception do begin
      if DisplayError then ShowMessage('Error: ' + e.Message);

      PostLog(llError, Format('MediaScanner Error: [%s]%s', [E.ClassName, E.Message]));
    end;
  end;
end;

// 这种方式 待测试   FMX.MediaLibrary, FMX.Platform,
 var
  PhotoService: IFMXPhotoLibrary;
  if TPlatformServices.Current.SupportsPlatformService(IFMXPhotoLibrary, PhotoService) then
      PhotoService.AddImageToSavedPhotosAlbum(ABitmap,DoWriteImageCompletionEvent);










//保存图片到相册 基本就是这两个方法了
function MediaScanner2(const ImageFileName: string; const DisplayError: Boolean = False): Boolean;
var
  c: Integer;
  JMediaScannerCon: Androidapi.Jni.Media.JMediaScannerConnection;
  JMediaScannerCon_Client: Androidapi.Jni.Media.JMediaScannerConnection_MediaScannerConnectionClient;
begin
  Result := False;
  try
    JMediaScannerCon:=TJMediaScannerConnection.JavaClass.init(GetContext, JMediaScannerCon_Client);
    JMediaScannerCon.connect;
    c:=0;
    while not JMediaScannerCon.isConnected do begin
      Sleep(50);
      inc(c);
      if (c > 20) then break;
    end;
    if (JMediaScannerCon.isConnected) then begin
      JMediaScannerCon.scanFile(StringToJString(ImageFileName), nil);
      JMediaScannerCon.disconnect;
      Result := True;
    end;
  except
    on E: Exception do begin
      if DisplayError then ShowMessage('Error: ' + e.Message);
      PostLog(llError, Format('MediaScanner Error: [%s]%s', [E.ClassName, E.Message]));
    end;
  end;
end;
//https://blog.csdn.net/ChinaWallace/article/details/48547965
//https://blog.csdn.net/wolfking0608/article/details/79138716
function MediaScanner(const ImageFileName: string; const DisplayError: Boolean = False): Boolean;
var
  Intent: JIntent;
begin
  Result := False;
  // There may be an issue with the geo: prefix and URLEncode.
  // will need to research
  if TJBuild_VERSION.JavaClass.SDK_INT >= 19 then
    Intent := TJIntent.JavaClass.init(TJIntent.JavaClass.ACTION_MEDIA_SCANNER_SCAN_FILE)
  else
    Intent := TJIntent.JavaClass.init(TJIntent.JavaClass.ACTION_MEDIA_MOUNTED);
  try
    Intent.setData(TAndroidHelperEx.UriFromFileName(ImageFileName));
    TAndroidHelper.Activity.sendBroadcast(Intent);
    Result := True;
  except
    on E: Exception do begin
      if DisplayError then ShowMessage('Error: ' + e.Message);
      PostLog(llError, Format('MediaScanner Error: [%s]%s', [E.ClassName, E.Message]));
    end;
  end;
end;
// 这种方式 待测试   FMX.MediaLibrary, FMX.Platform,
 var
  PhotoService: IFMXPhotoLibrary;
  if TPlatformServices.Current.SupportsPlatformService(IFMXPhotoLibrary, PhotoService) then
      PhotoService.AddImageToSavedPhotosAlbum(ABitmap,DoWriteImageCompletionEvent);



// 桌面图标显示数字  https://www.cnblogs.com/dannylee/p/7904185.html?tdsourcetag=s_pctim_aiomsg
var
  badgeIntent: JIntent;
begin
//if(Build.MANUFACTURER.equalsIgnoreCase("Xiaomi")){
if TJBuild.JavaClass.MANUFACTURER.equalsIgnoreCase(StringToJString('Xiaomi')) then
begin
        badgeIntent  := TJIntent.Create;
        badgeIntent.setAction(StringToJString('android.intent.action.APPLICATION_MESSAGE_UPDATE'));
        badgeIntent.putExtra(StringToJString('android.intent.extra.update_application_component_name'), getLauncherClassName(context));
        badgeIntent.putExtra(StringToJString('android.intent.extra.update_application_message_text'), count);
end;
TAndroidHelper.Context.sendBroadcast(badgeIntent);


// 桌面图标显示数字  https://www.cnblogs.com/dannylee/p/7904185.html?tdsourcetag=s_pctim_aiomsg
var
  badgeIntent: JIntent;
begin
//if(Build.MANUFACTURER.equalsIgnoreCase("Xiaomi")){
if TJBuild.JavaClass.MANUFACTURER.equalsIgnoreCase(StringToJString('Xiaomi')) then
begin
        badgeIntent  := TJIntent.Create;
        badgeIntent.setAction(StringToJString('android.intent.action.APPLICATION_MESSAGE_UPDATE'));
        badgeIntent.putExtra(StringToJString('android.intent.extra.update_application_component_name'), getLauncherClassName(context));
        badgeIntent.putExtra(StringToJString('android.intent.extra.update_application_message_text'), count);
end;
TAndroidHelper.Context.sendBroadcast(badgeIntent);

// WebBrowser 如何保持原始比例

其实是Delphi在封装WebBrowser的时候，设置了IsAutoFit为True

注释掉 FMX.WebBrowser.Delegate.iOS 单元中的 TNativeWebViewHelper.CreateAndInitWebView -> Result.SetScalesPageToFit(True);

或者改页面标记: <meta name="viewport" content="width=device-width; initial-scale=1.0; maximum-scale=1.0; user-scalable=0;" /> 若不行就去掉 name="viewport"

判断手机厂商: 如,小米,华为, Vivo, Oppo

<wiz_tmp_tag id="wiz-table-range-border" contenteditable="false" style="display: none;">

来自为知笔记(Wiz)

posted @ 2020-07-09 15:20 QQ108260 阅读(578) 评论(0) 收藏举报

刷新页面返回顶部

Android 开发笔记

公告
