日常记录（82）测试整理

默认声明

以下的taa中，b被默认声明为wire类型，a被默认声明为wire类型。（verilog语法）
c如果是input类型：Implicit wire 'b' does not have any driver

module taa ();
    taax taax_inst(.c(b));
    assign a=b;
endmodule

module taax (c);
    output c;
    // input c; // there is a warning.
endmodule

taa:
	vcs -full64 -sverilog -R taa.sv
taa1:
	vcs -full64 -R taa.sv

bins重复统计

以下的a1和a2，都统计了同一个数字1。100%的覆盖率。

module taa ();
    bit [3:0] a;
    covergroup test1;
        coverpoint a{
            bins a1 = {4'h1};
            bins a2 = {4'h1};
        }
    endgroup: test1

    initial begin
        test1 tt=new();
        a=1;
        tt.sample();
        $display("test");
    end
endmodule

Makefile

taa:
	vcs -full64 -sverilog -R taa.sv
dve:
	dve -cov -dir simv.vdb

package的import

Makefile

tbb:
	vcs -full64 -sverilog -R tbb_pkg.sv

• tbb_pkg的A和tcc_pkg的A不一样，无法赋值。
• tee_pkg的A和tdd_pkg的A一样，可以赋值。
• tee_pkg的A和tdd_pkg的A中，静态变量共享。
  tbb_pkg.sv

package tbb_pkg;
    `include "taa.svh";
endpackage: tbb_pkg

package tcc_pkg;
    `include "taa.svh";
endpackage: tcc_pkg

package tdd_pkg;
    //import, should be a package, should have :: operator
    import tbb_pkg::A;
    //The symbol 'A' is visible in this package, but need be export if used for outside.
    export tbb_pkg::A;
endpackage: tdd_pkg

package tee_pkg;
    export tbb_pkg::A;
endpackage: tee_pkg

module tbb_pkg_test ();
    initial begin
        tbb_pkg::A a_b = new();
        tcc_pkg::A a_c = new();

        tdd_pkg::A a_d = new();
        tee_pkg::A a_e = new();
        /* a_c = a_b; */ //error
        // a_e = a_d; // pass
        a_d.i = 1;
        a_d.s_i = 2;
        $display(a_e.i);
        $display(a_e.s_i);

        $display("test_ok");
    end
endmodule

taa.svh

class A;
    int i;
    static int s_i;

    function new();
    endfunction: new
endclass: A

输出结果：

          0
          2
test_ok

是从program启动还是module启动testbench

结论：

• uvm不影响timeslot的采样。影响采样的是program和module
• 根据具体情况选用program或者module。后者可能更简洁？（一般是在nba区域对非阻塞赋值，此时刻不用立刻采样值，则用2好些）

1. 针对一个从0到1的时隙瞬间：有clocking（默认值，input#1，output#0），使用program，得到0
2. 针对一个从0到1的时隙瞬间：无clocking，使用module，得到0
3. 针对一个从0到1的时隙瞬间：无clocking，使用program，得到1
   Makefile文件

点击查看代码

taa:
	vcs -full64 -sverilog -R taa.sv

tbb:
	vcs -full64 -sverilog -R tbb.sv

tcc:
	vcs -full64 -sverilog -R tcc.sv

tdd:
	vcs -full64 -sverilog -R -ntb_opts uvm-1.2 tdd.sv

tee:
	vcs -full64 -sverilog -R -ntb_opts uvm-1.2 tee.sv

tff:
	vcs -full64 -sverilog -R -ntb_opts uvm-1.2 tff.sv

taa文件

查明。默认的timescale竟然是秒

    bit [3:0] cnt;
    always @(posedge clk) begin
        cnt <= cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, cnt);
    end
endmodule

module tb1;
    bit clk;
    bit [3:0] cnt;
    initial begin
        forever #5 clk <= !clk;
    end
    counter dut(clk);
    always @(posedge clk) begin
        $display("@%0t TB cnt = %0d", $time, dut.cnt);
    end

    initial begin
        $printtimescale;
        #50 $finish;
    end
endmodule

输出：

TimeScale of tb1 is 1 s / 1 s
@5 TB cnt = 0
@5 DUT cnt = 0
@15 TB cnt = 1
@15 DUT cnt = 1
@25 TB cnt = 2
@25 DUT cnt = 2
@35 TB cnt = 3
@35 DUT cnt = 3
@45 TB cnt = 4
@45 DUT cnt = 4
$finish called from file "taa.sv", line 22.
$finish at simulation time                   50

tbb文件

module counter(input clk);
    bit [3:0] cnt;
    always @(posedge clk) begin
        cnt <= cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, cnt);
    end
endmodule

module tb2;
    bit clk1;
    bit clk2;
    bit [3:0] cnt;
    initial begin
        forever #5 clk1 <= !clk1;
    end
    always @ (clk1) begin
        clk2 <= clk1;
    end
    counter dut(clk1);

    always @(posedge clk2) begin
        $display ("@%0t TB cnt = %0d",$time,  dut.cnt);
    end

    initial begin
        #50 $finish;
    end
endmodule

输出：

@5 DUT cnt = 0
@5 TB cnt = 1
@15 DUT cnt = 1
@15 TB cnt = 2
@25 DUT cnt = 2
@25 TB cnt = 3
@35 DUT cnt = 3
@35 TB cnt = 4
@45 DUT cnt = 4
@45 TB cnt = 5
$finish called from file "tbb.sv", line 26.
$finish at simulation time                   50

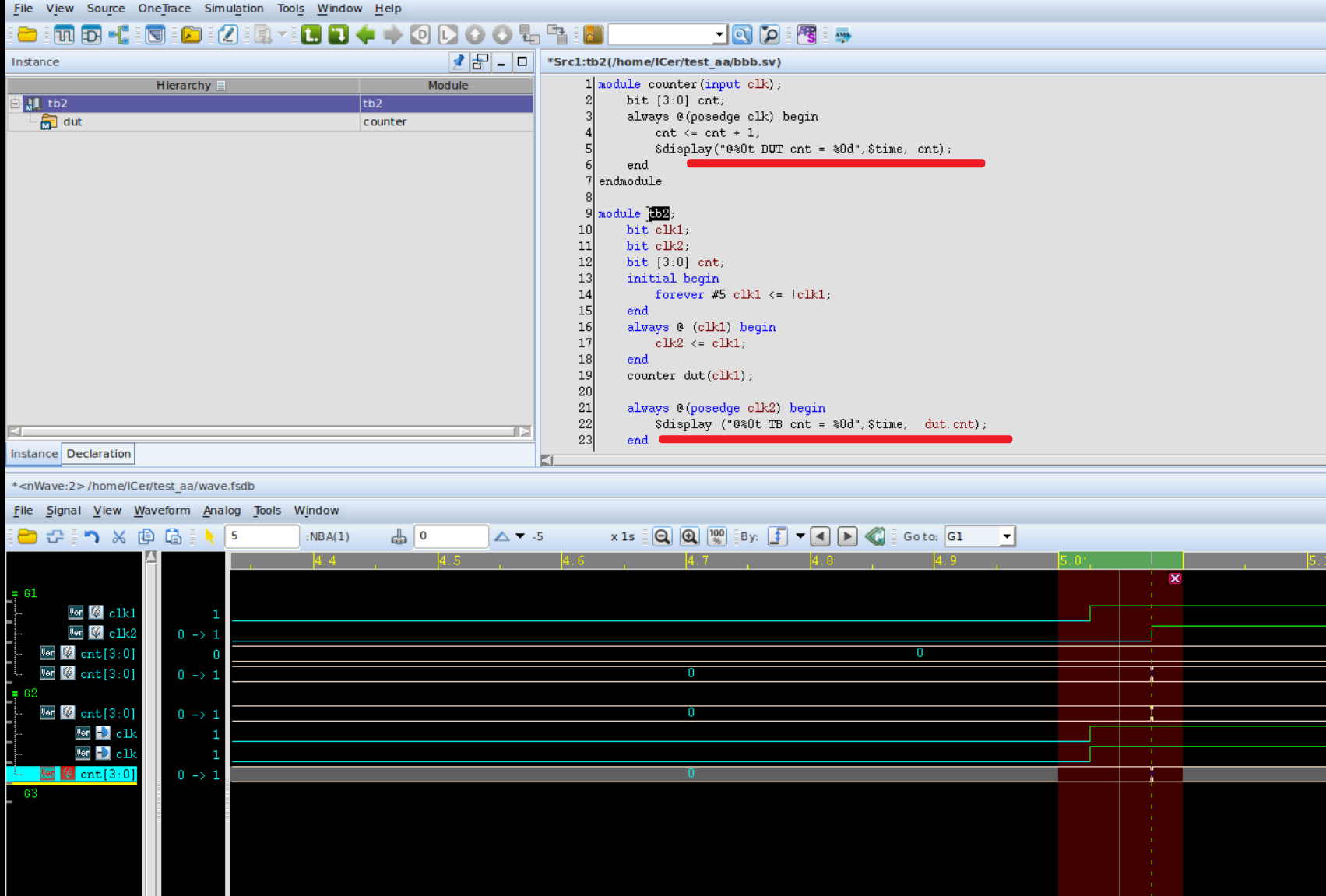

这个结果还是挺怪的，按道理cnt应该在clk1以后就发生变化

tcc文件

module counter(input clk);
    bit [3:0] cnt;
    always @(posedge clk) begin
        cnt <= cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, cnt);
    end
endmodule

program dsample(input clk);
    initial begin
        forever begin
            @ (posedge clk);
            $display("0%0t TB cnt = %0d", $time, dut.cnt);
        end
    end
endprogram

module tb;
    bit clk1;
    bit [3:0] cnt;
    initial begin
        forever #5 clk1 <= !clk1;
    end
    counter dut(clk1);
    dsample spl(clk1);

    initial begin
        #50 $finish;
    end
endmodule

输出

@5 DUT cnt = 0
05 TB cnt = 1
@15 DUT cnt = 1
015 TB cnt = 2
@25 DUT cnt = 2
025 TB cnt = 3
@35 DUT cnt = 3
035 TB cnt = 4
@45 DUT cnt = 4
045 TB cnt = 5
$finish called from file "tcc.sv", line 28.
$finish at simulation time                   50

tdd文件

module counter(input clk);
    bit [3:0] cnt;
    always @(posedge clk) begin
        cnt <= cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, cnt);
    end
endmodule
import uvm_pkg::*;

class test_uvm extends uvm_test;
    `uvm_component_utils(test_uvm)

    function new(string name="test_uvm", uvm_component parent);
        super.new(name, parent);
    endfunction: new

    function void build_phase(uvm_phase phase);
        super.build_phase(phase);
    endfunction: build_phase

    task run_phase(uvm_phase phase);
        phase.raise_objection(this);
        forever begin
            @ (posedge tb.clk1);
            $display("0%0t TB cnt = %0d", $time, tb.dut.cnt);
        end
        phase.drop_objection(this);
    endtask: run_phase

endclass: test_uvm

module tb;

    bit clk1;
    bit [3:0] cnt;
    initial begin
        forever #5 clk1 <= !clk1;
    end
    counter dut(clk1);

    initial begin
        run_test("test_uvm");
    end

    initial begin
        #50 $finish;
    end
endmodule

输出:

UVM_INFO @ 0: reporter [RNTST] Running test test_uvm...
@5 DUT cnt = 0
05 TB cnt = 0
@15 DUT cnt = 1
015 TB cnt = 1
@25 DUT cnt = 2
025 TB cnt = 2
@35 DUT cnt = 3
035 TB cnt = 3
@45 DUT cnt = 4
045 TB cnt = 4
$finish called from file "tdd.sv", line 46.
$finish at simulation time                   50

tee文件

module counter(input clk);
    bit [3:0] cnt;
    always @(posedge clk) begin
        cnt <= cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, cnt);
    end
endmodule
import uvm_pkg::*;

class test_uvm extends uvm_test;
    `uvm_component_utils(test_uvm)

    function new(string name="test_uvm", uvm_component parent);
        super.new(name, parent);
    endfunction: new

    function void build_phase(uvm_phase phase);
        super.build_phase(phase);
    endfunction: build_phase

    task run_phase(uvm_phase phase);
        phase.raise_objection(this);
        forever begin
            @ (posedge tb.clk1);
            $display("0%0t TB cnt = %0d", $time, tb.dut.cnt);
        end
        phase.drop_objection(this);
    endtask: run_phase

endclass: test_uvm

program test_uuu ();
    initial begin
        run_test("test_uvm");
    end
endprogram: test_uuu

module tb;

    bit clk1;
    bit [3:0] cnt;
    initial begin
        forever #5 clk1 <= !clk1;
    end
    counter dut(clk1);
    test_uuu uuu();

    initial begin
        #50 $finish;
    end
endmodule

输出

UVM_INFO @ 0: reporter [RNTST] Running test test_uvm...
@5 DUT cnt = 0
05 TB cnt = 1
@15 DUT cnt = 1
015 TB cnt = 2
@25 DUT cnt = 2
025 TB cnt = 3
@35 DUT cnt = 3
035 TB cnt = 4
@45 DUT cnt = 4
045 TB cnt = 5
$finish called from file "tee.sv", line 49.
$finish at simulation time                   50

tff文件

interface test_if (input bit clk);
    logic [3:0] cnt;
    initial begin
        cnt = 0;
    end
    // nets
    clocking test_if_cb @(posedge clk);
        input cnt;
    endclocking: test_if_cb
endinterface: test_if

module counter(test_if if_inst);
    always @(posedge if_inst.clk) begin
        if_inst.cnt <= if_inst.cnt + 1;
        $display("@%0t DUT cnt = %0d",$time, if_inst.cnt);
    end
endmodule

import uvm_pkg::*;

class test_uvm extends uvm_test;
    `uvm_component_utils(test_uvm)

    function new(string name="test_uvm", uvm_component parent);
        super.new(name, parent);
    endfunction: new

    function void build_phase(uvm_phase phase);
        super.build_phase(phase);
    endfunction: build_phase

    task run_phase(uvm_phase phase);
        phase.raise_objection(this);
        forever begin
            @ (tb.if_inst.test_if_cb);
            $display("0%0t TB cnt = %0d", $time, tb.if_inst.test_if_cb.cnt);
        end
        phase.drop_objection(this);
    endtask: run_phase

endclass: test_uvm

program test_uuu ();
    initial begin
        run_test("test_uvm");
    end
endprogram: test_uuu


module tb;
    bit clk1;

    test_if if_inst(clk1);

    initial begin
        forever #5 clk1 <= !clk1;
    end
    counter dut(if_inst);
    test_uuu uuu();

    initial begin
        #50 $finish;
    end
endmodule

输出：

UVM_INFO @ 0: reporter [RNTST] Running test test_uvm...
@5 DUT cnt = 0
05 TB cnt = 0
@15 DUT cnt = 1
015 TB cnt = 1
@25 DUT cnt = 2
025 TB cnt = 2
@35 DUT cnt = 3
035 TB cnt = 3
@45 DUT cnt = 4
045 TB cnt = 4
$finish called from file "tff.sv", line 62.
