日常记录（34）UVM框架初始搭建、grep命令

来源

《UVM实战》的第二章



代码统计

find . -name "*.py" |xargs cat|grep -v ^$|wc -l

　　

编译选项

 top_tb为顶层，dut为待测设计。

vcs -sverilog -f filelist.f -timescale=1ns/1ps

其中的filelist.f

+incdir+$UVM_HOME/src
$UVM_HOME/src/uvm_pkg.sv
dut.sv
top_tb.sv

　　

顶层

`timescale 1ns/1ps
`include "uvm_macros.svh"

import uvm_pkg::*;
`include "my_if.sv"
`include "my_transaction.sv"
`include "my_sequencer.sv"
`include "my_driver.sv"
`include "my_monitor.sv"
`include "my_agent.sv"
`include "my_model.sv"
`include "my_scoreboard.sv"
`include "my_env.sv"
`include "base_test.sv"
`include "my_case0.sv"
`include "my_case1.sv"

　　

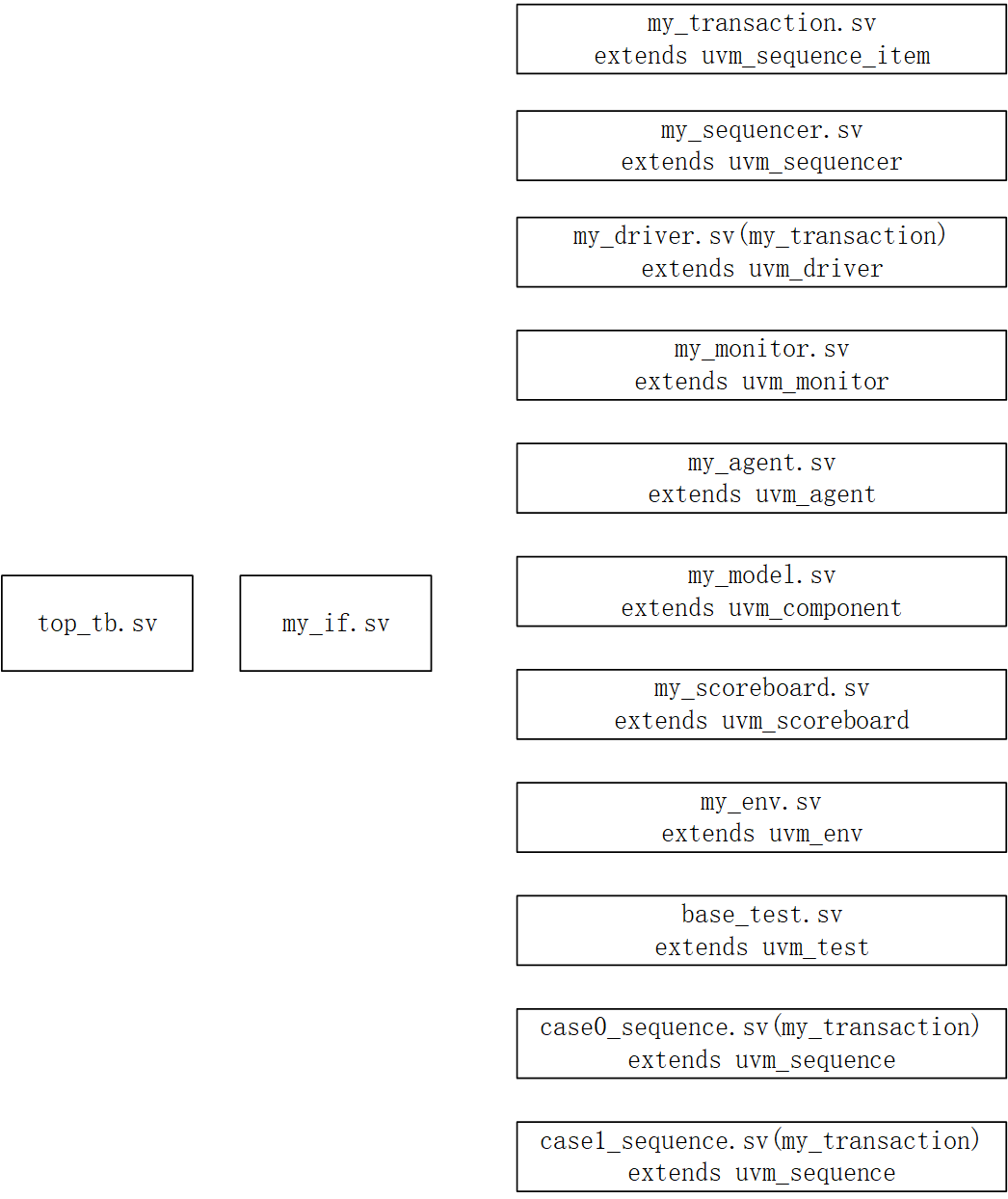

内部关联
