日常记录（27）功能覆盖率、duanyan

demo

-cm line+cond+fsm+tgl+branch

program automatic test ();
    class Transaction;
        // data or class properties
        rand bit [3:0] data;
        rand bit [4:0] addr;
    endclass : Transaction

    Transaction tr=new;
    covergroup CovData;
        coverpoint tr.data;
    endgroup

    initial begin
        CovData cd=new;
        repeat(32) begin
            tr.data=$random;
            cd.sample();
        end

        $display("finished!");
    end

endprogram : test

命令与输出

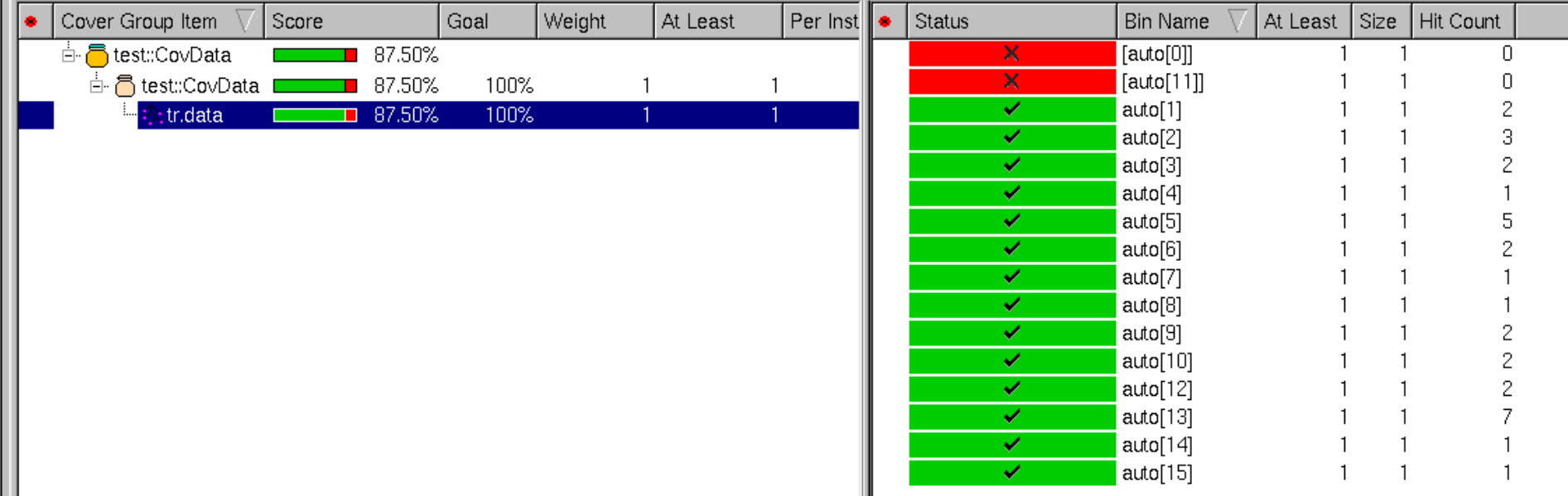

dve -cov -dir simv.vdb/

生成覆盖率的html

urg -dir simv.vdb/ -report report_dir

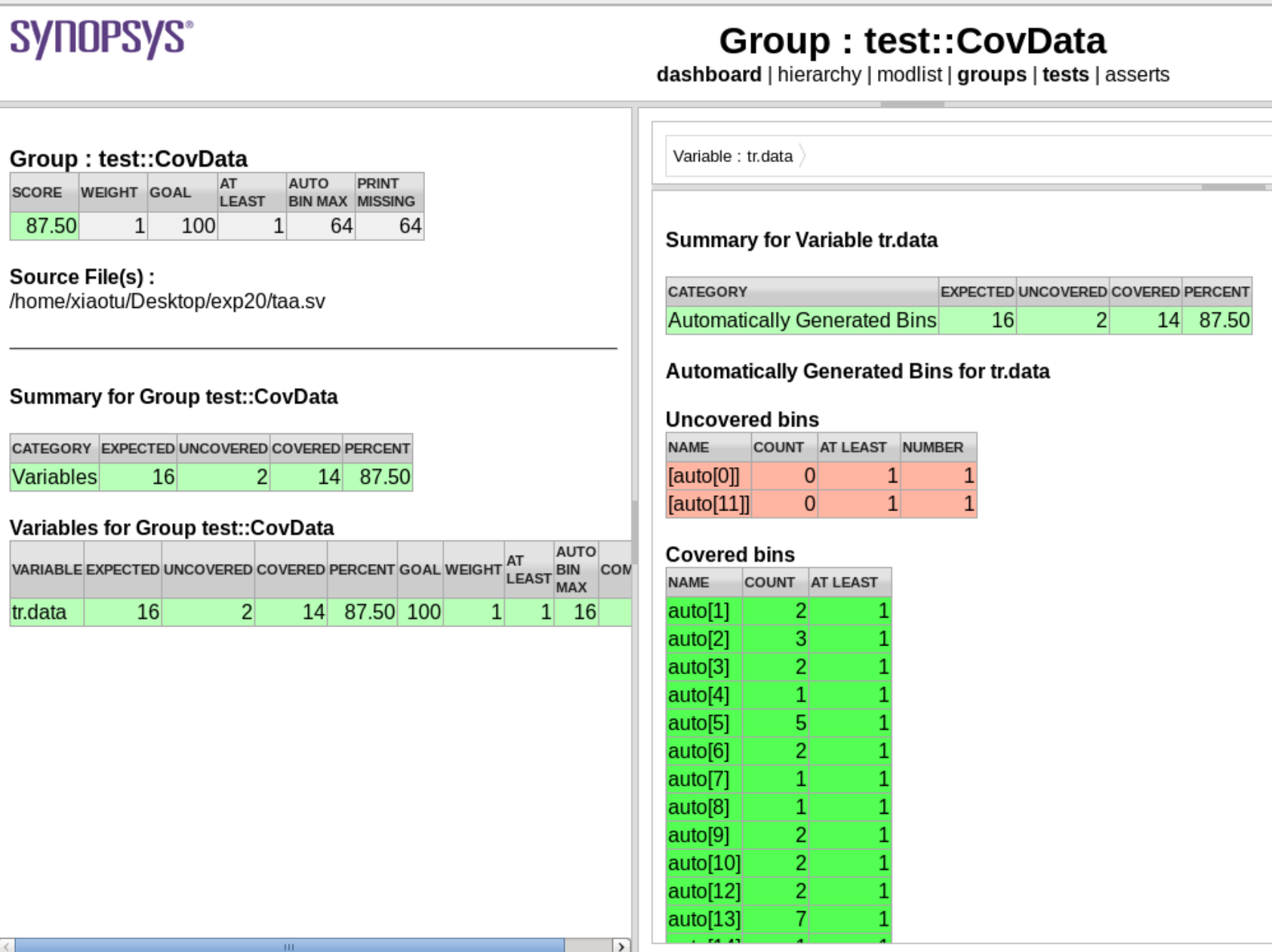

查看生成目录的dashboard后的groups下的详细信息

功能覆盖率

program tbb ();
    class Transactioin;
        // data or class properties
        bit [3:0] data;
        bit [2:0] addr;
    endclass : Transactioin

    Transactioin t1;
    event ct_e;
    covergroup CovTest(Transactioin t2) @(ct_e);
        //option.auto_bin_max=16; //default value is 64
        cdata16: coverpoint (t1.data+t1.addr);
        cdata32: coverpoint (t1.data+t1.addr+5'b0);
        cdafault: coverpoint (t1.data+8'b0) {option.auto_bin_max=256;}
        custom: coverpoint t1.data {bins zero={0}; bins one2four={[1:4]};
                                    bins arr[5]={[7:$]}; bins misc=default;}
        judge: coverpoint t1.data iff(t1.data<5);
        process: coverpoint t1.data {bins t1=(1=>2),(1=>3),(1=>4);
                                    bins t2=(1,2=>3,4);}
        c1:coverpoint t1.addr {wildcard bins odd={5'b????1}; wildcard bins even={4'b???0};}
        c2:cross t1.addr, t1.data;
        c3: coverpoint(t2.data);
    endgroup

    initial begin
        Transactioin t2=new;
        CovTest ct=new(t2);
        int cnt=0;
        int cnt2=0;
        t1=new;
        repeat (1000) begin
            t1.data=$random;
            t1.addr=$random;
            if (t1.data<1) begin
                cnt++;
                if (cnt>10) begin
                    ct.stop;
                    //ct.start;
                    break;
                end
            end
            ->ct_e;
            cnt2++;
        end
        $display("finished, total cnt is %d", cnt2);
    end

endprogram : tbb

输出与网页

finished, total cnt is         286

  1 Group : tbb::CovTest
  2 dashboard | hierarchy | modlist | groups | tests | asserts
  3
  4 Group : tbb::CovTest
  5 SCORE    WEIGHT    GOAL    AT LEAST    AUTO BIN MAX    PRINT MISSING
  6 73.22    1    100    1    64    64
  7
  8
  9 Source File(s) :
 10 /home/xiaotu/Desktop/exp20/tbb.sv
 11
 12
 13 Summary for Group tbb::CovTest
 14
 15 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
 16 Variables    371    275    96    71.56
 17 Crosses    128    13    115    89.84
 18
 19
 20 Variables for Group tbb::CovTest
 21 VARIABLE    EXPECTED    UNCOVERED    COVERED    PERCENT    GOAL    WEIGHT    AT LEAST    AUTO BIN MAX    COMMENT
 22 cdata16    16    0    16    100.00    100    1    1    16
 23 cdata32    32    9    23    71.88    100    1    1    32
 24 cdafault    256    240    16    6.25    100    1    1    256
 25 custom    7    0    7    100.00    100    1    1    0
 26 judge    16    11    5    31.25    100    1    1    16
 27 process    2    0    2    100.00    100    1    1    0
 28 c1    2    0    2    100.00    100    1    1    0
 29 t1.addr    8    0    8    100.00    100    1    1    8
 30 t1.data    16    0    16    100.00    100    1    1    16
 31 c3    16    15    1    6.25    100    1    1    16
 32
 33
 34 Crosses for Group tbb::CovTest
 35 CROSS    EXPECTED    UNCOVERED    COVERED    PERCENT    GOAL    WEIGHT    AT LEAST    PRINT MISSING    COMMENT
 36 c2    128    13    115    89.84    100    1    1    0
 37
 38
 39 Summary for Variable cdata16
 40
 41 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
 42 Automatically Generated Bins    16    0    16    100.00
 43
 44
 45 Automatically Generated Bins for cdata16
 46
 47 Bins
 48 NAME    COUNT    AT LEAST
 49 auto[0]    20    1
 50 auto[1]    16    1
 51 auto[2]    19    1
 52 auto[3]    12    1
 53 auto[4]    12    1
 54 auto[5]    20    1
 55 auto[6]    25    1
 56 auto[7]    15    1
 57 auto[8]    17    1
 58 auto[9]    15    1
 59 auto[10]    12    1
 60 auto[11]    17    1
 61 auto[12]    24    1
 62 auto[13]    20    1
 63 auto[14]    24    1
 64 auto[15]    18    1
 65
 66
 67 Summary for Variable cdata32
 68
 69 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
 70 Automatically Generated Bins    32    9    23    71.88
 71
 72
 73 Automatically Generated Bins for cdata32
 74
 75 Uncovered bins
 76 NAME    COUNT    AT LEAST    NUMBER
 77 [auto[23] - auto[31]]    --    --    9
 78
 79
 80 Covered bins
 81 NAME    COUNT    AT LEAST
 82 auto[0]    2    1
 83 auto[1]    4    1
 84 auto[2]    7    1
 85 auto[3]    4    1
 86 auto[4]    9    1
 87 auto[5]    18    1
 88 auto[6]    24    1
 89 auto[7]    15    1
 90 auto[8]    17    1
 91 auto[9]    15    1
 92 auto[10]    12    1
 93 auto[11]    17    1
 94 auto[12]    24    1
 95 auto[13]    20    1
 96 auto[14]    24    1
 97 auto[15]    18    1
 98 auto[16]    18    1
 99 auto[17]    12    1
100 auto[18]    12    1
101 auto[19]    8    1
102 auto[20]    3    1
103 auto[21]    2    1
104 auto[22]    1    1
105
106
107 Summary for Variable cdafault
108
109 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
110 Automatically Generated Bins    256    240    16    6.25
111
112
113 Automatically Generated Bins for cdafault
114
115 Uncovered bins
116 NAME    COUNT    AT LEAST    NUMBER
117 [auto[16] - auto[255]]    --    --    240
118
119
120 Covered bins
121 NAME    COUNT    AT LEAST
122 auto[0]    10    1
123 auto[1]    13    1
124 auto[2]    23    1
125 auto[3]    10    1
126 auto[4]    19    1
127 auto[5]    19    1
128 auto[6]    27    1
129 auto[7]    16    1
130 auto[8]    17    1
131 auto[9]    24    1
132 auto[10]    19    1
133 auto[11]    26    1
134 auto[12]    17    1
135 auto[13]    18    1
136 auto[14]    13    1
137 auto[15]    15    1
138
139
140 Summary for Variable custom
141
142 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
143 User Defined Bins    7    0    7    100.00
144
145
146 User Defined Bins for custom
147
148 Excluded/Illegal bins
149 NAME    COUNT    STATUS
150 misc    46    Excluded
151
152
153 Covered bins
154 NAME    COUNT    AT LEAST
155 arr[7]    16    1
156 arr[8]    17    1
157 arr[9]    24    1
158 arr[a]    19    1
159 arr[b:f]    89    1
160 one2four    65    1
161 zero    10    1
162
163
164 Summary for Variable judge
165
166 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
167 Automatically Generated Bins    16    11    5    31.25
168
169
170 Automatically Generated Bins for judge
171
172 Uncovered bins
173 NAME    COUNT    AT LEAST    NUMBER
174 [auto[5] - auto[15]]    --    --    11
175
176
177 Covered bins
178 NAME    COUNT    AT LEAST
179 auto[0]    10    1
180 auto[1]    13    1
181 auto[2]    23    1
182 auto[3]    10    1
183 auto[4]    19    1
184
185
186 Summary for Variable process
187
188 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
189 User Defined Bins    2    0    2    100.00
190
191
192 User Defined Bins for process
193
194 Bins
195 NAME    COUNT    AT LEAST
196 t2    2    1
197 t1    1    1
198
199
200 Summary for Variable c1
201
202 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
203 User Defined Bins    2    0    2    100.00
204
205
206 User Defined Bins for c1
207
208 Bins
209 NAME    COUNT    AT LEAST
210 even    134    1
211 odd    152    1
212
213
214 Summary for Variable t1.addr
215
216 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
217 Automatically Generated Bins    8    0    8    100.00
218
219
220 Automatically Generated Bins for t1.addr
221
222 Bins
223 NAME    COUNT    AT LEAST
224 auto[0]    43    1
225 auto[1]    49    1
226 auto[2]    34    1
227 auto[3]    31    1
228 auto[4]    27    1
229 auto[5]    44    1
230 auto[6]    30    1
231 auto[7]    28    1
232
233
234 Summary for Variable t1.data
235
236 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
237 Automatically Generated Bins    16    0    16    100.00
238
239
240 Automatically Generated Bins for t1.data
241
242 Bins
243 NAME    COUNT    AT LEAST
244 auto[0]    10    1
245 auto[1]    13    1
246 auto[2]    23    1
247 auto[3]    10    1
248 auto[4]    19    1
249 auto[5]    19    1
250 auto[6]    27    1
251 auto[7]    16    1
252 auto[8]    17    1
253 auto[9]    24    1
254 auto[10]    19    1
255 auto[11]    26    1
256 auto[12]    17    1
257 auto[13]    18    1
258 auto[14]    13    1
259 auto[15]    15    1
260
261
262 Summary for Variable c3
263
264 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT
265 Automatically Generated Bins    16    15    1    6.25
266
267
268 Automatically Generated Bins for c3
269
270 Uncovered bins
271 NAME    COUNT    AT LEAST    NUMBER
272 [auto[1] - auto[15]]    --    --    15
273
274
275 Covered bins
276 NAME    COUNT    AT LEAST
277 auto[0]    286    1
278
279
280 Summary for Cross c2
281
282 Samples crossed: t1.addr t1.data
283 CATEGORY    EXPECTED    UNCOVERED    COVERED    PERCENT    MISSING
284 Automatically Generated Cross Bins    128    13    115    89.84    13
285
286
287 Automatically Generated Cross Bins for c2
288
289 Uncovered bins
290 t1.addr    t1.data    COUNT    AT LEAST    NUMBER
291 [auto[0]]    [auto[7]]    0    1    1
292 [auto[2]]    [auto[8] - auto[9]]    --    --    2
293 [auto[3]]    [auto[2]]    0    1    1
294 [auto[3]]    [auto[5]]    0    1    1
295 [auto[4]]    [auto[1]]    0    1    1
296 [auto[4]]    [auto[5]]    0    1    1
297 [auto[5]]    [auto[3]]    0    1    1
298 [auto[5]]    [auto[15]]    0    1    1
299 [auto[6]]    [auto[3]]    0    1    1
300 [auto[7]]    [auto[3]]    0    1    1
301 [auto[7]]    [auto[7]]    0    1    1
302 [auto[7]]    [auto[10]]    0    1    1
303
304
305 Covered bins
306 t1.addr    t1.data    COUNT    AT LEAST
307 auto[0]    auto[15]    1    1
308 auto[0]    auto[10]    1    1
309 auto[0]    auto[0]    2    1
310 auto[0]    auto[5]    6    1
311 auto[0]    auto[3]    1    1
312 auto[0]    auto[12]    3    1
313 auto[0]    auto[9]    6    1
314 auto[0]    auto[6]    7    1
315 auto[0]    auto[13]    1    1
316 auto[0]    auto[8]    1    1
317 auto[0]    auto[2]    4    1
318 auto[0]    auto[11]    2    1
319 auto[0]    auto[1]    3    1
320 auto[0]    auto[4]    2    1
321 auto[0]    auto[14]    3    1
322 auto[7]    auto[0]    1    1
323 auto[7]    auto[5]    4    1
324 auto[7]    auto[15]    1    1
325 auto[7]    auto[6]    2    1
326 auto[7]    auto[12]    1    1
327 auto[7]    auto[9]    4    1
328 auto[7]    auto[2]    1    1
329 auto[7]    auto[13]    2    1
330 auto[7]    auto[8]    3    1
331 auto[7]    auto[1]    2    1
332 auto[7]    auto[14]    1    1
333 auto[7]    auto[11]    3    1
334 auto[7]    auto[4]    3    1
335 auto[2]    auto[10]    2    1
336 auto[2]    auto[5]    3    1
337 auto[2]    auto[15]    2    1
338 auto[2]    auto[0]    2    1
339 auto[2]    auto[3]    4    1
340 auto[2]    auto[12]    3    1
341 auto[2]    auto[6]    3    1
342 auto[2]    auto[13]    2    1
343 auto[2]    auto[7]    3    1
344 auto[2]    auto[2]    3    1
345 auto[2]    auto[1]    1    1
346 auto[2]    auto[4]    2    1
347 auto[2]    auto[14]    1    1
348 auto[2]    auto[11]    3    1
349 auto[5]    auto[0]    1    1
350 auto[5]    auto[5]    2    1
351 auto[5]    auto[10]    6    1
352 auto[5]    auto[9]    4    1
353 auto[5]    auto[6]    4    1
354 auto[5]    auto[12]    2    1
355 auto[5]    auto[2]    4    1
356 auto[5]    auto[7]    2    1
357 auto[5]    auto[13]    3    1
358 auto[5]    auto[8]    5    1
359 auto[5]    auto[4]    2    1
360 auto[5]    auto[1]    2    1
361 auto[5]    auto[11]    4    1
362 auto[5]    auto[14]    3    1
363 auto[6]    auto[5]    1    1
364 auto[6]    auto[0]    1    1
365 auto[6]    auto[15]    1    1
366 auto[6]    auto[10]    1    1
367 auto[6]    auto[9]    2    1
368 auto[6]    auto[6]    3    1
369 auto[6]    auto[12]    2    1
370 auto[6]    auto[13]    1    1
371 auto[6]    auto[2]    4    1
372 auto[6]    auto[8]    4    1
373 auto[6]    auto[7]    2    1
374 auto[6]    auto[4]    1    1
375 auto[6]    auto[1]    2    1
376 auto[6]    auto[14]    1    1
377 auto[6]    auto[11]    4    1
378 auto[4]    auto[0]    1    1
379 auto[4]    auto[10]    3    1
380 auto[4]    auto[15]    3    1
381 auto[4]    auto[12]    1    1
382 auto[4]    auto[3]    1    1
383 auto[4]    auto[6]    3    1
384 auto[4]    auto[9]    2    1
385 auto[4]    auto[7]    1    1
386 auto[4]    auto[13]    2    1
387 auto[4]    auto[2]    6    1
388 auto[4]    auto[8]    1    1
389 auto[4]    auto[11]    1    1
390 auto[4]    auto[4]    1    1
391 auto[4]    auto[14]    1    1
392 auto[3]    auto[0]    1    1
393 auto[3]    auto[10]    2    1
394 auto[3]    auto[15]    3    1
395 auto[3]    auto[12]    2    1
396 auto[3]    auto[9]    3    1
397 auto[3]    auto[6]    2    1
398 auto[3]    auto[3]    3    1
399 auto[3]    auto[8]    2    1
400 auto[3]    auto[13]    3    1
401 auto[3]    auto[7]    2    1
402 auto[3]    auto[1]    2    1
403 auto[3]    auto[11]    3    1
404 auto[3]    auto[4]    1    1
405 auto[3]    auto[14]    2    1
406 auto[1]    auto[0]    1    1
407 auto[1]    auto[5]    3    1
408 auto[1]    auto[15]    4    1
409 auto[1]    auto[10]    4    1
410 auto[1]    auto[3]    1    1
411 auto[1]    auto[12]    3    1
412 auto[1]    auto[6]    3    1
413 auto[1]    auto[9]    3    1
414 auto[1]    auto[2]    1    1
415 auto[1]    auto[8]    1    1
416 auto[1]    auto[7]    6    1
417 auto[1]    auto[13]    4    1
418 auto[1]    auto[14]    1    1
419 auto[1]    auto[4]    7    1
420 auto[1]    auto[11]    6    1
421 auto[1]    auto[1]    1    1
422
423 Variable : cdata16
424 Variable : cdata32
425 Variable : cdafault
426 Variable : custom
427 Variable : judge
428 Variable : process
429 Variable : c1
430 Variable : t1.addr
431 Variable : t1.data
432 Variable : c3
433 Cross : c2
434 0%    10%    20%    30%    40%    50%    60%    70%    80%    90%    100%

View Code

断言资料

断言类型

assert立即断言

其中的\$fatal、\$error、\$warning、\$info，指示严重程度。如下：

time t;

always @(posedge clk)
    if (state == REQ)
        assert (req1 || req2)
    else begin
        t = $time;

    #5 $error("assert failed at time %0t",t);
end

又如assert与else结合

assert (myfunc(a,b)) count1 = count + 1; else -> event1;
assert (y == 0) else flag = 1;

property并发断言

并发断言描述了贯穿时间的行为。与即时断言基于时钟的计算模型不同，仅在一个时钟标记出现的时候被计算。获得一个可预测的结果。

断言中使用的变量值在一个时隙的Preponed区域被采样，并且断言在Observe区域被计算。

验证设计意图，内部可包含sequence

sequence序列

将一个序列做出来，包含很多场景，比如reset等

延迟与不延迟

|=>下一周期的因果关系，

|->同下一周期的因果关系，

cover、assume、assert

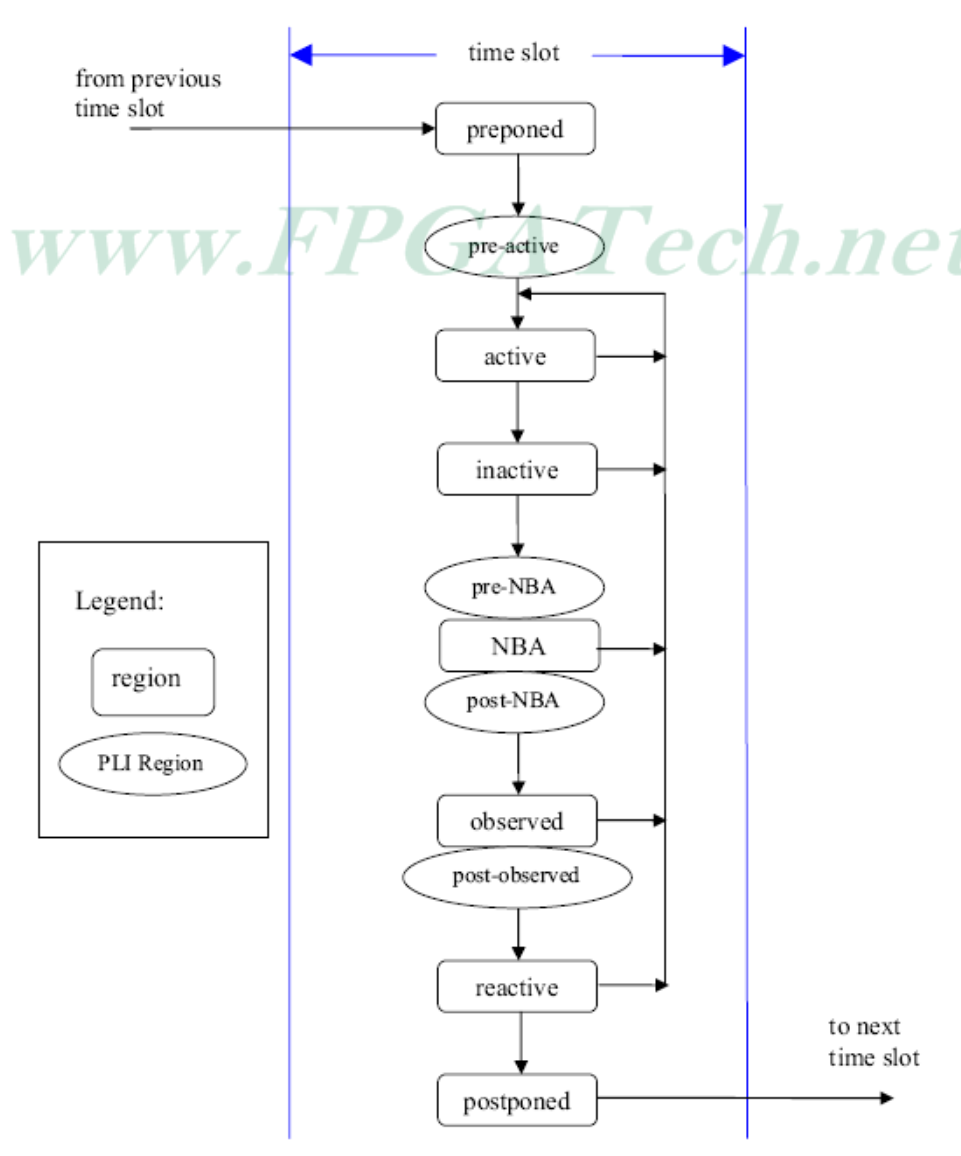

断言相差一个时间单位。仿真时钟域在active后的assertion部分，随后是deactive、postpone。

https://www.cnblogs.com/xh13dream/p/9134294.html

posted @ 2021-12-31 14:49 大浪淘沙、阅读(100) 评论(0) 收藏举报

刷新页面返回顶部

大浪淘沙、

不积跬步无以至千里，不积小流无以成江海，骐骥一跃不能十步，驽马十驾功在不舍。
