日常记录(24)方法

数组方法,用于非填充数组:固定数组,固定数组,动态数组,队列,联合数组。

sum求和

product求积

and,or,xor,与或,异或等方法

max,min,unique的最大最小,唯一化

reverse,shuffle,sort,rsort的翻转、打乱、升序、降序

find,find_first,find_first_with_index的与with item配合,获取数组子集,过滤。with的判断结果为1bit宽度。

 https://blog.csdn.net/Holden_Liu/article/details/100727957

联合数组:

first、next、prev、delete、exists等

队列:

push_front、pop_back、push_back、pop_front、insert、delete【无参数则整个队列删除】等



队列和联合数组用于fifo/stack,稀疏矩阵/内存/字符串索引等。非连续,固定数组和动态数组连续,固定数组可多维,动态数组单维度。



字符串类型变量string的函数

$psprintf()生成字符串

==,!=,compare(),icompare()

itoa、atoi、atohex、toupper、tolower

len、getc、putc、substr等

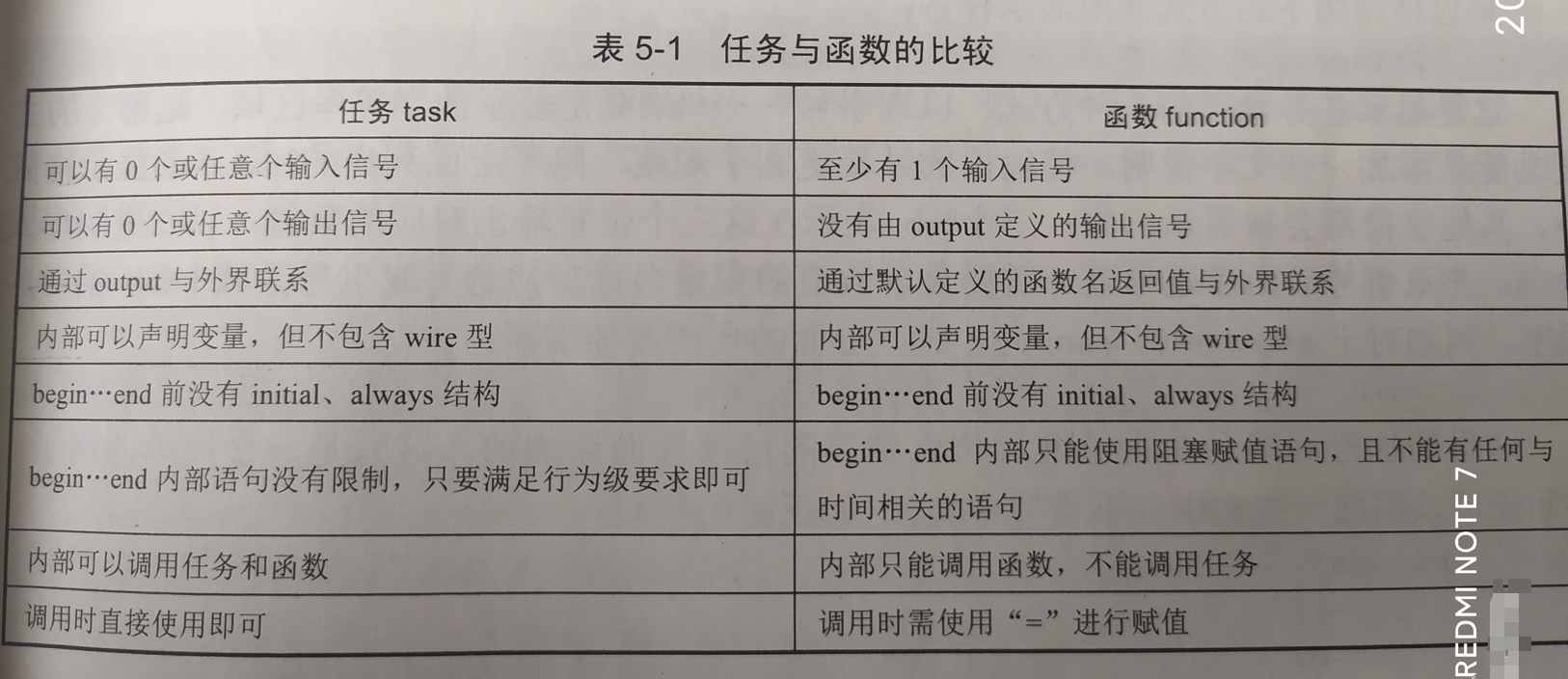

function和task

function无延时,在Verilog需要一个返回值。task则可以有延时。#, @, wait等。

sv的function可以没有返回值,可以有return语句。begin。。。end默认存。task的声明中默认参数输入为logic类型。

function的默认返回值类型,默认缺省值为 1 比特的寄存器数据,

Verilog中的比较。最后一条在sv中明显不成立。





以下为function的ref和strobe的显示

module taa ();
function void func1();
    input int a;
    input int b;
    a=10;
    b=5;
endfunction:  func1

function void func2(ref int a,ref int b);
    a=10;
    b=5;
endfunction:  func2

initial begin

    int a;
    int b;
    a=5;
    b=2;
    func1(a, b);
    $display("value a=%d, b=%d", a, b);
    $strobe("st1 value a=%d, b=%d", a, b);
    func2(a, b);
    $display("value a=%d, b=%d", a, b);
    $strobe("st2 value a=%d, b=%d", a, b);
end
endmodule

输出内容:

value a=          5, b=          2
value a=         10, b=          5
st2 value a=         10, b=          5
st1 value a=         10, b=          5



+:

module tbb ();
reg [7:0] mem[64];
initial begin
    for(int i=0;i<8;i++)
        mem[i*8+:8]='{8{'1}};

    foreach(mem[i])
        $display("the mem content: %b", mem[i]);

end
endmodule

输出

 1 the mem content: 11111111
 2 the mem content: 11111111
 3 the mem content: 11111111
 4 the mem content: 11111111
 5 the mem content: 11111111
 6 the mem content: 11111111
 7 the mem content: 11111111
 8 the mem content: 11111111
 9 the mem content: 11111111
10 the mem content: 11111111
11 the mem content: 11111111
12 the mem content: 11111111
13 the mem content: 11111111
14 the mem content: 11111111
15 the mem content: 11111111
16 the mem content: 11111111
17 the mem content: 11111111
18 the mem content: 11111111
19 the mem content: 11111111
20 the mem content: 11111111
21 the mem content: 11111111
22 the mem content: 11111111
23 the mem content: 11111111
24 the mem content: 11111111
25 the mem content: 11111111
26 the mem content: 11111111
27 the mem content: 11111111
28 the mem content: 11111111
29 the mem content: 11111111
30 the mem content: 11111111
31 the mem content: 11111111
32 the mem content: 11111111
33 the mem content: 11111111
34 the mem content: 11111111
35 the mem content: 11111111
36 the mem content: 11111111
37 the mem content: 11111111
38 the mem content: 11111111
39 the mem content: 11111111
40 the mem content: 11111111
41 the mem content: 11111111
42 the mem content: 11111111
43 the mem content: 11111111
44 the mem content: 11111111
45 the mem content: 11111111
46 the mem content: 11111111
47 the mem content: 11111111
48 the mem content: 11111111
49 the mem content: 11111111
50 the mem content: 11111111
51 the mem content: 11111111
52 the mem content: 11111111
53 the mem content: 11111111
54 the mem content: 11111111
55 the mem content: 11111111
56 the mem content: 11111111
57 the mem content: 11111111
58 the mem content: 11111111
59 the mem content: 11111111
60 the mem content: 11111111
61 the mem content: 11111111
62 the mem content: 11111111
63 the mem content: 11111111
64 the mem content: 11111111
View Code





NERATree的m命令

删除文件、修改等,
