Semantic Kernel:开启MCP

　　MCP越来越火了，各大模型公司也在陆陆续续支持MCP了，OpenAI在前不久声明对MCP的支持，同时社区的SDK也来了，今天就用ModelContextProtocol来创建服务端和客户端，并且找通他们。与此同时，也不能落下SK，看看SK怎么使用MCP。

先看Server端：

项目文件如下：

<Project Sdk="Microsoft.NET.Sdk.Web">

  <PropertyGroup>
    <TargetFramework>net10.0</TargetFramework>
    <Nullable>enable</Nullable>
    <ImplicitUsings>enable</ImplicitUsings>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="ModelContextProtocol" Version="0.1.0-preview.2" />
  </ItemGroup>
</Project>

Program.cs：

using ModelContextProtocol;

var builder = WebApplication.CreateBuilder(args);
builder.Services.AddMcpServer()
    .WithStdioServerTransport()
    .WithToolsFromAssembly();
var app = builder.Build();
app.MapGet("/", () => "Hello World!");
app.MapMcpSse();
app.Run();

工具定义：

using ModelContextProtocol.Server;
using System.ComponentModel;

namespace MCPOrderTool.Tools;

[McpServerToolType]
public static class OrderTool
{
    [McpServerTool("queryOrder"), Description("按开始日期和结速日期查询订单")]
    public static List<Order> QueryList(DateTime? beginTime, DateTime? endTime)
    {
        Console.WriteLine("-------------参数-------------");
        Console.ForegroundColor = ConsoleColor.Green;
        Console.WriteLine($"BeginTime:{beginTime}，EndTime：{endTime}");
        Console.ResetColor();
        Console.WriteLine("-------------参数-------------");
        if (beginTime is null || endTime is null)
        {
            beginTime = DateTime.Now;
            endTime = DateTime.Now;
        }
        return new List<Order>
        {
            new Order("NO000001", "Order1", DateTime.Now.ToString("yyyy-MM-dd"), "Pending"),
            new Order("NO000002", "Order2", DateTime.Now.ToString("yyyy-MM-dd"), "Completed"),
            new Order("NO000003", "Order3", DateTime.Now.ToString("yyyy-MM-dd"), "Pending"),
            new Order("NO000004", "Order4", DateTime.Now.ToString("yyyy-MM-dd"), "Completed"),
            new Order("NO000005", "Order5", DateTime.Now.ToString("yyyy-MM-dd"), "Pending"),
            new Order("NO000006", "Order6", DateTime.Now.ToString("yyyy-MM-dd"), "Completed"),
            new Order("NO000007", "Order7", DateTime.Now.ToString("yyyy-MM-dd"), "Pending"),
            new Order("NO000008", "Order8", DateTime.Now.ToString("yyyy-MM-dd"), "Completed"),
            new Order("NO000009", "Order9", DateTime.Now.ToString("yyyy-MM-dd"), "Pending"),
            new Order("NO000010", "Order10",  DateTime.Now.ToString("yyyy-MM-dd"), "Completed"),
        };
    }
}

public record Order(string OrderId, string OrderName, string OrderTime, string OrderStatus);

MCP服务端Map定义：

using ModelContextProtocol.Protocol.Messages;
using ModelContextProtocol.Server;
using ModelContextProtocol.Utils.Json;
using Microsoft.Extensions.Options;
using ModelContextProtocol.Protocol.Transport;

public static class McpEndpointRouteBuilderExtensions
{
    public static IEndpointConventionBuilder MapMcpSse(this IEndpointRouteBuilder endpoints)
    {
        IMcpServer? server = null;
        SseResponseStreamTransport? transport = null;
        var loggerFactory = endpoints.ServiceProvider.GetRequiredService<ILoggerFactory>();
        var mcpServerOptions = endpoints.ServiceProvider.GetRequiredService<IOptions<McpServerOptions>>();

        var routeGroup = endpoints.MapGroup("");

        routeGroup.MapGet("/sse", async (HttpResponse response, CancellationToken requestAborted) =>
        {
            await using var localTransport = transport = new SseResponseStreamTransport(response.Body);
            await using var localServer = server = McpServerFactory.Create(transport, mcpServerOptions.Value, loggerFactory, endpoints.ServiceProvider);

            await localServer.StartAsync(requestAborted);
            response.Headers.ContentType = "text/event-stream";
            response.Headers.CacheControl = "no-cache";
            try
            {
                await transport.RunAsync(requestAborted);
            }
            catch (OperationCanceledException) when (requestAborted.IsCancellationRequested)
            {
                Console.WriteLine("closed");
            }
        });

        routeGroup.MapPost("/message", async context =>
        {
            if (transport is null)
            {
                await Results.BadRequest("Connect to the /sse endpoint before sending messages.").ExecuteAsync(context);
                return;
            }
            var message = await context.Request.ReadFromJsonAsync<IJsonRpcMessage>(McpJsonUtilities.DefaultOptions, context.RequestAborted);
            if (message is null)
            {
                await Results.BadRequest("No message in request body.").ExecuteAsync(context);
                return;
            }
            await transport.OnMessageReceivedAsync(message, context.RequestAborted);
            context.Response.StatusCode = StatusCodes.Status202Accepted;
            await context.Response.WriteAsync("Accepted");
        });
        return routeGroup;
    }
}

下面是Client使用：

项目文件：

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net10.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
  </PropertyGroup>
  <ItemGroup>
    <PackageReference Include="Microsoft.Extensions.AI.OpenAI" Version="9.3.0-preview.1.25161.3" />
    <PackageReference Include="Microsoft.Extensions.Logging.Debug" Version="10.0.0-preview.2.25163.2" />
    <PackageReference Include="Microsoft.SemanticKernel" Version="1.44.0" />
    <PackageReference Include="Microsoft.SemanticKernel.Plugins.Core" Version="1.44.0-alpha" />
    <PackageReference Include="ModelContextProtocol" Version="0.1.0-preview.2" />
    <PackageReference Include="ModelContextProtocol-SemanticKernel" Version="0.0.1-preview-03" />
  </ItemGroup>
</Project>

Program.cs文件：

using Azure.Core;
using Microsoft.Extensions.AI;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;
using Microsoft.SemanticKernel;
using Microsoft.SemanticKernel.Connectors.OpenAI;
using ModelContextProtocol.Client;
using ModelContextProtocol.Configuration;
using ModelContextProtocol.Protocol.Transport;
using ModelContextProtocol.Protocol.Types;
using ModelContextProtocol.SemanticKernel.Extensions;
using ModelContextProtocol.SemanticKernel.Options;
using ModelContextProtocol.Server;
using OpenAI;
using System.ComponentModel;
using System.Text.Json;
using System.Text.Json.Serialization;

var key = File.ReadAllText("c:/gpt/key.txt");

while (true)
{
    Console.WriteLine("===========================================================");
    Console.WriteLine("1、获取工具列表  2、Client调用工具  3、SK调用工具  0、退出");
    Console.WriteLine("===========================================================");
    var no = Console.ReadLine();
    switch (no)
    {
        case "1":
            await MCPClientToolsListAsync();
            break;
        case "2":

            await MCPClientAsync();
            break;
        case "3":
            await SKClientAsync();
            break;
        case "0":
            return;
    }
}

async Task MCPClientToolsListAsync()
{
    var serverConfig = new McpServerConfig
    {
        Id = "QueryOrder",
        Name = "QueryOrder",
        TransportType = TransportTypes.Sse,
        Location = "http://localhost:3001/sse"
    };
    var clientOptions = new McpClientOptions
    {
        ClientInfo = new()
        {
            Name = "QueryOrderClient",
            Version = "0.0.1",
        }
    };
    var mcpClient = await McpClientFactory.CreateAsync(serverConfig, clientOptions);
    Console.WriteLine("获取Tools:");
    var tools = await mcpClient.ListToolsAsync();

    foreach (var tool in tools)
    {

        Console.WriteLine($"{tool.Name},{tool.Description}");
    }
    Console.WriteLine();
}

async Task MCPClientAsync()
{
    var serverConfig = new McpServerConfig
    {
        Id = "QueryOrder",
        Name = "MCPOrderTool",
        TransportType = TransportTypes.Sse,
        Location = "http://localhost:3001/sse"
    };
    var clientOptions = new McpClientOptions
    {
        ClientInfo = new()
        {
            Name = "QueryOrderClient",
            Version = "0.0.1",
        }
    };
    var mcpClient = await McpClientFactory.CreateAsync(serverConfig, clientOptions);
    var functions = await mcpClient.ListToolsAsync();
    IChatClient chatClient = new OpenAIClient(key).AsChatClient("gpt-4o-mini")
    .AsBuilder().UseFunctionInvocation().Build();
    var response = chatClient.GetStreamingResponseAsync(
     "查询本周的订单",
     new()
     {
         Tools = [.. functions],
     });
    await foreach (var item in response)
    {
        Console.Write(item.Text);
    }
    Console.WriteLine();
}

async Task SKClientAsync()
{
    var builder = Kernel.CreateBuilder();
    builder.Services.AddLogging(c => c.AddDebug().SetMinimumLevel(LogLevel.Trace));

    builder.Services.AddOpenAIChatCompletion(
        serviceId: "openai",
        modelId: "gpt-4o-mini",
        apiKey: key);

    var kernel = builder.Build();
    kernel.Plugins.AddFromType<TimeInformationPlugin>();
    await kernel.Plugins.AddMcpFunctionsFromSseServerAsync("MCPOrderTool", "http://localhost:3001/sse");
    var executionSettings = new OpenAIPromptExecutionSettings
    {
        Temperature = 0,
        FunctionChoiceBehavior = FunctionChoiceBehavior.Auto()
    };
    var prompt = "请查询本月的订单";
    var result = kernel.InvokePromptStreamingAsync(prompt, new(executionSettings));
    await foreach (var item in result)
    {
        Console.Write(item.ToString());
    }
    Console.WriteLine();
}

public class TimeInformationPlugin
{
    [KernelFunction, Description("获取当前的 UTC 时间。")]
    public string GetCurrentUtcTime()
        => DateTime.UtcNow.ToString("R");
}

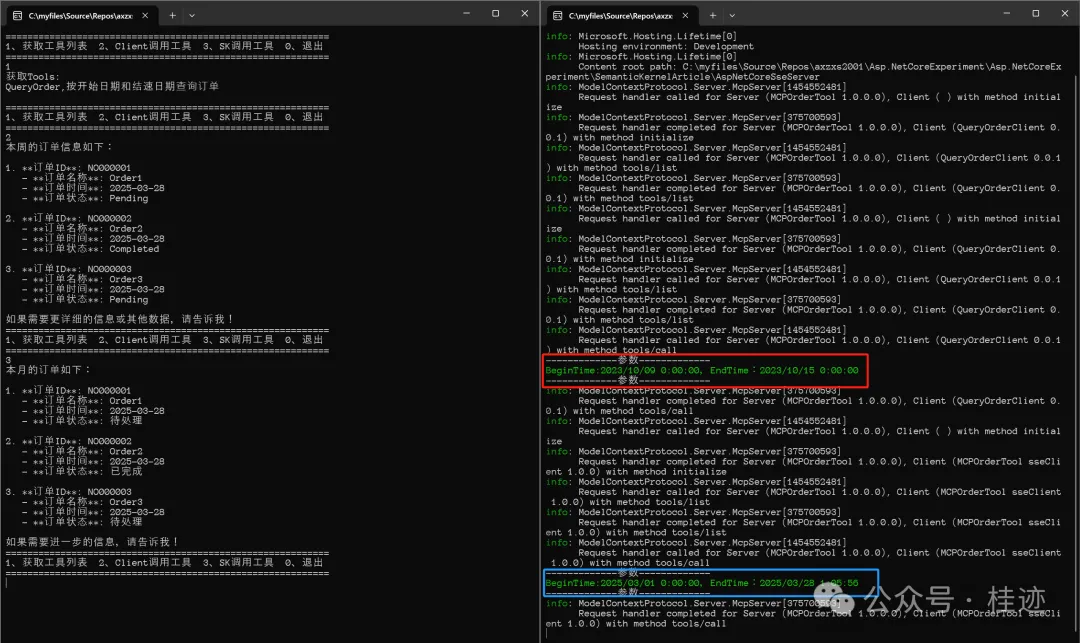

　　下面是运行结果：1、列举服务端的工具信息，2、是用普通方式调用MCP服务端，这时注意右边红色的框，时间是2023年，取的是模型时间 3、是用SK的方式调用工具，同时SK还添加当前时间插件，看蓝色框，取的是当前时间，正确。
