操作系统导论习题解答（4. Processes）

Homework (Simulation)

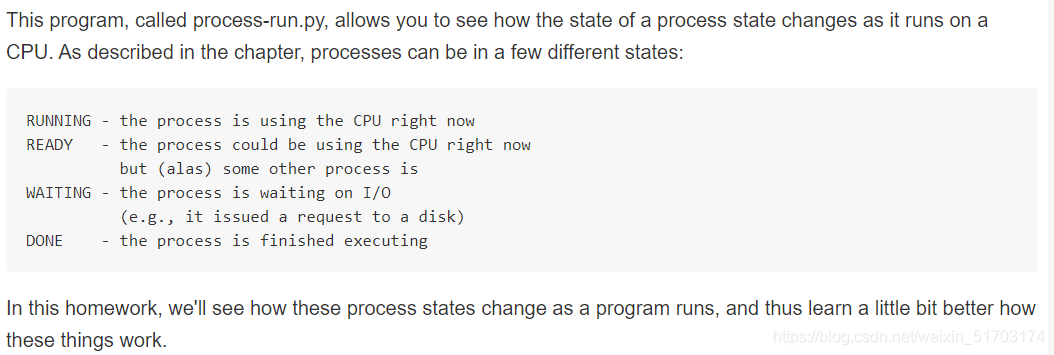

This program, process-run.py, allows you to see how process states change as programs run and either use the CPU (e.g., perform an add instruction) or do I/O (e.g., send a request to a disk and wait for it to complete). See the README for details.

Target

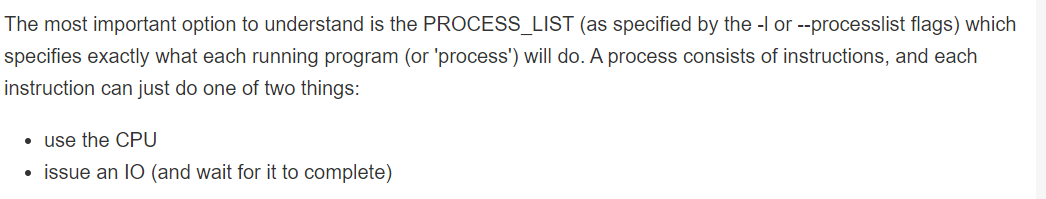

Introduction

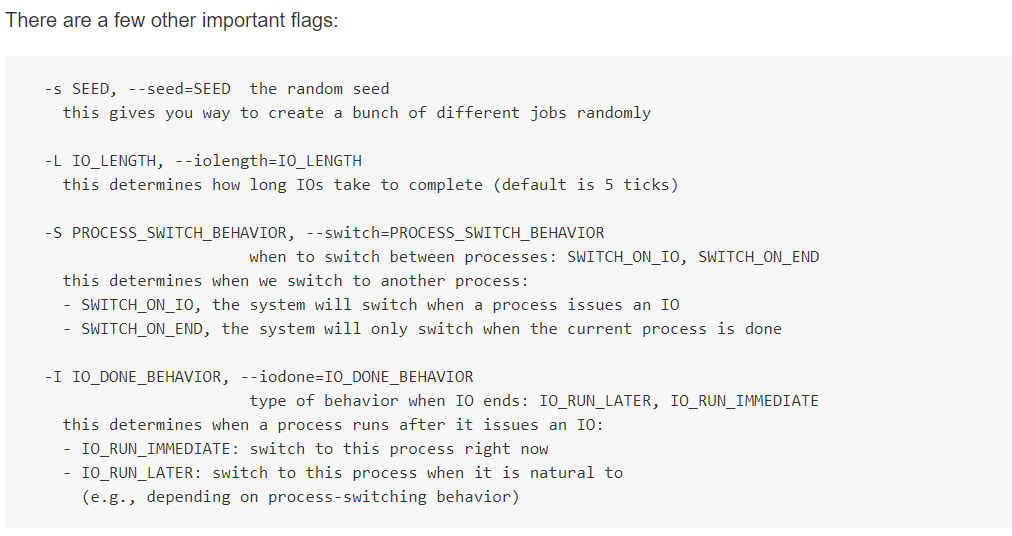

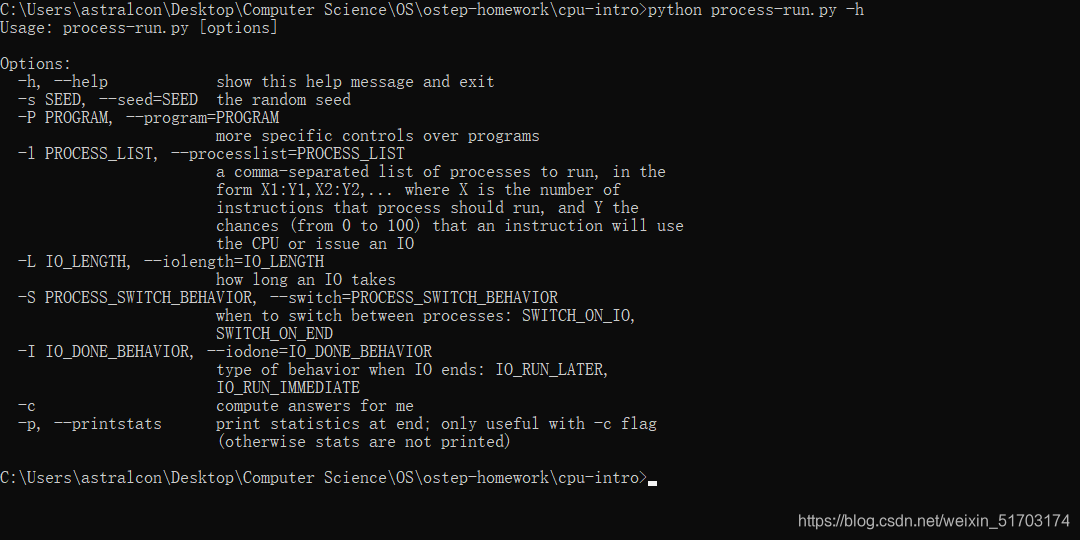

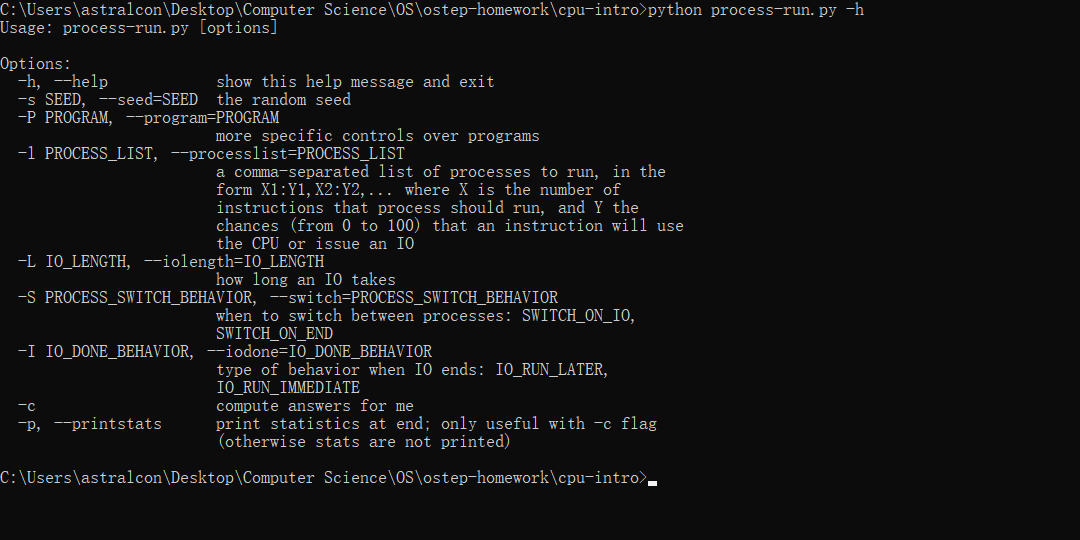

type python process-run.py -h in the command, you should see:



Question & Answer

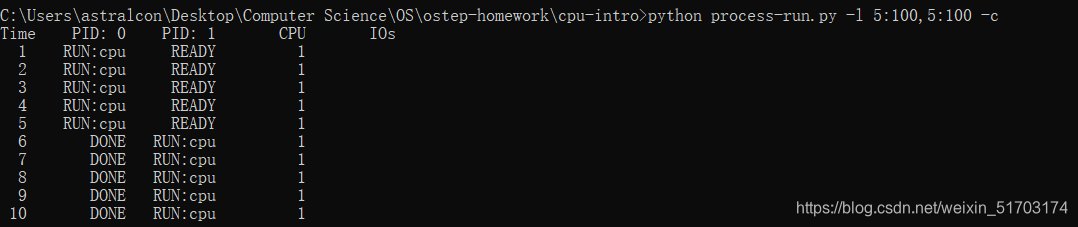

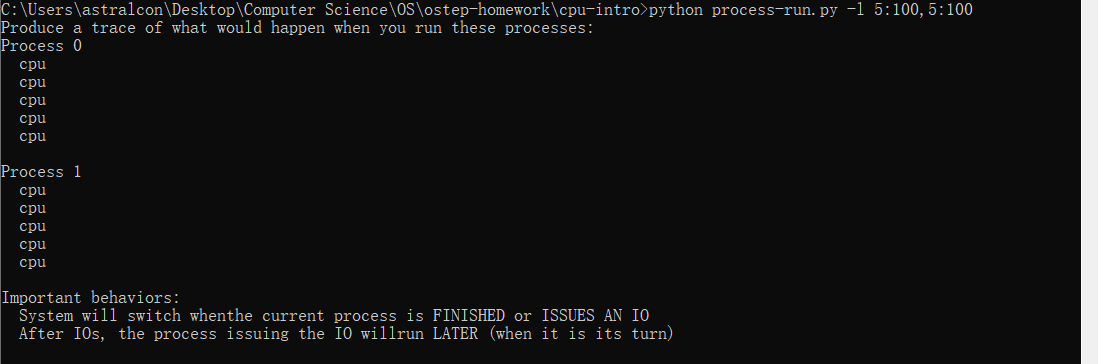

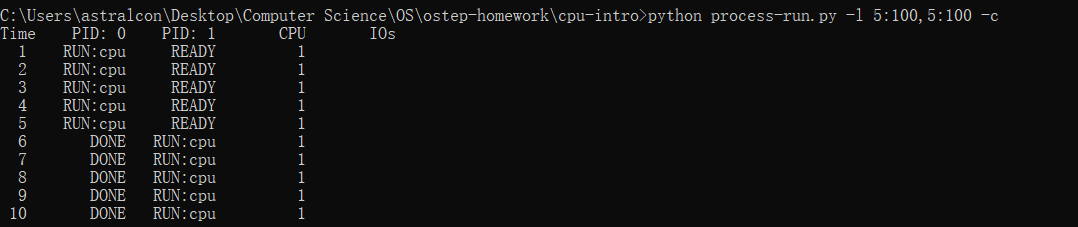

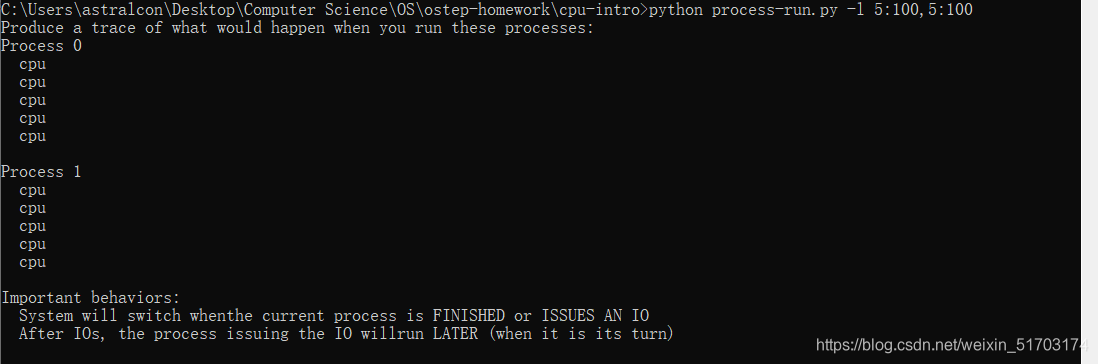

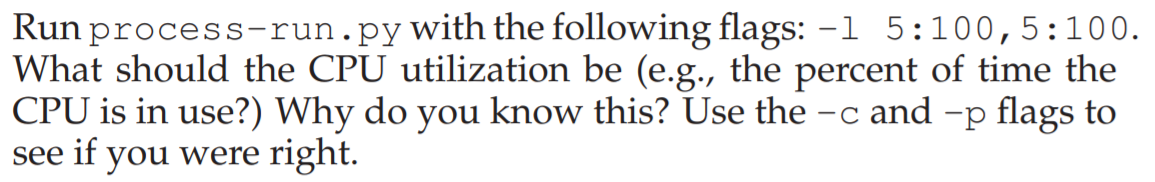

1

The CPU utilization is 100%.

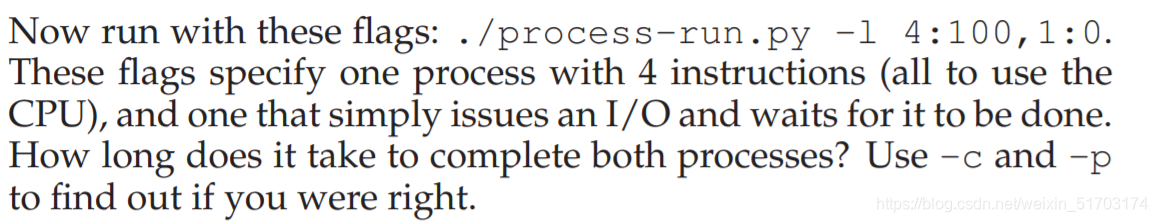

2

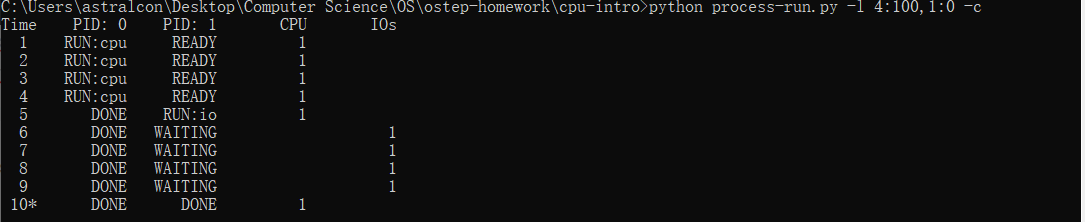

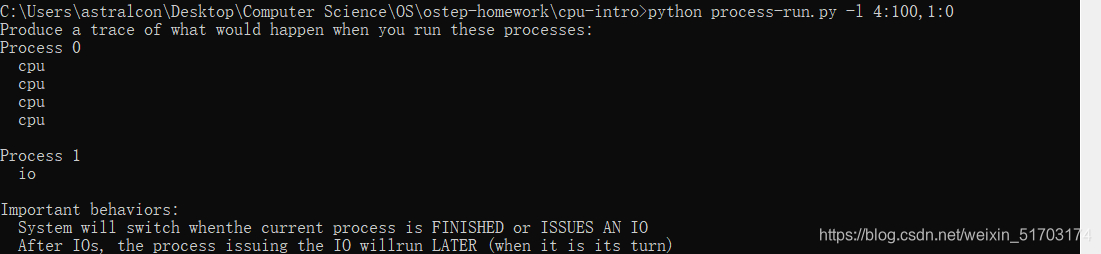

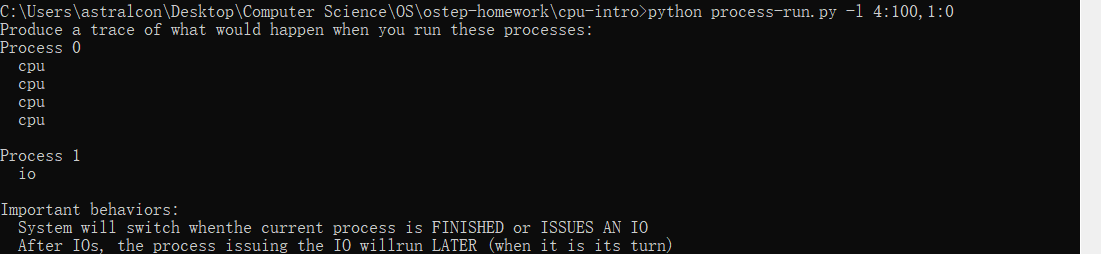

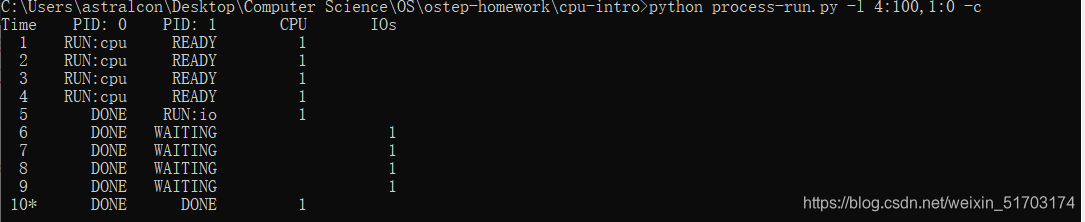

It takes 10 clock ticks to complete both processes.

First, process 0 was run, it took 4 clock ticks. Then process 1 issued an I/0 request, the CPU received and blocked process 1, it took 1 clock tick. Next the I/O took 4 clock ticks, and finally the CPU unblocked the process 1, process 1 was done, it took 1 clock tick.

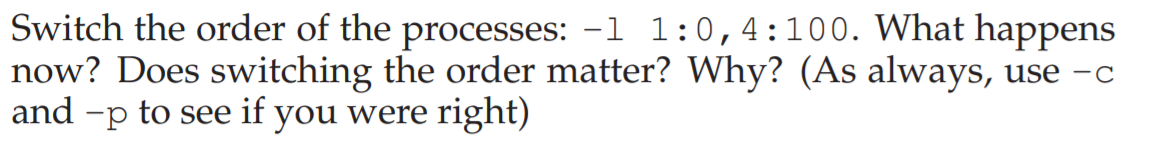

3

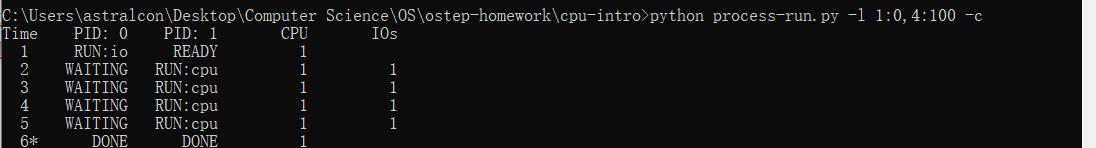

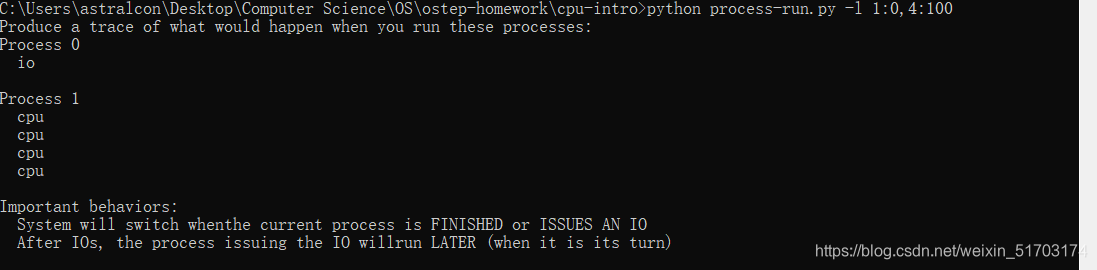

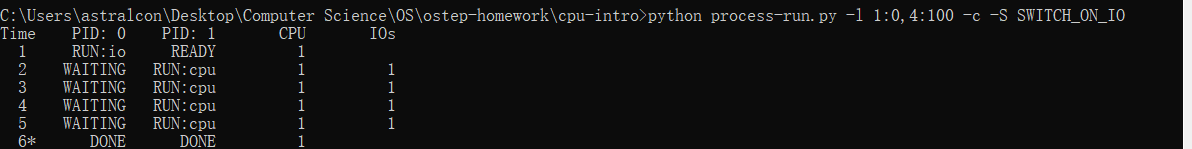

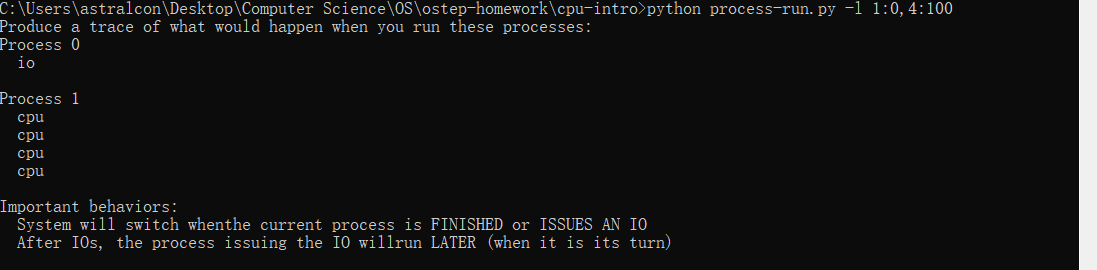

Process 0 issued an I/O request, the CPU blocked it and started I/O operations, it took 1 clock tick. When I/Os were running, process 1 issued the CPU request, after 4 clock ticks, I/Os and CPU finished. It takes a total of 6 clock ticks.

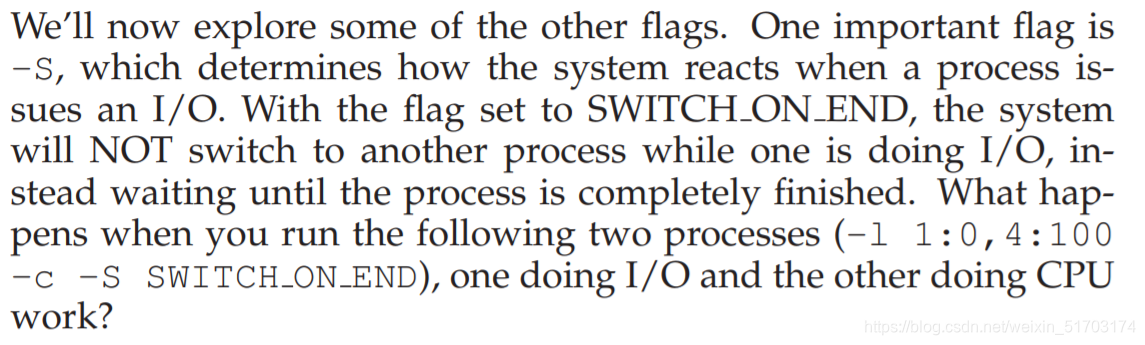

4

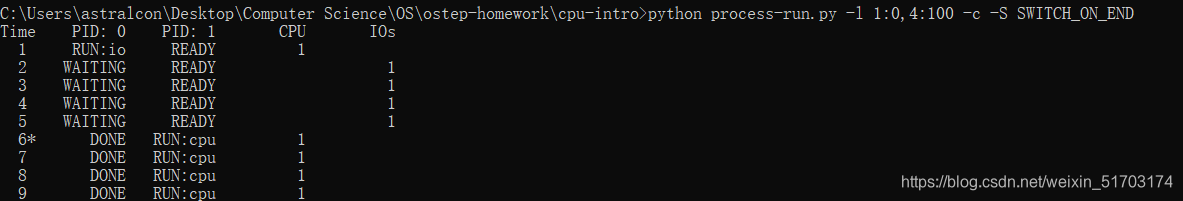

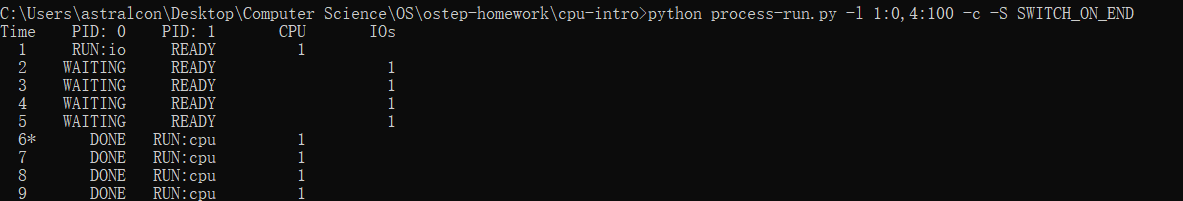

When process 0 is doing I/0, the system will not switch to process 1, instead waiting until the process 0 is completely finished.

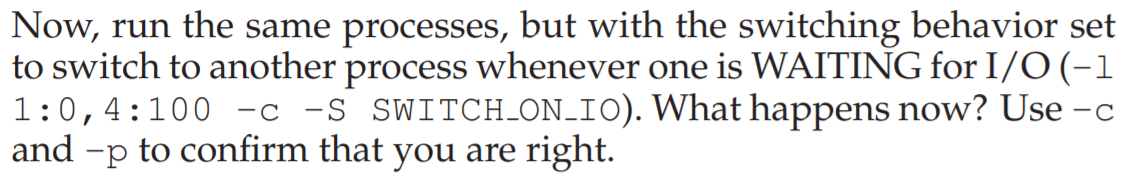

5

It is the same as question 3.

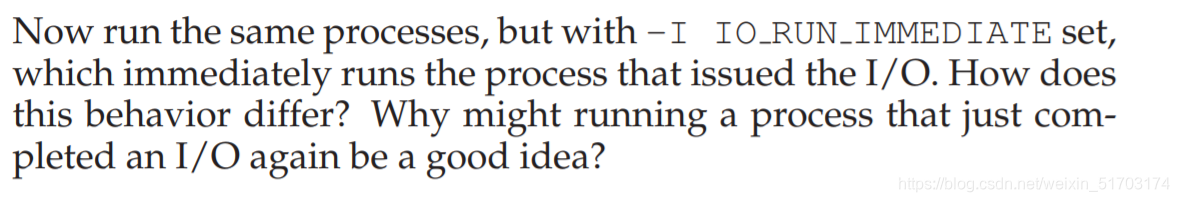

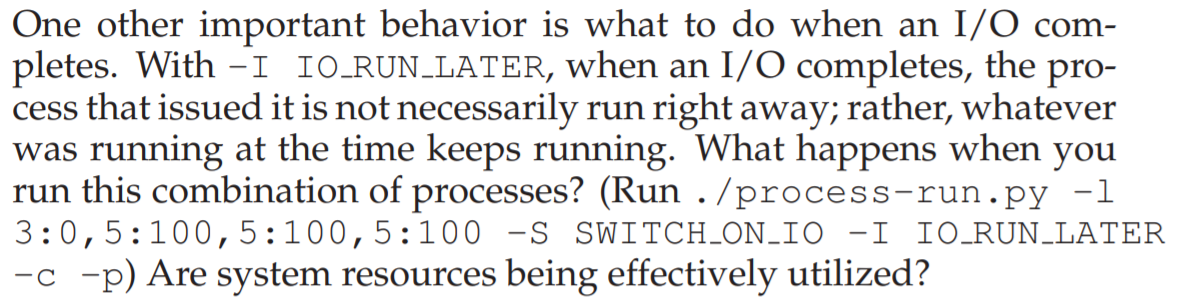

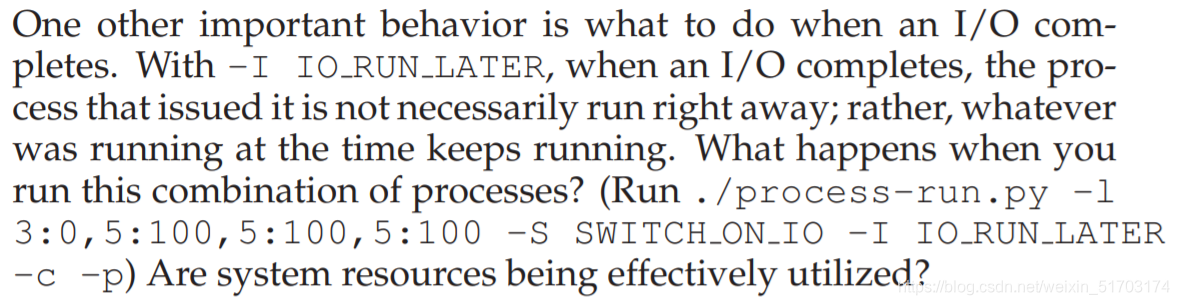

6

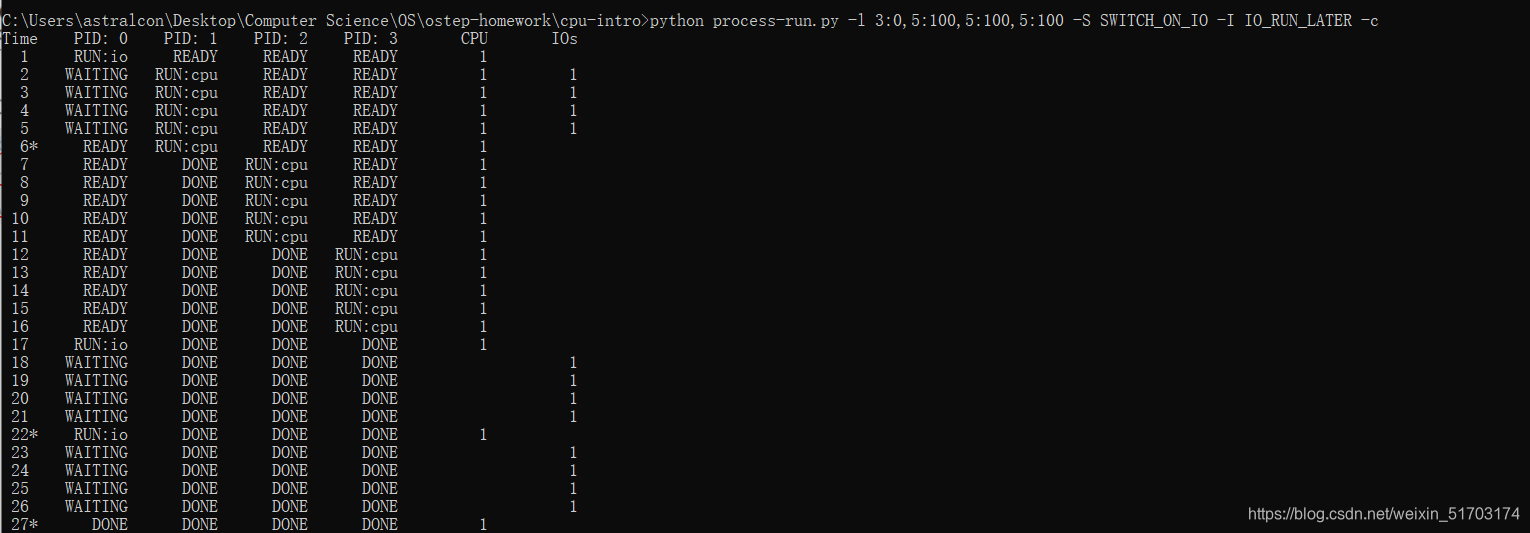

The system resources are not being effectively utilized.

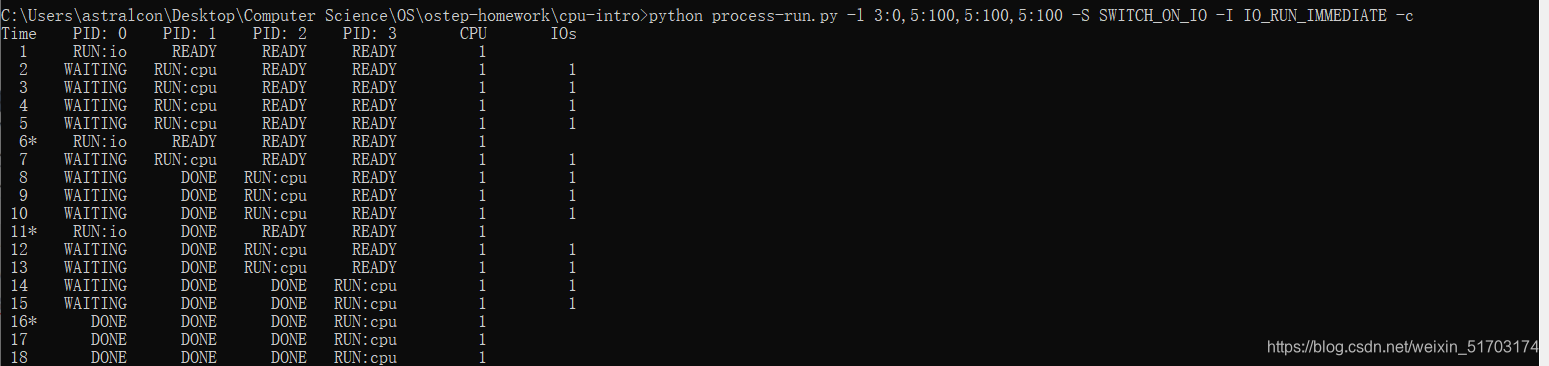

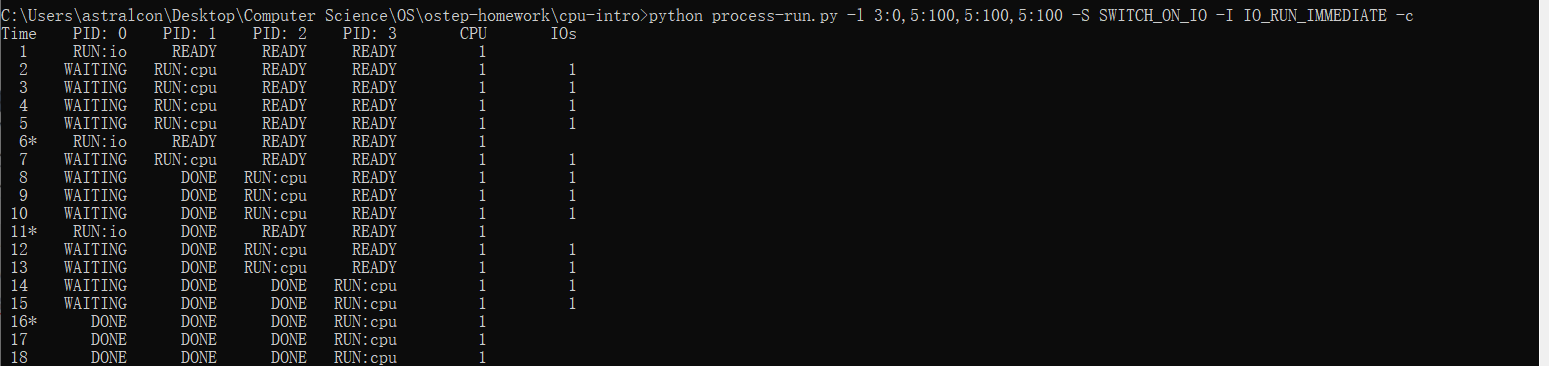

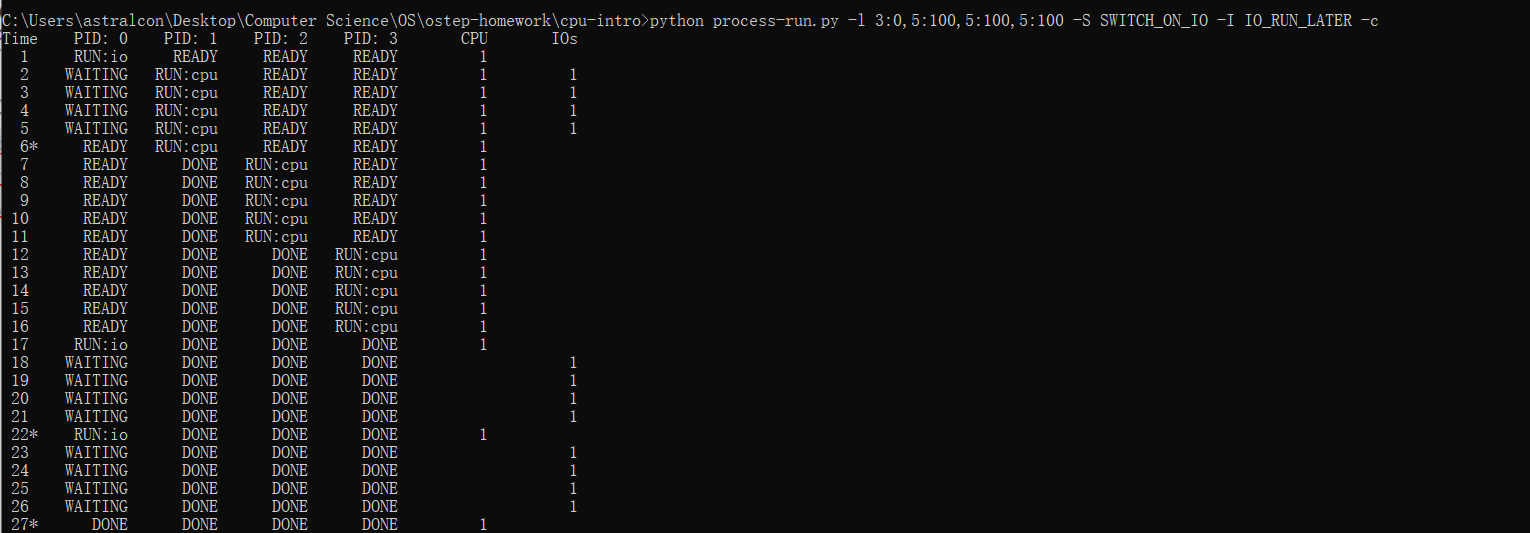

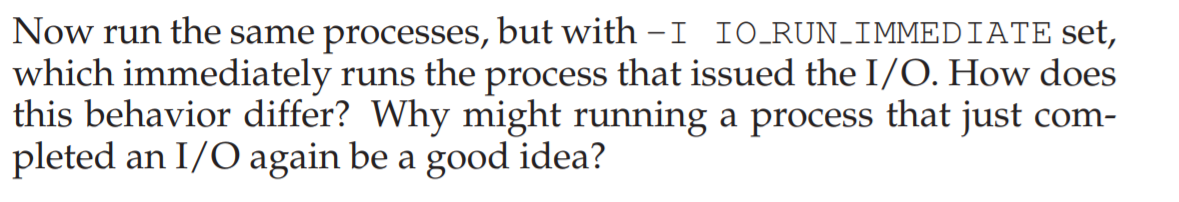

7

The difference between the two is whether the CPU accepts the next I/O request or runs the process instruction after the I/O operation is executed. Since the default mode SWITCH_ON_IO is adopted, the CPU executes instructions and I/O operations are performed simultaneously, so IO_RUN_IMMEDIATE is 1 clock tick faster.
