android: retrofit库的简单例子

一，安装第三方库

库地址:

https://mvnrepository.com/artifact/com.squareup.retrofit2/retrofit

编辑build.gradle,添加

// https://mvnrepository.com/artifact/com.squareup.retrofit2/retrofit
implementation 'com.squareup.retrofit2:retrofit:2.12.0'

然后点击 Sync Now

二，代码：

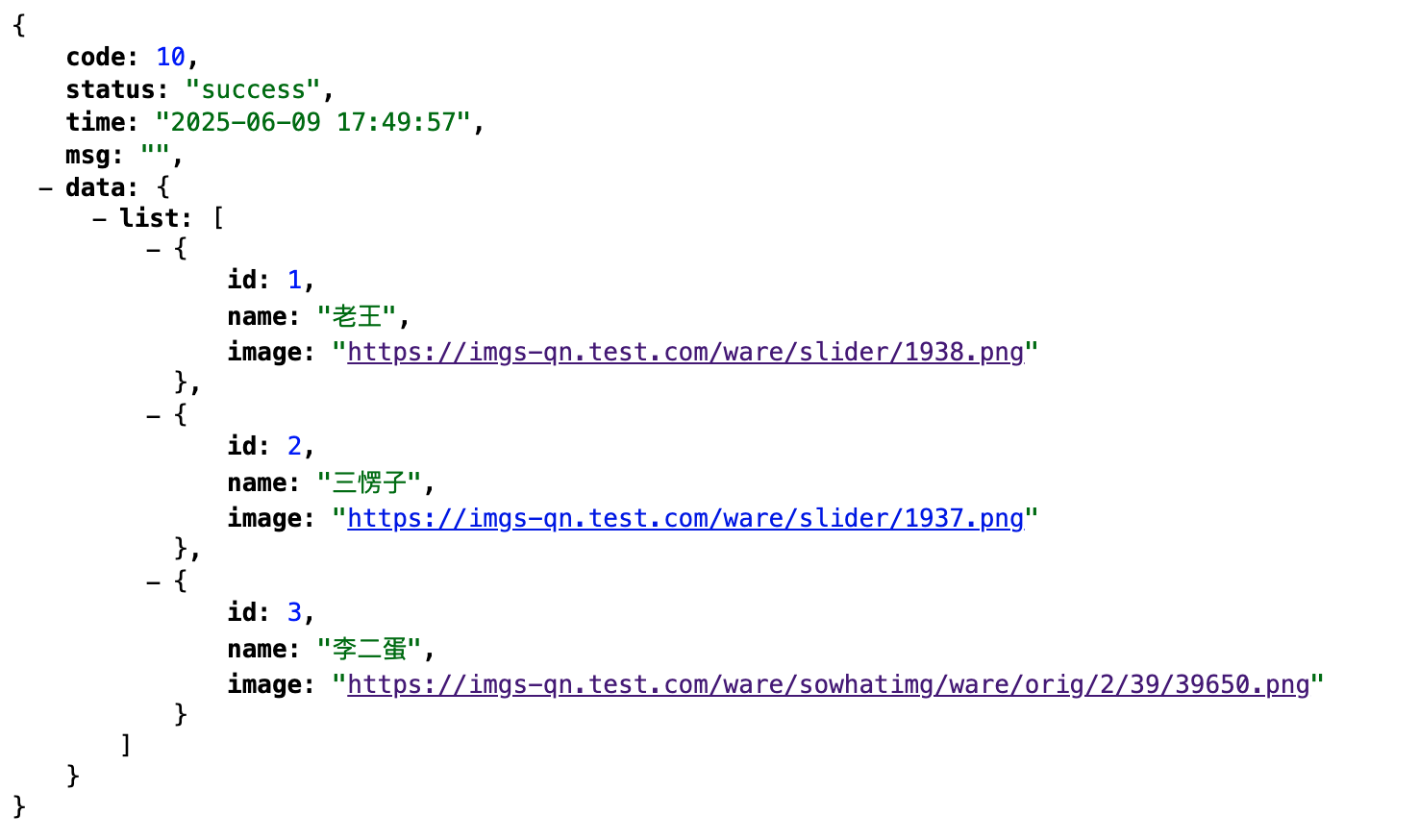

接口返回的json格式:

服务接口:

package com.example.okdemo1.interfaces;

import com.example.okdemo1.model.BaseEntity;
import com.example.okdemo1.model.UserListEntity;

import retrofit2.Call;
import retrofit2.http.GET;

public interface ApiServiceInterface {
    //get方式,得到用户列表
    @GET("/json.php")
    Call<BaseEntity<UserListEntity>> getUserList();

}

两个model类:

package com.example.okdemo1.model;

import java.util.List;

public class UserListEntity {
    private int code;
    private String status;
    private String time;
    private String msg;
    private Data data;

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getStatus() {
        return status;
    }

    public void setStatus(String status) {
        this.status = status;
    }

    public String getTime() {
        return time;
    }

    public void setTime(String time) {
        this.time = time;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public Data getData() {
        return data;
    }

    public void setData(Data data) {
        this.data = data;
    }

    public class Data {
        private List<UserListItemEntity> list;

        public List<UserListItemEntity> getList() {
            return list;
        }

        public void setLabel(List<UserListItemEntity> list) {
            this.list = list;
        }
    }
}

UserListItemEntity

package com.example.okdemo1.model;

public class UserListItemEntity {
    private int id;
    private String name;
    private String image;

    public UserListItemEntity(int id, String name, String image) {
        this.id = id;
        this.name = name;
        this.image = image;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getImage() {
        return image;
    }

    public void setImage(String image) {
        this.image = image;
    }
}

activity xml: 只有一个按钮

activity: java:

package com.example.okdemo1.activity;

import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;

import com.example.okdemo1.MainActivity;
import com.example.okdemo1.R;
import com.example.okdemo1.interfaces.ApiServiceInterface;
import com.example.okdemo1.model.UserListEntity;
import com.example.okdemo1.model.UserListItemEntity;

import java.util.List;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;
import retrofit2.Retrofit;
import retrofit2.converter.gson.GsonConverterFactory;

public class ApiActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        EdgeToEdge.enable(this);
        setContentView(R.layout.activity_api);

        //给按钮增加点击事件
        Button button2 = findViewById(R.id.apiBtn);
        button2.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                 //访问接口
                request();
            }
        });
    }

    //retrofit2 请求方法
    public void request() {

        //创建Retrofit对象
        Retrofit retrofit = new Retrofit.Builder()
                .baseUrl("http://www.testit.net") // 设置 网络请求 Url
                .addConverterFactory(GsonConverterFactory.create()) //设置使用Gson解析(记得加入依赖)
                .build();

        //创建 网络请求接口 的实例
        ApiServiceInterface request = retrofit.create(ApiServiceInterface.class);

        //对 发送请求 进行封装
        Call<UserListEntity> call = request.getUserList();

        //发送网络请求(异步)
        call.enqueue(new Callback<UserListEntity>() {
            //请求成功时回调
            @Override
            public void onResponse(Call<UserListEntity> call, Response<UserListEntity> response) {
                //处理返回的数据结果

                List<UserListItemEntity> list = response.body().getData().getList();
                //遍历list数据
                for (int i = 0; i < list.size(); i++) {
                    UserListItemEntity one = list.get(i);
                    // 对元素进行操作
                    System.out.println("one:"+one.getId()+"-"+one.getName()+"-"+one.getImage());
                }
            }

            //请求失败时回调
            @Override
            public void onFailure(Call<UserListEntity> call, Throwable throwable) {
                System.out.println("连接失败");
            }
        });
    }
}

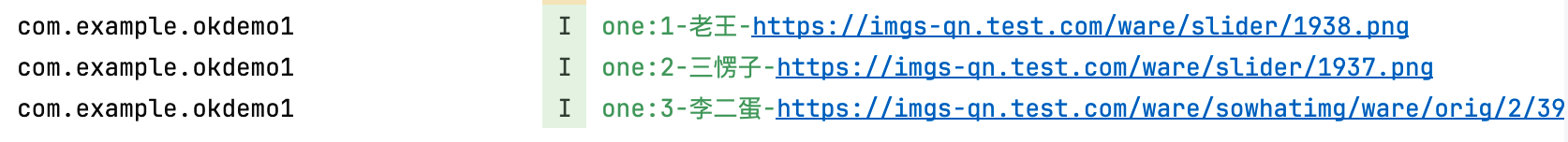

三，测试效果
