android: LinearLayout中指定间距

一,代码:

xml:

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".activity.PreferenceActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="vertical"
        >

        <Space
            android:layout_width="match_parent"
            android:layout_height="66dp" />

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:background="#ffff00"
            android:layout_gravity="center"
            android:text="控件1"
            android:layout_marginBottom="66dp" />

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="66dp"
            android:background="#ffff00"
            android:layout_gravity="center"
            android:text="控件2" />

    </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

说明:

可以用<Space>来指定高度,
也可以用layout_margin来指定间距

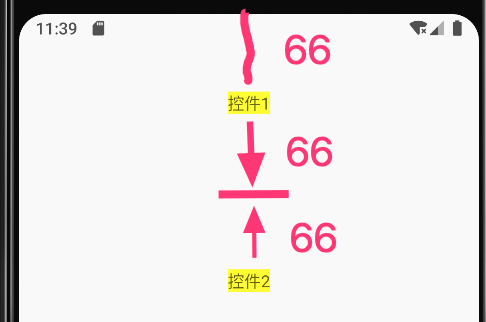

二,测试效果:
