Vue中Pdf预览及打印(自定义组件)
思路:
1. vue中使用ifream访问后台
2.封装共用vue组件
3.后台通过freemaker模板生成相应pdf

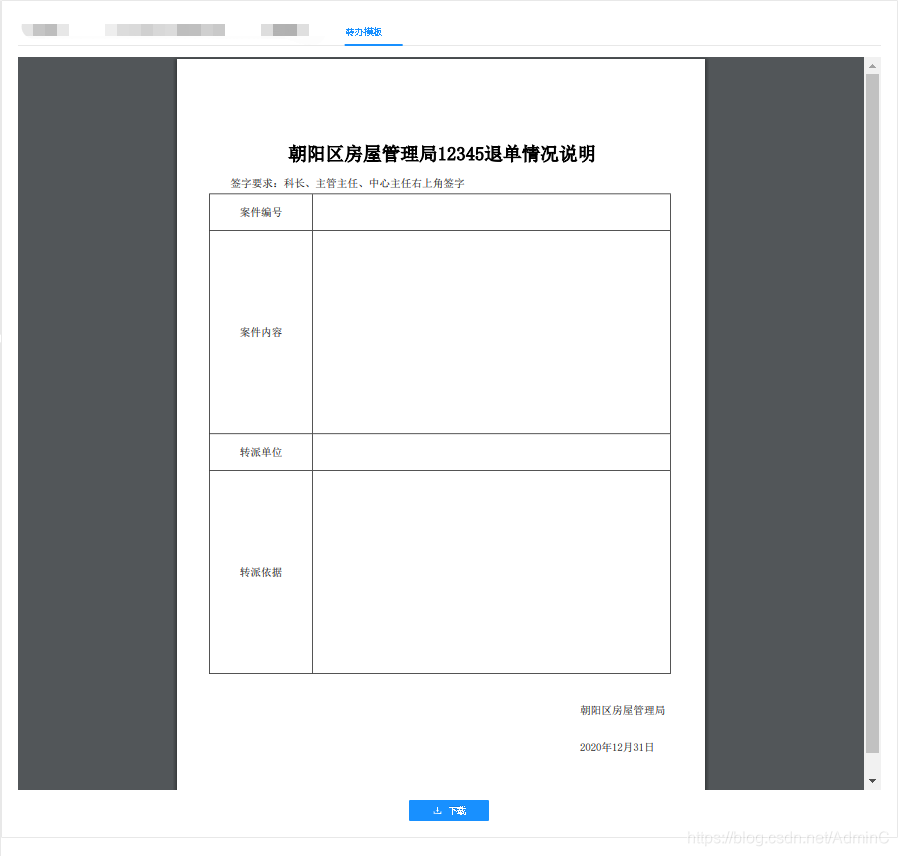

效果:
编写自定义组件PdfView.vue
<template> <div> <pdf ref="myPdfComponent" hidden :src="this.url"></pdf> <!-- 第一种 pdf展示--> <!-- <div style="height: 800px;overflow-y: auto;text-align: center;background-color: #525659;">--> <!-- <pdf--> <!-- v-for="i in numPages"--> <!-- :key="i"--> <!-- :src="src"--> <!-- :page="i"--> <!-- style="display: inline-block;width: 800px;text-align: center;margin-top: 10px;"--> <!-- ></pdf>--> <!-- </div>--> <!-- 第二种 iframe展示--> <iframe :src="url" frameborder="0" style="width: 100%; height: 700px;"></iframe> <div style="text-align: center;"> <a-button type="primary" style="width: 120px;" icon="printer" @click="$refs.myPdfComponent.print()">打印</a-button> </div> </div> </template> <script> import pdf from 'vue-pdf' export default { components: { pdf }, data () { return { // src: pdf.createLoadingTask(this.url), // numPages: undefined } }, props: ['url'], mounted () { // this.src.promise.then(pdf => { // this.numPages = pdf.numPages // }) } } </script>
组件调用
<a-col :span="18"> <pdf-view :url="printSrc"></pdf-view> </a-col>
iframe跳转地址
_self.printSrc = _self.baseUrl + '/pc/pdf/demoPrintPDF?familyId=' + _self.family.id + '&time=' + new Date().getTime() + "#toolbar=0";
后台方法
1. 访问方法
/** * pdf模板预览 */ @RequestMapping("demoPrintPDF") public void demoPrintPDF(HttpServletRequest request, HttpServletResponse response) throws Exception { //freemaker中的数据map Map<String, Object> data = Maps.newHashMap(); String template = "oncePrintPDF.html"; String date = DateUtils.dateToStringFormat(new Date(), "yyyy年MM月dd日"); data.put("dateStr", date); this.commonPrintPDF(data, template, response); }
2. 公共打印方法
/** * 公共打印方法 * * @param map 数据map * @param template 打印模板文件 * @throws Exception */ private void commonPrintPDF(Map<String, Object> map, String template, HttpServletResponse response) throws Exception { PdfDocumentGenerator pdfDocumentGenerator = new PdfDocumentGenerator(); OutputStream outputStream = null; response.setHeader("Expires", "0"); response.setHeader("Cache-Control", "must-revalidate, post-check=0, pre-check=0"); outputStream = response.getOutputStream(); pdfDocumentGenerator.generate(template, map, outputStream); }
3. PdfDocumentGenerator
注：JAR包部署字体文件因放置项目更目录下 例如jar部署在/data/xxx.jar下 则字体文件应当也复制一份至此目录 即： /data/fonts
package com.lezhi.school.alumnus.freemaker;
import com.itextpdf.text.pdf.PdfTransparencyGroup;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.system.ApplicationHome;
import org.w3c.dom.Document;
import org.xhtmlrenderer.pdf.ITextFontResolver;
import org.xhtmlrenderer.pdf.ITextRenderer;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import java.io.*;
import java.util.Map;
/**
* PDF流加载
* Created by m`jj on 2019/1/16.
*/
@SuppressWarnings("all")
@Slf4j
public class PdfDocumentGenerator {
public boolean generate(String template, Map<String, Object> variables, OutputStream outputStream) throws Exception {
try {
HtmlGenerator e = new HtmlGenerator();
String htmlContent = e.generate(template, variables);
this.generate(htmlContent, outputStream);
} catch (Exception var6) {
log.error(var6.toString());
}
return true;
}
public void generate(String htmlContent, OutputStream outputStream) throws Exception {
Object out = null;
try {
DocumentBuilder e = DocumentBuilderFactory.newInstance().newDocumentBuilder();
Document doc = e.parse(new ByteArrayInputStream(htmlContent.getBytes("UTF-8")));
try {
ITextRenderer e1 = this.createTextRenderer();
e1.setDocument(doc, (String) null);
e1.layout();
e1.createPDF(outputStream);
} catch (Exception var11) {
log.error(var11.toString());
}
} catch (Exception var12) {
throw var12;
} finally {
if (out != null) {
((OutputStream) out).close();
}
}
}
public ITextRenderer createTextRenderer() {
ITextRenderer renderer = new ITextRenderer();
ITextFontResolver fontResolver = renderer.getFontResolver();
addFonts(fontResolver);
return renderer;
}
public static ITextFontResolver addFonts(ITextFontResolver fontResolver) {
String fontPath = null;
ApplicationHome ah = new ApplicationHome(PdfTransparencyGroup.class);
fontPath = ah.getSource().getParentFile().toString();
File fontsDir = new File(fontPath + File.separator + "fonts");
if (fontsDir != null && fontsDir.isDirectory()) {
File[] files = fontsDir.listFiles();
File[] arr = files;
int len = files.length;
for (int i = 0; i < len; ++i) {
File file = arr[i];
if (!file.isDirectory()) {
try {
log.debug("字体文件：" + file.getAbsolutePath());
fontResolver.addFont(file.getAbsolutePath(), "Identity-H", false);
} catch (Exception var9) {
log.debug("字体加载：" + var9.getMessage());
var9.printStackTrace();
}
}
}
}
return fontResolver;
}
}
4. HtmlGenerator
package com.app.system.utils.pdf; import freemarker.template.Configuration; import freemarker.template.Template; import freemarker.template.TemplateException; import java.io.BufferedWriter; import java.io.IOException; import java.io.StringWriter; import java.util.Map; /** * Created by m`jj on 2019/1/16. */ @SuppressWarnings("all") public class HtmlGenerator { public String generate(String template, Map<String, Object> variables) throws IOException, TemplateException { BufferedWriter writer = null; StringWriter stringWriter = null; String htmlContent = ""; try { Configuration e = FreemarkerConfiguration.getConfiguration(); e.setDefaultEncoding("utf-8"); Template tp = e.getTemplate(template); stringWriter = new StringWriter(); writer = new BufferedWriter(stringWriter); tp.process(variables, writer); htmlContent = stringWriter.toString(); writer.flush(); } finally { try { if(stringWriter != null) { stringWriter.close(); } } catch (Exception var13) { ; } if(writer != null) { writer.close(); } } return htmlContent; } }
5.FreemarkerConfiguration
import com.app.system.utils.WebUtils;
import freemarker.template.Configuration;
import java.io.File;
import java.io.IOException;
/**
* Created by ZYK on 2019/1/16.
*/
@SuppressWarnings("all")
public class FreemarkerConfiguration {
private static Configuration config = null;
private FreemarkerConfiguration() {
}
public static synchronized Configuration getConfiguration() {
if (config == null) {
setConfiguration();
}
return config;
}
private static void setConfiguration() {
config = new Configuration();
String path = null;
try {
path = WebUtils.getRootPath() + "printPdf";
config.setDirectoryForTemplateLoading(new File(path));
} catch (IOException var2) {
var2.printStackTrace();
}
}
}

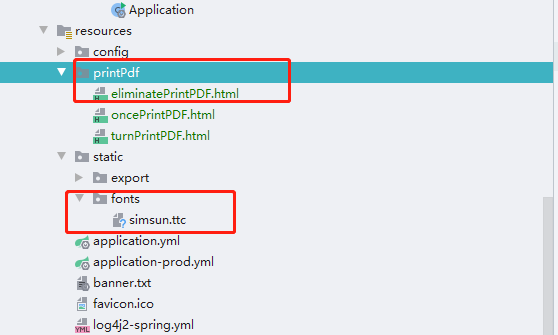

6.freemaker模板及字体文件存放位置
7.freemaker模板
<!DOCTYPE html> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=utf-8"/> <title>转办模板</title> <style> body { font-family: SimSun, Arial Unicode MS, Lucida Sans Unicode, Arial, verdana, arial, helvetica, sans-serif; } .printContent { margin: 0px; padding: 0px; width: 700px; font-size: 16px; clear: both; } .printContent p { margin: 5px 0; padding: 0px; text-align: left; text-indent: 2em; line-height: 20px; } .printContent .printTitle { clear: both; text-indent: 0em; font-size: 28px; text-align: center; line-height: 30px; font-weight: bold; } .dataTable { width: 99%; border-top: 1px solid #000000; border-left: 1px solid #000000; border-spacing: inherit; line-height: 24px; -fs-table-paginate: paginate; /*处理分页断行问题*/ } .dataTable tr { height: 24px; } .dataTable tr td { text-align: center; padding: 2px; border-right: 1px solid #000000; border-bottom: 1px solid #000000; line-height: 50px; } .dataTable tr > td:first-child { width: 150px; } .border { padding-left: 20px; padding-right: 20px; border-bottom: 1px solid #000000; } .pageBreak { page-break-before: always } @page { @bottom-right { content: element(footer); } } #pagenumber:before { content: counter(page); } #pagecount:before { content: counter(pages); } @page { margin: 5mm 5mm 10mm 11mm; } .printRight { margin-left: 75% !important; line-height: 50px !important; } </style> </head> <body> <div class="printContent"> <p class="printTitle" style="padding-top: 100px;">朝阳区房屋管理局12345退单情况说明</p> <p style="margin-top: 20px">签字要求：科长、主管主任、中心主任右上角签字</p> <table class="dataTable"> <tr> <td>案件编号</td> <td></td> </tr> <tr> <td style="line-height: 300px">案件内容</td> <td></td> </tr> <tr> <td>转派单位</td> <td></td> </tr> <tr> <td style="line-height: 300px">转派依据</td> <td></td> </tr> </table> <p class="printRight" style="margin-top: 30px">朝阳区房屋管理局</p> <p class="printRight">${dateStr}</p> </div> </body> </html>
8.字体文件: https://wws.lanzous.com/i6xoxjw9v9a
