LAVA学习笔记 - （三）添加设备类型、添加设备、添加设备字典

对于设备类型、设备，添加的方式都有两种，一种界面方式，一种命令行方式，选择其一即可。

Create a Device Type

截止2023.3月，LAVA已经支持的设备类型如下：

lava-server manage device-types list --all    #查看命令

Available V2 device types:
* aaeon-UPN-EHLX4RE-A10-0864
* acer-R721T-grunt
* acer-cb317-1h-c3z6-dedede
* adb-nuc
* alpine-db
* am335x-sancloud-bbe
* am437x-idk-evm
* am57xx-beagle-x15
* am6
* apq8016-sbc-uboot
* ar9331-dpt-module
* arduino-nano-33-ble
* arduino101
* armada-370-db
* armada-370-rd
* armada-3720-db
* armada-3720-espressobin
* armada-375-db
* armada-385-db-ap
* armada-388-clearfog
* armada-388-clearfog-pro
* armada-388-gp
* armada-398-db
* armada-7040-db
* armada-8040-db
* armada-xp-db
* armada-xp-gp
* armada-xp-linksys-mamba
* armada-xp-openblocks-ax3-4
* arndale
* asus-C433TA-AJ0005-rammus
* asus-C436FA-Flip-hatch
* asus-C523NA-A20057-coral
* asus-CM1400CXA-dalboz
* asus-cx9400-volteer
* at91-sama5d2_xplained
* at91-sama5d4_xplained
* at91rm9200ek
* at91sam9261ek
* at91sam9g20ek
* at91sam9m10g45ek
* at91sam9x25ek
* at91sam9x35ek
* ava
* avenger96
* b2120h410
* b2260
* bcm2711-rpi-4-b
* bcm2835-rpi-b-rev2
* bcm2836-rpi-2-b
* bcm2837-rpi-3-b
* bcm2837-rpi-3-b-32
* beagle-xm
* beaglebone-black
* beaglebone-black-barebox
* cc13x2-launchpad
* cc3220SF
* cubietruck
* cy8ckit-064s0s2-4343w
* d02
* d03
* d2500cc
* da850-lcdk
* de0-nano-soc
* dell-latitude-5400-4305U-sarien
* dell-latitude-5400-8665U-sarien
* disco-l475-iot1
* docker
* dove-cubox
* dra7-evm
* dragonboard-410c
* dragonboard-820c
* dragonboard-845c
* exynos4-5-common
* exynos5420-common
* frdm-k64f
* frdm-kw41z
* fsl-ls-common
* fsl-ls1012a-rdb
* fsl-ls1028a-rdb
* fsl-ls1043a-rdb
* fsl-ls1046a-frwy
* fsl-ls1046a-rdb
* fsl-ls1088a-rdb
* fsl-ls2088a-rdb
* fsl-lx2160a-rdb
* fsl-lx2162a-qds
* fsl-s32v234sbc
* fvp
* hi6220-hikey
* hi6220-hikey-bl
* hi6220-hikey-r2
* hi960-hikey
* hifive-unleashed-a00
* highbank
* hip07-d05
* hp-11A-G6-EE-grunt
* hp-14-db0003na-grunt
* hp-x360-12b-ca0010nr-n4020-octopus
* hp-x360-12b-ca0500na-n4000-octopus
* hp-x360-14-G1-sona
* hp-x360-14a-cb0001xx-zork
* hsdk
* i945gsex-qs
* ifc6410
* imx23-olinuxino
* imx27-phytec-phycard-s-rdk
* imx28-duckbill
* imx53-qsrb
* imx6dl-riotboard
* imx6dl-sabreauto
* imx6dl-sabresd
* imx6dl-udoo
* imx6q-nitrogen6x
* imx6q-sabreauto
* imx6q-sabrelite
* imx6q-sabresd
* imx6q-udoo
* imx6q-var-dt6customboard
* imx6qdl-common
* imx6qp-sabreauto
* imx6qp-sabresd
* imx6qp-wandboard-revd1
* imx6sl-evk
* imx6sll-evk
* imx6sx-sdb
* imx6ul-14x14-evk
* imx6ul-pico-hobbit
* imx6ull-14x14-evk
* imx6ull-evk
* imx6ulz-14x14-evk
* imx6ulz-lite-evk
* imx6us7d-common
* imx7d-sdb
* imx7s-warp
* imx7u-common
* imx7ulp-evk
* imx8dx-mek
* imx8dxl-ddr3l-evk
* imx8dxl-evk
* imx8dxl-phantom-mek
* imx8m-common
* imx8mm-ddr4-evk
* imx8mm-evk
* imx8mn-ddr3l-evk
* imx8mn-ddr4-evk
* imx8mn-evk
* imx8mp-ab2
* imx8mp-ddr4-evk
* imx8mp-evk
* imx8mq-evk
* imx8mq-zii-ultra-zest
* imx8q-common
* imx8qm-mek
* imx8qxp-mek
* imx8u-common
* imx8ulp-9x9-evk
* imx8ulp-evk
* imx9-common
* imx93-11x11-evk
* imx93-9x9-qsb
* intel-ixp42x-welltech-epbx100
* jetson-tk1
* jh7100-beaglev-starlight
* jh7100-starfive-visionfive-v1
* jh7100-visionfive
* juno
* juno-uboot
* juno-uefi
* k3-am625-sk
* kirkwood-db-88f6282
* kirkwood-openblocks_a7
* kontron-bl-imx8mm
* kontron-kbox-a-230-ls
* kontron-kswitch-d10-mmt-6g-2gs
* kontron-kswitch-d10-mmt-8g
* kontron-kswitch-d10-mmt-common
* kontron-pitx-imx8m
* kontron-sl28-common
* kontron-sl28-var3-ads2
* kv260
* kvm
* lava-slave-docker
* lenovo-TPad-C13-Yoga-zork
* lenovo-hr330a-7x33cto1ww-emag
* lpcxpresso55s69
* ls1021a-twr
* lxc
* mediatek-8173
* meson-axg-s400
* meson-g12-common
* meson-g12a-sei510
* meson-g12a-u200
* meson-g12a-x96-max
* meson-g12b-a311d-khadas-vim3
* meson-g12b-odroid-n2
* meson-gx-common
* meson-gxbb-nanopi-k2
* meson-gxbb-p200
* meson-gxl-s805x-libretech-ac
* meson-gxl-s805x-p241
* meson-gxl-s905d-p230
* meson-gxl-s905x-khadas-vim
* meson-gxl-s905x-libretech-cc
* meson-gxl-s905x-p212
* meson-gxm-khadas-vim2
* meson-gxm-q200
* meson-sm1-khadas-vim3l
* meson-sm1-odroid-c4
* meson-sm1-sei610
* meson8b-ec100
* meson8b-odroidc1
* mimxrt1050_evk
* minnowboard-common
* minnowboard-max-E3825
* minnowboard-turbot-E3826
* moonshot-m400
* morello
* mps
* mt8173-elm-hana
* mt8183-kukui-jacuzzi-juniper-sku16
* mt8192-asurada-rev1
* mt8192-asurada-spherion-r0
* mt8195-cherry-tomato-r2
* musca
* musca-a
* musca-b
* musca-s
* mustang
* mustang-grub-efi
* mustang-uefi
* n1sdp
* nexus10
* nexus4
* nexus5x
* nexus9
* nrf52-nitrogen
* nucleo-l476rg
* nxp-ls2088
* odroid-n2
* odroid-x2
* odroid-xu3
* orion5x-rd88f5182-nas
* overdrive
* ox820-cloudengines-pogoplug-series-3
* panda
* pc-k10n78
* peach-pi
* poplar
* qcom-qdf2400
* qcs404-evb-1k
* qcs404-evb-4k
* qemu
* qemu-aarch64
* qrb5165-rb5
* r8a7742-iwg21d-q7
* r8a7743-iwg20d-q7
* r8a7744-iwg20d-q7
* r8a7745-iwg22d-sodimm
* r8a77470-iwg23s-sbc
* r8a774a1-hihope-rzg2m-ex
* r8a774b1-hihope-rzg2n-ex
* r8a774c0-ek874
* r8a774e1-hihope-rzg2h-ex
* r8a7791-porter
* r8a7795-h3ulcb-kf
* r8a7795-salvator-x
* r8a77950-ulcb
* r8a7796-m3ulcb
* r8a7796-m3ulcb-kf
* rcar-gen3-common
* rk3288-miqi
* rk3288-rock2-square
* rk3288-veyron-jaq
* rk3328-rock64
* rk3399-gru-kevin
* rk3399-khadas-edge-v
* rk3399-puma-haikou
* rk3399-roc-pc
* rk3399-rock-pi-4b
* rpi-common
* rzg1-common
* rzg2-common
* rzn1d
* s32v234-evb
* sama53d
* sama5d34ek
* sama5d36ek
* sc7180-trogdor-kingoftown
* sc7180-trogdor-lazor-limozeen
* sdm845-mtp
* seco-b68
* seco-c61
* sharkl2
* sm8150-mtp
* sm8250-mtp
* sm8350-hdk
* sm8350-mtp
* snow
* soca9
* socfpga-cyclone5-socrates
* ssh
* stm32-carbon
* stm32l562e-dk
* stm32mp157c-dk2
* stm32mp157c-lxa-mc1
* sun4i-a10-olinuxino-lime
* sun50i-a64-bananapi-m64
* sun50i-a64-pine64-plus
* sun50i-h5-libretech-all-h3-cc
* sun50i-h5-nanopi-neo-plus2
* sun50i-h6-orangepi-3
* sun50i-h6-orangepi-one-plus
* sun50i-h6-pine-h64
* sun50i-h6-pine-h64-model-b
* sun5i-a13-olinuxino-micro
* sun5i-gr8-chip-pro
* sun5i-r8-chip
* sun6i-a31-app4-evb1
* sun7i-a20-cubieboard2
* sun7i-a20-olinuxino-lime2
* sun7i-a20-olinuxino-micro
* sun8i-a23-evb
* sun8i-a33-olinuxino
* sun8i-a33-sinlinx-sina33
* sun8i-a83t-allwinner-h8homlet-v2
* sun8i-a83t-bananapi-m3
* sun8i-h2-plus-bananapi-m2-zero
* sun8i-h2-plus-libretech-all-h3-cc
* sun8i-h2-plus-orangepi-r1
* sun8i-h2-plus-orangepi-zero
* sun8i-h3-bananapi-m2-plus
* sun8i-h3-libretech-all-h3-cc
* sun8i-h3-orangepi-pc
* sun8i-r40-bananapi-m2-ultra
* sun9i-a80-cubieboard4
* sunxi-common
* synquacer
* synquacer-acpi
* synquacer-dtb
* synquacer-uboot
* tc2
* tegra124-common
* tegra124-nyan-big
* thunderx
* upsquare
* vexpress
* x15
* x15-bl
* x86
* x86-atom330
* x86-celeron
* x86-pentium4
* x86-x5-z8350
* xilinx-zcu102j　

假如你是android相关的人员，实际上我们大可不必添加新类型的，只需要继承nexus 或者 pixel 即可。

下文以添加pixel类型举例

使用界面方式

1. 浏览器中输入localhost，使用上文中创建的超级管理员登录
2. 下拉 右上角 登录用户，选择“Administration”
3. 找到“LAVA_SCHEDUALER_APP”下的  Device types
4. 在添加页面 选择“Add device type”
5. Name 字段 填入 pixel   （一定是上面列出当前支持的设备类型） 否则需要自己在/etc/lava-server/dispatcher-config/device-types 添加相应的文件

使用命令行方式

lava-server manage device-types add pixel

或者干脆添加所有支持的设备类型

lava-server manage device-types add '*'

添加完成之后，可以看到已经添加的设备类型：

lava-server manage device-types list



Create a device

使用界面方式

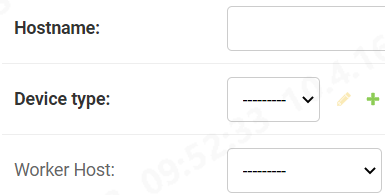

• 回到LAVA_SCHEDULER_APP，选择Devices和Add Device。
• 从列表中选择pixel设备类型。
• 给你的设备取个名字 --  这个名字就是后续添加 device dictionary的文件名
• 从列表中选择worker。

使用命令行方式

还是以设备类型为pixel为例

lava-server manage devices add --device-type pixel --worker <worker> pixel01

Create a device dictionary

文件名：pixel01.jinja2

{% extends 'pixel.jinja2' %}
{% set adb_serial_number = '123456' %}
{% set fastboot_serial_number = '123456' %}
{% set device_info = [{'board_id': '123456'}] %}



最后，执行下命令，检查下整个lava的安装与配置是否有明显异常

$ sudo lava-server manage check --deploy
