实验4 继承

//Battery.hpp
 1 #include<iostream>
 2 using namespace std;
 3 class Battery{
 4     private:
 5         int capacity;
 6     public:
 7         Battery(int Capacity=70):capacity{Capacity}{}
 8         Battery(const Battery &obj):capacity{obj.capacity}{}
 9         ~Battery()=default;
10         int get_capacity()const;
11 };
12 int Battery::get_capacity()const
13 {
14     return capacity;
15 }

 //Car.hpp
 1 #include<iostream>
 2 #include<string>
 3 using namespace std;
 4 class Car{
 5     private:
 6         string maker,model;
 7         int year,odometers;
 8     public:
 9         Car(string Maker,string Model,int Year,int Odometers=0):maker{Maker},model{Model},year{Year},odometers{Odometers}{};
10         Car(const Car &obj):maker{obj.maker},model{obj.model},year{obj.year},odometers{obj.odometers}{}
11         ~Car()=default;
12         void info();
13         void  update_odometers(int ODO);
14
15
16 };
17 void Car::info()
18 {
19     cout<<"maker:        "<<maker<<endl;
20     cout<<"model:        "<<model<<endl;
21     cout<<"year:         "<<year<<endl;
22     cout<<"odometers:    "<<odometers<<endl;
23 }
24 void Car::update_odometers(int ODO)
25 {
26     if(ODO>=odometers)
27     {
28         odometers=ODO;
29     }
30     else{
31         cout<<"里程输入错误！！！"<<endl;
32     }
33 }

 //ElectricCar.hpp
 1 #include<iostream>
 2 #include<string>
 3 #include"Battery.hpp"
 4 #include"Car.hpp"
 5 using namespace std;
 6 class ElectricCar:public Car
 7 {
 8     private:
 9         Battery battery;
10     public:
11         ElectricCar(string Maker,string Model,int Year,int Odometers=0,int Ecapacity=70):
12         Car{Maker,Model,Year,Odometers},battery{Ecapacity}{}
13
14         void info(){
15             Car::info();
16             cout<<"cacacity:     "<<battery.get_capacity()<<"-kWh"<<endl;
17         }
18 };

 //task3.cpp
 1 #include <iostream>
 2 #include "electricCar.hpp"
 3
 4 int main()
 5 {
 6     using namespace std;
 7
 8     // test class of Car
 9     Car oldcar("Ferrari", "SF90", 2020);
10     cout << "--------oldcar's info--------" << endl;
11     oldcar.update_odometers(2500);
12     oldcar.info();
13     //oldcar.update_odometers(2000);
14     cout << endl;
15
16     //test class of ElectricCar
17     ElectricCar newcar("McLaren", "Artura", 2021);
18     newcar.update_odometers(2500);
19     cout << "\n--------newcar's info--------\n";
20     newcar.info();
21 }

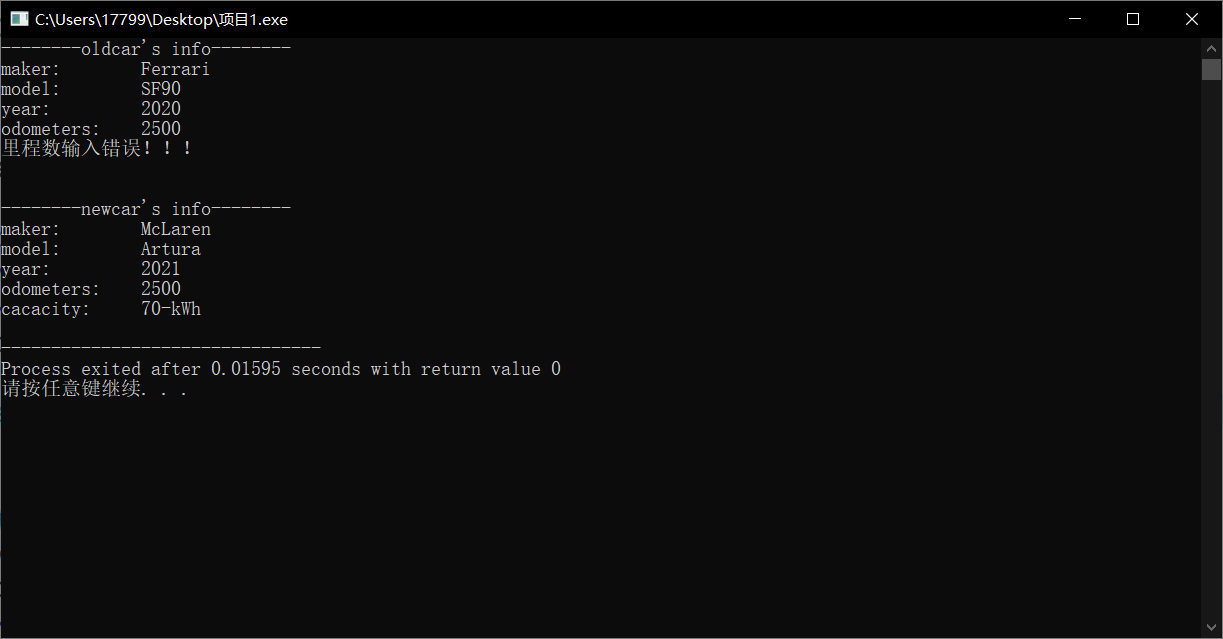

对里程输入错误的截图：

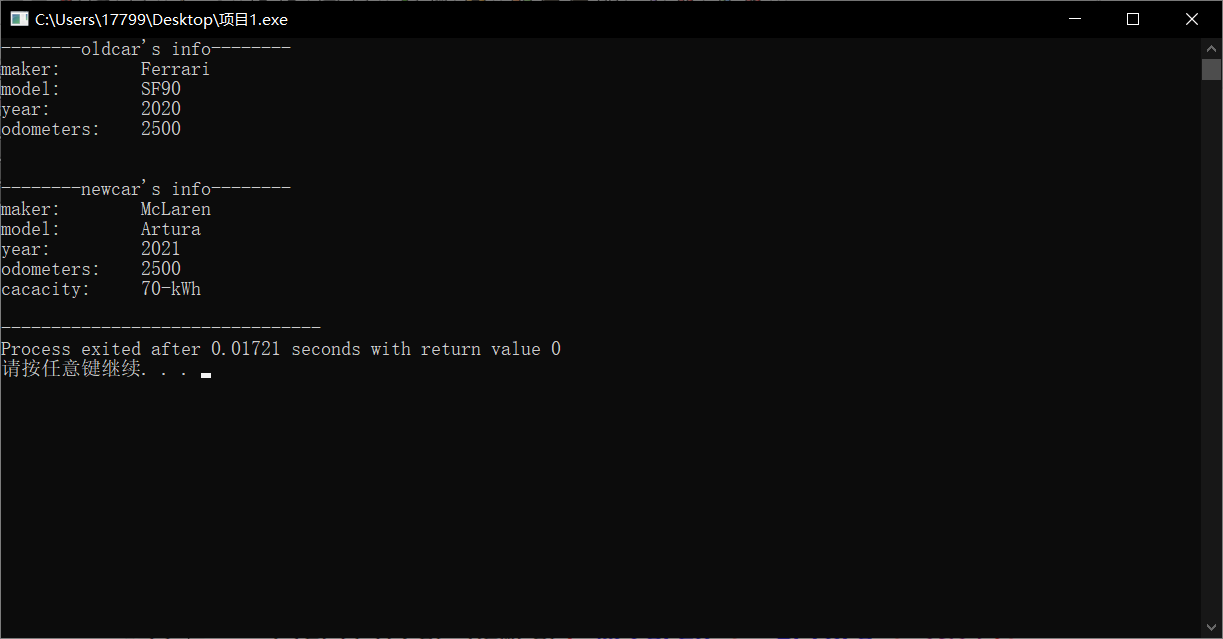

替换数据的截图：

task4

//pets.hpp
 1 #include<iostream>
 2 #include<string>
 3 using namespace std;
 4 class MachinePets{
 5     private:
 6         string nickname;
 7     public:
 8         MachinePets(const string s) : nickname(s) {}
 9         virtual string talk();
10         string get_nickname();
11
12 };
13 string MachinePets::get_nickname(){
14     return nickname;
15 }
16 class PetDogs: public MachinePets{
17     private:
18         string miaomu;
19     public:
20         PetDogs(const string s):MachinePets(s){}
21         string talk();
22 };
23 class PetCats: public MachinePets{
24     private:
25         string wang;
26     public:
27         PetCats(const string s):MachinePets(s){}
28         string talk();
29 };
30 string MachinePets::talk()
31 {
32     return "?!?!?!";
33 }
34 string PetCats::talk()
35 {
36     return "I need more Lasagnas";
37 }
38 string PetDogs::talk()
39 {
40     return "In your dreams";
41 }

 //task4
 1 #include <iostream>
 2 #include "pets.hpp"
 3
 4 void play(MachinePets *ptr)
 5 {
 6     std::cout << ptr->get_nickname() << " says " << ptr->talk() << std::endl;
 7 }
 8
 9 int main()
10 {
11     PetCats cat("Garfield");
12     PetDogs dog("Odie");
13
14     play(&cat);
15     play(&dog);
16 }

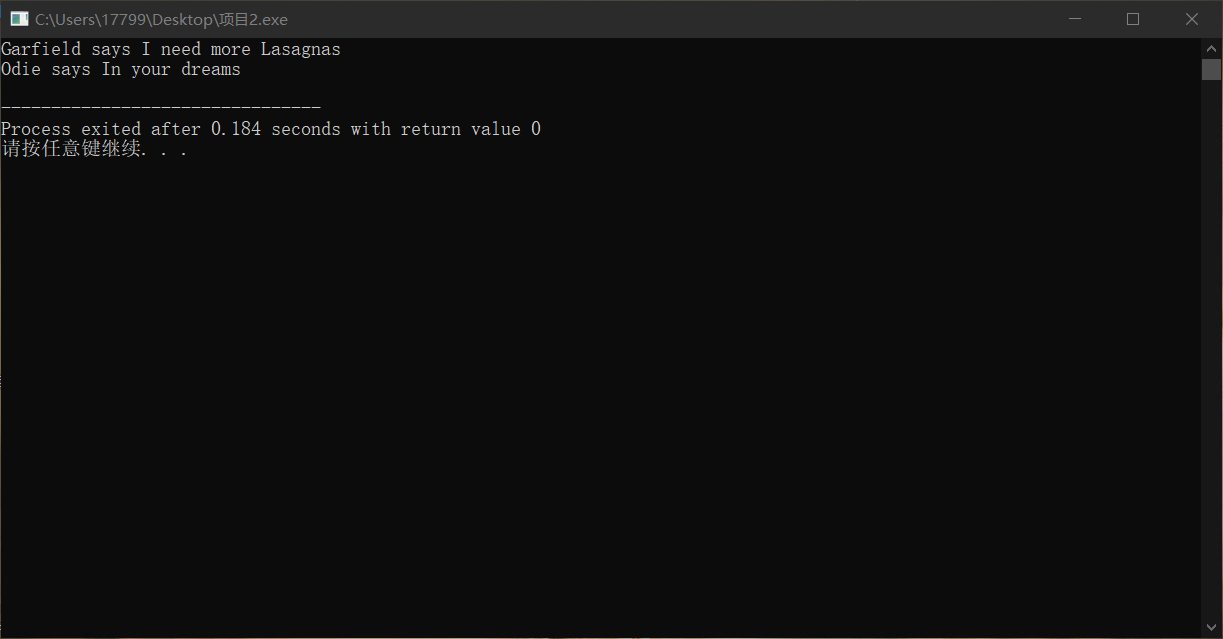

替换数据后的截图：

task2：

未修改前

 1 #include <iostream>
 2 #include <typeinfo>
 3
 4 // definitation of Graph
 5 class Graph
 6 {
 7 public:
 8     void draw() { std::cout << "Graph::draw() : just as an interface\n"; }
 9 };
10
11
12 // definition of Rectangle, derived from Graph
13 class Rectangle : public Graph
14 {
15 public:
16     void draw() { std::cout << "Rectangle::draw(): programs of draw a rectangle\n"; }
17 };
18
19
20 // definition of Circle, derived from Graph
21 class Circle : public Graph
22 {
23 public:
24     void draw() { std::cout << "Circle::draw(): programs of draw a circle\n"; }
25 };
26
27
28 // definitaion of fun(): as a call interface
29 void fun(Graph *ptr)
30 {
31     std::cout << "pointer type: " << typeid(ptr).name() << "\n";
32     std::cout << "RTTI type: " << typeid(*ptr).name() << "\n";
33     ptr -> draw();
34 }
35
36 // test
37 int main()
38 {
39     Graph g1;
40     Rectangle r1;
41     Circle c1;
42
43     // call by object name
44     g1.draw();
45     r1.draw();
46     c1.draw();
47
48     std::cout << "\n";
49
50     // call by object name, and using the scope resolution operator::
51     r1.Graph::draw();
52     c1.Graph::draw();
53
54     std::cout << "\n";
55
56     // call by pointer to Base class
57     fun(&g1);
58     fun(&r1);
59     fun(&c1);
60 }

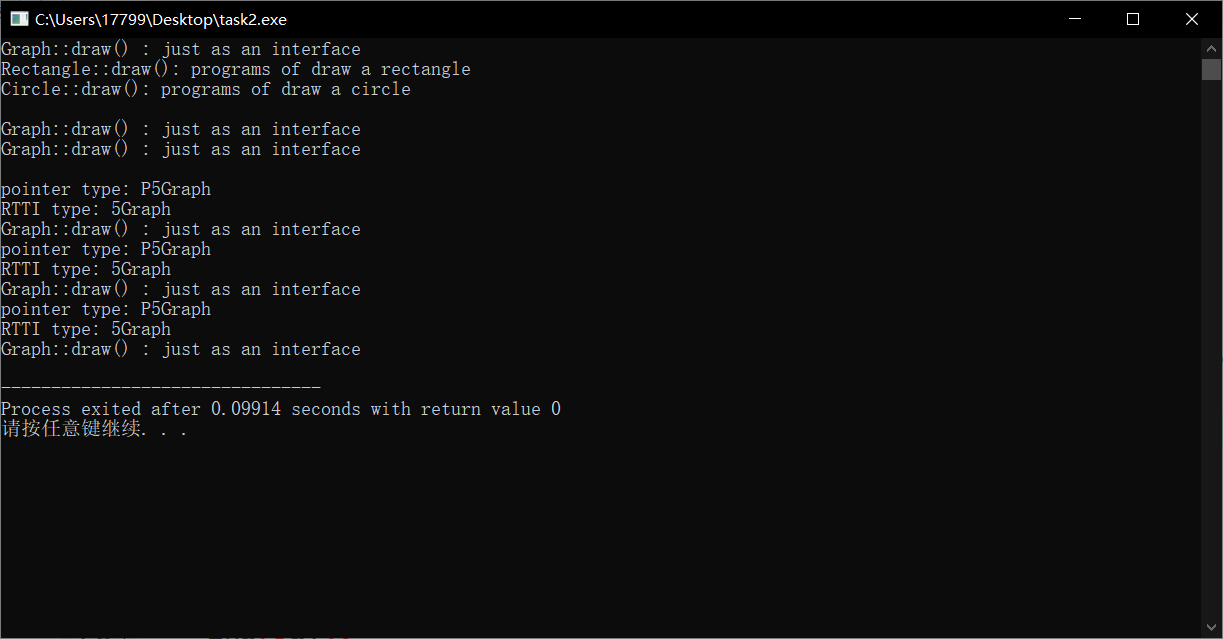

修改后：

 1 #include <iostream>
 2 #include <typeinfo>
 3
 4 // definitation of Graph
 5 class Graph
 6 {
 7 public:
 8     virtual void draw() { std::cout << "Graph::draw() : just as an interface\n"; }
 9 };
10
11
12 // definition of Rectangle, derived from Graph
13 class Rectangle : public Graph
14 {
15 public:
16     void draw() { std::cout << "Rectangle::draw(): programs of draw a rectangle\n"; }
17 };
18
19
20 // definition of Circle, derived from Graph
21 class Circle : public Graph
22 {
23 public:
24      void draw() { std::cout << "Circle::draw(): programs of draw a circle\n"; }
25 };
26
27
28 // definitaion of fun(): as a call interface
29 void fun(Graph *ptr)
30 {
31     std::cout << "pointer type: " << typeid(ptr).name() << "\n";
32     std::cout << "RTTI type: " << typeid(*ptr).name() << "\n";
33     ptr -> draw();
34 }
35
36 // test
37 int main()
38 {
39     Graph g1;
40     Rectangle r1;
41     Circle c1;
42
43     // call by object name
44     g1.draw();
45     r1.draw();
46     c1.draw();
47
48     std::cout << "\n";
49
50     // call by object name, and using the scope resolution operator::
51     r1.Graph::draw();
52     c1.Graph::draw();
53
54     std::cout << "\n";
55
56     // call by pointer to Base class
57     fun(&g1);
58     fun(&r1);
59     fun(&c1);
60 }

思考：

归纳总结：

1.同名覆盖原则：

若派生类中声明了与基类成员函数同名的新函数，即使函数的参数表不同，从基类继承的同名函数的所有重载形式也都会被隐藏。如果某派生类的多个基类拥有同名的成员，同时，派生类有新增这样的同名成员，这种情况下，派生类成员将隐藏所有基类的同名成员。

2.二元作用域分辨符：

当派生类新增成员隐藏了基类的同名成员，这时使用”对象名.成员名“的访问方式只能访问到派生类新增的成员。对基类同名成员的访问，只能通过基类名和作用域分辨符来实现。

3.类型兼容原则：

类型兼容规则是指在需要基类对象的任何地方，都可以使用公有派生类的对象来替代。通过公有继承，派生类得到了基类中除构造函数、析构函数之外的所有成员。公有派生类实际就具备了基类的所有功能，凡是基类能解决的问题，公有派生类都可以解决。
