实验13 镜像技术

实验任务一：本地端口镜像实验

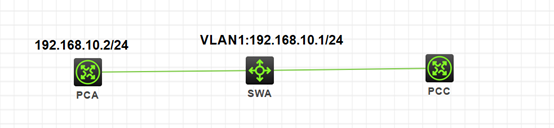

1. 建立物理连接


2．基本配置
[SWA]mirroring-group 1 local
[SWA]mirroring-group 1 mirroring-port GigabitEthernet 1/0/1 inbound
[SWA]mirroring-group 1 monitor-port GigabitEthernet 1/0/2
3． 显示镜像组
[SWA]display mirroring-group 1
Mirroring group 1:
Type: Local
Status: Active
Mirroring port:
GigabitEthernet1/0/1 Inbound
Monitor port: GigabitEthernet1/0/2

实验任务二：远程端口镜像实验

1. 建立物理连接
2. 基本配置
   [SWA]mirroring-group 1 remote-source
   [SWA]vlan 10
   [SWA]mirroring-group 1 remote-source
   [SWA]mirroring-group 1 remote-destination
   [SWA]mirroring-group 1 reflector-port
   [SWA]mirroring-group 1 remote-probe vlan 10
   [SWA]mirroring-group 1 mirroring-port GigabitEthernet 1/0/1 GigabitEthernet 1/0/
   2 inbound
   [SWA]mirroring-group 1 monitor-egress GigabitEthernet 1/0/3
   [SWA]int ge 1/0/3
   [SWA-GigabitEthernet1/0/3]port link-type trunk
   [SWA-GigabitEthernet1/0/3]port trunk permit vlan 10
3. 配置远程端口镜像
   [SWB]mirroring-group 1 remote-destination
   [SWB]vlan 10
   [SWB]mirroring-group 1 remote-probe vlan 10
   [SWB]mirroring-group 1 monitor-port GigabitEthernet 1/0/2
   [SWB]int ge 1/0/2
   [SWB-GigabitEthernet1/0/2]port access vlan 10
   [SWB-GigabitEthernet1/0/2]int ge 1/0/1
   [SWB-GigabitEthernet1/0/1]port link-type trunk
   [SWB-GigabitEthernet1/0/1]port trunk permit vlan 10

4.查看镜像组信息
[SWB]display mirroring-group 1
Mirroring group 1:
Type: Remote destination
Status: Active
Monitor port: GigabitEthernet1/0/2
Remote probe VLAN: 10

[SWA]display mirroring-group 1
Mirroring group 1:
Type: Remote source
Status: Active
Mirroring port:
GigabitEthernet1/0/1 Inbound
GigabitEthernet1/0/2 Inbound
Monitor egress port: GigabitEthernet1/0/3
Remote probe VLAN: 10
