一、介绍

Element UI是饿了么团队精心打造的一款基于 Vue.js 的桌面端组件库，为开发者提供了一系列丰富、实用且美观的 UI 组件 ，极大地简化了前端开发流程，提高了开发效率。

随着 Vue.js 的广泛应用，ElementUI 凭借其与 Vue.js 的无缝集成，迅速在前端开发社区中崭露头角，成为众多项目中不可或缺的一部分，无论是小型的个人项目，还是大型的企业级应用，ElementUI 都能发挥其独特的优势，助力开发者打造出高品质的用户界面。

ElementUI是一个UI库，它不依赖于vue。是和vue配合使用做项目开发的一个比较好的UI框架。

二、安装Element UI

1. npm 安装

　推荐使用 npm 的方式安装，它能更好地和 webpack 打包工具配合使用。

npm i element-ui -S

2. CDN

　目前可以通过 unpkg.com/element-ui 获取到最新版本的资源，在页面上引入 js 和 css 文件即可开始使用。

<!-- 引入样式 -->
<link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
<!-- 引入组件库 -->
<script src="https://unpkg.com/element-ui/lib/index.js"></script>

　通过 CDN 的方式我们可以很容易地使用 Element 写出一个 Hello world 页面。

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <!-- import CSS -->
  <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
</head>
<body>
  <div id="app">
    <el-button @click="visible = true">Button</el-button>
    <el-dialog :visible.sync="visible" title="Hello world">
      <p>Try Element</p>
    </el-dialog>
  </div>
</body>
  <!-- import Vue before Element -->
  <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
  <!-- import JavaScript -->
  <script src="https://unpkg.com/element-ui/lib/index.js"></script>
  <script>
    new Vue({
      el: '#app',
      data: function() {
        return { visible: false }
      }
    })
  </script>
</html>
View Code

　　访问此html页面，默认只展示一个button按钮，点击按钮弹出Hello world对话框：


 三、常用组件

1. Container 布局容器

　用于布局的容器组件，方便快速搭建页面的基本结构：

<el-container>：外层容器。当子元素中包含 <el-header> 或 <el-footer> 时，全部子元素会垂直上下排列，否则会水平左右排列。
<el-header>：顶栏容器。
<el-aside>：侧边栏容器。
<el-main>：主要区域容器。
<el-footer>：底栏容器。

　　以上组件采用了 flex 布局，使用前请确定目标浏览器是否兼容。此外，<el-container> 的子元素只能是后四者，后四者的父元素也只能是 <el-container>。

　　container.html：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
<div id="app">
    <el-container>
        <el-header>
            header部分
        </el-header>
    </el-container>
    <el-container>
        <el-aside width="200px">
            aside部分
        </el-aside>
        <el-container>
            <el-main>
                main部分
            </el-main>
            <el-footer>
                footer部分
            </el-footer>
        </el-container>
    </el-container>
</div>
<style>
    .el-header, .el-footer {
        background-color: #B3C0D1;
        color: #333;
        text-align: center;
        line-height: 60px;
    }

    .el-aside {
        background-color: #D3DCE6;
        color: #333;
        text-align: center;
        line-height: 200px;
    }

    .el-main {
        background-color: #E9EEF3;
        color: #333;
        text-align: center;
        line-height: 590px;
    }
</style>
<script>
    new Vue({
        el:'#app'
    });
</script>
</body>
</html>
View Code

　　访问html页面，效果：


2. Dropdown 下拉菜单

　将动作或菜单折叠到下拉菜单中。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">

        <el-dropdown split-button type="primary">
            默认尺寸
            <el-dropdown-menu slot="dropdown">
                <el-dropdown-item>黄金糕</el-dropdown-item>
                <el-dropdown-item>狮子头</el-dropdown-item>
                <el-dropdown-item>螺蛳粉</el-dropdown-item>
                <el-dropdown-item>双皮奶</el-dropdown-item>
                <el-dropdown-item>蚵仔煎</el-dropdown-item>
            </el-dropdown-menu>
        </el-dropdown>
        <el-dropdown size="medium" split-button type="primary">
            中等尺寸
            <el-dropdown-menu slot="dropdown">
                <el-dropdown-item>黄金糕</el-dropdown-item>
                <el-dropdown-item>狮子头</el-dropdown-item>
                <el-dropdown-item>螺蛳粉</el-dropdown-item>
                <el-dropdown-item>双皮奶</el-dropdown-item>
                <el-dropdown-item>蚵仔煎</el-dropdown-item>
            </el-dropdown-menu>
        </el-dropdown>

        <el-dropdown>
            <el-button type="primary">
                小型尺寸<i class="el-icon-arrow-down el-icon--right" ></i>
            </el-button>
            <el-dropdown-menu slot="dropdown">
                <el-dropdown-item>黄金糕</el-dropdown-item>
                <!--分隔线divided-->
                <el-dropdown-item divided>狮子头</el-dropdown-item>
                <el-dropdown-item>螺蛳粉</el-dropdown-item>
                <el-dropdown-item>双皮奶</el-dropdown-item>
                <el-dropdown-item>蚵仔煎</el-dropdown-item>
            </el-dropdown-menu>
        </el-dropdown>

        <el-dropdown size="mini" split-button type="primary" trigger="click">
            超小尺寸
            <el-dropdown-menu slot="dropdown">
                <el-dropdown-item>黄金糕</el-dropdown-item>
                <el-dropdown-item>狮子头</el-dropdown-item>
                <el-dropdown-item>螺蛳粉</el-dropdown-item>
                <el-dropdown-item disabled>双皮奶</el-dropdown-item>
                <el-dropdown-item>蚵仔煎</el-dropdown-item>
            </el-dropdown-menu>
        </el-dropdown>
    </div>

    <script>
        new Vue({
            el:'#app'
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


　　image　　image　　image

3. NavMenu 导航菜单

　为网站提供导航功能的菜单。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <el-menu default-active="4">
            <el-submenu index="1">
                <template slot="title">
                    <i class="el-icon-location"></i>
                    <span slot="title">导肮一</span>
                </template>
                <el-menu-item index="2-1">选项1</el-menu-item>
                <el-menu-item index="2-2">选项2</el-menu-item>
                <el-menu-item index="2-3">选项3</el-menu-item>
            </el-submenu>
            <el-submenu index="2">
                <template slot="title">
                    <i class="el-icon-menu"></i>
                    <span slot="title">导肮二</span>
                </template>
                <el-menu-item-group>
                    <template slot="title">分组一</template>
                    <el-menu-item>选项1</el-menu-item>
                    <el-menu-item>选项2</el-menu-item>
                </el-menu-item-group>
                <el-menu-item-group title="分组二">
                    <el-menu-item>选项3</el-menu-item>
                </el-menu-item-group>
                <el-submenu index="1-4">
                    <template slot="title">选项4</template>
                    <el-menu-item index="1-4-1">选项1</el-menu-item>
                </el-submenu>
            </el-submenu>
            <el-menu-item index="3" disabled>
                <i class="el-icon-document"></i>
                <span slot="title">导航三</span>
            </el-menu-item>
            <el-menu-item index="4">
                <i class="el-icon-setting"></i>
                <span slot="title">导航四</span>
            </el-menu-item>
        </el-menu>

        <div class="line"></div>

        <el-menu default-active="1" class="el-menu-demo" mode="horizontal" @select="handleSelect">
            <el-menu-item index="1">处理中心</el-menu-item>
            <el-submenu index="2">
                <template slot="title">我的工作台</template>
                <el-menu-item index="2-1">选项1</el-menu-item>
                <el-menu-item index="2-2">选项2</el-menu-item>
                <el-menu-item index="2-3">选项3</el-menu-item>
                <el-submenu index="2-4">
                    <template slot="title">选项4</template>
                    <el-menu-item index="2-4-1">选项1</el-menu-item>
                    <el-menu-item index="2-4-2">选项2</el-menu-item>
                    <el-menu-item index="2-4-3">选项3</el-menu-item>
                </el-submenu>
            </el-submenu>
            <el-menu-item index="3" disabled>消息中心</el-menu-item>
            <el-menu-item index="4"><a href="https://www.ele.me" target="_blank">订单管理</a></el-menu-item>
        </el-menu>
    </div>

    <script>
        new Vue({
            el:'#app'
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image　　image



4. Table 表格

　用于展示多条结构类似的数据，可对数据进行排序、筛选、对比或其他自定义操作。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <template>
            <el-table :data="tableData" style="width: 100%" border stripe :header-cell-class-name="headerStyle">
                 <el-table-column prop="date" label="日期"></el-table-column>
                 <el-table-column prop="name" label="姓名"></el-table-column>
                 <el-table-column prop="address" label="地址"></el-table-column>
                 <el-table-column label="操作" align="center">
                       <!--
                             slot-scope：作用域插槽，可以获取表格数据
                                    scope：代表表格数据，可以通过scope.row来获取表格当前行数据，scope不是固定写法
                        -->
                    <template slot-scope="scope">
                        <el-button type="primary" size="mini" @click="handleUpdate(scope.row)">编辑</el-button>
                        <el-button type="danger" size="mini"  @click="handleDelete(scope.row)">删除</el-button>
                     </template>
                </el-table-column>
            </el-table>
        </template>

    </div>


    <style>
        .tableStyle{
            background-color: #dce1e7!important;
        }
    </style>
    <script>
        new Vue({
            el:'#app',
            data:{
                //定义vue对象的模型数据，用于table展示
                tableData: [    //每个json对象对应表格中一条数据
                    {
                    date: '2016-05-02',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1518 弄'
                }, {
                    date: '2016-05-04',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1517 弄'
                }, {
                    date: '2016-05-01',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1519 弄'
                }, {
                        date: '2016-04-21',
                        name: '王小虎',
                        address: '上海市普陀区金沙江路 1520 弄'
                    }
                ]
            },
            methods:{
                headerStyle({row, column, rowIndex, columnIndex}){
                    return "tableStyle";
                },
                handleUpdate(row){
                    alert(row.date);
                },
                handleDelete(row){
                    alert(row.date);
                }
            }
        });

    </script>
</body>
</html>
View Code

　访问页面，效果：


5. Pagination 分页

　当数据量过多时，使用分页分解数据。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <span class="demonstration">完整功能</span>
        <el-pagination
                @size-change="handleSizeChange"
                @current-change="handleCurrentChange"
                :current-page="currentPage4"
                :page-sizes="[100, 200, 300, 400]"
                :page-size="10"
                layout="total, prev, pager, next, jumper, sizes"
                :total="305">
            <!--total/page-size=共多少页-->
        </el-pagination>
    </div>

    <script>
        new Vue({
            el:'#app',
            data:{
                currentPage4:2
            },
            methods:{
                handleSizeChange(val) {
                    alert(`每页 ${val} 条`);
                },
                handleCurrentChange(val) {
                    alert(`当前页: ${val}`);
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


6. Message 消息提示

　常用于主动操作后的反馈提示。与 Notification 的区别是后者更多用于系统级通知的被动提醒。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <template>
            <el-button :plain="true" @click="open1">消息</el-button>
            <el-button :plain="true" @click="open2">成功</el-button>
            <el-button :plain="true" @click="open3">警告</el-button>
            <el-button :plain="true" @click="open4">错误</el-button>
        </template>
    </div>

    <script>
        new Vue({
            el:'#app',
            methods:{
                open1() {
                    // this.$message({
                    //     showClose: true,
                    //     message: '这是一条消息提示'
                    // });
                    this.$message('这是一条消息提示');
                },

                open2() {
                    this.$message({
                        showClose: true,
                        message: '恭喜你，这是一条成功消息',
                        type: 'success'
                    });
                },

                open3() {
                    this.$message({
                        showClose: true,
                        message: '警告哦，这是一条警告消息',
                        type: 'warning'
                    });
                },

                open4() {
                    // this.$message({
                    //     showClose: true,
                    //     message: '错了哦，这是一条错误消息',
                    //     type: 'error'
                    // });
                    this.$message.error('错了哦，这是一条错误消息');
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image

　　image　　image


7. Tabs 标签页

　分隔内容上有关联但属于不同类别的数据集合。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <el-tabs v-model="activeName" type="card" @tab-click="handleClick">
            <el-tab-pane label="用户管理" name="first">用户管理、用户管理</el-tab-pane>
            <el-tab-pane label="配置管理" name="second">配置管理、配置管理</el-tab-pane>
            <el-tab-pane label="角色管理" name="third">角色管理、角色管理</el-tab-pane>
            <el-tab-pane label="定时任务补偿" name="fourth">定时任务角色管理补偿、定时任务角色管理补偿</el-tab-pane>
        </el-tabs>

        <h3>基础的、简洁的标签页</h3>
        <!--
         通过value属性来指定当前选中的标签页
        -->
        <el-tabs value="first">
             <el-tab-pane label="用户管理" name="first">用户管理、用户管理</el-tab-pane>
             <el-tab-pane label="配置管理" name="second">配置管理、配置管理</el-tab-pane>
             <el-tab-pane label="角色管理" name="third">角色管理、角色管理</el-tab-pane>
             <el-tab-pane label="定时任务补偿" name="fourth">定时任务补偿、定时任务补偿</el-tab-pane>
        </el-tabs>
        <h3>选项卡样式的标签页</h3>
        <el-tabs value="first" type="card">
             <el-tab-pane label="用户管理" name="first">用户管理、用户管理</el-tab-pane>
             <el-tab-pane label="配置管理" name="second">配置管理、配置管理</el-tab-pane>
             <el-tab-pane label="角色管理" name="third">角色管理、角色管理</el-tab-pane>
             <el-tab-pane label="定时任务补偿" name="fourth">定时任务补偿、定时任务补偿</el-tab-pane>
        </el-tabs>
        <h3>卡片化的标签页</h3>
        <el-tabs value="first" type="border-card">
             <el-tab-pane label="用户管理" name="first">用户管理、用户管理</el-tab-pane>
             <el-tab-pane label="配置管理" name="second">配置管理、配置管理</el-tab-pane>
             <el-tab-pane label="角色管理" name="third">角色管理、角色管理</el-tab-pane>
             <el-tab-pane label="定时任务补偿" name="fourth">定时任务补偿、定时任务补偿</el-tab-pane>
        </el-tabs>
    </div>

    <script>
        new Vue({
            el:'#app',
            data: {
               activeName: 'second'
            },
            methods:{
                handleClick(tab, event) {
                    alert(tab.label);
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image

8. Form 表单

　由输入框、选择器、单选框、多选框等控件组成，用以收集、校验、提交数据。

　在 Form 组件中，每一 个表单域由一个 Form-Item 组件构成，表单域中可以放置各种类型的表单控件，包括 Input、Select、 Checkbox、Radio、Switch、DatePicker、TimePicker。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <!--rules：表单验证规则-->
        <el-form ref="form" :model="form" :rules="rules" label-width="80px">
            <el-form-item label="活动名称" prop="name">
                <el-input v-model="form.name"></el-input>
            </el-form-item>
            <el-form-item label="活动区域" prop="region">
                <el-select v-model="form.region" placeholder="请选择活动区域">
                    <el-option label="区域一" value="shanghai"></el-option>
                    <el-option label="区域二" value="beijing"></el-option>
                </el-select>
            </el-form-item>
            <el-form-item label="活动时间">
                <el-col :span="3">
                    <el-date-picker type="date" placeholder="选择日期" v-model="form.date1" style="width: 100%;"></el-date-picker>
                </el-col>
                <el-col class="line" :span="0.5">-</el-col>
                <el-col :span="3">
                    <el-time-picker placeholder="选择时间" v-model="form.date2" style="width: 100%;"></el-time-picker>
                </el-col>
            </el-form-item>
            <el-form-item label="即时配送">
                <el-switch v-model="form.delivery"></el-switch>
            </el-form-item>
            <el-form-item label="活动性质">
                <el-checkbox-group v-model="form.type">
                    <el-checkbox label="美食/餐厅线上活动" name="type"></el-checkbox>
                    <el-checkbox label="地推活动" name="type"></el-checkbox>
                    <el-checkbox label="线下主题活动" name="type"></el-checkbox>
                    <el-checkbox label="单纯品牌曝光" name="type"></el-checkbox>
                </el-checkbox-group>
            </el-form-item>
            <el-form-item label="特殊资源">
                <el-radio-group v-model="form.resource">
                    <el-radio label="线上品牌商赞助"></el-radio>
                    <el-radio label="线下场地免费"></el-radio>
                </el-radio-group>
            </el-form-item>
            <el-form-item label="活动形式">
                <el-input type="textarea" v-model="form.desc"></el-input>
            </el-form-item>
            <el-form-item>
                <el-button type="primary" @click="onSubmit">立即创建</el-button>
                <el-button>取消</el-button>
            </el-form-item>
        </el-form>
    </div>

    <script>
        new Vue({
            el:'#app',
            data: {
                form: {
                    name: '',
                    region: '',
                    date1: '',
                    date2: '',
                    delivery: false,
                    type: [],
                    resource: '',
                    desc: ''
                },
                //定义校验规则    prop属性
                rules: {
                    name: [
                        { required: true, message: '请输入活动名称', trigger: 'blur' },
                        { min: 3, max: 5, message: '长度在 3 到 5 个字符', trigger: 'blur' }
                    ],
                    region: [
                        { required: true, message: '请选择活动区域', trigger: 'change' }
                    ]
                }

            },
            methods:{
                onSubmit() {
                    //进行输入校验，校验rules
                    console.log(this.form);
                    //validate：对整个表单进行校验的方法，参数为一个回调函数。
                    //该回调函数会在校验结束后被调用，并传入两个参数，是否校验成功和未通过校验的字段。
                    this.$refs['form'].validate((valid)=>{
                        if(valid){
                            alert('submit!');
                        }else {
                            alert('error submit');
                            return false;
                        }
                    });
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


9. Button 按钮

　常用的操作按钮。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <el-row>
            <el-button>默认按钮</el-button>
            <el-button type="primary">主要按钮</el-button>
            <el-button type="success">成功按钮</el-button>
            <el-button type="info">信息按钮</el-button>
            <el-button type="warning">警告按钮</el-button>
            <el-button type="danger">危险按钮</el-button>
            <el-button disabled>默认按钮</el-button>
            <el-button type="primary" disabled>主要按钮</el-button>
        </el-row>

        <el-row>
            <el-button plain>朴素按钮</el-button>
            <el-button type="primary" plain>主要按钮</el-button>
            <el-button type="success" plain>成功按钮</el-button>
            <el-button type="info" plain>信息按钮</el-button>
            <el-button type="warning" plain>警告按钮</el-button>
            <el-button type="danger" plain>危险按钮</el-button>
        </el-row>

        <el-row>
            <el-button round>圆角按钮</el-button>
            <el-button type="primary" round>主要按钮</el-button>
            <el-button type="success" round>成功按钮</el-button>
            <el-button type="info" round>信息按钮</el-button>
            <el-button type="warning" round>警告按钮</el-button>
            <el-button type="danger" round>危险按钮</el-button>
        </el-row>

        <el-row>
            <el-button icon="el-icon-search" circle></el-button>
            <el-button type="primary" icon="el-icon-edit" circle></el-button>
            <el-button type="success" icon="el-icon-check" circle></el-button>
            <el-button type="info" icon="el-icon-message" circle></el-button>
            <el-button type="warning" icon="el-icon-star-off" circle></el-button>
            <el-button type="danger" icon="el-icon-delete" circle></el-button>
        </el-row>

        <el-row>
            <el-button type="primary" icon="el-icon-edit"></el-button>
            <el-button type="primary" icon="el-icon-share"></el-button>
            <el-button type="primary" icon="el-icon-delete"></el-button>
            <el-button type="primary" icon="el-icon-search">搜索</el-button>
            <el-button type="primary">上传<i class="el-icon-upload el-icon--right"></i></el-button>
        </el-row>

        <el-row>
            <el-button type="text">文字按钮</el-button>
            <el-button type="text" disabled>文字按钮</el-button>
        </el-row>

        <el-row>
            <el-button-group>
                <el-button type="primary" icon="el-icon-arrow-left">上一页</el-button>
                <el-button type="primary">下一页<i class="el-icon-arrow-right el-icon--right"></i></el-button>
            </el-button-group>
            <el-button-group>
                <el-button type="primary" icon="el-icon-edit"></el-button>
                <el-button type="primary" icon="el-icon-share"></el-button>
                <el-button type="primary" icon="el-icon-delete"></el-button>
            </el-button-group>
        </el-row>
        <el-row>
            <el-button type="primary" :loading="true">加载中</el-button>
        </el-row>

    </div>

    <script>
        new Vue({
            el:'#app'
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


10. Radio 单选框

　在一组备选项中进行单选

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <template>
            <el-radio v-model="radio1" label="1">备选项1</el-radio>
            <el-radio v-model="radio1" label="2">备选项2</el-radio>
            <el-radio disabled v-model="radio2" label="禁用">备选项3</el-radio>
            <el-radio disabled v-model="radio2" label="选中且禁用">备选项4</el-radio>
        </template>

        <template>
            <div>
                <el-radio-group v-model="radio3">
                    <el-radio :label="3">备选项10</el-radio>
                    <el-radio :label="6">备选项11</el-radio>
                    <el-radio :label="9">备选项12</el-radio>
                </el-radio-group>
            </div>
        </template>

        <script>
            new Vue({
                el:'#app',
                data:{
                    radio1: '1',
                    radio2: '选中且禁用',
                    radio3: 6
                }
            });
        </script>
    </div>
</body>
</html>
View Code

　访问页面，效果：


11. Checkbox 多选框

　一组备选项中进行多选

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <template>
            <el-checkbox v-model="checked0">备选项</el-checkbox>
            <el-checkbox v-model="checked1" disabled>备选项1</el-checkbox>
            <el-checkbox v-model="checked2" disabled>备选项</el-checkbox>
        </template>

        <template>
            <el-checkbox-group v-model="checkList">
                <el-checkbox label="复选框 A"></el-checkbox>
                <el-checkbox label="复选框 B"></el-checkbox>
                <el-checkbox label="复选框 C"></el-checkbox>
                <el-checkbox label="禁用" disabled></el-checkbox>
                <el-checkbox label="选中且禁用" disabled></el-checkbox>
            </el-checkbox-group>
        </template>

        <template>
            <el-checkbox :indeterminate="isIndeterminate" v-model="checkAll" @change="handleCheckAllChange">全选</el-checkbox>
            <div style="margin: 15px 0;"></div>
            <el-checkbox-group v-model="checkedCities" @change="handleCheckedCitiesChange">
                <el-checkbox v-for="city in cities" :label="city" :key="city">{{city}}</el-checkbox>
            </el-checkbox-group>
        </template>
    </div>

    <script>
        const cityOptions = ['上海', '北京', '广州', '深圳'];
        new Vue({
            el:'#app',
            data:{
                checked0: true,
                checked1: false,
                checked2: true,
                checkList: ['选中且禁用','复选框 A'],
                checkAll: false,
                checkedCities: ['上海', '北京'],
                cities: cityOptions,
                isIndeterminate: true
            },
            methods:{
                handleCheckAllChange(val) {
                    this.checkedCities = val ? cityOptions : [];
                    this.isIndeterminate = false;
                },
                handleCheckedCitiesChange(value) {
                    let checkedCount = value.length;
                    this.checkAll = checkedCount === this.cities.length;
                    this.isIndeterminate = checkedCount > 0 && checkedCount < this.cities.length;
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image　　image

 12. Input输入框

　通过鼠标或键盘输入字符

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <div>
            <el-input v-model="input1" placeholder="请输入内容"></el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入内容" v-model="input2" :disabled="true"></el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入内容" v-model="input3" clearable></el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入密码" v-model="input4" show-password></el-input>
        </div>

        <div style="margin-top: 15px;">
            <el-input
                    type="text"
                    placeholder="请输入内容"
                    v-model="text"
                    maxlength="10"
                    show-word-limit>
            </el-input>
        </div>
        <div style="margin-top: 15px;">
        <el-input
                    type="textarea"
                    :rows="2"
                    placeholder="请输入内容"
                    v-model="textarea">
            </el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入内容" v-model="input5">
                <template slot="prepend">Http://</template>
            </el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入内容" v-model="input6">
                <template slot="append">.com</template>
            </el-input>
        </div>
        <div style="margin-top: 15px;">
            <el-input placeholder="请输入内容" v-model="input7" class="input-with-select">
                <el-select v-model="select" slot="prepend" placeholder="请选择">
                    <el-option label="餐厅名" value="1"></el-option>
                    <el-option label="订单号" value="2"></el-option>
                    <el-option label="用户电话" value="3"></el-option>
                </el-select>
                <el-button slot="append" icon="el-icon-search"></el-button>
            </el-input>
        </div>

        <div class="demo-input-size">
            <el-input
                    placeholder="请输入内容"
                    suffix-icon="el-icon-date"
                    v-model="input8">
            </el-input>
            <el-input
                    size="medium"
                    placeholder="请输入内容"
                    suffix-icon="el-icon-date"
                    v-model="input9">
            </el-input>
            <el-input
                    size="small"
                    placeholder="请输入内容"
                    suffix-icon="el-icon-date"
                    v-model="input10">
            </el-input>
        </div>

        <div>
            <div class="sub-title">激活即列出输入建议</div>
            <el-autocomplete
                    class="inline-input"
                    v-model="state1"
                    :fetch-suggestions="querySearch"
                    placeholder="请输入内容"
                    @select="handleSelect"
            ></el-autocomplete>
        </div>
    </div>

    <script>
        new Vue({
            el: '#app',
            data: {
                input1: '',
                input2: '',
                input3: '',
                input4: '',
                text: '',
                textarea: '',
                input5: '',
                input6: '',
                input7: '',
                select: '',
                input8: '',
                input9: '',
                input10: '',
                restaurants: [],
                state1: ''
            },
            methods:{
                querySearch(queryString, cb) {
                    var restaurants = this.restaurants;
                    var results = queryString ? restaurants.filter(this.createFilter(queryString)) : restaurants;
                    // 调用 callback 返回建议列表的数据
                    cb(results);
                },
                createFilter(queryString) {
                    return (restaurant) => {
                        return (restaurant.value.toLowerCase().indexOf(queryString.toLowerCase()) === 0);
                    };
                },
                loadAll() {
                    return [
                        { "value": "三全鲜食（北新泾店）", "address": "长宁区新渔路144号" },
                        { "value": "Hot honey 首尔炸鸡（仙霞路）", "address": "上海市长宁区淞虹路661号" },
                        { "value": "新旺角茶餐厅", "address": "上海市普陀区真北路988号创邑金沙谷6号楼113" },
                        { "value": "泷千家(天山西路店)", "address": "天山西路438号" },
                        { "value": "福荣祥烧腊（平溪路店）", "address": "上海市长宁区协和路福泉路255弄57-73号" },
                        { "value": "速记黄焖鸡米饭", "address": "上海市长宁区北新泾街道金钟路180号1层01号摊位" },
                        { "value": "红辣椒麻辣烫", "address": "上海市长宁区天山西路492号" },
                        { "value": "(小杨生煎)西郊百联餐厅", "address": "长宁区仙霞西路88号百联2楼" },
                        { "value": "阳阳麻辣烫", "address": "天山西路389号" },
                        { "value": "南拳妈妈龙虾盖浇饭", "address": "普陀区金沙江路1699号鑫乐惠美食广场A13" }
                    ];
                },
                handleSelect(item) {
                    console.log(item);
                }
            },
            mounted() {
                this.restaurants = this.loadAll();
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image

 　　image　　image

13. Select 选择器

　当选项过多时，使用下拉菜单展示并选择内容。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <template>
            <el-select v-model="value" placeholder="请选择">
                <el-option
                        v-for="item in options"
                        :key="item.value"
                        :label="item.label"
                        :value="item.value"
                        :disabled="item.disabled">
                </el-option>
            </el-select>
        </template>

        <template>
            <el-select v-model="value" clearable placeholder="请选择">
                <el-option
                        v-for="item in options"
                        :key="item.value"
                        :label="item.label"
                        :value="item.value">
                </el-option>
            </el-select>
        </template>

        <template>
            <el-select v-model="value1" multiple placeholder="请选择">
                <el-option
                        v-for="item in options"
                        :key="item.value"
                        :label="item.label"
                        :value="item.value">
                </el-option>
            </el-select>
        </template>
    </div>

    <script>
        new Vue({
                el: '#app',
                data: {
                    options: [{
                        value: '选项1',
                        label: '黄金糕'
                    }, {
                        value: '选项2',
                        label: '双皮奶',
                        disabled: true
                    }, {
                        value: '选项3',
                        label: '蚵仔煎'
                    }, {
                        value: '选项4',
                        label: '龙须面'
                    }, {
                        value: '选项5',
                        label: '北京烤鸭'
                    }],
                    value: '',
                    value1: [],
                }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


　　image　　image

14. DatePicker 日期选择器

　用于选择或输入日期

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <!--选择日-->
        <template>
            <div class="block">
                <span class="demonstration">选择日</span>
                <el-date-picker
                        v-model="value1"
                        type="date"
                        placeholder="选择日期"
                        :picker-options="pickerOptions">
                </el-date-picker>
            </div>
        </template>

        <!--选择日期范围-->
        <template>
            <div class="block">
                <span class="demonstration">选择日期范围</span>
                <el-date-picker
                        v-model="value2"
                        type="daterange"
                        range-separator="至"
                        start-placeholder="开始日期"
                        end-placeholder="结束日期">
                </el-date-picker>
            </div>
        </template>
    </div>

    <script>
        new Vue({
            el: '#app',
            data: {
                value1: '',
                value2: '',
                pickerOptions: {
                    disabledDate(time) {
                        return time.getTime() > Date.now();
                    }
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：


　　image　　image


15. Upload 上传

　通过点击或者拖拽上传文件

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <el-upload
                class="upload-demo"
                action="https://jsonplaceholder.typicode.com/posts/"
                :on-preview="handlePreview"
                :on-remove="handleRemove"
                multiple
                :limit="3"
                :on-exceed="handleExceed"
                :before-upload="beforeUpload"
                :before-remove="beforeRemove"
                :file-list="fileList">
            <el-button size="small" type="primary">点击上传</el-button>
            <div slot="tip" class="el-upload__tip">只能上传jpg/png文件，且不超过500kb</div>
        </el-upload>
    </div>

    <script>
        new Vue({
            el: '#app',
            data: {
                fileList: [
                    {
                        name: 'food.jpeg',
                        url: 'https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg?imageMogr2/thumbnail/360x360/format/webp/quality/100'
                    },
                    {
                        name: 'food2.jpeg',
                        url: 'https://fuss10.elemecdn.com/3/63/4e7f3a15429bfda99bce42a18cdd1jpeg.jpeg?imageMogr2/thumbnail/360x360/format/webp/quality/100'
                    }
                ]
            },
            methods: {
                handleRemove(file, fileList) {
                    console.log(file, fileList);
                },
                handlePreview(file) {
                    console.log(file);
                },
                handleExceed(files, fileList) {
                    this.$message.warning(`当前限制选择 3 个文件，本次选择了 ${files.length} 个文件，共选择了 ${files.length + fileList.length} 个文件`);
                },
                beforeRemove(file, fileList) {
                    if(file && file.status==="success"){
                        return this.$confirm(`确定移除 ${ file.name }？`);
                    }
                },
                beforeUpload(file) {
                    const isJPG = file.type === 'image/jpeg' || file.type === 'image/png';;
                    const isLt2M = file.size / 1024 / 1024 < 2;

                    if (!isJPG) {
                        this.$message.error('上传头像图片只能是 JPG/PNG 格式!');
                    }
                    if (!isLt2M) {
                        this.$message.error('上传头像图片大小不能超过 2MB!');
                    }
                    return isJPG && isLt2M;
                }
            }
        });
    </script>
</body>
</html>
View Code

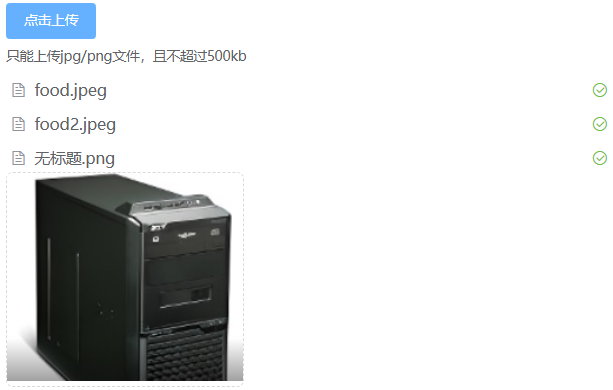

　访问页面，效果：

　　image 　　image


16. Dialog 对话框

　在保留当前页面状态的情况下，告知用户并承载相关操作。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <!--Dialog 弹出一个对话框-->
        <div>
            <el-button type="text" @click="dialogVisible = true">点击打开 Dialog</el-button>

            <el-dialog
                    title="提示"
                    :visible.sync="dialogVisible"
                    width="30%"
                    :before-close="handleClose">
                <span>这是一段信息</span>
                <span slot="footer" class="dialog-footer">
                <el-button @click="dialogVisible = false">取 消</el-button>
                <el-button type="primary" @click="dialogVisible = false">确 定</el-button>
                </span>
            </el-dialog>
        </div>
        <!--Dialog 组件的内容是表格或表单-->
        <!--Table-->
        <div>
            <el-button type="text" @click="dialogTableVisible = true">打开嵌套表格的 Dialog</el-button>

            <el-dialog title="收货地址" :visible.sync="dialogTableVisible">
                <el-table :data="gridData">
                    <el-table-column property="date" label="日期" width="150"></el-table-column>
                    <el-table-column property="name" label="姓名" width="200"></el-table-column>
                    <el-table-column property="address" label="地址"></el-table-column>
                </el-table>
            </el-dialog>
        </div>
        <!--Form-->
        <div>
            <el-button type="text" @click="dialogFormVisible = true">打开嵌套表单的 Dialog</el-button>

            <el-dialog title="收货地址" :visible.sync="dialogFormVisible">
                <el-form :model="form">
                    <el-form-item label="活动名称" :label-width="formLabelWidth">
                        <el-input v-model="form.name" autocomplete="off"></el-input>
                    </el-form-item>
                    <el-form-item label="活动区域" :label-width="formLabelWidth">
                        <el-select v-model="form.region" placeholder="请选择活动区域">
                            <el-option label="区域一" value="shanghai"></el-option>
                            <el-option label="区域二" value="beijing"></el-option>
                        </el-select>
                    </el-form-item>
                </el-form>
                <div slot="footer" class="dialog-footer">
                    <el-button @click="dialogFormVisible = false">取 消</el-button>
                    <el-button type="primary" @click="dialogFormVisible = false">确 定</el-button>
                </div>
            </el-dialog>
        </div>
    </div>

    <script>
        new Vue({
            el:'#app',
            data: {
                dialogVisible: false,
                gridData: [{
                    date: '2016-05-02',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1518 弄'
                }, {
                    date: '2016-05-04',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1518 弄'
                }, {
                    date: '2016-05-01',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1518 弄'
                }, {
                    date: '2016-05-03',
                    name: '王小虎',
                    address: '上海市普陀区金沙江路 1518 弄'
                }],
                dialogTableVisible: false,
                dialogFormVisible: false,
                form: {
                    name: '',
                    region: '',
                    date1: '',
                    date2: '',
                    delivery: false,
                    type: [],
                    resource: '',
                    desc: ''
                },
                formLabelWidth: '120px'
            },
            methods: {
                handleClose(done) {
                    this.$confirm('确认关闭？')
                        .then(_ => {
                            done();
                        })
                        .catch(_ => {});
                }
            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

 　　image　　image

　　image　image

 17. MessageBox 弹框

　模拟系统的消息提示框而实现的一套模态对话框组件，用于消息提示、确认消息和提交内容。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
    <!-- 引入ElementUI样式 -->
    <link rel="stylesheet" href="https://unpkg.com/element-ui/lib/theme-chalk/index.css">
    <script src="https://unpkg.com/vue@2/dist/vue.js"></script>
    <!-- 引入ElementUI组件库 -->
    <script src="https://unpkg.com/element-ui/lib/index.js"></script>
</head>
<body>
    <div id="app">
        <!--消息提示：当用户进行操作时会被触发，该对话框中断用户操作，直到用户确认知晓后才可关闭。-->
        <div>
            <template>
                <el-button type="text" @click="open1">点击打开 Message Box</el-button>
            </template>
        </div>

        <!--确认消息：提示用户确认其已经触发的动作，并询问是否进行此操作时会用到此对话框。-->
        <div>
            <template>
                <el-button type="text" @click="open2">点击打开 Message Box</el-button>
            </template>
        </div>

        <!--提交内容：当用户进行操作时会被触发，中断用户操作，提示用户进行输入的对话框。-->
        <template>
            <el-button type="text" @click="open3">点击打开 Message Box</el-button>
        </template>

    </div>

    <script>
        new Vue({
            el:'#app',
            data: {

            },
            methods: {
                open1() {
                    this.$alert('这是一段内容', '标题名称', {
                        confirmButtonText: '确定',
                        callback: action => {
                            this.$message({
                                type: 'info',
                                message: `action: ${ action }`
                            });
                        }
                    });
                },
                open2() {
                    this.$confirm('此操作将永久删除该文件, 是否继续?', '提示', {
                        confirmButtonText: '确定',
                        cancelButtonText: '取消',
                        type: 'warning'
                    }).then(() => {
                        this.$message({
                            type: 'success',
                            message: '删除成功!'
                        });
                    }).catch(() => {
                        this.$message({
                            type: 'info',
                            message: '已取消删除'
                        });
                    });
                },
                open3() {
                    this.$prompt('请输入邮箱', '提示', {
                        confirmButtonText: '确定',
                        cancelButtonText: '取消',
                        inputPattern: /[\w!#$%&'*+/=?^_`{|}~-]+(?:\.[\w!#$%&'*+/=?^_`{|}~-]+)*@(?:[\w](?:[\w-]*[\w])?\.)+[\w](?:[\w-]*[\w])?/,
                        inputErrorMessage: '邮箱格式不正确'
                    }).then(({ value }) => {
                        this.$message({
                            type: 'success',
                            message: '你的邮箱是: ' + value
                        });
                    }).catch(() => {
                        this.$message({
                            type: 'info',
                            message: '取消输入'
                        });
                    });
                }

            }
        });
    </script>
</body>
</html>
View Code

　访问页面，效果：

　　image　　image

　　image　　image







posted on 2025-11-26 04:07  花溪月影  阅读(1)  评论(0)    收藏  举报

博客园  ©  2004-2025
浙公网安备 33010602011771号 浙ICP备2021040463号-3
