Mybatis20_mybatis的多表操作8

一、一对一查询

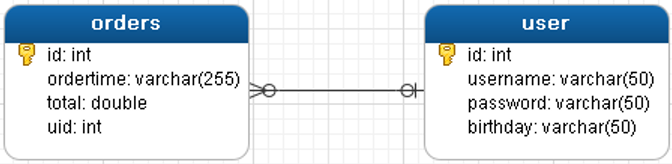

　1、一对一查询的模型

　　用户表和订单表的关系为：一个用户有多个订单，一个订单只从属于一个用户

　　一对一查询的需求：查询一个订单，与此同时查询出该订单所属的用户

　　

　2、订单环境代码实现

　　2.1 数据库数据导入

/*
Navicat MySQL Data Transfer

Source Server         : mysql
Source Server Version : 50147
Source Host           : localhost:3306
Source Database       : test

Target Server Type    : MYSQL
Target Server Version : 50147
File Encoding         : 65001

Date: 2019-04-20 16:37:34
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for orders
-- ----------------------------
DROP TABLE IF EXISTS `orders`;
CREATE TABLE `orders` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `ordertime` varchar(255) DEFAULT NULL,
  `total` double DEFAULT NULL,
  `uid` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `uid` (`uid`),
  CONSTRAINT `orders_ibfk_1` FOREIGN KEY (`uid`) REFERENCES `user` (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of orders
-- ----------------------------
INSERT INTO `orders` VALUES ('1', '2018-12-12', '3000', '1');
INSERT INTO `orders` VALUES ('2', '2018-12-12', '4000', '1');
INSERT INTO `orders` VALUES ('3', '2018-12-12', '5000', '2');

-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `roleName` varchar(255) DEFAULT NULL,
  `roleDesc` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of sys_role
-- ----------------------------
INSERT INTO `sys_role` VALUES ('1', 'CTO', 'CTO');
INSERT INTO `sys_role` VALUES ('2', 'COO', 'COO');

-- ----------------------------
-- Table structure for sys_user_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_role`;
CREATE TABLE `sys_user_role` (
  `userid` int(11) NOT NULL,
  `roleid` int(11) NOT NULL,
  PRIMARY KEY (`userid`,`roleid`),
  KEY `roleid` (`roleid`),
  CONSTRAINT `sys_user_role_ibfk_1` FOREIGN KEY (`userid`) REFERENCES `sys_role` (`id`),
  CONSTRAINT `sys_user_role_ibfk_2` FOREIGN KEY (`roleid`) REFERENCES `user` (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of sys_user_role
-- ----------------------------
INSERT INTO `sys_user_role` VALUES ('1', '1');
INSERT INTO `sys_user_role` VALUES ('2', '1');
INSERT INTO `sys_user_role` VALUES ('1', '2');
INSERT INTO `sys_user_role` VALUES ('2', '2');

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(50) DEFAULT NULL,
  `password` varchar(50) DEFAULT NULL,
  `birthday` varchar(50) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', 'lucy', '123', '2018-12-12');
INSERT INTO `user` VALUES ('2', 'haohao', '123', '2019-12-12');

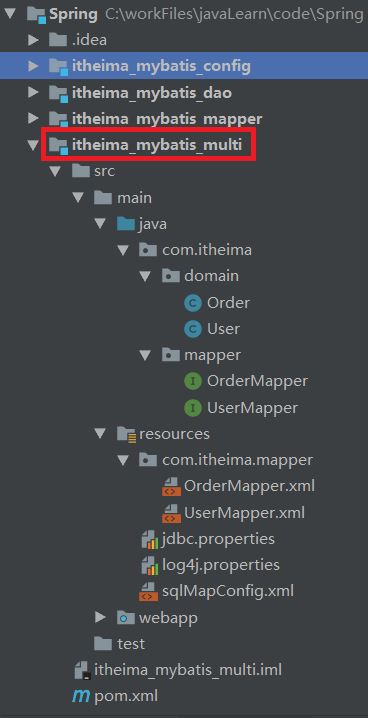

 　　2.2 项目搭建

　　　

　　　Order.java：

package com.itheima.domain;

import java.util.Date;

public class Order {

    private int id;
    private Date ordertime;
    private double total;

    //当前订单属于哪一个用户（java中实体与实体的关系是通过实体的引用去维系的）
    private User user;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public Date getOrdertime() {
        return ordertime;
    }

    public void setOrdertime(Date ordertime) {
        this.ordertime = ordertime;
    }

    public double getTotal() {
        return total;
    }

    public void setTotal(double total) {
        this.total = total;
    }

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    @Override
    public String toString() {
        return "Order{" +
                "id=" + id +
                ", ordertime=" + ordertime +
                ", total=" + total +
                ", user=" + user +
                '}';
    }
}

　　　sqlMapConfig.xml中加载映射文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <!--通过properties标签加载外部properties文件-->
    <properties resource="jdbc.properties"/>

    <!--定义别名-->
    <typeAliases>
        <typeAlias type="com.itheima.domain.User" alias="user"/>
　　　　　<typeAlias type="com.itheima.domain.Order" alias="order"/>
    </typeAliases>

    <!--数据源环境-->
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"></transactionManager>
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driver}"/>
                <property name="url" value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>

    <!--加载映射文件-->
    <mappers>
        <mapper resource="com/itheima/mapper/UserMapper.xml"/>
        <mapper resource="com/itheima/mapper/OrderMapper.xml"/>
    </mappers>
</configuration>

　3、一对一查询的语句

　　对应的sql语句：select *,o.id oid from orders o,user u where o.uid = u.id;

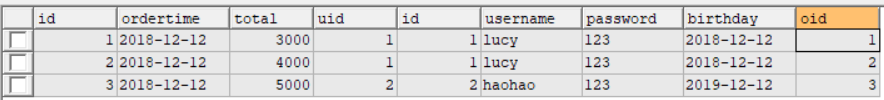

　　查询的结果如下：

 　　　　

 　4、创建OrderMapper接口

package com.itheima.mapper;

import com.itheima.domain.Order;
import java.util.List;

public interface OrderMapper {

    public List<Order> findAll();
}

　5、配置OrderMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.itheima.mapper.OrderMapper">

    <resultMap id="orderMap" type="order">
        <!--手动指定字段与实体属性的映射关系
                column：数据库表的字段名称
                property：实体的属性名称
        -->
        <id column="oid" property="id"></id>
        <result column="ordertime" property="ordertime"></result>
        <result column="total" property="total"></result>
        <result column="uid" property="user.id"></result>
        <result column="username" property="user.username"></result>
        <result column="password" property="user.password"></result>
        <result column="birthday" property="user.birthday"></result>
    </resultMap>

    <!--<select id="findAll" resultType="order">-->
    <select id="findAll" resultMap="orderMap">
        select *,o.id oid from orders o,user u where o.uid=u.id;
    </select>
</mapper>

　　或者是

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.itheima.mapper.OrderMapper">

    <resultMap id="orderMap" type="order">
        <!--手动指定字段与实体属性的映射关系
                column：数据库表的字段名称
                property：实体的属性名称
        -->
        <id column="oid" property="id"></id>
        <result column="ordertime" property="ordertime"></result>
        <result column="total" property="total"></result>
        <!--
            property：当前实体order中的属性名称(private User user)
            javaType：当前实体order中的属性的类型(User)
        -->
        <association property="user" javaType="user">
            <id column="uid" property="id"></id>
            <id column="username" property="username"></id>
            <id column="password" property="password"></id>
            <id column="birthday" property="birthday"></id>
        </association>
    </resultMap>

    <!--<select id="findAll" resultType="order">-->
    <select id="findAll" resultMap="orderMap">
        select *,o.id oid from orders o,user u where o.uid=u.id;
    </select>
</mapper>

　6、测试类

　　

package com.itheima.test;

import com.itheima.domain.Order;
import com.itheima.mapper.OrderMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;

public class MybatisTest {

    @Test
    public void test1() throws IOException {
        InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
        SqlSession sqlSession = sqlSessionFactory.openSession();
        OrderMapper mapper = sqlSession.getMapper(OrderMapper.class);
        List<Order> orderList = mapper.findAll();
        for (Order order : orderList) {
            System.out.println(order);
        }

        sqlSession.commit();
        sqlSession.close();
    }
}

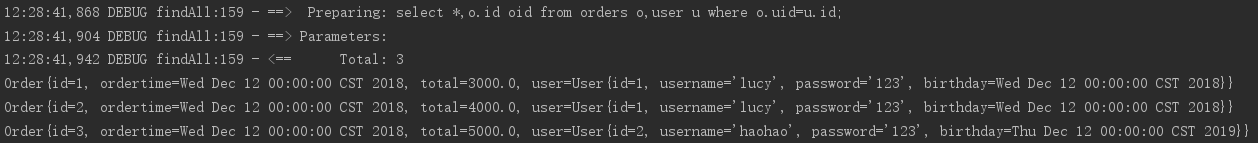

　　执行test1，查看控制台打印结果：

　　　

二、一对多/多对一查询

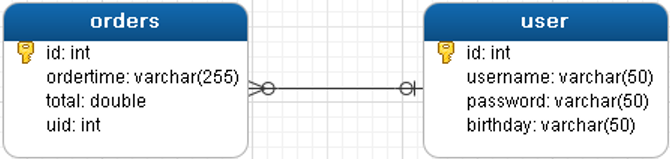

　1、一对多查询的模型

　　用户表和订单表的关系为：一个用户有多个订单，一个订单只从属于一个用户

　　一对多查询的需求：查询一个用户，与此同时查询出该用户具有的订单

 　　　

 　2、一对多查询的语句

　　对应的sql语句：select *,o.id oid from user u,orders o where u.id=o.uid;

　　查询的结果如下：

　　　

 　3、修改User实体

package com.itheima.domain;

import java.util.Date;
import java.util.List;

public class User {

    private int id;
    private String username;
    private String password;
    private Date birthday;

    //描述的是当前用户存在哪些订单
    private List<Order> orderList;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    public List<Order> getOrderList() {
        return orderList;
    }

    public void setOrderList(List<Order> orderList) {
        this.orderList = orderList;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", birthday=" + birthday +
                ", orderList=" + orderList +
                '}';
    }
}

　4、修改UserMapper接口

package com.itheima.mapper;

import com.itheima.domain.User;
import java.util.List;

public interface UserMapper {

    public List<User> findAll();

}

　5、配置UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.itheima.mapper.UserMapper">

    <resultMap id="userMap" type="user">
        <id column="uid" property="id"></id>
        <result column="username" property="username"></result>
        <result column="password" property="password"></result>
        <result column="birthday" property="birthday"></result>

        <!--配置集合信息
            property：集合名称
            ofType：当前集合中的数据类型(因为核心配置文件中对com.itheima.domain.Order起了别名order所以赋值order)
        -->
        <collection property="orderList" ofType="order">
            <!--封装order的数据-->
            <id column="oid" property="id"></id>
            <result column="ordertime" property="ordertime"></result>
            <result column="total" property="total"></result>
        </collection>

    </resultMap>

    <select id="findAll" resultMap="userMap">
        select *,o.id oid from user u,orders o where u.id=o.uid;
    </select>
</mapper>

　6、测试类MybatisTest.java：

package com.itheima.test;

import com.itheima.domain.Order;
import com.itheima.domain.User;
import com.itheima.mapper.OrderMapper;
import com.itheima.mapper.UserMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;

public class MybatisTest {

    @Test
    public void test2() throws IOException {
        InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
        SqlSession sqlSession = sqlSessionFactory.openSession();
        UserMapper mapper = sqlSession.getMapper(UserMapper.class);
        List<User> userList = mapper.findAll();
        for (User user : userList) {
            System.out.println(user);
        }

        sqlSession.commit();
        sqlSession.close();

    }
}

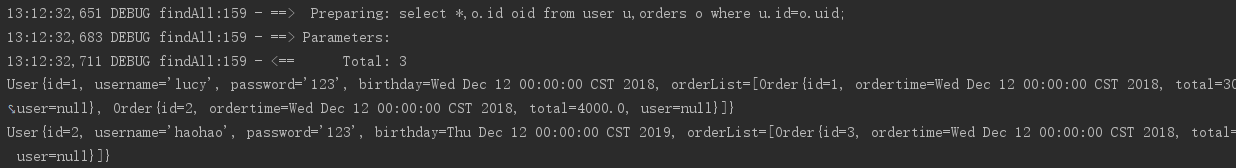

　　执行test2，查看控制台打印结果：

　　　

三、多对多查询

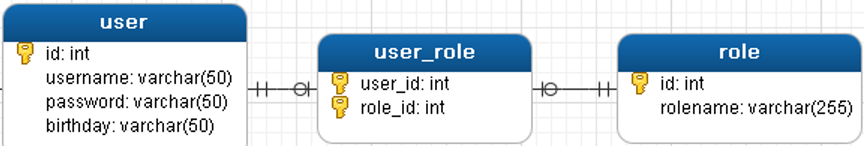

　1、多对多查询的模型

　　用户表和角色表的关系为：一个用户有多个角色，一个角色被多个用户使用

　　多对多查询的需求：查询用户同时查询出该用户的所有角色

　　

 　2、多对多查询的语句：

 　　对应的sql语句：select * from user u,sys_user_role ur,sys_role r where u.id=ur.userid and ur.roleid=r.id;

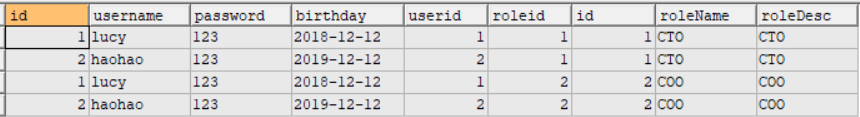

　　查询的结果如下：

　　　

　3、 创建Role实体，修改User实体

package com.itheima.domain;

public class Role {

    private int id;
    private String roleName;
    private String roleDesc;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getRoleName() {
        return roleName;
    }

    public void setRolename(String roleName) {
        this.roleName = roleName;
    }

    public String getRoleDesc() {
        return roleDesc;
    }

    public void setRoleDesc(String roleDesc) {
        this.roleDesc = roleDesc;
    }

    @Override
    public String toString() {
        return "Role{" +
                "id=" + id +
                ", rolename='" + roleName + '\'' +
                ", roleDesc='" + roleDesc + '\'' +
                '}';
    }

}

package com.itheima.domain;

import java.util.Date;
import java.util.List;

public class User {

    private int id;
    private String username;
    private String password;
    private Date birthday;

    //描述的是当前用户存在哪些订单
    private List<Order> orderList;

    //描述的是当前用户具备哪些角色
    private List<Role> roleList;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    public List<Order> getOrderList() {
        return orderList;
    }

    public void setOrderList(List<Order> orderList) {
        this.orderList = orderList;
    }

    public List<Role> getRoleList() {
        return roleList;
    }

    public void setRoleList(List<Role> roleList) {
        this.roleList = roleList;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", birthday=" + birthday +
                ", orderList=" + orderList +
                ", roleList=" + roleList +
                '}';
    }
}

　4、添加UserMapper接口方法

package com.itheima.mapper;

import com.itheima.domain.User;
import java.util.List;

public interface UserMapper {

    public List<User> findUserAndRoleAll();

}

　5、配置UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.itheima.mapper.UserMapper">

    <resultMap id="userRoleMap" type="user">
        <!--user的信息-->
        <id column="userid" property="id"></id>
        <result column="username" property="username"></result>
        <result column="password" property="password"></result>
        <result column="birthday" property="birthday"></result>

        <!--user内部的roleList信息-->
        <collection property="roleList" ofType="com.itheima.domain.Role">
            <id column="roleid" property="id"></id>
            <result column="roleName" property="roleName"></result>
            <result column="roleDesc" property="roleDesc"></result>
        </collection>
    </resultMap>

    <select id="findUserAndRoleAll" resultMap="userRoleMap">
        select * from user u,sys_user_role ur,sys_role r where u.id=ur.userid and ur.roleid=r.id;
    </select>
</mapper>

　6、测试类MybatisTest.java

package com.itheima.test;

import com.itheima.domain.Order;
import com.itheima.domain.User;
import com.itheima.mapper.OrderMapper;
import com.itheima.mapper.UserMapper;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;
import java.io.IOException;
import java.io.InputStream;
import java.util.List;

public class MybatisTest {

    @Test
    public void test3() throws IOException {
        InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
        SqlSession sqlSession = sqlSessionFactory.openSession();
        UserMapper mapper = sqlSession.getMapper(UserMapper.class);
        List<User> userAndRoleAll = mapper.findUserAndRoleAll();
        for (User user : userAndRoleAll) {
            System.out.println(user);
        }

        sqlSession.commit();
        sqlSession.close();

    }
}

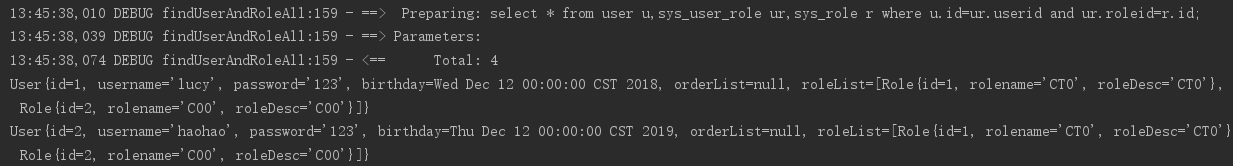

　　执行test3，查看控制台打印结果：

　　　

四、知识小结

　MyBatis多表配置方式：

　　一对一配置：使用<resultMap>做配置

　　一对多配置：使用<resultMap>+<collection>做配置

　　多对多配置：使用<resultMap>+<collection>做配置，与一对多的区别就是多了一张中间表。
