部署Grafana

4. 部署Grafana

4.1. 安装Grafana

4.1.1. 准备镜像

[root@hdss7-200 ~]# docker pull grafana/grafana:5.4.2
[root@hdss7-200 ~]# docker image tag grafana/grafana:5.4.2 harbor.od.com/public/grafana:v5.4.2
[root@hdss7-200 ~]# docker image push harbor.od.com/infra/grafana:v5.4.2
[root@hdss7-200 ~]# mkdir /data/nfs-volume/grafana

4.1.2. 准备资源配置清单

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
rules:
- apiGroups:
  - "*"
  resources:
  - namespaces
  - deployments
  - pods
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: grafana
subjects:
- kind: User
  name: k8s-node

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: grafana
    name: grafana
  name: grafana
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      name: grafana
  template:
    metadata:
      labels:
        app: grafana
        name: grafana
    spec:
      containers:
      - name: grafana
        image: harbor.od.com/infra/grafana:v5.4.2
        ports:
        - containerPort: 3000
          protocol: TCP
        volumeMounts:
        - mountPath: /var/lib/grafana
          name: data
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      volumes:
      - nfs:
          server: hdss7-200
          path: /data/nfs-volume/grafana
        name: data

apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: kube-system
spec:
  ports:
  - port: 3000
    protocol: TCP
    targetPort: 3000
  selector:
    app: grafana

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: grafana
  namespace: kube-system
spec:
  rules:
  - host: grafana.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: grafana
          servicePort: 3000

4.1.3. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/devops/prometheus/grafana/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/devops/prometheus/grafana/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/devops/prometheus/grafana/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/devops/prometheus/grafana/ingress.yaml

[root@hdss7-11 ~]# vim /var/named/od.com.zone
......
grafana            A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A grafana.od.com +short
10.4.7.10

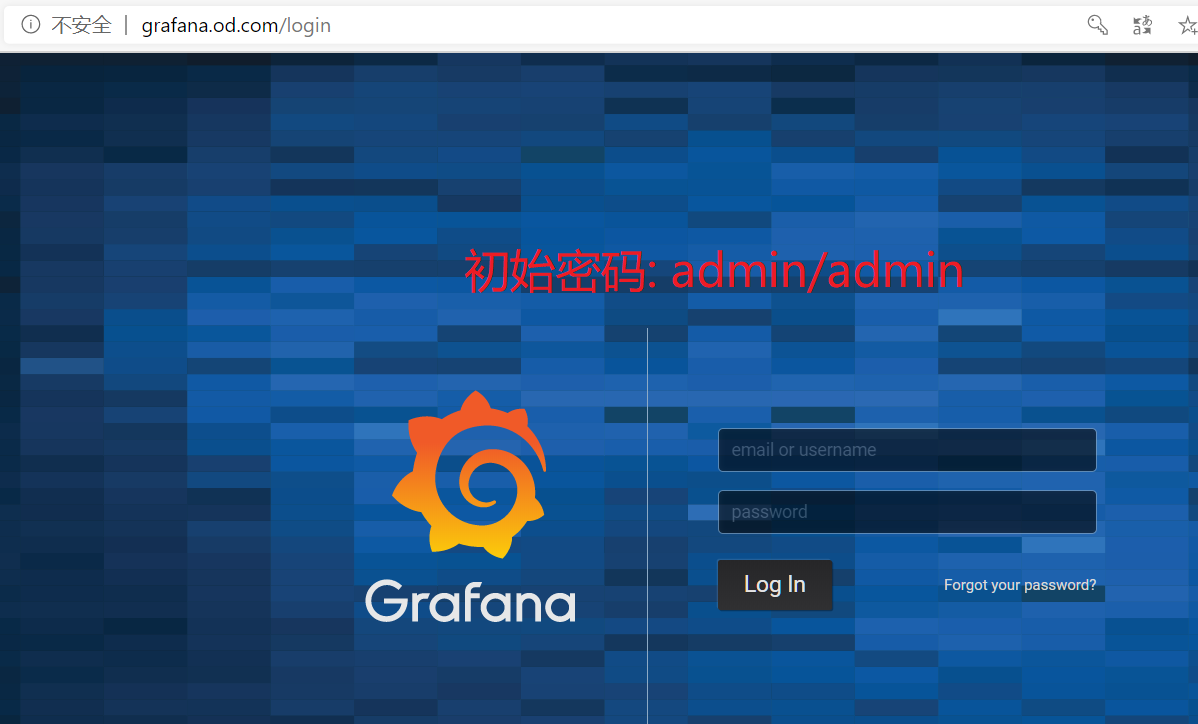

4.1.4. 安装插件

# 需要安装的插件
grafana-kubernetes-app
grafana-clock-panel
grafana-piechart-panel
briangann-gauge-panel
natel-discrete-panel

# 插件安装有两种方式：
# 1. 进入Container中，执行 grafana-cli plugins install $plugin_name
# 2. 手动下载插件zip包，访问 https://grafana.com/api/plugins/repo/$plugin_name 查询插件版本号 $version
#    通过 https://grafana.com/api/plugins/$plugin_name/versions/$version/download 下载zip包
#    将zip包解压到 /var/lib/grafana/plugins 下
# 插件安装完毕后，重启Grafana的Pod

# 方式一:
[root@hdss7-21 ~]# kubectl get pod -n kube-system -l name=grafana
NAME                       READY   STATUS    RESTARTS   AGE
grafana-596d8dbcd5-l2466   1/1     Running   0          3m45s
[root@hdss7-21 ~]# kubectl exec grafana-596d8dbcd5-l2466 -n kube-system -it -- /bin/bash
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-kubernetes-app
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-clock-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-piechart-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install briangann-gauge-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install natel-discrete-panel

# 方式二:
[root@hdss7-200 plugins]# wget -O grafana-kubernetes-app.zip https://grafana.com/api/plugins/grafana-kubernetes-app/versions/1.0.1/download
[root@hdss7-200 plugins]# ls *.zip | xargs -I {} unzip -q {}

4.2. 接入Prometheus

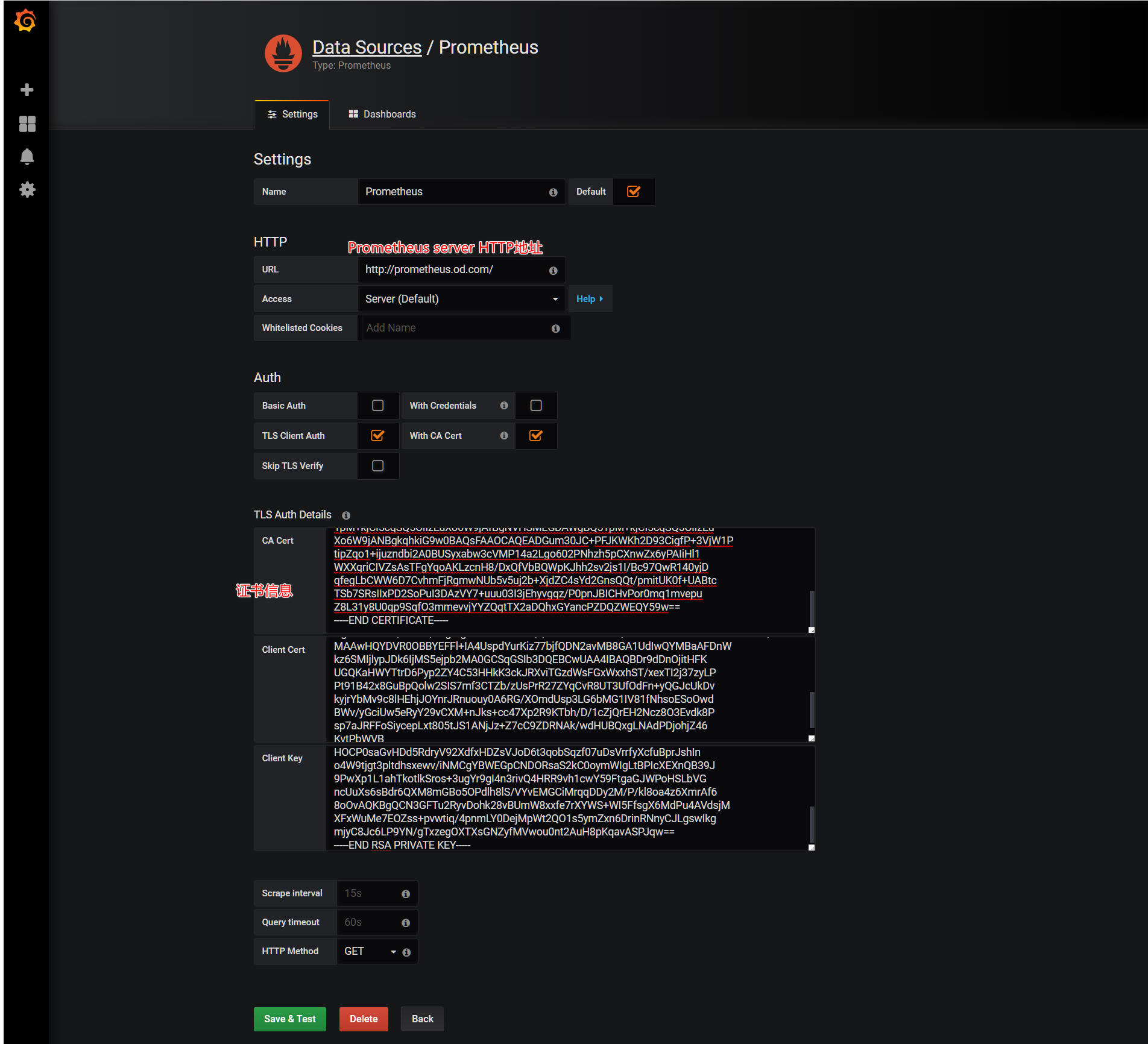

4.2.1. 接入Prometheus数据

4.2.2. 配置kubernetes app

注意这里填写apiserver的地址 https://10.4.7.10:7443

由于k8s container 有些bug 所以我们需要将这里替换

sum(container_memory_usage_bytes{container_label_io_kubernetes_pod_name=~"$pod"}) by (container_label_io_kubernetes_pod_name)

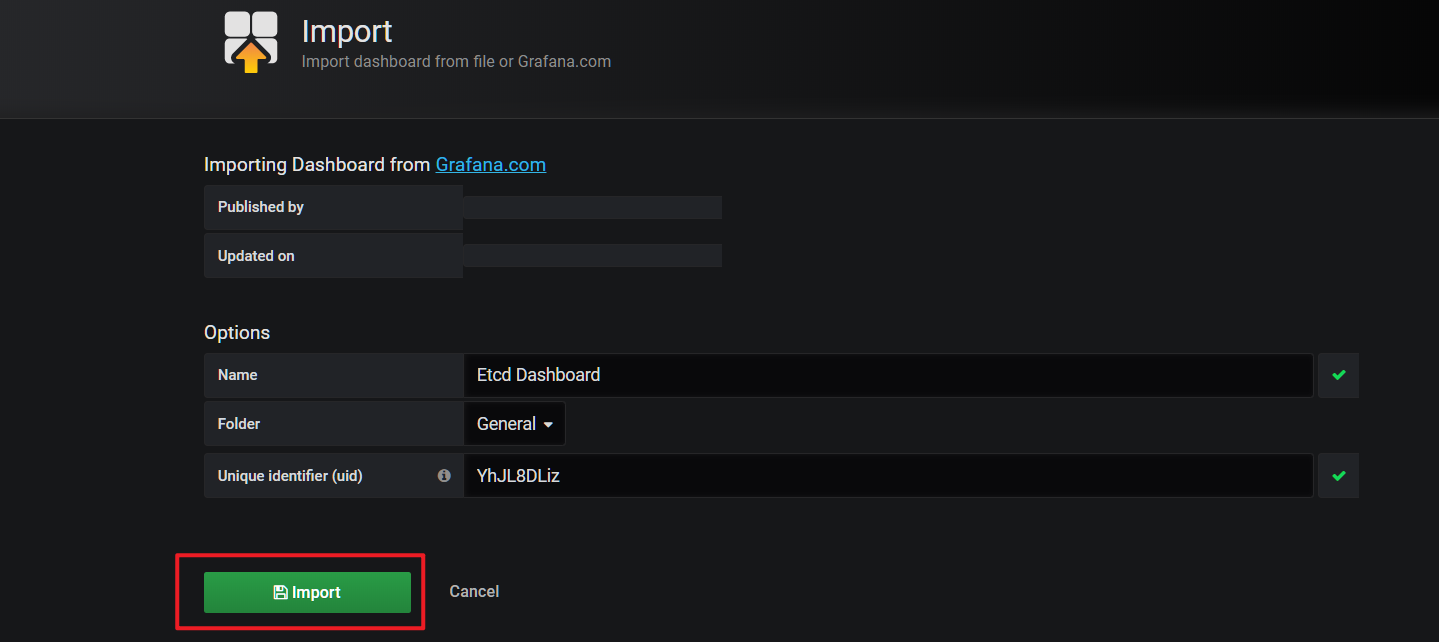

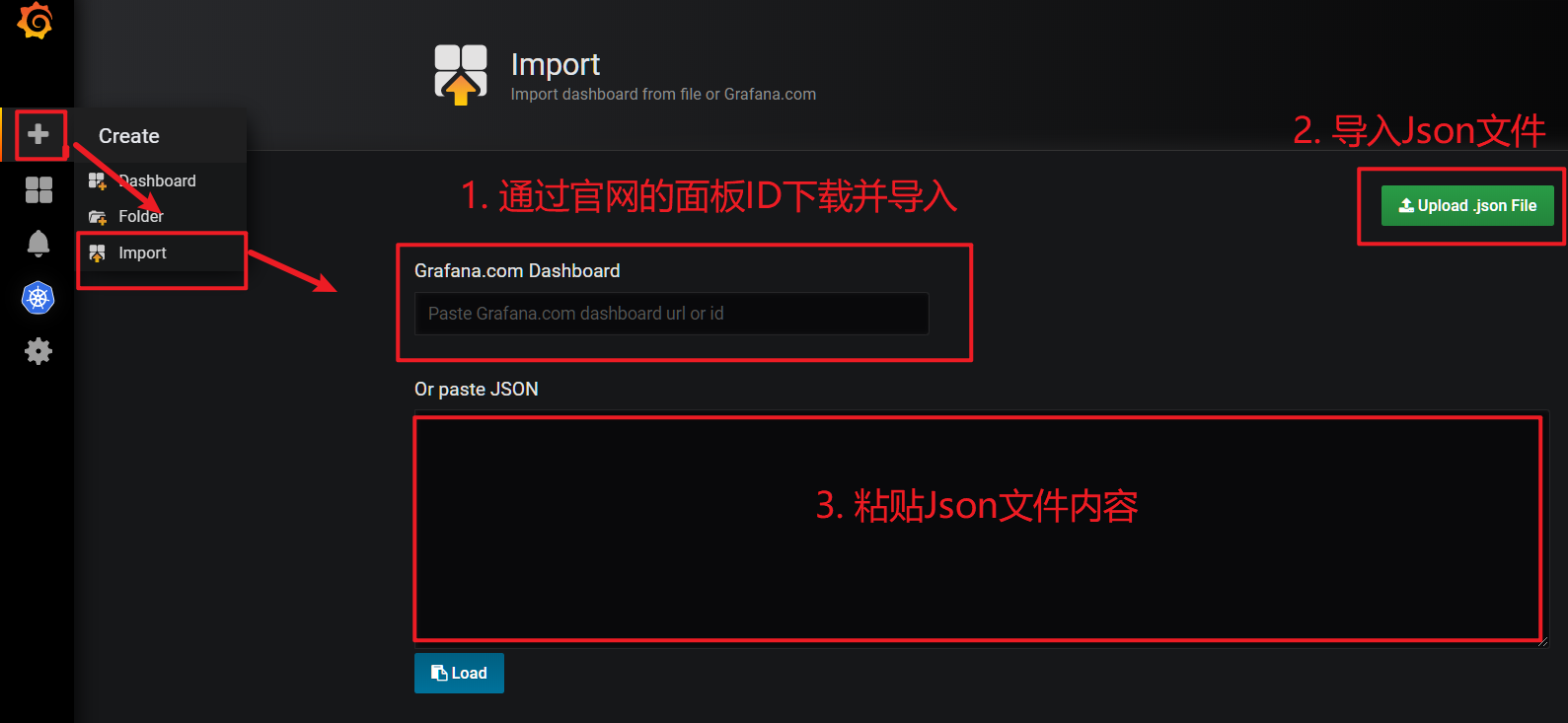

4.2.3. 导入Kubernetes面板

当前的Kubernetes面板存在一些问题，可以通过导入更加合适的面板来实现图表展示。
附件:📎GrafanaDashboard.zip 📎GrafanaDashboard.zip
