MySQL 8.0 克隆插件及其原理

2025-06-02 08:11 abce 阅读(92) 评论(0) 收藏举报

donor：192.168.137.1

recipient：192.168.137.2

1.安装克隆插件

可以在配置文件中配置插件，然后重启实例：

[mysqld]
plugin-load-add=mysql_clone.so

运行时安装克隆插件：

mysql> install plugin clone soname 'mysql_clone.so';
Query OK, 0 rows affected (0.04 sec)

检查克隆插件是否安装成功：

mysql> select plugin_name,plugin_status from information_schema.plugins where plugin_name='clone';
+-------------+---------------+
| plugin_name | plugin_status |
+-------------+---------------+
| clone       | ACTIVE        |
+-------------+---------------+
1 row in set (0.00 sec)

donor 和 recipient 都必须成功安装和运行了克隆插件。

2.创建特定权限的用户

doner端创建用户：

mysql> CREATE USER 'donor_clone_user'@'%' IDENTIFIED BY 'password';
Query OK, 0 rows affected (0.01 sec)

mysql> GRANT BACKUP_ADMIN on *.* to 'donor_clone_user'@'%';
Query OK, 0 rows affected (0.01 sec)

mysql> show grants for 'donor_clone_user'@'%';
+-----------------------------------------------------+
| Grants for donor_clone_user@%                       |
+-----------------------------------------------------+
| GRANT USAGE ON *.* TO `donor_clone_user`@`%`        |
| GRANT BACKUP_ADMIN ON *.* TO `donor_clone_user`@`%` |
+-----------------------------------------------------+
2 rows in set (0.00 sec)

recipient 端创建用户：

mysql> CREATE USER 'recipient_clone_user'@'%' IDENTIFIED BY 'password';
Query OK, 0 rows affected (0.02 sec)

mysql> GRANT CLONE_ADMIN on *.* to 'recipient_clone_user'@'%';
Query OK, 0 rows affected (0.00 sec)

mysql> show grants for 'recipient_clone_user'@'%';
+--------------------------------------------------------+
| Grants for recipient_clone_user@%                      |
+--------------------------------------------------------+
| GRANT USAGE ON *.* TO `recipient_clone_user`@`%`       |
| GRANT CLONE_ADMIN ON *.* TO `recipient_clone_user`@`%` |
+--------------------------------------------------------+
2 rows in set (0.00 sec)

3.将donor节点信息加入到recipient的clone_valid_donor_list

mysql> SET GLOBAL clone_valid_donor_list = '192.168.137.1:3306';
Query OK, 0 rows affected (0.00 sec)

4.克隆数据

使用上面创建的用户('recipient_clone_user'@'%')登录到recipient

recipient_clone_user@localhost (none)>CLONE INSTANCE FROM 'donor_clone_user'@'192.168.137.1':3306 IDENTIFIED BY 'password';

数据克隆结束后，recipient 节点会自动重启。

在克隆过程中，如果观察数据目录下的文件，会发现有以下一些中间文件和目录生成：

drwxr-x--- 2 mysql mysql        127 Apr 24 11:10 #clone
-rw-r----- 1 mysql mysql    3620438 Apr 24 11:10 ib_buffer_pool.#clone
-rw-r----- 1 mysql mysql   12582912 Apr 24 11:10 ibdata1.#clone
-rw-r----- 1 mysql mysql          0 Apr 24 11:10 mysql.ibd.#clone
-rw-r----- 1 mysql mysql          0 Apr 24 11:10 undo_001.#clone
-rw-r----- 1 mysql mysql          0 Apr 24 11:10 undo_002.#clone

5.克隆监控

在克隆过程中，可以登录到 recipient 节点的数据库实例的，监控克隆操作的相关信息。

可用的表有performance_schema.clone_progress 和 performance_schema.clone_status。

查看克隆操作的状态：performance_schema.clone_status。可能处于的状态有：not started、in progress、completed、failed。

mysql> select * from performance_schema.clone_status\G
*************************** 1. row ***************************
             ID: 1
            PID: 0
          STATE: Completed
     BEGIN_TIME: 2025-04-23 16:45:26.380
       END_TIME: 2025-04-23 16:46:21.214
         SOURCE: 192.168.137.1:3306
    DESTINATION: LOCAL INSTANCE
       ERROR_NO: 0
  ERROR_MESSAGE:
    BINLOG_FILE: binlog.000029
BINLOG_POSITION: 156097213
  GTID_EXECUTED: e0867619-561a-11ef-ae68-005056b08cea:1-73840,
e2f7b725-b197-11ed-85a8-005056b034b6:1-12
1 row in set (0.00 sec)

mysql>

查看克隆操作的每个阶段：performance_schema.clone_progress

mysql> select stage,state,begin_time as start_time,end_time,data,network from performance_schema.clone_progress;
+-----------+-------------+----------------------------+----------------------------+-------------+-------------+
| stage     | state       | start_time                 | end_time                   | data        | network     |
+-----------+-------------+----------------------------+----------------------------+-------------+-------------+
| DROP DATA | Completed   | 2025-04-23 16:45:26.446034 | 2025-04-23 16:45:27.724301 |           0 |           0 |
| FILE COPY | In Progress | 2025-04-23 16:45:27.724422 | NULL                       | 17268522582 | 17269481184 |
| PAGE COPY | Not Started | NULL                       | NULL                       |           0 |           0 |
| REDO COPY | Not Started | NULL                       | NULL                       |           0 |           0 |
| FILE SYNC | Not Started | NULL                       | NULL                       |           0 |           0 |
| RESTART   | Not Started | NULL                       | NULL                       |           0 |           0 |
| RECOVERY  | Not Started | NULL                       | NULL                       |           0 |           0 |
+-----------+-------------+----------------------------+----------------------------+-------------+-------------+
7 rows in set (0.01 sec)

mysql> select stage,state,begin_time as start_time,end_time,data,network from performance_schema.clone_progress;
+-----------+-----------+----------------------------+----------------------------+-------------+-------------+
| stage     | state     | start_time                 | end_time                   | data        | network     |
+-----------+-----------+----------------------------+----------------------------+-------------+-------------+
| DROP DATA | Completed | 2025-04-23 16:45:26.446034 | 2025-04-23 16:45:27.724301 |           0 |           0 |
| FILE COPY | Completed | 2025-04-23 16:45:27.724422 | 2025-04-23 16:46:16.341543 | 28984901206 | 28986487040 |
| PAGE COPY | Completed | 2025-04-23 16:46:16.341742 | 2025-04-23 16:46:16.570970 |           0 |         393 |
| REDO COPY | Completed | 2025-04-23 16:46:16.571159 | 2025-04-23 16:46:16.798674 |        2560 |        3195 |
| FILE SYNC | Completed | 2025-04-23 16:46:16.798880 | 2025-04-23 16:46:17.203273 |           0 |           0 |
| RESTART   | Completed | 2025-04-23 16:46:17.203273 | 2025-04-23 16:46:20.496796 |           0 |           0 |
| RECOVERY  | Completed | 2025-04-23 16:46:20.496796 | 2025-04-23 16:46:21.214459 |           0 |           0 |
+-----------+-----------+----------------------------+----------------------------+-------------+-------------+
7 rows in set (0.01 sec)

除了从上面两个表查看监控信息，还可以借助instruments，开启instruments：

mysql> update performance_schema.setup_instruments set ENABLED='YES' where NAME LIKE 'stage/innodb/clone%';
Query OK, 0 rows affected (0.00 sec)
Rows matched: 3 Changed: 3 Warnings: 0

其它具体信息，可以参考官方文档，这里就不再多写了。

6.克隆插件的实现

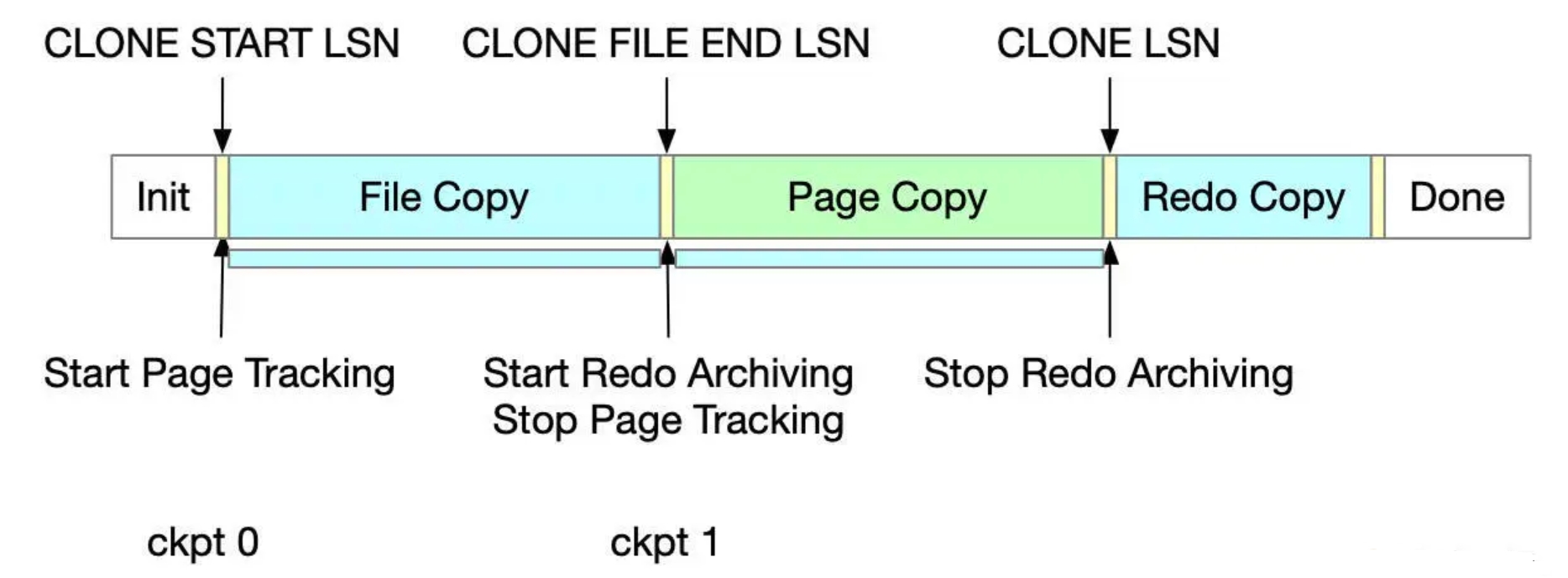

数据库克隆主要分为如下几个阶段：

(1)init：

克隆对象的初始化状态是由donor标识的

(2)file copy：

调用snapshot_copy接口的时候，状态从 init 变成 file copy; 在状态改变之前，从clone start lsn开始启动page tracking；在 file copy 阶段，会拷贝所有的数据文件发送到 recipient

(3)page copy：

所有文件被拷贝发送到recipient之后，状态变成page copy；状态切换成page copy之前，在CLONE FILE END LSN位置启动 Redo Archiving，并停止page tracking；在page copy阶段，位于clone start lsn和CLONE FILE END LSN之间被修改的页面，根据页的id，从buffer pool中被读取和发送到recipient；可以根据页的space id，page id做排序，从而避免从donor随机读取，在recipient端随机写

(4)redo copy：

所有被修改的页发送完成后，就从page copy状态变成redo copy状态；在clone lsn位置停止redo archiving；clone lsn是被克隆的数据库的lsn，在这个位置可以获取复制的位置；clone lsn是开启复制前，提交的最后一个事务；在redo copy阶段，发送归档的redo日志文件，lsn介于clone file end lsn到clone lsn之间

(5)done：

克隆对象保持在done状态，直到调用snapshot_end(),结束done状态

7.使用指定的数据目录

默认情况下，远程克隆操作会先删除用户创建的数据（模式、表、表空间）和接收者数据目录中的二进制日志，然后再克隆捐赠者 MySQL Server 实例中的数据。通过克隆到指定的数据目录，可以避免从当前接收者数据目录中删除数据。

克隆到指定的数据目录的过程与克隆远程数据中描述的过程相同，但有一个例外： CLONE INSTANCE 语句必须包含 DATA DIRECTORY 子句。例如：

mysql> CLONE INSTANCE FROM 'user'@'example.donor.host.com':3306
       IDENTIFIED BY 'password'
       DATA DIRECTORY = '/path/to/clone_dir';

这里需要指定绝对路径，且目录必须存在。

不过，这样的话，克隆结束后不会自动启动，需要手动将数据目录指定到新的目录，重启 mysql 实例。

8.使用克隆做从库

如果是想通过克隆创建从库，克隆结束后可以通过performance_schema.clone_status查看复制的起始位置：

root@localhost (none)>select * from performance_schema.clone_status\G
*************************** 1. row ***************************
             ID: 1
            PID: 0
          STATE: Completed
     BEGIN_TIME: 2025-04-23 16:45:26.380
       END_TIME: 2025-04-23 16:46:21.214
         SOURCE: 192.168.137.1:3306
    DESTINATION: LOCAL INSTANCE
       ERROR_NO: 0
  ERROR_MESSAGE:
    BINLOG_FILE: binlog.000029
BINLOG_POSITION: 156097213
  GTID_EXECUTED: e0867619-561a-11ef-ae68-005056b08cea:1-73840,
e2f7b725-b197-11ed-85a8-005056b034b6:1-12
1 row in set (0.00 sec)

root@localhost (none)>
