地铁路线规划

实现功能：main函数及相关函数

未实现：dijkstra算法相关内容



Github地址：https://github.com/liangshuwei777/sub

一、实现功能

1、查询地铁线路

2、查询最短地铁换乘路径

二、使用语言

　java

三、主要算法

　dijkstra算法

四、实现代码

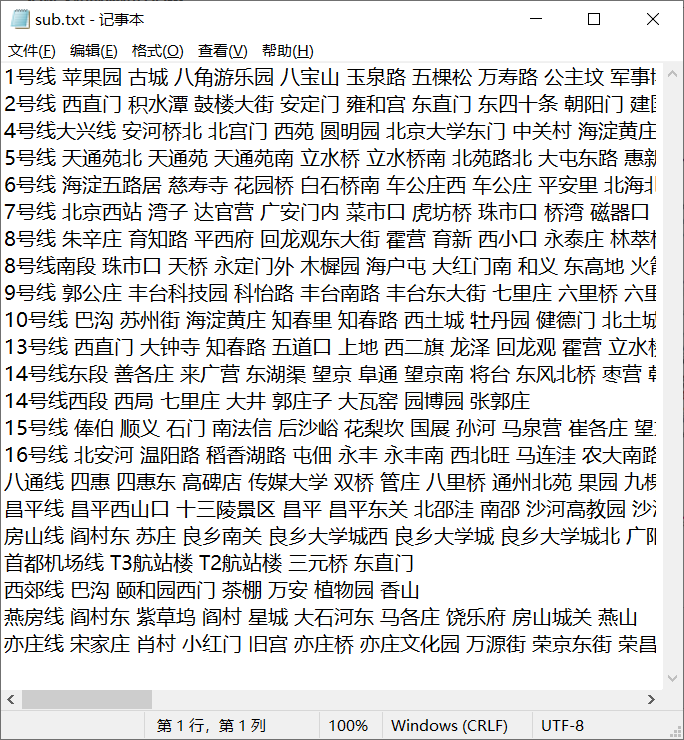

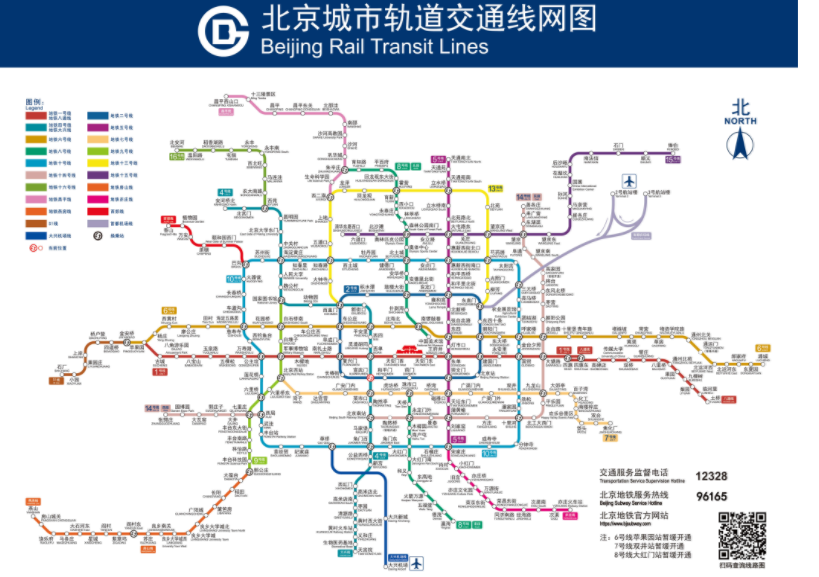

1、地图信息













2、将sub.txt的地图路线信息导入

public static void read(){

        DistanceBuilder.FILE_PATH=System.getProperty("user.dir") + File.separator + "\\" +"sub.txt";

        DistanceBuilder.readSubway();

 }

public static void readSubway() {

        File file = new File(FILE_PATH);

        BufferedReader reader = null;



        try {

            InputStreamReader inputStreamReader = new InputStreamReader(new FileInputStream(file),"UTF-8");



            reader = new BufferedReader(inputStreamReader);

            String line = null;

            String lineName = "1"; //默认起始为1号线

            distanceMap.put("1",new HashMap<>());

            while ((line = reader.readLine()) != null) {

                if(line.trim().length()==1||line.trim().length()==3||line.trim().length()==2){

                    if(line.trim().length()==3||line.trim().length()==2){

                        continue;

                    }

                    lineName = line;

                    if(!distanceMap.keySet().contains(line)){

                        distanceMap.put(line.trim(),new HashMap<>());

                    }

                }else{

                    if(line.trim().startsWith("*")){

                        String[] lineInfo = line.substring(1).split("-");

                        lineSet.add(getLine(lineInfo[1].trim(),lineInfo[0].trim()));

                    }

　　　　　　　　　　　　　　　　　　　　else{

                        String texts[] = line.split("\t");

                        String key = texts[0].trim();

                        Double value = Double.valueOf(texts[1]);

                        distanceMap.get(lineName).put(key,value);

                        String other = key.split(":")[1].trim()+":"+key.split(":")[0].trim();

                        distanceMap.get(lineName).put(other,value);

                    }

                }

            }



        } catch (UnsupportedEncodingException e) {

            e.printStackTrace();

        } catch (FileNotFoundException e) {

            e.printStackTrace();

        }catch (IOException e) {

            e.printStackTrace();

        } finally {

        }





  }



3、dijkstra算法

public class DijkstraUtil {

    private static HashMap<Station, Result> resultMap = new HashMap<>();

    private static List<Station> analysisList = new ArrayList<>();



    public static Result calculate(Station star, Station end) {   //dijkstra算法

        if (!analysisList.contains(star)) {

            analysisList.add(star);

        }

        if (star.equals(end)) {

            Result result = new Result();

            result.setDistance(0.0D);

            result.setEnd(star);

            result.setStar(star);

            return resultMap.put(star, result);



        }

        if (resultMap.isEmpty()) {

            List<Station> linkStations = getLinkStations(star);   //第一次调用获取起始点的相邻站点

            for (Station station : linkStations) {   //把相邻站点集合中的所有站点，加入resultMap中

                Result result = new Result();

                result.setStar(star);

                result.setEnd(station);

                String key = star.getName() + ":" + station.getName();

                Double distance = DistanceBuilder.getDistance(key);

                result.setDistance(distance);

                result.getPassStations().add(station);

                resultMap.put(station, result);

            }

        }

        Station parent = getNextStation();

        if (parent == null) {

            Result result = new Result();

            result.setDistance(0.0D);

            result.setStar(star);

            result.setEnd(end);

            return resultMap.put(end, result);

        }

        if (parent.equals(end)) {

            return resultMap.get(parent);

        }

        List<Station> childLinkStations = getLinkStations(parent);

        for (Station child : childLinkStations) {

            if (analysisList.contains(child)) {

                continue;

            }

            String key = parent.getName() + ":" + child.getName();

            Double distance;

            distance = DistanceBuilder.getDistance(key);

            DistanceBuilder.getDistance(key);

            if (parent.getName().equals(child.getName())) {

                distance = 0.0D;

            }

            Double parentDistance = resultMap.get(parent).getDistance();

            distance = doubleAdd(distance, parentDistance);

            List<Station> parentPassStations = resultMap.get(parent).getPassStations();

            Result childResult = resultMap.get(child);

            if (childResult != null) {

                if (childResult.getDistance() > distance) {

                    childResult.setDistance(distance);

                    childResult.getPassStations().clear();

                    childResult.getPassStations().addAll(parentPassStations);//路线更新

                    childResult.getPassStations().add(child);

                }

            } else {

                childResult = new Result();

                childResult.setDistance(distance);

                childResult.setStar(star);

                childResult.setEnd(child);

                childResult.getPassStations().addAll(parentPassStations);

                childResult.getPassStations().add(child);

            }

            resultMap.put(child, childResult);

        }

        analysisList.add(parent);

        calculate(star, end);

        return resultMap.get(end);



    }

private static List<Station> getLinkStations(Station station) {  // 获取所有相邻节点.

        List<Station> linkedStaions = new ArrayList<Station>();

        for (List<Station> line : DistanceBuilder.lineSet) {    //遍历所有地铁线

            for (int i = 0; i < line.size(); i++) {

                if (station.equals(line.get(i))) {

                    if (i == 0) {

                        linkedStaions.add(line.get(i + 1));//地铁站为换乘线的初始站，则继续+1遍历

                    } else if (i == (line.size() - 1)) {

                        linkedStaions.add(line.get(i - 1));//地铁站为换乘线的终点站，则继续-1遍历

                    } else {

                        linkedStaions.add(line.get(i + 1));

                        linkedStaions.add(line.get(i - 1));

                    }

                }

            }

        }

        return linkedStaions;

    }



3、主函数与站点、结果存储见github



4、输出路线所有站点、最佳路径

public static void writeLineData(String lineName){

        createlineData();

        lineName = lineName.substring(0,3);

        List<Station> lineInfo = lineData.get(lineName);

        //System.out.println(lineData.get(lineName));

        String lineStr = lineInfo.stream().map(x->x.getName()).collect(Collectors.joining(",","[","]"));

        System.out.print(lineStr);

    }

public static void getPassStation(Result result){

        //System.out.print(result.getStar());

        String starLine = getLineNameByStation(result.getStar());

        String converLine = starLine;

        System.out.println("起始地铁线："+starLine);

        for (Station station : result.getPassStations()) {

            if(!converLine.equals(station.getLine())){

                System.out.print("换乘地铁线："+station.getLine()+"  ");

                converLine = station.getLine();

                converLine = station.getLine();

            }

            System.out.print(station.getName() + " > ");

        }

}

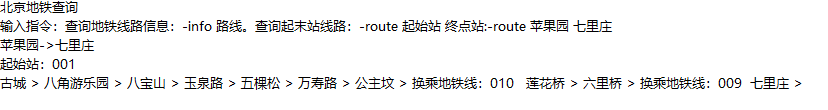

运行结果
