一、选题的背景
“什么值得买”是集导购、媒体、工具、社区属性于一体的消费内容社区，以高质量的消费类内容向用户介绍高性价比、好口碑的商品及服务，为用户提供高效、精准、中立、专业的消费决策支持。本次课题通过什么值得买家电类进行爬虫分析。
二、主题式网络爬虫设计方案
2.1主题式网络爬虫主题名称
值得买家电类爬虫系统
2.2主题式网络爬取内容与数据分析特征
爬取内容：家电名称、价格、出自哪平台、家电简介
数据特征分析：网页文本
2.3主题式网络爬虫设计方案概述（包括实现思路与技术难点）
实现思路：
查看网页爬取内容的位置，利用request库进行get请求，获取页面数据；
取出数据，遍历数据；数据存储，使用open()＋for循环进行批量保存。
技术难点：
数据异常处理，由于对基础知识不熟练；网页内容读取，要用xtree第三方库用法；整体系统设计需要思考。
三、主题页面的结构特征分析
3.1爬虫设计

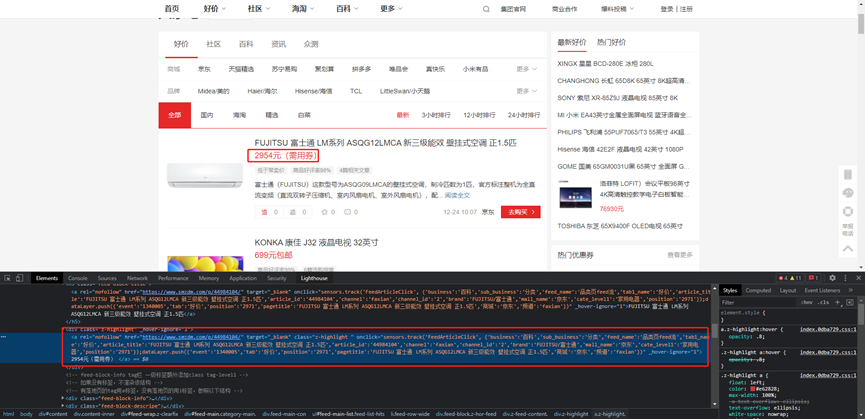

3.1.1主题页面结构特征

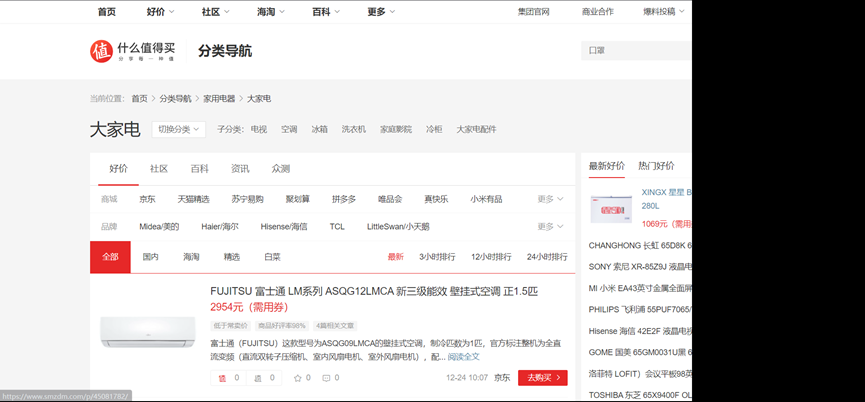

目标网址：https://www.smzdm.com/
3.1.2Html页面解析
url = 'https://www.smzdm.com/fenlei/dajiadian/p'+str(page)+'/#feed-main'
商品名称：
价格：
简介：
平台：

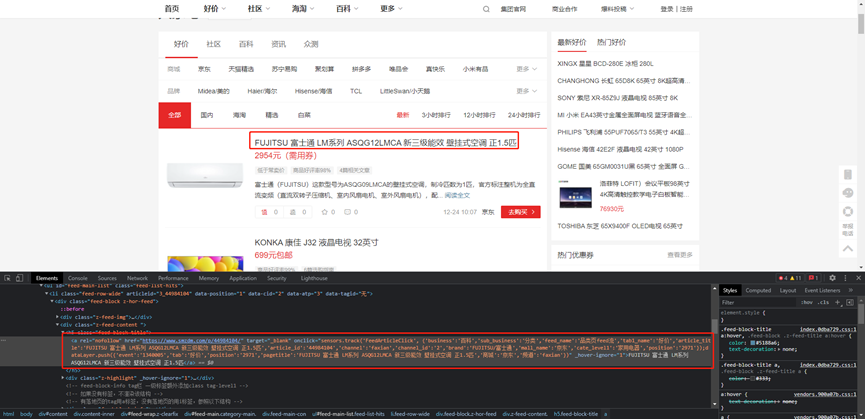

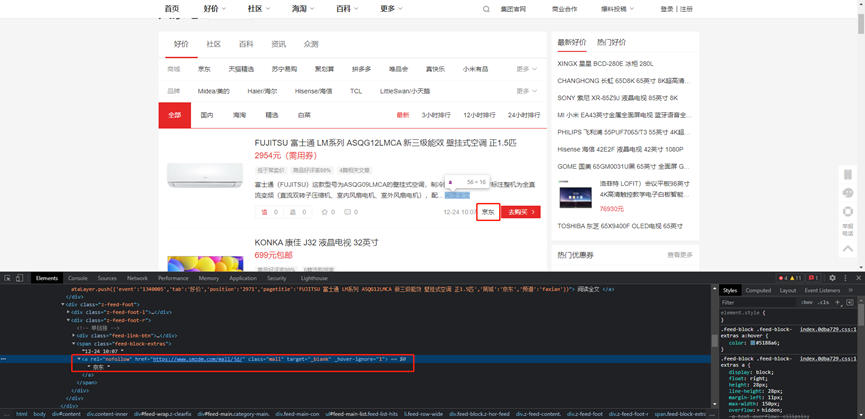

3.1.3节点查找

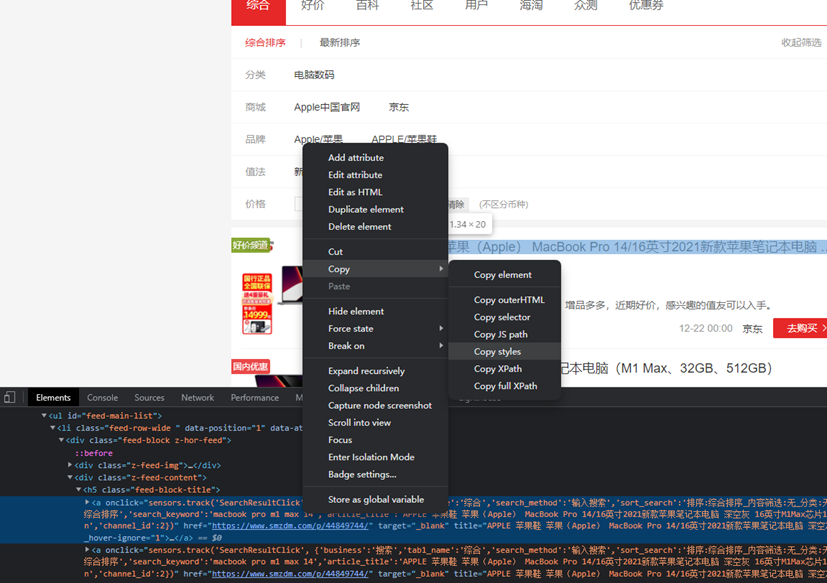

通过审查元素，定位元素目标复制xpath。
遍历方法:通过for循环把xpath定位的内容取出来。
四、网络爬虫程序设计
4.1数据爬取与采集
代码分析:
1 import requests 2 from bs4 import BeautifulSoup 3 import time 4 import random 5 import sys 6 import re 7 from tqdm import tqdm 8 from lxml import etree 9 10 11 # 随机头 12 USER_AGENTS = [ 13 "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; AcooBrowser; .NET CLR 1.1.4322; .NET CLR 2.0.50727)", 14 "Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.0; Acoo Browser; SLCC1; .NET CLR 2.0.50727; Media Center PC 5.0; .NET CLR 3.0.04506)", 15 "Mozilla/4.0 (compatible; MSIE 7.0; AOL 9.5; AOLBuild 4337.35; Windows NT 5.1; .NET CLR 1.1.4322; .NET CLR 2.0.50727)", 16 "Mozilla/5.0 (Windows; U; MSIE 9.0; Windows NT 9.0; en-US)", 17 "Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Win64; x64; Trident/5.0; .NET CLR 3.5.30729; .NET CLR 3.0.30729; .NET CLR 2.0.50727; Media Center PC 6.0)", 18 "Mozilla/5.0 (compatible; MSIE 8.0; Windows NT 6.0; Trident/4.0; WOW64; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; .NET CLR 1.0.3705; .NET CLR 1.1.4322)", 19 "Mozilla/4.0 (compatible; MSIE 7.0b; Windows NT 5.2; .NET CLR 1.1.4322; .NET CLR 2.0.50727; InfoPath.2; .NET CLR 3.0.04506.30)", 20 "Mozilla/5.0 (Windows; U; Windows NT 5.1; zh-CN) AppleWebKit/523.15 (KHTML, like Gecko, Safari/419.3) Arora/0.3 (Change: 287 c9dfb30)", 21 "Mozilla/5.0 (X11; U; Linux; en-US) AppleWebKit/527+ (KHTML, like Gecko, Safari/419.3) Arora/0.6", 22 "Mozilla/5.0 (Windows; U; Windows NT 5.1; en-US; rv:1.8.1.2pre) Gecko/20070215 K-Ninja/2.1.1", 23 "Mozilla/5.0 (Windows; U; Windows NT 5.1; zh-CN; rv:1.9) Gecko/20080705 Firefox/3.0 Kapiko/3.0", 24 "Mozilla/5.0 (X11; Linux i686; U;) Gecko/20070322 Kazehakase/0.4.5", 25 "Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.9.0.8) Gecko Fedora/1.9.0.8-1.fc10 Kazehakase/0.5.6", 26 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/535.11 (KHTML, like Gecko) Chrome/17.0.963.56 Safari/535.11", 27 "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_3) AppleWebKit/535.20 (KHTML, like Gecko) Chrome/19.0.1036.7 Safari/535.20", 28 "Opera/9.80 (Macintosh; Intel Mac OS X 10.6.8; U; fr) Presto/2.9.168 Version/11.52", 29 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.11 (KHTML, like Gecko) Chrome/20.0.1132.11 TaoBrowser/2.0 Safari/536.11", 30 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.1 (KHTML, like Gecko) Chrome/21.0.1180.71 Safari/537.1 LBBROWSER", 31 "Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; WOW64; Trident/5.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; .NET4.0C; .NET4.0E; LBBROWSER)", 32 "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; QQDownload 732; .NET4.0C; .NET4.0E; LBBROWSER)", 33 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/535.11 (KHTML, like Gecko) Chrome/17.0.963.84 Safari/535.11 LBBROWSER", 34 ] 35 headers = { 36 'User-Agent':random.choice(USER_AGENTS), 37 'Connection':'keep-alive', 38 'cookie':'__ckguid=6Le4K3rwaxuugb5yVhv92q; __jsluid_s=fd7f40803fa69a378c424c4e06af60a7; device_id=19645643031640395328534362a4734d47f9281a0183984955fef55b1d; Hm_lvt_9b7ac3d38f30fe89ff0b8a0546904e58=1640395329,1640483005; Hm_lpvt_9b7ac3d38f30fe89ff0b8a0546904e58=1640483005;', 39 'Accept-Language':'zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2' 40 } 41 42 # 创建Jiadian.csv 43 file = open("Jiadian.csv", "a",encoding='utf-8') 44 file.write("name" + "," + "price" + "," + "info" + "," + "platform" + '\n') 45 file = file.close() 46 47 def Jiadian(page): 48 page = int(page) 49 for i in range(0,page): 50 # 请求访问 51 url = 'https://www.smzdm.com/fenlei/dajiadian/p'+str(page)+'/#feed-main' 52 res = requests.get(url,headers=headers,timeout=3) 53 res.encoding = 'utf-8' 54 html = etree.HTML(res.text) 55 print(html) 56 coun = 1 57 try: 58 # 家电名称name、价格price、商品简介info、出售平台platform 59 for i in range(1,30): 60 name = html.xpath("//*[@id='feed-main-list']/li[{}]/div/div[2]/h5/a/text()".format(coun)) 61 for i in name: 62 name = i 63 64 price = html.xpath("//*[@id='feed-main-list']/li[{}]/div/div[2]/div[1]/a/text()".format(coun)) 65 for i in price: 66 price = i.strip() 67 price = price.strip('（需用券）') 68 price = price.strip('元包邮 （需用券)') 69 price = price.strip('元包邮（双重优惠') 70 price = price.strip('元包邮（拍下立减') 71 price = price.strip('元') 72 price = price.strip('元（包邮、') 73 info = html.xpath('//*[@id="feed-main-list"]/li[{}]/div/div[2]/div[3]/text()'.format(coun)) 74 for i in info: 75 info = i.strip() 76 77 platform = html.xpath('//*[@id="feed-main-list"]/li[{}]/div/div[2]/div[4]/div[2]/span/a/text()'.format(coun)) 78 for i in platform: 79 platform = i.strip() 80 # print(type(name), type(price), type(info), type(platform)) 81 # 将数据保存至Jiadian.csv文件 82 with open("Jiadian.csv","a",encoding='utf-8') as f2: 83 f2.writelines(name + "," + price + "," + platform + "," + info + "," + '\n') 84 print(name,'\n','价格：',price,'元','\n','简介：',info,'\n','购买平台：',platform,'\n') 85 coun += 1 86 except: 87 pass 88 # 防止IP被ban 89 time.sleep(3) 90 91 if __name__ == '__main__': 92 page = input("输入要爬取的页数：") 93 Jiadian(page)

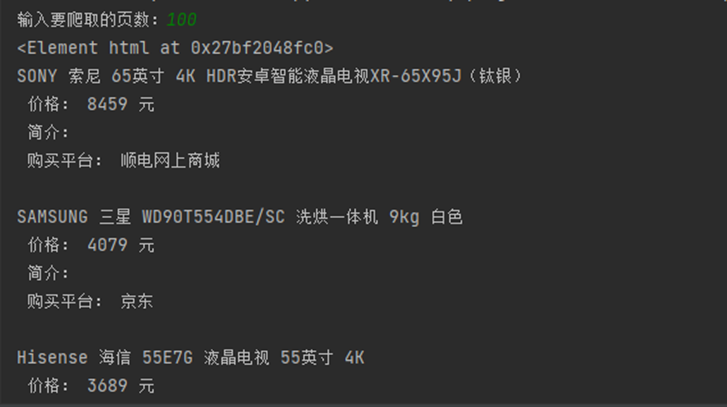

爬虫系统运行演示:
4.2数据分析

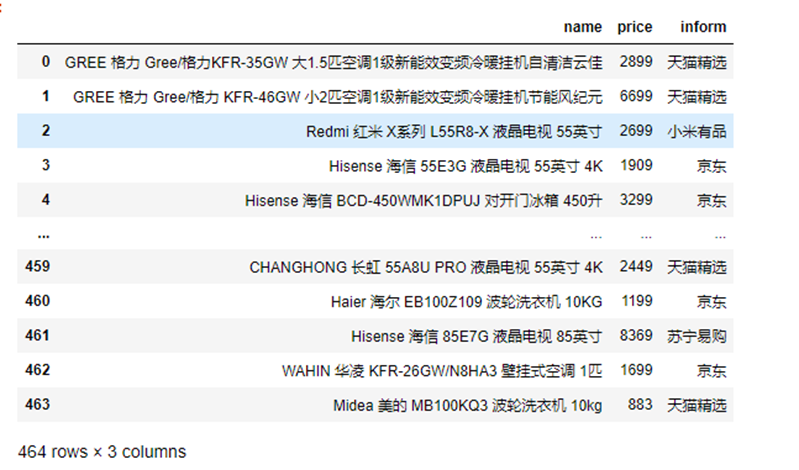

导入数据：
1 import pandas as pd 2 import numpy as np 3 import matplotlib.pyplot as plt 4 Jiadian = pd.read_excel('Jiadian.xlsx')

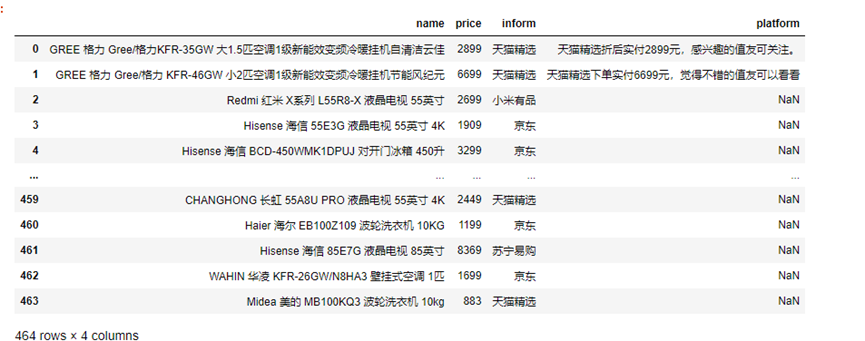

数据清洗处理:
1 # 重复值处理 2 Jiadian = Jiadian.drop_duplicates('name') 3 # Nan处理 4 Jiadian = Jiadian.dropna(axis = 0) 5 #空白值处理 6 Jiadian = Jiadian.dropna() 7 删除无效行 8 Jiadian = Jiadian.drop(['platform'], axis = 1) 9 Jiadian

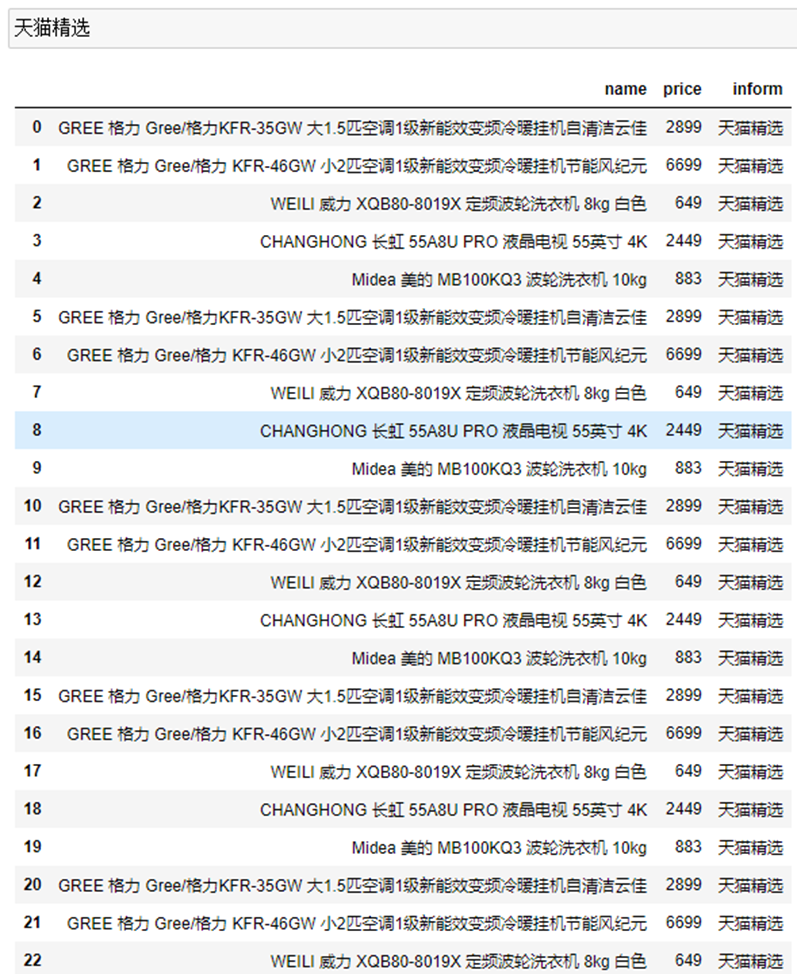

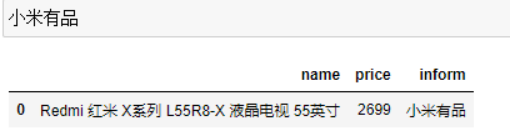

商品进行类:
1 # 进行分类 2 京东 = pd.DataFrame(columns=['name','price', 'inform']) 3 小米有品 = pd.DataFrame(columns=['name','price', 'inform']) 4 天猫精选 = pd.DataFrame(columns=['name','price', 'inform']) 5 顺电网上商城 = pd.DataFrame(columns=['name','price', 'inform']) 6 苏宁易购 = pd.DataFrame(columns=['name','price', 'inform']) 7 for i in Jiadian['inform']: 8 if "京东" in i: 9 a = Jiadian[(Jiadian.inform==i)].index.tolist() 10 京东=京东.append(Jiadian.loc[a,:],ignore_index=True) 11 elif "小米有品" in i: 12 n = Jiadian[(Jiadian.inform==i)].index.tolist() 13 小米有品=小米有品.append(Jiadian.loc[n,:],ignore_index=True) 14 elif "天猫精选" in i: 15 n = Jiadian[(Jiadian.inform==i)].index.tolist() 16 天猫精选=天猫精选.append(Jiadian.loc[n,:],ignore_index=True) 17 elif "顺电网上商城" in i: 18 n = Jiadian[(Jiadian.inform==i)].index.tolist() 19 顺电网上商城=顺电网上商城.append(Jiadian.loc[n,:],ignore_index=True) 20 elif "苏宁易购" in i: 21 n = Jiadian[(Jiadian.inform==i)].index.tolist() 22 苏宁易购=苏宁易购.append(Jiadian.loc[n,:],ignore_index=True)
4.3数据分析可视化
折线图：
1 # 价格进行降序排列分析 2 x = 京东['name'] 3 y = 京东['price'] 4 fig = plt.figure(figsize=(10, 4), dpi=80) 5 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 6 plt.rcParams['axes.unicode_minus']=False 7 plt.xticks(rotation=90) 8 plt.plot(x,y,'s-',color = 'plum',label="价格")#s-:方形 9 plt.legend(loc = "best")#图例 10 plt.title("京东家电价格趋势图",fontsize=18) 11 plt.xticks(fontsize=12) 12 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 13 plt.show()
1 # 价格进行降序排列分析 2 x = Jiadian['name'] 3 y = Jiadian['price'] 4 fig = plt.figure(figsize=(10, 4), dpi=80) 5 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 6 plt.rcParams['axes.unicode_minus']=False 7 plt.xticks(rotation=90) 8 plt.plot(x,y,'s-',color = 'plum',label="价格")#s-:方形 9 plt.legend(loc = "best")#图例 10 plt.title("值得买家电价格趋势图",fontsize=18) 11 plt.xticks(fontsize=12) 12 plt.ylabel("价格/元",fontsize=12)#纵坐标名字
柱状图：
1 x = 天猫精选['name'] 2 y = 天猫精选['price'] 3 fig = plt.figure(figsize=(10, 8), dpi=80) 4 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 5 plt.rcParams['axes.unicode_minus']=False 6 plt.xticks(rotation=90) 7 plt.bar(x,y,alpha=0.2, width=0.6, color='b', lw=3) 8 plt.legend(loc = "best")#图例 9 plt.title("天猫精选家电价格柱状图",fontsize=18) 10 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 11 plt.show()
1 x = 京东['name'] 2 y = 京东['price'] 3 fig = plt.figure(figsize=(10, 8), dpi=80) 4 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 5 plt.rcParams['axes.unicode_minus']=False 6 plt.xticks(rotation=90) 7 plt.bar(x,y,alpha=0.2, width=0.6, color='b', lw=3) 8 plt.legend(loc = "best")#图例 9 plt.title("京东家电价格柱状图",fontsize=18) 10 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 11 plt.show()
水平图：
1 # 水平图 2 x = 天猫精选['name'] 3 y = 天猫精选['price'] 4 fig = plt.figure(figsize=(16, 8), dpi=80) 5 plt.barh(x,y, alpha=0.2, height=0.6, color='coral') 6 plt.title("天猫精选家电价格水平图",fontsize=18) 7 plt.legend(loc = "best")#图例 8 plt.xticks(rotation=90) 9 plt.xlabel("价格",fontsize=12)#横坐标名字
1 # 水平图 2 x = 京东['name'] 3 y = 京东['price'] 4 fig = plt.figure(figsize=(16, 8), dpi=80) 5 plt.barh(x,y, alpha=0.2, height=0.6, color='coral') 6 plt.title("京东家电价格水平图",fontsize=18) 7 plt.legend(loc = "best")#图例 8 plt.xticks(rotation=90) 9 plt.xlabel("价格",fontsize=12)#横坐标名字
散点图：
1 # 散点图 2 x = 天猫精选['name'] 3 y = 天猫精选['price'] 4 fig = plt.figure(figsize=(10, 6), dpi=80) 5 ax = plt.subplot(1, 1, 1) 6 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 7 plt.scatter(x,y,color='c',marker='o',s=60,alpha=1) 8 plt.xticks(rotation=90) 9 plt.xticks([]) 10 plt.ylabel("价格",fontsize=12)#横坐标名字 11 plt.title("天猫精选家电价格散点图",fontsize=16)
1 # 散点图 2 x = Jiadian['name'] 3 y = Jiadian['price'] 4 fig = plt.figure(figsize=(10, 6), dpi=80) 5 ax = plt.subplot(1, 1, 1) 6 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 7 plt.scatter(x,y,color='c',marker='o',s=60,alpha=1) 8 plt.xticks(rotation=90) 9 plt.xticks([]) 10 plt.ylabel("价格",fontsize=12)#横坐标名字 11 plt.title("值得买家电价格散点图",fontsize=16)
盒图：
1 # 盒图 2 y = 天猫精选['price'] 3 plt.boxplot(y) 4 plt.title("天猫精选家电价格盒图",fontsize=16) 5 plt.show()
1 # 盒图 2 y = 京东['price'] 3 plt.boxplot(y) 4 plt.title("京东家电价格盒图",fontsize=16) 5 plt.show()
1 # 盒图 2 y = Jiadian['price'] 3 plt.boxplot(y) 4 plt.title("值得买家电价格盒图",fontsize=16) 5 plt.show()
饼图：
1 y = Jiadian['inform'].value_counts() 2 y = np.array([19, 5, 2, 2, 1]) 3 4 plt.pie(y, 5 labels=['京东','天猫精选','顺电','苏宁','小米精选'], # 设置饼图标签 6 colors=["#d5695d", "#5d8ca8", "#65a479", "#a564c9","#FFE4C4"], # 设置饼图颜色 7 ) 8 plt.title("总家电占比",fontsize='14') # 设置标题 9 plt.show()
线性回归：
1 import seaborn as sns 2 import matplotlib.pyplot as plt 3 import numpy as mp 4 from scipy.optimize import leastsq 5 plt.rcParams['font.sans-serif'] = ['SimHei']#解决乱码问题 6 #定义变量 7 gsgm=qcwy.loc[:,'Updatetime'] 8 zprs=qcwy.loc[:,'price'] 9 #函数表达式 10 def func(params,x): 11 a,b,c=params 12 return a*x*x+b*x+c 13 def error_func(params,x,y): 14 return func(params,x)-y 15 P0=[1,9.0] 16 def main(): 17 plt.figure(figsize=(8,6)) 18 P0=[1,9.0,1] 19 Para=leastsq(error_func,P0,args=(gsgm,zprs)) 20 a,b,c=Para[0] 21 print("a=",a, "b=",b, "c=",c) 22 #绘图 23 plt.scatter(gsgm,zprs,color="green",label="样本数据",linewidth=2) 24 x=mp.linspace(13,1,2) 25 y=a*x*x+b*x+c 26 #右上角标 27 plt.plot(x,y,color="red",label="拟合曲线",linewidth=2) 28 #x，y轴名称 29 plt.xlabel('Updatetime') 30 plt.ylabel('price') 31 #标题 32 plt.title("price与Updatetime回归方程") 33 plt.grid() 34 plt.legend() 35 plt.show() 36 main()

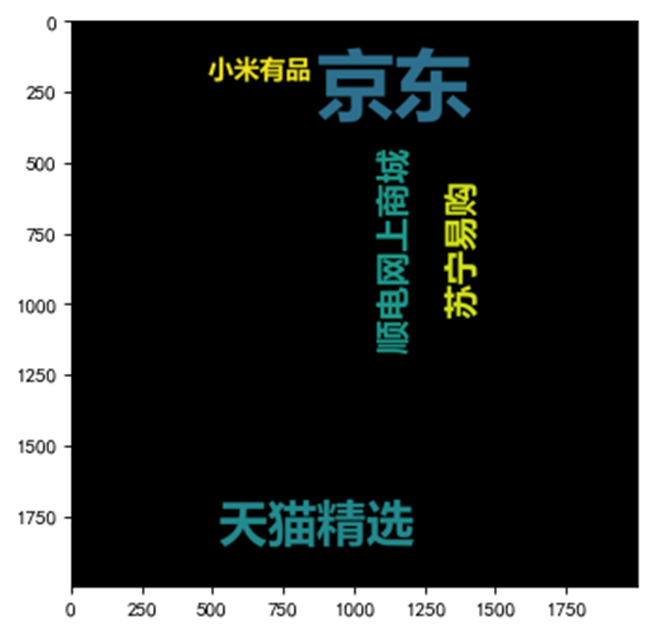

4.4文本分析

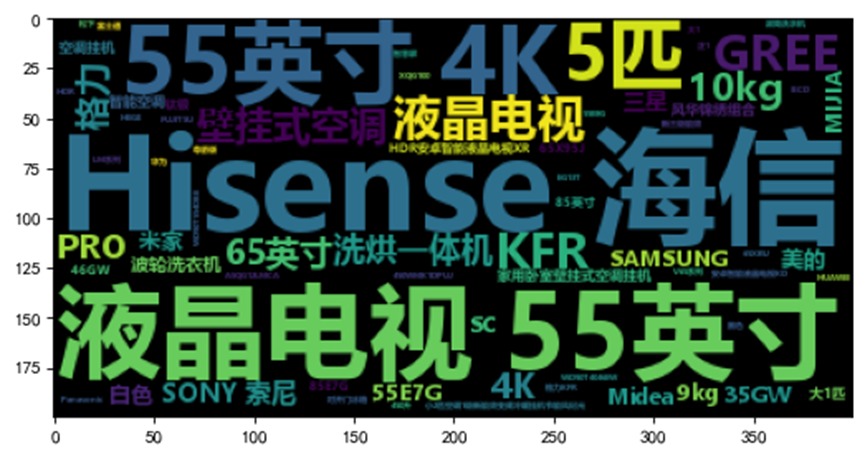

1 词云： 2 # 词云 3 import random 4 import wordcloud as wc 5 import matplotlib.pyplot as plt 6 7 # 定义图片尺寸 8 word_cloud = wc.WordCloud( 9 background_color='black', 10 font_path='msyhbd.ttc', 11 max_font_size=300, 12 random_state=50, 13 ) 14 text = Jiadian['name'] 15 text = " ".join(text) 16 # 绘制词云 17 fig = plt.figure(figsize=(8, 4), dpi=80) 18 ax = plt.subplot(1, 1, 1) 19 word_cloud.generate(text) 20 plt.imshow(word_cloud) 21 plt.show()
1 # 词云 2 import random 3 import wordcloud as wc 4 import matplotlib.pyplot as plt 5 from PIL import Image 6 7 # 背景图片 8 bk = np.array(Image.open("Jiadian.jpg")) 9 mask = bk 10 # 定义图片尺寸 11 word_cloud = wc.WordCloud( 12 mask = mask, 13 background_color='black', 14 font_path='msyhbd.ttc', 15 max_font_size=300, 16 random_state=50, 17 ) 18 text = Jiadian['inform'] 19 text = " ".join(text) 20 # 绘制词云 21 fig = plt.figure(figsize=(10, 5), dpi=80) 22 ax = plt.subplot(1, 1, 1) 23 word_cloud.generate(text) 24 plt.imshow(word_cloud) 25 plt.show()
4.5代码汇总
1 import requests 2 from bs4 import BeautifulSoup 3 import time 4 import random 5 import sys 6 import re 7 from tqdm import tqdm 8 from lxml import etree 9 10 11 # 随机头 12 USER_AGENTS = [ 13 "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; AcooBrowser; .NET CLR 1.1.4322; .NET CLR 2.0.50727)", 14 "Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.0; Acoo Browser; SLCC1; .NET CLR 2.0.50727; Media Center PC 5.0; .NET CLR 3.0.04506)", 15 "Mozilla/4.0 (compatible; MSIE 7.0; AOL 9.5; AOLBuild 4337.35; Windows NT 5.1; .NET CLR 1.1.4322; .NET CLR 2.0.50727)", 16 "Mozilla/5.0 (Windows; U; MSIE 9.0; Windows NT 9.0; en-US)", 17 "Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Win64; x64; Trident/5.0; .NET CLR 3.5.30729; .NET CLR 3.0.30729; .NET CLR 2.0.50727; Media Center PC 6.0)", 18 "Mozilla/5.0 (compatible; MSIE 8.0; Windows NT 6.0; Trident/4.0; WOW64; Trident/4.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; .NET CLR 1.0.3705; .NET CLR 1.1.4322)", 19 "Mozilla/4.0 (compatible; MSIE 7.0b; Windows NT 5.2; .NET CLR 1.1.4322; .NET CLR 2.0.50727; InfoPath.2; .NET CLR 3.0.04506.30)", 20 "Mozilla/5.0 (Windows; U; Windows NT 5.1; zh-CN) AppleWebKit/523.15 (KHTML, like Gecko, Safari/419.3) Arora/0.3 (Change: 287 c9dfb30)", 21 "Mozilla/5.0 (X11; U; Linux; en-US) AppleWebKit/527+ (KHTML, like Gecko, Safari/419.3) Arora/0.6", 22 "Mozilla/5.0 (Windows; U; Windows NT 5.1; en-US; rv:1.8.1.2pre) Gecko/20070215 K-Ninja/2.1.1", 23 "Mozilla/5.0 (Windows; U; Windows NT 5.1; zh-CN; rv:1.9) Gecko/20080705 Firefox/3.0 Kapiko/3.0", 24 "Mozilla/5.0 (X11; Linux i686; U;) Gecko/20070322 Kazehakase/0.4.5", 25 "Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.9.0.8) Gecko Fedora/1.9.0.8-1.fc10 Kazehakase/0.5.6", 26 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/535.11 (KHTML, like Gecko) Chrome/17.0.963.56 Safari/535.11", 27 "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_7_3) AppleWebKit/535.20 (KHTML, like Gecko) Chrome/19.0.1036.7 Safari/535.20", 28 "Opera/9.80 (Macintosh; Intel Mac OS X 10.6.8; U; fr) Presto/2.9.168 Version/11.52", 29 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/536.11 (KHTML, like Gecko) Chrome/20.0.1132.11 TaoBrowser/2.0 Safari/536.11", 30 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/537.1 (KHTML, like Gecko) Chrome/21.0.1180.71 Safari/537.1 LBBROWSER", 31 "Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; WOW64; Trident/5.0; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0; .NET4.0C; .NET4.0E; LBBROWSER)", 32 "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; QQDownload 732; .NET4.0C; .NET4.0E; LBBROWSER)", 33 "Mozilla/5.0 (Windows NT 6.1; WOW64) AppleWebKit/535.11 (KHTML, like Gecko) Chrome/17.0.963.84 Safari/535.11 LBBROWSER", 34 ] 35 headers = { 36 'User-Agent':random.choice(USER_AGENTS), 37 'Connection':'keep-alive', 38 'cookie':'__ckguid=6Le4K3rwaxuugb5yVhv92q; __jsluid_s=fd7f40803fa69a378c424c4e06af60a7; device_id=19645643031640395328534362a4734d47f9281a0183984955fef55b1d; Hm_lvt_9b7ac3d38f30fe89ff0b8a0546904e58=1640395329,1640483005; Hm_lpvt_9b7ac3d38f30fe89ff0b8a0546904e58=1640483005;', 39 'Accept-Language':'zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2' 40 } 41 42 # 创建Jiadian.csv 43 file = open("Jiadian.csv", "a",encoding='utf-8') 44 file.write("name" + "," + "price" + "," + "info" + "," + "platform" + '\n') 45 file = file.close() 46 47 def Jiadian(page): 48 page = int(page) 49 for i in range(0,page): 50 # 请求访问 51 url = 'https://www.smzdm.com/fenlei/dajiadian/p'+str(page)+'/#feed-main' 52 res = requests.get(url,headers=headers,timeout=3) 53 res.encoding = 'utf-8' 54 html = etree.HTML(res.text) 55 print(html) 56 coun = 1 57 try: 58 # 家电名称name、价格price、商品简介info、出售平台platform 59 for i in range(1,30): 60 name = html.xpath("//*[@id='feed-main-list']/li[{}]/div/div[2]/h5/a/text()".format(coun)) 61 for i in name: 62 name = i 63 64 price = html.xpath("//*[@id='feed-main-list']/li[{}]/div/div[2]/div[1]/a/text()".format(coun)) 65 for i in price: 66 price = i.strip() 67 price = price.strip('（需用券）') 68 price = price.strip('元包邮 （需用券)') 69 price = price.strip('元包邮（双重优惠') 70 price = price.strip('元包邮（拍下立减') 71 price = price.strip('元') 72 price = price.strip('元（包邮、') 73 info = html.xpath('//*[@id="feed-main-list"]/li[{}]/div/div[2]/div[3]/text()'.format(coun)) 74 for i in info: 75 info = i.strip() 76 77 platform = html.xpath('//*[@id="feed-main-list"]/li[{}]/div/div[2]/div[4]/div[2]/span/a/text()'.format(coun)) 78 for i in platform: 79 platform = i.strip() 80 # print(type(name), type(price), type(info), type(platform)) 81 # 将数据保存至Jiadian.csv文件 82 with open("Jiadian.csv","a",encoding='utf-8') as f2: 83 f2.writelines(name + "," + price + "," + platform + "," + info + "," + '\n') 84 print(name,'\n','价格：',price,'元','\n','简介：',info,'\n','购买平台：',platform,'\n') 85 coun += 1 86 except: 87 pass 88 # 防止IP被ban 89 time.sleep(3) 90 91 if __name__ == '__main__': 92 page = input("输入要爬取的页数：") 93 Jiadian(page) 94 #数据分析 95 import pandas as pd 96 import numpy as np 97 import matplotlib.pyplot as plt 98 Jiadian = pd.read_excel('Jiadian.xlsx') 99 # 重复值处理 100 Jiadian = Jiadian.drop_duplicates('name') 101 # Nan处理 102 Jiadian = Jiadian.dropna(axis = 0) 103 #空白值处理 104 Jiadian = Jiadian.dropna() 105 删除无效行 106 Jiadian = Jiadian.drop(['platform'], axis = 1) 107 Jiadian 108 109 # 进行分类 110 京东 = pd.DataFrame(columns=['name','price', 'inform']) 111 小米有品 = pd.DataFrame(columns=['name','price', 'inform']) 112 天猫精选 = pd.DataFrame(columns=['name','price', 'inform']) 113 顺电网上商城 = pd.DataFrame(columns=['name','price', 'inform']) 114 苏宁易购 = pd.DataFrame(columns=['name','price', 'inform']) 115 for i in Jiadian['inform']: 116 if "京东" in i: 117 a = Jiadian[(Jiadian.inform==i)].index.tolist() 118 京东=京东.append(Jiadian.loc[a,:],ignore_index=True) 119 elif "小米有品" in i: 120 n = Jiadian[(Jiadian.inform==i)].index.tolist() 121 小米有品=小米有品.append(Jiadian.loc[n,:],ignore_index=True) 122 elif "天猫精选" in i: 123 n = Jiadian[(Jiadian.inform==i)].index.tolist() 124 天猫精选=天猫精选.append(Jiadian.loc[n,:],ignore_index=True) 125 elif "顺电网上商城" in i: 126 n = Jiadian[(Jiadian.inform==i)].index.tolist() 127 顺电网上商城=顺电网上商城.append(Jiadian.loc[n,:],ignore_index=True) 128 elif "苏宁易购" in i: 129 n = Jiadian[(Jiadian.inform==i)].index.tolist() 130 苏宁易购=苏宁易购.append(Jiadian.loc[n,:],ignore_index=True) 131 132 # 拆线图 133 # 价格进行降序排列分析 134 x = 京东['name'] 135 y = 京东['price'] 136 fig = plt.figure(figsize=(10, 4), dpi=80) 137 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 138 plt.rcParams['axes.unicode_minus']=False 139 plt.xticks(rotation=90) 140 plt.plot(x,y,'s-',color = 'plum',label="价格")#s-:方形 141 plt.legend(loc = "best")#图例 142 plt.title("京东家电价格趋势图",fontsize=18) 143 plt.xticks(fontsize=12) 144 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 145 plt.show() 146 # 价格进行降序排列分析 147 x = Jiadian['name'] 148 y = Jiadian['price'] 149 fig = plt.figure(figsize=(10, 4), dpi=80) 150 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 151 plt.rcParams['axes.unicode_minus']=False 152 plt.xticks(rotation=90) 153 plt.plot(x,y,'s-',color = 'plum',label="价格")#s-:方形 154 plt.legend(loc = "best")#图例 155 plt.title("值得买家电价格趋势图",fontsize=18) 156 plt.xticks(fontsize=12) 157 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 158 159 # 柱状图 160 x = 天猫精选['name'] 161 y = 天猫精选['price'] 162 fig = plt.figure(figsize=(10, 8), dpi=80) 163 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 164 plt.rcParams['axes.unicode_minus']=False 165 plt.xticks(rotation=90) 166 plt.bar(x,y,alpha=0.2, width=0.6, color='b', lw=3) 167 plt.legend(loc = "best")#图例 168 plt.title("天猫精选家电价格柱状图",fontsize=18) 169 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 170 # 柱状图 171 x = 京东['name'] 172 y = 京东['price'] 173 fig = plt.figure(figsize=(10, 8), dpi=80) 174 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 175 plt.rcParams['axes.unicode_minus']=False 176 plt.xticks(rotation=90) 177 plt.bar(x,y,alpha=0.2, width=0.6, color='b', lw=3) 178 plt.legend(loc = "best")#图例 179 plt.title("京东家电价格柱状图",fontsize=18) 180 plt.ylabel("价格/元",fontsize=12)#纵坐标名字 181 plt.show() 182 183 # 水平图 184 x = 天猫精选['name'] 185 y = 天猫精选['price'] 186 fig = plt.figure(figsize=(16, 8), dpi=80) 187 plt.barh(x,y, alpha=0.2, height=0.6, color='coral') 188 plt.title("天猫精选家电价格水平图",fontsize=18) 189 plt.legend(loc = "best")#图例 190 plt.xticks(rotation=90) 191 plt.xlabel("价格",fontsize=12)#横坐标名字 192 # 水平图 193 x = 京东['name'] 194 y = 京东['price'] 195 fig = plt.figure(figsize=(16, 8), dpi=80) 196 plt.barh(x,y, alpha=0.2, height=0.6, color='coral') 197 plt.title("京东家电价格水平图",fontsize=18) 198 plt.legend(loc = "best")#图例 199 plt.xticks(rotation=90) 200 plt.xlabel("价格",fontsize=12)#横坐标名字 201 202 # 散点图 203 x = 天猫精选['name'] 204 y = 天猫精选['price'] 205 fig = plt.figure(figsize=(10, 6), dpi=80) 206 ax = plt.subplot(1, 1, 1) 207 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 208 plt.scatter(x,y,color='c',marker='o',s=60,alpha=1) 209 plt.xticks(rotation=90) 210 plt.xticks([]) 211 plt.ylabel("价格",fontsize=12)#横坐标名字 212 plt.title("天猫精选家电价格散点图",fontsize=16) 213 # 散点图 214 x = Jiadian['name'] 215 y = Jiadian['price'] 216 fig = plt.figure(figsize=(10, 6), dpi=80) 217 ax = plt.subplot(1, 1, 1) 218 plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签 219 plt.scatter(x,y,color='c',marker='o',s=60,alpha=1) 220 plt.xticks(rotation=90) 221 plt.xticks([]) 222 plt.ylabel("价格",fontsize=12)#横坐标名字 223 plt.title("值得买家电价格散点图",fontsize=16) 224 225 # 盒图 226 y = 天猫精选['price'] 227 plt.boxplot(y) 228 plt.title("天猫精选家电价格盒图",fontsize=16) 229 plt.show() 230 # 盒图 231 y = 京东['price'] 232 plt.boxplot(y) 233 plt.title("京东家电价格盒图",fontsize=16) 234 plt.show() 235 # 盒图 236 y = Jiadian['price'] 237 plt.boxplot(y) 238 plt.title("值得买家电价格盒图",fontsize=16) 239 plt.show() 240 241 # 饼图 242 y = Jiadian['inform'].value_counts() 243 y = np.array([19, 5, 2, 2, 1]) 244 245 plt.pie(y, 246 labels=['京东','天猫精选','顺电','苏宁','小米精选'], # 设置饼图标签 247 colors=["#d5695d", "#5d8ca8", "#65a479", "#a564c9","#FFE4C4"], # 设置饼图颜色 248 ) 249 plt.title("总家电占比",fontsize='14') # 设置标题 250 plt.show() 251 252 #线性回归 253 import seaborn as sns 254 import matplotlib.pyplot as plt 255 import numpy as mp 256 from scipy.optimize import leastsq 257 plt.rcParams['font.sans-serif'] = ['SimHei']#解决乱码问题 258 #定义变量 259 gsgm=qcwy.loc[:,'Updatetime'] 260 zprs=qcwy.loc[:,'price'] 261 #函数表达式 262 def func(params,x): 263 a,b,c=params 264 return a*x*x+b*x+c 265 def error_func(params,x,y): 266 return func(params,x)-y 267 P0=[1,9.0] 268 def main(): 269 plt.figure(figsize=(8,6)) 270 P0=[1,9.0,1] 271 Para=leastsq(error_func,P0,args=(gsgm,zprs)) 272 a,b,c=Para[0] 273 print("a=",a, "b=",b, "c=",c) 274 #绘图 275 plt.scatter(gsgm,zprs,color="green",label="样本数据",linewidth=2) 276 x=mp.linspace(13,1,2) 277 y=a*x*x+b*x+c 278 #右上角标 279 plt.plot(x,y,color="red",label="拟合曲线",linewidth=2) 280 #x，y轴名称 281 plt.xlabel('Updatetime') 282 plt.ylabel('price') 283 #标题 284 plt.title("price与Updatetime回归方程") 285 plt.grid() 286 plt.legend() 287 plt.show() 288 main() 289 290 # 词云 291 import random 292 import wordcloud as wc 293 import matplotlib.pyplot as plt 294 295 # 定义图片尺寸 296 word_cloud = wc.WordCloud( 297 background_color='black', 298 font_path='msyhbd.ttc', 299 max_font_size=300, 300 random_state=50, 301 ) 302 text = Jiadian['name'] 303 text = " ".join(text) 304 305 # 绘制词云 306 fig = plt.figure(figsize=(8, 4), dpi=80) 307 ax = plt.subplot(1, 1, 1) 308 word_cloud.generate(text) 309 plt.imshow(word_cloud) 310 plt.show() 311 312 # 词云 313 import random 314 import wordcloud as wc 315 import matplotlib.pyplot as plt 316 from PIL import Image 317 318 # 背景图片 319 bk = np.array(Image.open("Jiadian.jpg")) 320 mask = bk 321 # 定义图片尺寸 322 word_cloud = wc.WordCloud( 323 mask = mask, 324 background_color='black', 325 font_path='msyhbd.ttc', 326 max_font_size=300, 327 random_state=50, 328 ) 329 text = Jiadian['inform'] 330 text = " ".join(text) 331 # 绘制词云 332 fig = plt.figure(figsize=(10, 5), dpi=80) 333 ax = plt.subplot(1, 1, 1) 334 word_cloud.generate(text) 335 plt.imshow(word_cloud) 336 plt.show()
五、总结
从分析结果来看，天猫分类中GEREE挂壁暖风机价格最高，原因可能正直冬天需求量比较大。
从京东分类中Meide的空调价格最高，这款机型也具有暖风功能。总体价格降序排行中大部分是挂式空调、液晶电视，从而体现了在购买大家电中这两款产品是必买商品。
从饼图分析，爬取到的数据大部分来源于京东可见，在京东上购买电器已经成为了一个潜移默化的参考行为。
分析结果达到预期。在刚开始，我对于函数的用法不太熟练，如绘制饼图需要把详细信息分类计算这些问题，需要查阅相关材料才明白，以及整体系统设计最后还是出现一点小问题，在设计线性回归图的时候，发现数据处理的不够完美，没有想到更多的方面，导致提取的困难，但也是通过本次设计我很好的学习了BeautifulSoup库的使用，对今后爬虫设计有了很大的帮助。
