实验4 8086标志寄存器及中断
实验任务一
task1.asm源码:
assume cs:code, ds:data data segment x dw 1020h, 2240h, 9522h, 5060h, 3359h, 6652h, 2530h, 7031h y dw 3210h, 5510h, 6066h, 5121h, 8801h, 6210h, 7119h, 3912h data ends code segment start: mov ax, data mov ds, ax mov si, offset x mov di, offset y call add128 mov ah, 4ch int 21h add128: push ax push cx push si push di sub ax, ax mov cx, 8 s: mov ax, [si] adc ax, [di] mov [si], ax inc si inc si inc di inc di loop s pop di pop si pop cx pop ax ret code ends end start
问题:line31~line34的4条inc指令,能否替换成如下代码?你的结论的依据/理由是什么?
add si, 2 add di, 2
不能。用add指令对si,di操作可能会影响CF位,进而引起进位,导致原本计算中的adc计算错误。

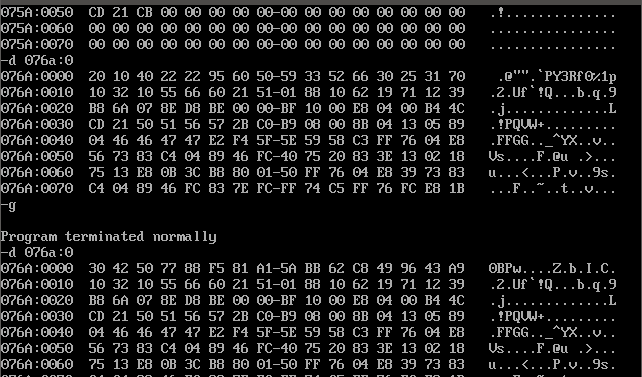

在debug中调试,数据段中做128位加之前

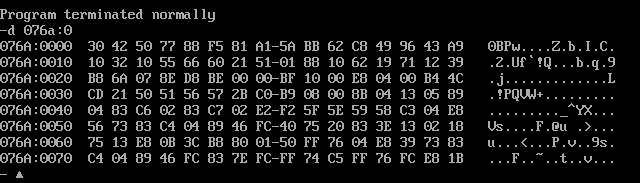

做128位加之后
实验任务二
task2.asm源码
assume cs:code, ds:data data segment str db 80 dup(?) data ends code segment start: mov ax, data mov ds, ax mov si, 0 s1: mov ah, 1 int 21h mov [si], al cmp al, '#' je next inc si jmp s1 next: mov ah, 2 mov dl, 0ah int 21h mov cx, si mov si, 0 s2: mov ah, 2 mov dl, [si] int 21h inc si loop s2 mov ah, 4ch int 21h code ends end start
运行测试结果:
① 汇编指令代码line11-18,实现的功能是?
输入字符如为‘#’,则跳到next。
② 汇编指令代码line20-22,实现的功能是?
换行
③ 汇编指令代码line24-30,实现的功能是?
打印字符串
实验三
task3.asm源码
assume cs:code, ds:data data segment x dw 91, 792, 8536, 65521, 2021 len equ $ - x data ends code segment start: mov ax, data mov ds, ax mov si, offset x mov cx, 5 s: mov ax, [si] push cx call printNumber call printSpace add si, 2 pop cx loop s mov ah, 4ch int 21h printNumber: mov dx, 0 mov cx, 0 s1: mov bx, 10 div bx push dx mov dx, 0 inc cx add ax, 0 jnz s1 s2: pop dx mov ah, 2 add dl, '0' int 21h loop s2 ret printSpace: mov ah, 2 mov dl, ' ' int 21h ret code ends end start
运行结果:
实验任务四
task4.asm源码
assume cs:code, ds:data data segment str db "assembly language, it's not difficult but tedious" len equ $ - str data ends code segment start: mov ax, data mov ds, ax mov si, offset str mov cx, len s: call strupr mov ah, 4ch int 21h strupr: s1: mov al, [si] cmp al, 'a' jb s2 cmp al, 'z' ja s2 sub byte ptr [si], 32 s2: inc si loop s1 code end end start
调试结果:
实验任务五
task5.asm源码
assume cs:code, ds:data data segment str1 db "yes", '$' str2 db "no", '$' data ends code segment start: mov ax, data mov ds, ax mov ah, 1 int 21h mov ah, 2 mov bh, 0 mov dh, 24 mov dl, 70 int 10h cmp al, '7' je s1 mov ah, 9 mov dx, offset str2 int 21h jmp over s1: mov ah, 9 mov dx, offset str1 int 21h over: mov ah, 4ch int 21h code ends end start
运行结果
功能:输入一个字符,若输入字符为7,则显示str1中的内容,否则显示str2中的内容。
实验任务六
当一个系统运行错误时会产生中断,软中断由程序执行。发生中断后,会查询软中断的向量表,获得对应的中断代码段地址和偏移量,执行对应位置的代码。
