第一个WP7应用，SudokuSeven 数独

     因为在自己最近半年来一直在做Silverlight相关的项目，同时感觉移动领域的开发是很有前途的，对于微软Windows Phone的前景，个人是比较看好的。于是决定尝试WP7的开发。在仔细考虑之后，选择了数独作为自己的第一个WP7项目。

     关于WP7的初学文章，如果有一定的Silverlight（WPF）基础，那么我推荐张崟翻译的WP7开发31日谈http://blog.csdn.net/porscheyin/article/details/5997208

如果是没有做过Silverlight开发的朋友，再看该文章之前，最好先阅读一点Silverlight的相关资料。

     现在我们进入正题，关于数独游戏呢，相关的资料请参考http://zh.wikipedia.org/wiki/%E6%95%B0%E7%8B%AC 关于数独的算法，网上也有很多，这不是本文讨论的重点。

首先是程序的主页面，进行游戏难度的选择。该页面名称为GameLevel.xaml，页面主要的xaml代码如下：

   <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <StackPanel  VerticalAlignment="Top">
                <TextBlock Text="请选择一个等级开始游戏:" />
                <Button Content="Simple" Margin="0,10,0,10" Click="OnChooseLevel" />
                <Button Content="Normal" Margin="0,10,0,10" Click="OnChooseLevel"/>
                <Button Content="Hard" Margin="0,10,0,10" Click="OnChooseLevel"/>
                <Button Content="God" Margin="0,10,0,10" Click="OnChooseLevel" />
            </StackPanel>
        </Grid>

在进行UI设计的时候最好参考《UI_Design_and_Interaction_Guide_for_Windows_Phone_7_v2.0》

GameLevel.cs代码如下：

private void OnChooseLevel(object sender, RoutedEventArgs e)
  {
      string level = string.Empty;
      switch (((Button)sender).Content.ToString())
      {
          case "Simple":
              GameInfo.CurLevel = GameLevels.Simple;
              break;
          case "Normal":
              GameInfo.CurLevel = GameLevels.Normal;
              break;
          case "Hard":
              GameInfo.CurLevel = GameLevels.Hard;
              break;
          case "God":
              GameInfo.CurLevel = GameLevels.God;
              break;
          default:
              break;
      }
      NavigationService.Navigate(new Uri("/MainPage.xaml", UriKind.Relative));
  }

在需要进行跨页面传值的时候，我直接将需要传到下一个页面的Level参数存入了GameInfo这个静态类中。

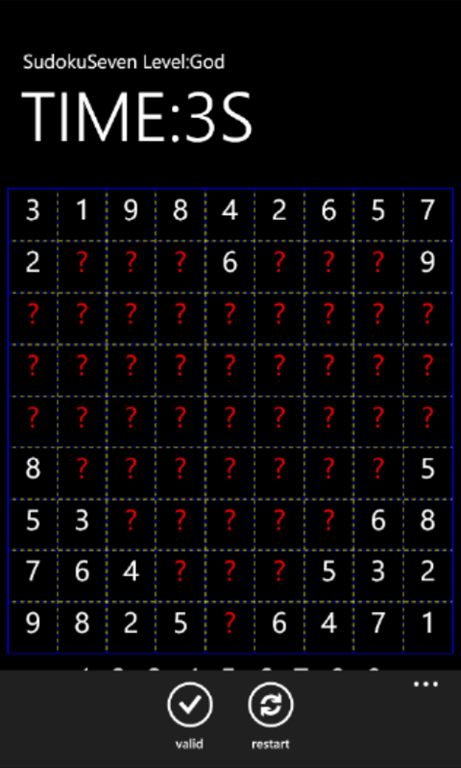

选择难度后，则是进行游戏的主画面：

从左至右分别是Simple,Normal,Hard,God难度模式下的画面。

游戏页面的主要XAML代码MainPage.xaml

<!--LayoutRoot is the root grid where all page content is placed-->
  <Grid x:Name="LayoutRoot" Background="Transparent">
      <Grid.RowDefinitions>
          <RowDefinition Height="Auto"/>
          <RowDefinition Height="*"/>
      </Grid.RowDefinitions>

      <!--TitlePanel contains the name of the application and page title-->
      <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
          <TextBlock x:Name="ApplicationTitle" Text="SudokuSeven" Style="{StaticResource PhoneTextNormalStyle}"/>
          <TextBlock x:Name="PageTitle" Text="TIME:0S" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
      </StackPanel>

      <!--ContentPanel - place additional content here-->
      <Grid x:Name="ContentPanel" Grid.Row="1" Margin="5,0,5,0">
          <Grid.RowDefinitions>
              <RowDefinition Height="491"/>
              <RowDefinition Height="116"/>
          </Grid.RowDefinitions>
          <Border Grid.Row="0" BorderBrush="Blue" BorderThickness="1" Margin="3">
              <Grid Name="grid" Grid.Row="0" ShowGridLines="True">
                  <Grid.RowDefinitions>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                      <RowDefinition Height="0.1*"/>
                  </Grid.RowDefinitions>
                  <Grid.ColumnDefinitions>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                      <ColumnDefinition Width="0.1*"/>
                  </Grid.ColumnDefinitions>
              </Grid>
          </Border>
          <StackPanel HorizontalAlignment="Center" Grid.Row="1" Orientation="Horizontal" Height="44" VerticalAlignment="Top">
              <TextBlock Name="Num1"  Text="1" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num2" Text="2" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num3" Text="3" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num4" Text="4" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num5" Text="5" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num6" Text="6" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num7" Text="7" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num8" Text="8" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
              <TextBlock Name="Num9" Text="9" Margin="10,0,10,0" FontSize="32" MouseLeftButtonDown="doSelectedNum" />
          </StackPanel>
      </Grid>
  </Grid>

  <!--Sample code showing usage of ApplicationBar-->
  <phone:PhoneApplicationPage.ApplicationBar>
      <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
          <shell:ApplicationBarIconButton IconUri="/icons/appbar.check.rest.png" Text="Valid" Click="OnValidate"/>
          <shell:ApplicationBarIconButton IconUri="/icons/appbar.refresh.rest.png" Text="Restart" Click="OnRestart"/>
      </shell:ApplicationBar>
  </phone:PhoneApplicationPage.ApplicationBar>

在生成游戏的时候，本人采用的方法是将正确的数独结果，隐藏掉部分数字的方式。MainPage.cs中的主要代码如下：

初始化游戏的方法

private void InitGame()
{
     this.grid.Children.Clear();
     grids = new List<TextBlock>();
     SudokuMath sm = new SudokuMath();
     sm.Intial();
     int[,] map = sm.Creat();//得到一个包含正确结果的二维数组
     for (int i = 1; i <= 9; i++)
     {
         for (int j = 1; j <= 9; j++)
         {
             GridInfo gridinfo = new GridInfo() { Number = map[i, j], IsSelected = false, X = j - 1, Y = i - 1, IsHidden = false };
             TextBlock numberGrid = new TextBlock() { Tag = gridinfo, FontSize = 30, TextAlignment = TextAlignment.Center, Text = map[i, j].ToString() };
             numberGrid.MouseLeftButtonDown += new MouseButtonEventHandler(nubmberGrid_MouseLeftButtonDown);
             numberGrid.SetValue(Grid.RowProperty, i - 1);
             numberGrid.SetValue(Grid.ColumnProperty, j - 1);
             this.grid.Children.Add(numberGrid);
             grids.Add(numberGrid);
         }
     }

     SetGameLevel();
     seconds = 0;
     timer.Interval = new TimeSpan(TimeSpan.TicksPerSecond);
     timer.Start();
}



隐藏特定位置数字的方法

private void HideNumber(int x, int y)
{
          TextBlock grid = FindNumberGrid(x, y);
          grid.Text = unknow;
          ((GridInfo)grid.Tag).IsHidden = true;
          grid.Foreground = grid.Foreground = new SolidColorBrush(Colors.Red);
}

private TextBlock FindNumberGrid(int x, int y)
  {
          foreach (TextBlock grid in grids)
          {
              GridInfo gridinfo = grid.Tag as GridInfo;
              if (gridinfo.X == x && gridinfo.Y == y)
              {
                  return grid;
              }
          }
          return new TextBlock();
  }



GridInfo.cs类

public class GridInfo
{
     public int Number { get; set; }
     public bool IsSelected { get; set; }
     public int X { get; set; }
     public int Y { get; set; }
     public bool IsHidden { get; set; }
}



至此一个简单的WP7应用就完成了。
