HAProxy https实现

1.证书制作：

[root@centos7 ~]mkdir /etc/haproxy/certs/
[root@centos7 ~]cd /etc/haproxy/certs/
[root@centos7 certs]#openssl  genrsa -out haproxy.key 2048
[root@centos7 certs]#openssl  req -new -x509 -key haproxy.key  -out haproxy.crt -subj "/CN=www.magedu.org"

#或者用下一条命令实现
[root@centos7 certs]#openssl req  -x509 -newkey rsa:2048 -subj "/CN=www.magedu.org" -keyout haproxy.key -nodes -days 365 -out haproxy.crt
[root@centos7 certs]#cat haproxy.key  haproxy.crt  > haproxy.pem      #crt 后证书文件为PEM格式，且同时包含证书和所有私钥
[root@centos7 certs]#openssl  x509 -in  haproxy.pem -noout -text        #查看证书



　2.https配置　

frontend  magedu_http_port
  bind 10.0.0.7:80
  bind 10.0.0.7:443 ssl crt /etc/haproxy/certs/haproxy.pem    #配置HAProxy支持https协议，支持ssl会话
  redirect scheme https if !{ ssl_fc }         #注意{ }内的空格  #把80端口的请求重向定443
  #redirect scheme https if !{ ssl_fc }        #理解说明:客户端是https协议端口来时ssl_fc为真取反成假，不执行，反之http来的ssl_fc为假取反成真，执行重写向。
  http-request  set-header  X-forwarded-Port   %[dst_port]    #向后端传递用户请求的协议和端口（frontend或backend）
  http-request  add-header  X-forwarded-Proto  https if { ssl_fc } 传递http协议给后端。
  mode http
  balance  roundrobin
  log global
  option httplog
backend pc_hosts
  mode http
  #http-request  set-header  X-forwarded-Port   %[dst_port] 也可加在此处，
  #http-request  add-header  X-forwarded-Proto  https if { ssl_fc }
  server web2 10.0.0.27:80 check inter 2000 fall 3 rise 5

另一种方法
#web server http
frontend web_server-http
	 bind 192.168.7.101:80
	 redirect scheme https if !{ ssl_fc }
	 mode http
	 use_backend web_host
#web server https
frontend web_server-https
	 bind 192.168.7.101:443 ssl crt /usr/local/haproxy/certs/haproxy.pem
	 mode http
	 use_backend web_host


3.日志格式修改

修改后端服务器的日志格式
[root@centos27 ~]#vim /etc/httpd/conf/httpd.conf
LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{X-Forwarded-Port}i\" \"%{X-Forwarded-Proto}i\"" combined
修改后端nginx服务器的日志格式测试失败



#查看后端服务器的访问日志
[root@centos27 ~]#tail /var/log/httpd/access_log
10.0.0.7 - - [04/Apr/2020:10:40:17 +0800] "HEAD / HTTP/1.1" 200 - "-" "curl/7.19.7 (x86_64-redhat-linux-gnu) libcurlS/3.27.1 zlib/1.2.3 libidn/1.18 libssh2/1.4.2" "443" "https"

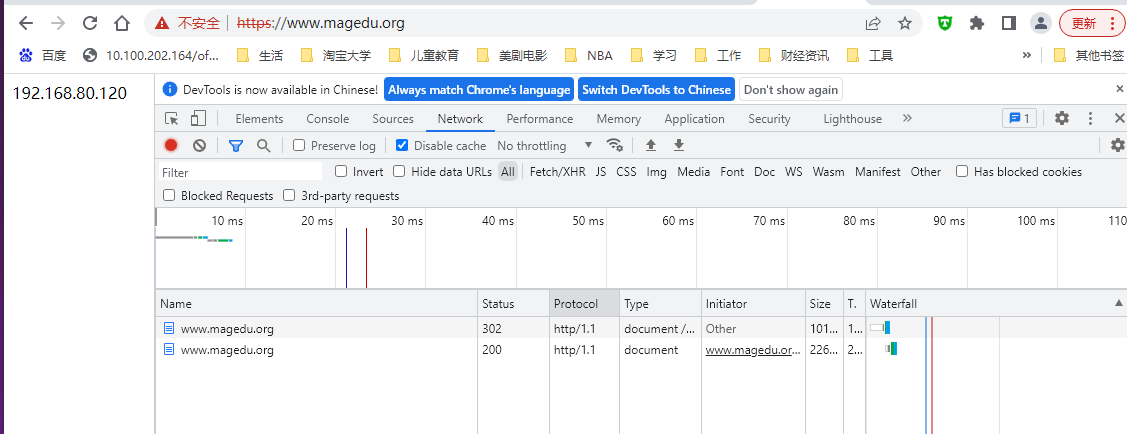

4.验证https  #-L 参数会让 HTTP 请求跟随服务器的重定向,curl默认是不重定向。-k 许忽略证书进行 SSL 连接

[root@localhost7e ~]# curl -Ik  http://www.magedu.org   #curl默认是不重定向
HTTP/1.1 302 Found
content-length: 0
location: https://www.magedu.org/
cache-control: no-cache


[root@localhost7e ~]# curl -IkL  http://www.magedu.org
HTTP/1.1 302 Found
content-length: 0
location: https://www.magedu.org/
cache-control: no-cache


HTTP/1.1 200 OK
server: nginx/1.20.1
date: Wed, 27 Jul 2022 06:30:29 GMT
content-type: text/html
content-length: 15
last-modified: Wed, 27 Jul 2022 06:29:53 GMT
etag: "62e0db61-f"
accept-ranges: bytes
