双机热备旁挂组网场景实验

实验要求：

需求：
1、SW3的流量
正常情况下：SW1_VRF-->FW1--->SW1_Public--->R5
故障情况下：SW2_VRF-->FW2--->SW2_Public--->R6
2、SW4的流量
正常情况下：SW2_VRF-->FW2--->SW2_Public--->R6
故障情况下：SW1_VRF-->FW1--->SW1_Public--->R5
3、交换网络负载均衡

三、实验配置

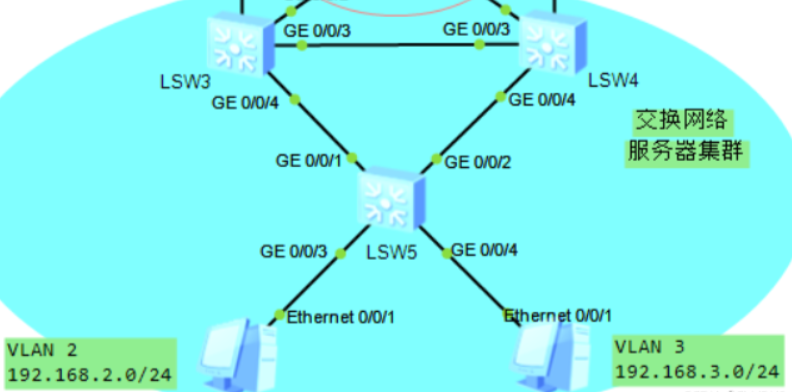

1.二层交换机配置

使用传统三层架构中MSTP+VRRP组网形式：
VLAN 2 ----> SW3,Sw4作为备份
VLAN 3 ----> SW4,SW3作为备份

MSTP设计---->SW3、4、5运行
实例1：VLAN 2
实例2：VLAN 3
SW3是实例1的主根，实例2的备份根；
SW4是实例2的主根，实例1的备份根；

vlan	设备	ip	vlan虚拟ip
vlan2	sw3	192.168.2.1/24	192.168.2.254/24
	sw4	192.168.2.2/24
vlan3	sw3	192.168.3.1/24	192.168.3.254/24
	sw4	192.168.3.2/24

sw3配置：

[SW3]vlan batch 2 3
[SW3]interface GigabitEthernet 0/0/3
[SW3-GigabitEthernet0/0/3] port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW3-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW3-GigabitEthernet0/0/4] port link-type trunk
[SW3-GigabitEthernet0/0/4] port trunk allow-pass vlan 2 to 3
[SW3-GigabitEthernet0/0/4]stp enable
[SW3]stp mode mstp
[SW3]stp region-configuration
[SW3-mst-region]region-name aa
[SW3-mst-region]instance 1 vlan 2
[SW3-mst-region]instance 2 vlan 3
[SW3-mst-region]active region-configuration
[SW3]stp instance 1 root primary
[SW3]stp instance 2 root secondary
[SW3]stp instance 0 root primary
[SW3]interface Vlanif 2
[SW3-Vlanif2]ip address 192.168.2.1 24
[SW3-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW3-Vlanif2]vrrp vrid 1 priority 120
[SW3-Vlanif2]vrrp vrid 1 preempt-mode timer delay 20
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15
[SW3]interface Vlanif 3
[SW3-Vlanif3]ip add 192.168.3.1 24
[SW3-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254

sw4配置：

[SW4]vlan batch 2 3
[SW4]interface GigabitEthernet 0/0/3
[SW4-GigabitEthernet0/0/3] port link-type trunk
[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW4-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW4-GigabitEthernet0/0/4] port link-type trunk
[SW4-GigabitEthernet0/0/4] port trunk allow-pass vlan 2 to 3
[SW4-GigabitEthernet0/0/4]stp enable
[SW4]stp mode mstp
[SW4]stp region-configuration
[SW4-mst-region]region-name aa
[SW4-mst-region]instance 1 vlan 2
[SW4-mst-region]instance 2 vlan 3
[SW4-mst-region]active region-configuration
[SW4]stp instance 1 root secondary
[SW4]stp instance 2 root primary
[SW4]stp instance 0 root secondary
[SW4]interface Vlanif 2
[SW4-Vlanif2]ip add 192.168.2.2 24
[SW4-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW4-Vlanif2]interface Vlanif3
[SW4-Vlanif3] ip address 192.168.3.2 255.255.255.0
[SW4-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
[SW4-Vlanif3]vrrp vrid 1 priority 120
[SW4-Vlanif3] vrrp vrid 1 preempt-mode timer delay 20
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet0/0/1 reduced 15
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet0/0/2 reduced 15

sw5配置：

[SW5]vlan batch 2 3
[SW5]interface GigabitEthernet 0/0/3
[SW5-GigabitEthernet0/0/3]port link-type access
[SW5-GigabitEthernet0/0/3]port default vlan 2
[SW5-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW5-GigabitEthernet0/0/4]port link-type access
[SW5-GigabitEthernet0/0/4]port default vlan 3
[SW5-GigabitEthernet0/0/4]interface GigabitEthernet 0/0/1
[SW5-GigabitEthernet0/0/1]port link-type trunk
[SW5-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3
[SW5-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[SW5-GigabitEthernet0/0/2]port link-type trunk
[SW5-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 to 3
[SW5]stp enable
[SW5]stp mode mstp
[SW5]stp region-configuration
[SW5-mst-region]region-name aa
[SW5-mst-region]instance 1 vlan 2
[SW5-mst-region]instance 2 vlan 3
[SW5-mst-region]active region-configuration

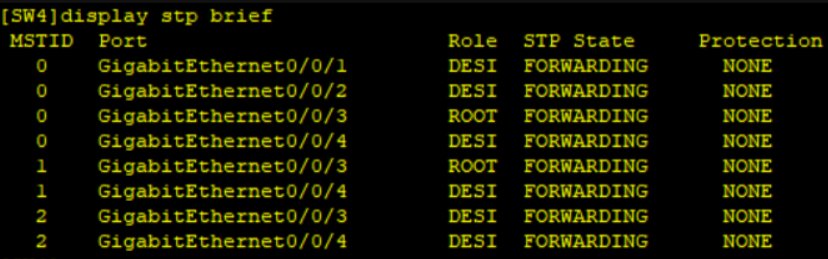

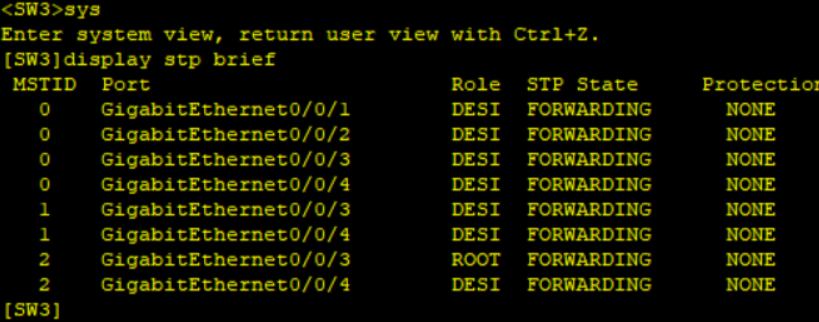

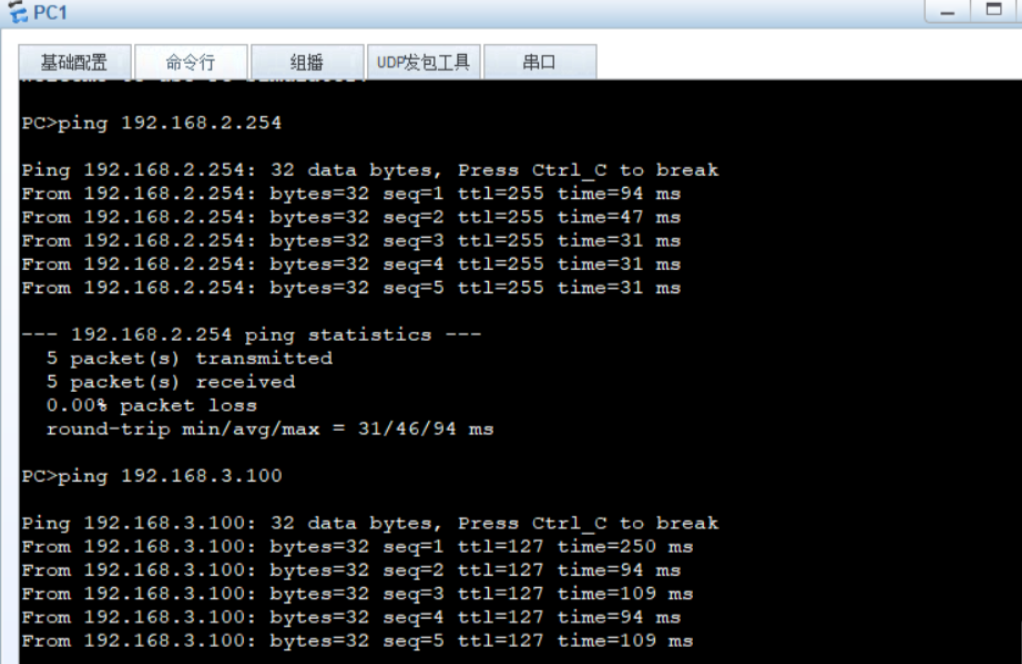

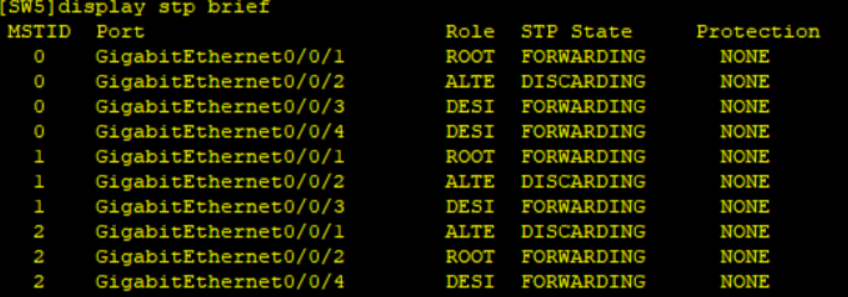

stp生成树与二层交换网络测试：

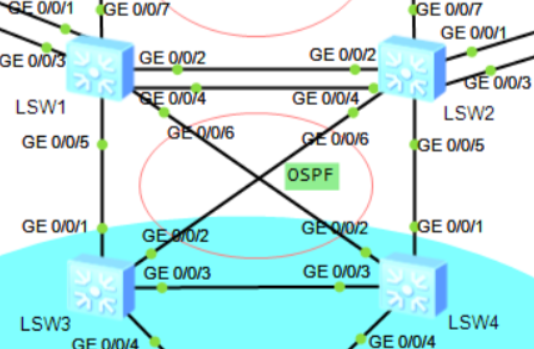

3.汇聚到核心层路由配置

连接设备区域	vlan	网段
sw1-sw2	102	10.10.2.0/24
sw1-sw3	103	10.10.3.0/24
sw1-sw4	104	10.10.4.0/24
sw2-sw3	203	10.20.3.0/24
sw2-sw4	204	10.20.4.0/24

sw3配置：

[SW3]vlan batch 103 203
[SW3]interface GigabitEthernet 0/0/1
[SW3-GigabitEthernet0/0/1]port link-type access
[SW3-GigabitEthernet0/0/1]port default vlan 103
[SW3-GigabitEthernet0/0/1]undo stp enable
[SW3-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type access
[SW3-GigabitEthernet0/0/2]port default vlan 203
[SW3-GigabitEthernet0/0/2]undo stp enable
[SW3]interface Vlanif 103
[SW3-Vlanif103]ip add 10.10.3.3 24
[SW3]interface Vlanif 203
[SW3-Vlanif203]ip add 10.20.3.3 24
[SW3]ospf 1 router-id 3.3.3.3
[SW3-ospf-1]area 0
[SW3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.3.1 0.0.0.0
[SW3-ospf-1]silent-interface Vlanif 2
[SW3-ospf-1]silent-interface Vlanif 3

sw4配置：

[SW4]vlan batch 104 204
[SW4]interface GigabitEthernet 0/0/1
[SW4-GigabitEthernet0/0/1]port link-type access
[SW4-GigabitEthernet0/0/1]port default vlan 204
[SW4-GigabitEthernet0/0/1]undo stp enable
[SW4]interface GigabitEthernet 0/0/2
[SW4-GigabitEthernet0/0/2]port link-type access
[SW4-GigabitEthernet0/0/2]port default vlan 104
[SW4-GigabitEthernet0/0/2]undo stp enable
[SW4]interface Vlanif 104
[SW4-Vlanif104]ip address 10.10.4.4 24
[SW4]interface Vlanif 204
[SW4-Vlanif204]ip add 10.20.4.4 24
[SW4]ospf 1 router-id 4.4.4.4
area 0.0.0.0
[SW4-ospf-1]network 10.10.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 10.20.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.3.2 0.0.0.0
[SW4-ospf-1]silent-interface Vlanif 2
[SW4-ospf-1]silent-interface Vlanif 3

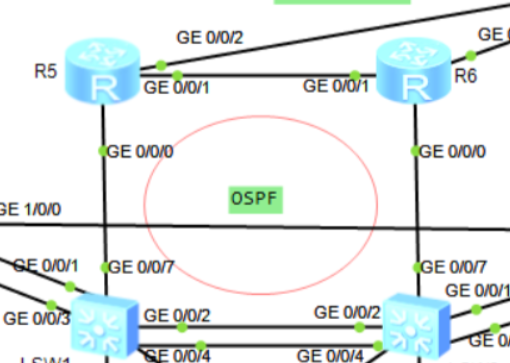

创建VRF空间并配置VRF信息：

因为SW1和SW2需要被分割为两台设备，分别与上下行设备连接，故需要先创建VRF空间，其中GE0/0/2、5、6、7属于该空间接口。

VRRF空间配置信息：
名称：VRF
RD：100:1
RT：100:1

[SW1]ip vpn-instance VRF
[SW1-vpn-instance-VRF]route-distinguisher 100:1
[SW1-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both
[SW2]ip vpn-instance VRF
[SW2-vpn-instance-VRF]route-distinguisher 100:1
[SW2-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both

vlan配置：
sw1：

[SW1]vlan batch 102 103 104
[SW1]interface GigabitEthernet 0/0/6
[SW1-GigabitEthernet0/0/6]port link-type access
[SW1-GigabitEthernet0/0/6]port default vlan 103
[SW1-GigabitEthernet0/0/6]undo stp enable
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW1-GigabitEthernet0/0/5]undo stp enable
[SW1]interface GigabitEthernet 0/0/7
[SW1-GigabitEthernet0/0/7]port link-type access
[SW1-GigabitEthernet0/0/7]port default vlan 104
[SW1-GigabitEthernet0/0/7]undo stp enable

sw2：

[SW2]vlan batch 102 203 204
[SW2]interface GigabitEthernet 0/0/6
[SW2-GigabitEthernet0/0/6]port link-type access
[SW2-GigabitEthernet0/0/6]port default vlan 204
[SW2-GigabitEthernet0/0/6]undo stp enable
[SW2]interface GigabitEthernet 0/0/7
[SW2-GigabitEthernet0/0/7]port link-type access
[SW2-GigabitEthernet0/0/7]port default vlan 203
[SW2-GigabitEthernet0/0/7]undo stp enable
[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW2-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW2-GigabitEthernet0/0/5]undo stp enable

配置vrf的ospf：

[SW1]ospf 1 router-id 1.1.1.1 vpn-instance VRF
[SW1-ospf-1]area 0
[SW1-ospf-1-area-0.0.0.0]network 10.10.2.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.3.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.4.1 0.0.0.0
[SW1-ospf-1]default-route-advertise

[SW2]ospf 1 router-id 2.2.2.2 vpn-instance VRF
[SW2-ospf-1]area 0
[SW2-ospf-1-area-0.0.0.0]network 10.10.2.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.3.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.4.2 0.0.0.0
[SW2-ospf-1]default-route-advertise

[SW2]ping -vpn-instance VRF 10.10.2.1
PING 10.10.2.1: 56 data bytes, press CTRL_C to break
Reply from 10.10.2.1: bytes=56 Sequence=1 ttl=255 time=83 ms
Reply from 10.10.2.1: bytes=56 Sequence=2 ttl=255 time=32 ms
Reply from 10.10.2.1: bytes=56 Sequence=3 ttl=255 time=50 ms
Reply from 10.10.2.1: bytes=56 Sequence=4 ttl=255 time=50 ms
Reply from 10.10.2.1: bytes=56 Sequence=5 ttl=255 time=55 ms

[SW2]ping -vpn-instance VRF 10.20.4.4
PING 10.20.4.4: 56 data bytes, press CTRL_C to break
Reply from 10.20.4.4: bytes=56 Sequence=1 ttl=255 time=72 ms
Reply from 10.20.4.4: bytes=56 Sequence=2 ttl=255 time=52 ms
Reply from 10.20.4.4: bytes=56 Sequence=3 ttl=255 time=30 ms
Reply from 10.20.4.4: bytes=56 Sequence=4 ttl=255 time=40 ms
Reply from 10.20.4.4: bytes=56 Sequence=5 ttl=255 time=45 ms

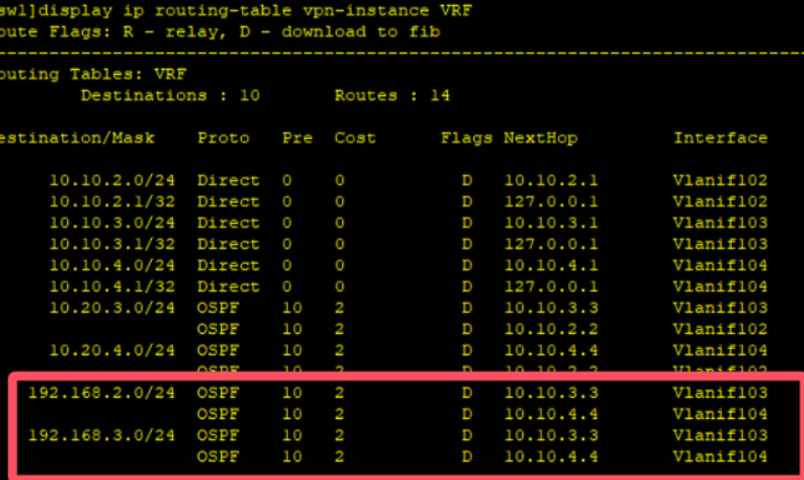

ospf：

此时回程流量是等价路由，负载均衡，不符合来回路径一致要求。故需要进行路由干涉，使用路由策略。
sw3和sw4只需要修改接口Cost数值，让sw3优选从SW1学习到的路由，让sw4优先从sw2学习到的路由即可。

路由策略规划：
sw3：
主要流量发送给sw1，备份发给sw2
sw4：
主要流量发送给sw2，备份发给sw1
sw1：
192.168.2.0/24----> 主要流量发送给sw3，备份发给sw4
192.168.3.0/24----> 主要流量发送给sw4，备份发给sw3
sw2：
192.168.2.0/24----> 主要流量发送给sw3，备份发给sw4
192.168.3.0/24----> 主要流量发送给sw4，备份发给sw3

[SW3]interface Vlanif 203
[SW3-Vlanif203]ospf cost 5

[SW4]interface Vlanif 104
[SW4-Vlanif104]ospf cost 5

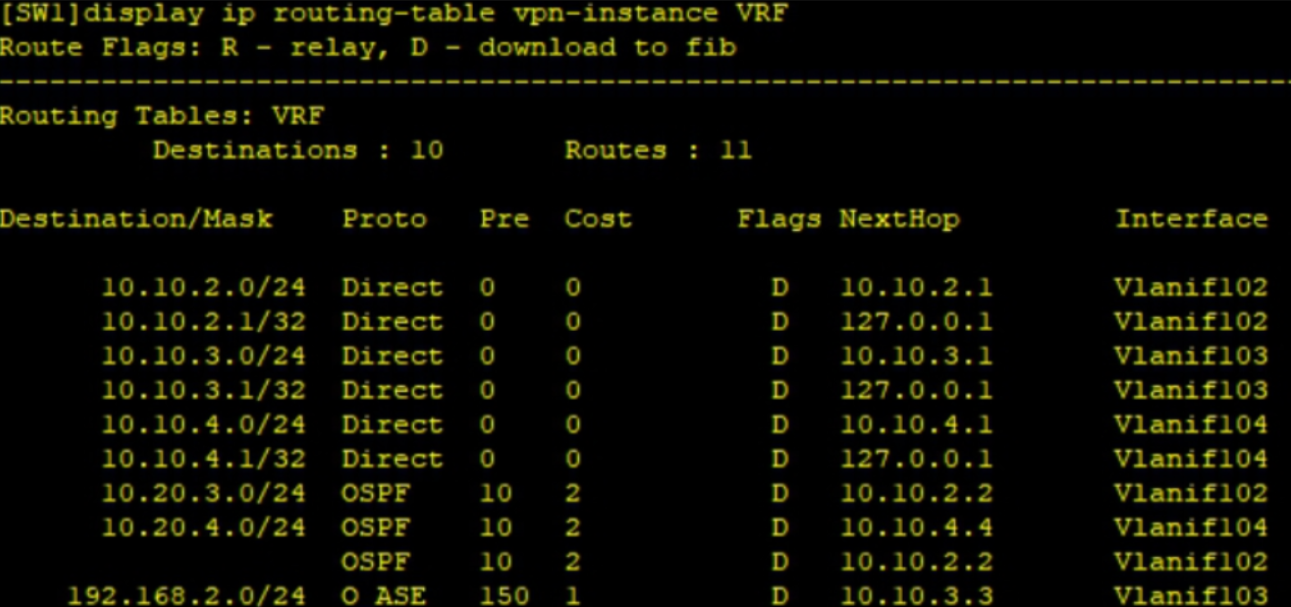

路由策略配置：

删除宣告的192.168.2.0/24和192.168.3.0/24网段信息，防止发生冲突：
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.3.1 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.3.2 0.0.0.0

sw3
将sw3本地发送的192.168.3.0/24路由的开销值改大，192.168.2.0/24路由开销值不变。
通过重发布调用路由策略：重发布时不要引入其他路由信息。
1、抓流量
[SW3]ip ip-prefix aa permit 192.168.2.0 24
[SW3]ip ip-prefix bb permit 192.168.3.0 24
2、做策略
[SW3]route-policy bb permit node 10
[SW3-route-policy]if-match ip-prefix bb
[SW3-route-policy]apply cost 5
[SW3]route-policy bb permit node 20
[SW3-route-policy]if-match ip-prefix aa
3、调用策略
[SW3]ospf 1
[SW3-ospf-1]import-route direct route-policy bb

sw4
将sw4本地发送的192.168.2.0/24路由的开销值改大，192.168.3.0/24路由开销值不变。
通过重发布调用路由策略：重发布时不要引入其他路由信息。
1、抓流量
[SW4]ip ip-prefix aa permit 192.168.2.0 24
[SW4]ip ip-prefix bb permit 192.168.3.0 24
2、做策略
[SW4]route-policy aa permit node 10
[SW4-route-policy]if-match ip-prefix aa
[SW4-route-policy]apply cost 5
[SW4]route-policy aa permit node 20
[SW4-route-policy]if-match ip-prefix bb
3、调用策略
[SW4]ospf 1
[SW4-ospf-1]import-route direct route-policy aa

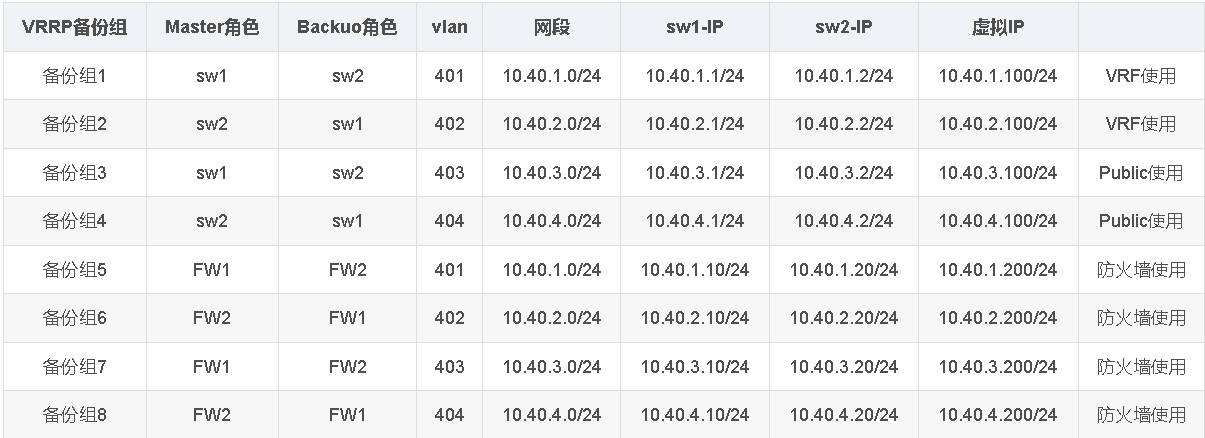

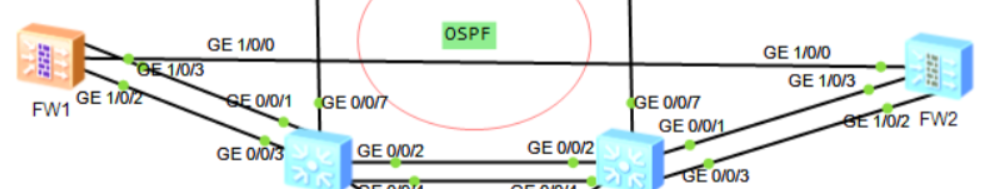

3.VRF交换机和防火墙的路由交互

FW1为主
VRRP备份组1---VRRP备份组5
VRRP备份组3---VRRP备份组7
FW2为主
VRRP备份组2---VRRP备份组6
VRRP备份组4---VRRP备份组8

VRF区域配置：
sw1：

[SW1]vlan batch 401 402
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 401 402
[SW1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW1]interface Vlanif 401
[SW1-Vlanif401]ip binding vpn-instance VRF
[SW1-Vlanif401]ip address 10.40.1.1 24
[SW1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW1-Vlanif401]vrrp vrid 1 priority 120
[SW1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[SW1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 30
[SW1]interface Vlanif 402
[SW1-Vlanif402]ip binding vpn-instance VRF
[SW1-Vlanif402]ip address 10.40.2.1 24
[SW1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

[SW2]vlan batch 401 402
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[SW2-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW2]interface Vlanif 401
[SW2-Vlanif401]ip binding vpn-instance VRF
[SW2-Vlanif401]ip address 10.40.1.2 24
[SW2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW2]interface Vlanif 402
[SW2-Vlanif402]ip binding vpn-instance VRF
[SW2-Vlanif402]ip address 10.40.2.2 24
[SW2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW2-Vlanif402]vrrp vrid 2 priority 120
[SW2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[SW2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30

FW1：

[FW1]vlan batch 401 402 403 404
[FW1]interface GigabitEthernet 1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/1.401]vlan-type dot1q 401
[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]ip address 10.40.2.10 24
[FW1-GigabitEthernet1/0/1.402]vlan-type dot1q 402
[FW1-GigabitEthernet1/0/1.402]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]ip address 10.40.3.10 24
[FW1-GigabitEthernet1/0/2.403]vlan-type dot1q 403
[FW1-GigabitEthernet1/0/2.403]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/2.404]vlan-type dot1q 404

FW2：

[FW2]vlan batch 401 402 403 404
[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip address 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401
[FW2-GigabitEthernet1/0/2.401]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402
[FW2-GigabitEthernet1/0/2.402]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip add 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403
[FW2-GigabitEthernet1/0/1.403]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404

安全区域划分
FW1：

[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.401
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.402
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.403
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.404
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet 1/0/0

FW2：

[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.402
[FW2]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.403
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.404
[FW2]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet 1/0/0

sw1、sw2的Public区域配置
sw1：

[SW1]vlan batch 403 404
[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 403 404
[SW1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW1]interface Vlanif 403
[SW1-Vlanif403]ip address 10.40.3.1 24
[SW1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW1-Vlanif403]vrrp vrid 3 priority 120
[SW1-Vlanif403]vrrp vrid 3 preempt-mode timer delay 60
[SW1-Vlanif403]vrrp vrid 3 track interface GigabitEthernet 0/0/3 reduced 30
[SW1]interface Vlanif 404
[SW1-Vlanif404]ip add 10.40.4.1 24
[SW1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100

sw2：

[SW2]vlan batch 403 404
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404
[SW2-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port link-type trunk
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW2]interface Vlanif 403
[SW2-Vlanif403]ip address 10.40.3.2 24
[SW2-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW2]interface Vlanif 404
[SW2-Vlanif404]ip address 10.40.4.2 24
[SW2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[SW2-Vlanif404]vrrp vrid 4 priority 120
[SW2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 60
[SW2-Vlanif404]vrrp vrid 4 track interface GigabitEthernet 0/0/2 reduced 30

路由配置：

[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200 preference 70
[SW1]ip route-static 192.168.0.0 16 10.40.3.200
[SW1]ip route-static 192.168.0.0 16 10.40.4.200 preference 70

[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200 preference 70
[SW2]ip route-static 192.168.0.0 16 10.40.4.200
[SW2]ip route-static 192.168.0.0 16 10.40.3.200 preference 70

4.防火墙双机热备配置
FW1：

下联VRF：
[FW1]int g 1/0/2.401
[FW1-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 active
[FW1]interface GigabitEthernet 1/0/2.402
[FW1-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 standby -上联Public：
[FW1]interface GigabitEthernet 1/0/3.403
[FW1-GigabitEthernet1/0/3.403]vrrp vrid 7 virtual-ip 10.40.3.200 active
[FW1]int g 1/0/3.404
[FW1-GigabitEthernet1/0/3.404]vrrp vrid 8 virtual-ip 10.40.4.200 standby
[FW1]hrp mirror session enable
[FW1]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.2
[FW1]hrp enable

FW2：

下联VRF:
[FW2]int g 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 active -上联Public:
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2]int g 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]vrrp vrid 8 virtual-ip 10.40.4.200 active
[FW1]hrp mirror session enable
[FW1]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.2 1
[FW1]hrp enable

路由配置：

HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.3.100
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.1.100
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.2.100 preference 70

HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.4.100
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.2.100
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70

安全策略配置：

HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security]rule name trust_to_untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-zone trust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-address 192.168.0.0 16 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]action permit (+B)

5.核心到边界配置

sw1：

[SW1]vlan batch 11 12
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 11
[SW1-GigabitEthernet0/0/1]undo stp enable
[SW1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW1-GigabitEthernet0/0/4]undo stp enable
[SW1]interface Vlanif 11
[SW1-Vlanif11]ip address 10.11.1.1 24
[SW1]interface Vlanif 12
[SW1-Vlanif12]ip add 10.12.1.1 24
[SW1]ospf 2 router-id 1.1.1.1
[SW1-ospf-2]area 0
[SW1-ospf-2-area-0.0.0.0]network 10.11.1.1 0.0.0.0
[SW1-ospf-2-area-0.0.0.0]network 10.12.1.1 0.0.0.0

sw2：

[SW2]vlan batch 12 22
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan 22
[SW2-GigabitEthernet0/0/1]undo stp enable
[SW2-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW2-GigabitEthernet0/0/4]undo stp enable
[SW2]interface Vlanif 12
[SW2-Vlanif12]ip address 10.12.1.2 24
[SW2]interface Vlanif 22
[SW2-Vlanif22]ip address 10.22.2.1 2
[SW2-ospf-2]dis th
ospf 2 router-id 2.2.2.2
[SW2-ospf-2]area 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]network 10.12.1.2 0.0.0.0
[SW2-ospf-2-area-0.0.0.0] network 10.22.2.1 0.0.0.0

R5:

[R5]interface GigabitEthernet 0/0/0
[R5-GigabitEthernet0/0/0]ip add 10.11.1.2 24
[R5-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[R5-GigabitEthernet0/0/1]ip address 10.12.2.1 24
[R5-ospf-1]display this
ospf 1 router-id 3.3.3.3
[R5-ospf-1]area 0.0.0.0
[R5-ospf-1-area-0.0.0.0]network 10.11.1.2 0.0.0.0
[R5-ospf-1-area-0.0.0.0]network 10.12.2.1 0.0.0.0

R6:

[R6]interface GigabitEthernet 0/0/0
[R6-GigabitEthernet0/0/0]ip add 10.22.2.2 24
[R6-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[R6-GigabitEthernet0/0/1]ip add 10.12.2.2 14
[R6]ospf 1 router-id 4.4.4.4
[R6-ospf-1]area 0
[R6-ospf-1-area-0.0.0.0]network 10.22.2.2 0.0.0.0
[R6-ospf-1-area-0.0.0.0]network 10.12.2.2 0.0.0.0

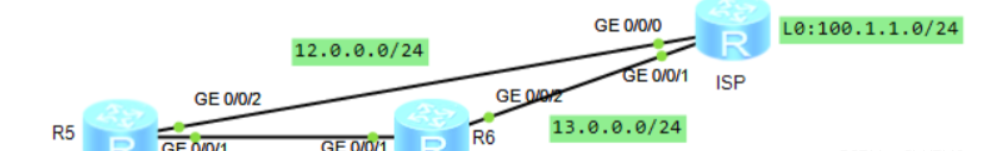

6.边界配置

R5：

[R5]interface GigabitEthernet 0/0/2
[R5-GigabitEthernet0/0/2]ip add 12.0.0.1 24
[R5]ip route-static 0.0.0.0 0 12.0.0.100
[R5-ospf-1]default-route-advertise
[R5]acl 2000
[R5-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R5]interface GigabitEthernet 0/0/2
[R5-GigabitEthernet0/0/2]nat outbound 2000

R6：

[R6]interface GigabitEthernet 0/0/2
[R6-GigabitEthernet0/0/2]ip add 13.0.0.1 24
[R6]ip route-static 0.0.0.0 0 13.0.0.100
[R6-ospf-1]default-route-advertise
[R6]acl 2000
[R6-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R6]int g 0/0/2
[R6-GigabitEthernet0/0/2]nat outbound 2000

ISP：

[ISP]int g 0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.100 24
[ISP]int g 0/0/1
[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1 24

引入静态路由：

[SW1-ospf-2]import-route static
[SW2-ospf-2]import-route static

四、试验检测

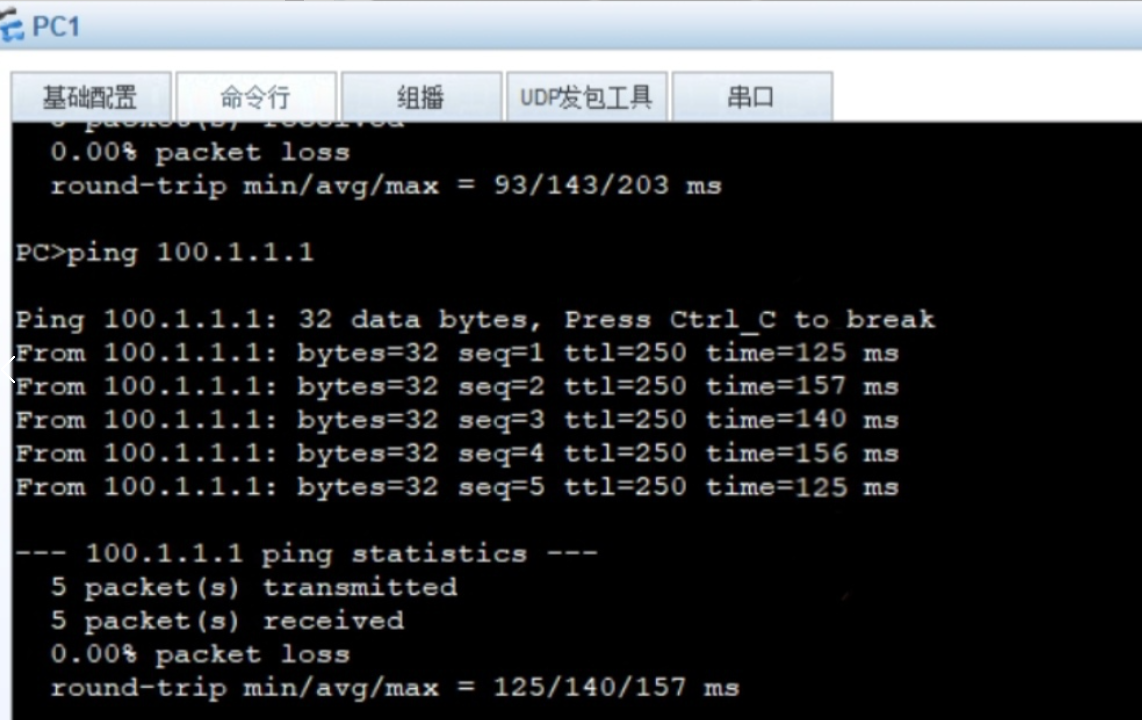

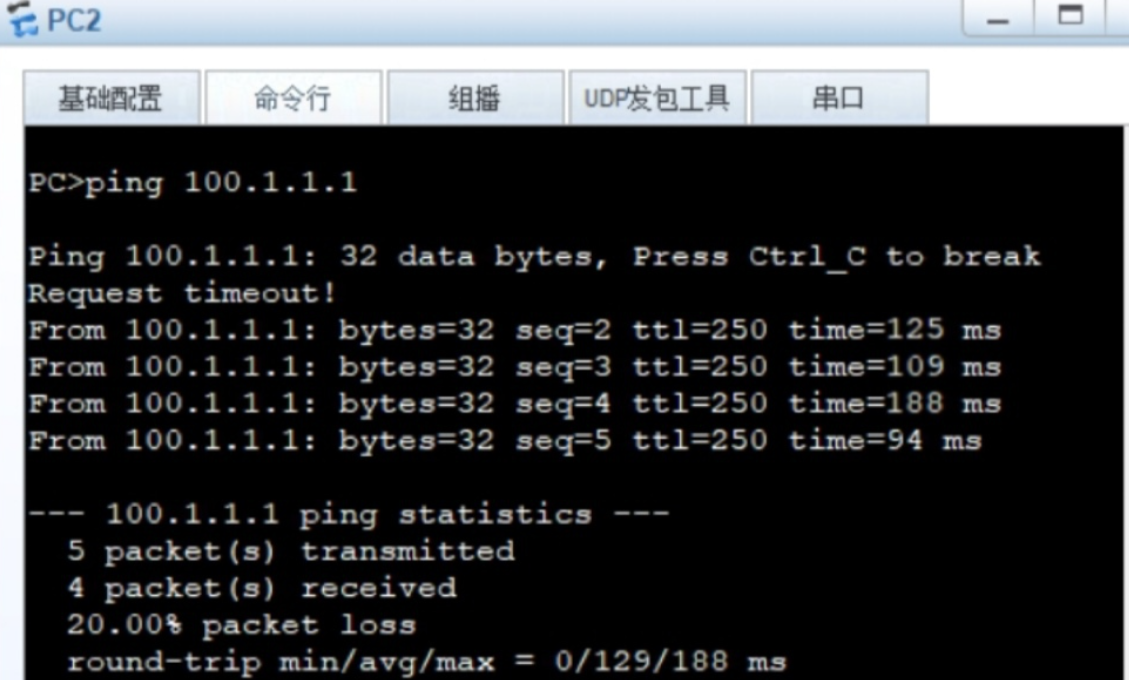

1.PC1和PC2分别pingISP的环回接口：

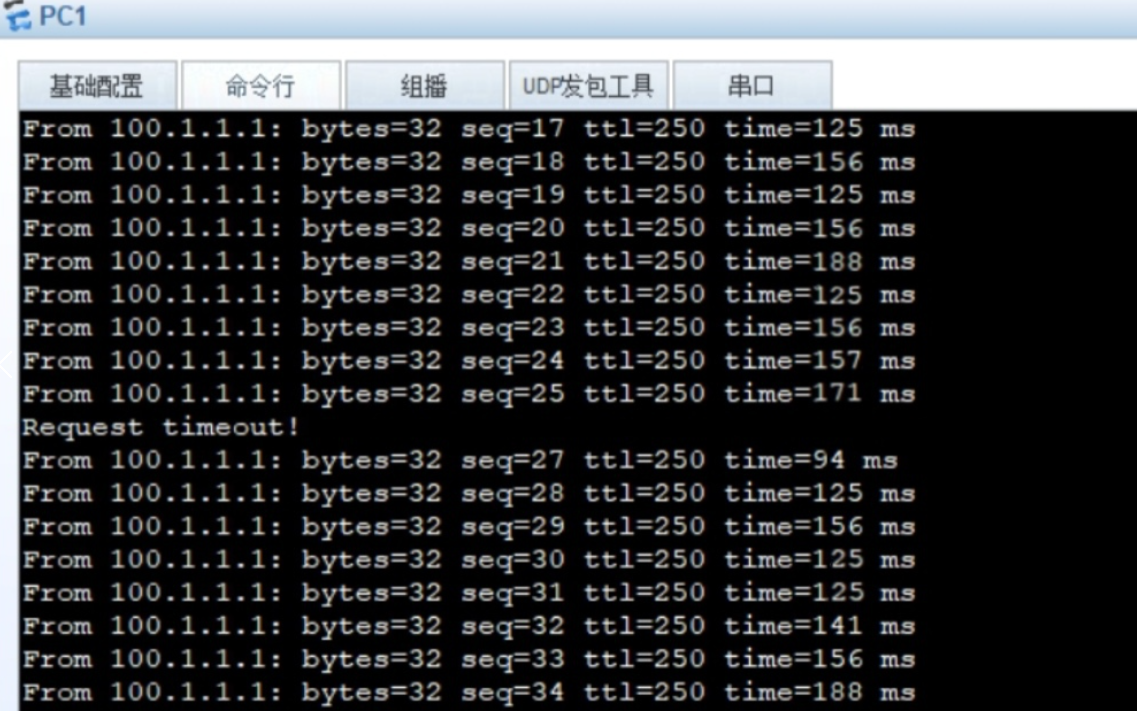

2.关闭SW1的某些接口后pingISP的环回接口：

[SW1-GigabitEthernet0/0/2]shutdown

（测试网络只存在一瞬间的丢弃，但网络并未断开）

posted @ 2025-08-20 20:44 青鸢..i 阅读(12) 评论(0) 收藏举报

刷新页面返回顶部

YuAnQingi

双机热备旁挂组网场景实验

三、实验配置

1.二层交换机配置

3.汇聚到核心层路由配置

3.VRF交换机和防火墙的路由交互

2.关闭SW1的某些接口后pingISP的环回接口：

公告
