docker搭建kkfileview过程记录

1、构建kkfileview4.4.0的docker镜像，可参考这个地址：https://blog.csdn.net/qq_15612715/article/details/146205228 的方式去制作镜像

　　参考上面的教程构建kkfileview-base的基础镜像，然后使用maven打包kkfileview的server项目，将kkFileView-4.4.0.tar.gz文件放图中Dockerfile相同层级目录下，通过docker build构建出kkfileview-4.4.0的docker镜像，并使用docker save 的命令打成tar包便于传输

 2、将kkfileview的tar包上传到指定的服务器上，使用docker load命令解压缩到成image，首先运行临时容器将其中的配置文件复制到宿主机的目录下，然后通过挂载的方式启动启动kkfileview的docker容器，相关命令如下

#运行临时容器
docker run -d -p 8012:8012 --name=kkfileview kkfileview:4.4.0

#复制配置文件到宿主机
docker cp kkfileview:/opt/kkFileView-4.4.0/config/application.properties ./config

#挂载方式运行docker容器
docker run -d --name=kkfileview --network=host --restart always -v /root/apps/kkfileview/config/application.properties:/opt/kkFileView-4.4.0/config/application.properties kkfileview:4.4.0

3、nginx配置访问路径，这一部一定要参考官方文档这里

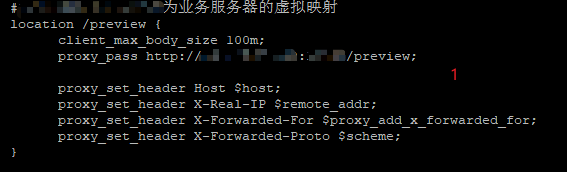

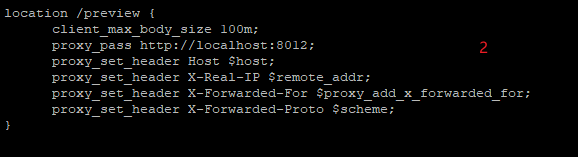

 1）笔者负责系统用的是nginx两层代理，就是第一层nginx如下图1的配置，第二层nginx用下图2的配置，其中图2的服务器为kkfileview部署的服务器

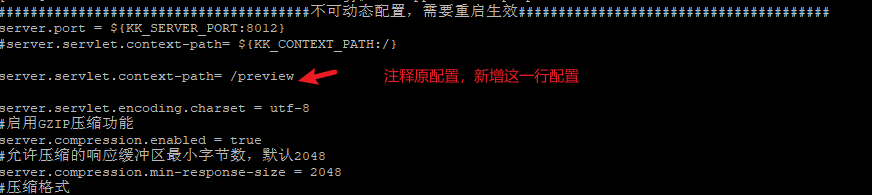

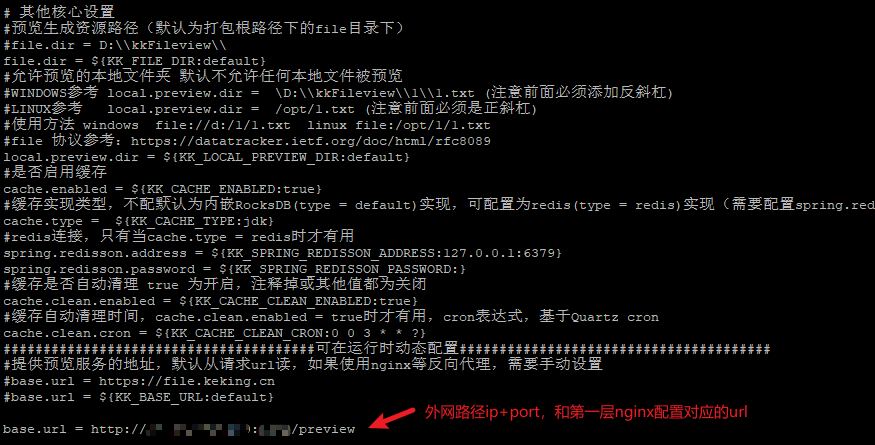

 2）按照文档所说修改挂载的application.properties的文件配置



 4、生成预览链接的代码如下

package com.scdq.env.water.ecological.controller;

import com.scdq.env.common.vo.Result;
import com.scdq.env.water.ecological.service.KkFileViewService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@RequestMapping("/kkfileview")
@Api(tags = "kkfileview预览接口")
public class KkFileViewController {

    @Resource
    private KkFileViewService kkFileViewService;

    @GetMapping("/fileDownload")
    @ApiOperation("附件下载接口")
    public void fileDownload(@RequestParam("attachmentId") String attachmentId, @RequestParam("token") String token) {
        kkFileViewService.fileDownload(attachmentId, token);
    }

    @GetMapping("/getPreviewUrl")
    @ApiOperation("获取预览地址接口")
    public Result<String> getPreviewUrl(@RequestParam("attachmentId") String attachmentId) {
        return Result.success(kkFileViewService.getPreviewUrl(attachmentId));
    }

}

package com.scdq.env.water.ecological.service.impl;

import cn.hutool.core.lang.Assert;
import cn.hutool.core.lang.Tuple;
import cn.hutool.core.util.ObjectUtil;
import cn.hutool.core.util.StrUtil;
import com.scdq.env.common.exception.BaseException;
import com.scdq.env.common.jwt.JwtUtils;
import com.scdq.env.common.log.domain.TokenConstants;
import com.scdq.env.water.ecological.service.DAttachmentService;
import com.scdq.env.water.ecological.service.KkFileViewService;
import com.scdq.env.water.ecological.utils.AuthUtil;
import com.scdq.env.water.entity.DAttachmentDO;
import com.scdq.env.water.mapper.DAttachmentMapper;
import lombok.extern.slf4j.Slf4j;
import org.jetbrains.annotations.NotNull;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.InputStream;
import java.io.OutputStream;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.util.Base64;
import java.util.Objects;

import static com.scdq.env.common.exception.SystemErrorType.*;
import static com.scdq.env.water.ecological.utils.ExceptionUtils.buildBaseException;

/**
 * <p>
 * 公共服务实现类
 * </p>
 *
 * @author zhangl
 * @since 2023-09-18
 */
@Service
@Slf4j
public class KkFileViewServiceImpl implements KkFileViewService {

    @Resource
    private DAttachmentService attachmentService;

    @Resource
    private DAttachmentMapper attachmentMapper;

    /**
     * kkfileview预览接口url前缀， http://xxxx:xxxx/preview/onlinePreview?(公网ip+port)
     */
    @Value("${onlinePreviewUrlPrefix}")
    private String onlinePreviewUrlPrefix;

    /**
     * 附件数据下载接口url前缀, http://xxxx:xxxx/jxhb/water-ecological/kkfileview/fileDownload?(公网ip+port)
     */
    @Value("${downloadAttachmentUrlPrefix}")
    private String downloadAttachmentUrlPrefix;

    /**
     * 文件数据下载接口url模板
     */
    private static final String DOWNLOAD_URL_TEMPLATE = "attachmentId={}&token={}&fullfilename={}";

    /**
     * 预览链接url模板
     */
    private static final String PREVIEW_URL_TEMPLATE = "url={}&watermarkTxt={}";

    /**
     * 文件下载
     *
     * @param attachmentId 文件id
     * @param token token
     */
    @Override
    public void fileDownload(String attachmentId, String token) {
        //token校验
        validateToken(token);
        //下载附件流
        downloadAttachmentStream(attachmentId);
    }

    /**
     * 获取预览地址
     *
     * @param attachmentId
     * @return
     */
    @Override
    public String getPreviewUrl(String attachmentId) {
        ServletRequestAttributes sra = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        if (ObjectUtil.isNull(sra)) {
            return null;
        }

        //token校验
        HttpServletRequest request = sra.getRequest();
        String token = request.getHeader(TokenConstants.AUTHENTICATION);
        Assert.isTrue(ObjectUtil.isNotNull(request) && StrUtil.isNotBlank(token), buildBaseException(ARGUMENT_NOT_VALID, "未获取到有效token"));
　　　　　　
　　　　 //获取用户名，内部是通过请求header中的AUTHENTICATION的值用JwtUtil去获取用户名
        String userName = AuthUtil.selectUserName();

        //获取附件信息
        DAttachmentDO attachment = attachmentMapper.selectById(attachmentId);
        Assert.notNull(attachment, buildBaseException(ARGUMENT_NOT_VALID, "附件不存在"));

        try {
            //创建附件下载url
            String downloadUrl = createDownloadUrl(attachmentId, token, attachment);
            log.info("文件下载地址:{}", downloadUrl);

            //创建在线预览url
            String onlinePreviewUrl = createOnlinePreviewUrl(downloadUrl, userName);
            log.info("预览地址:{}", onlinePreviewUrl);

            return onlinePreviewUrl;
        } catch (Exception e) {
            log.error("预览地址获取失败:", e);
            throw new BaseException(SYSTEM_ERROR, "预览地址获取失败");
        }
    }

    public static String base64UrlEncode(String url) {
        String base64Url = Base64.getEncoder().encodeToString(url.getBytes(StandardCharsets.UTF_8));
        return URLEncoder.encode(base64Url, StandardCharsets.UTF_8);
    }

    //鉴权
    private static void validateToken(String token) {
        try {
            JwtUtils.getUserName(token);
        } catch (Exception e) {
            log.error("鉴权失败：" + e.getMessage());
            throw new BaseException(ARGUMENT_NOT_VALID, "用户信息不存在");
        }
    }

    private void downloadAttachmentStream(String attachmentId) {
        try {
            //获取response响应流
            HttpServletResponse response = ((ServletRequestAttributes) Objects.requireNonNull(RequestContextHolder.getRequestAttributes())).getResponse();
            Assert.notNull(response, buildBaseException(REQUEST_ERROR));

            //获取附件信息及附件输入流
            Tuple tuple = attachmentService.getAttachment(attachmentId);

            //获取附件输入流
            InputStream inputStream = tuple.get(0);
            //获取到附件信息对象
            DAttachmentDO attachmentDO = tuple.get(1);

            // 设置响应头信息，告诉前端浏览器下载文件
            if (response != null) {
                response.setContentType("application/octet-stream;charset=UTF-8");
                response.setCharacterEncoding("UTF-8");
                response.setHeader("Content-Disposition", "attachment;filename=" + URLEncoder.encode(attachmentDO.getFileOriginalName(), StandardCharsets.UTF_8));
                // 获取输出流进行写入数据
                OutputStream outputStream = response.getOutputStream();
                // 将输入流复制到输出流
                byte[] buffer = new byte[4096];
                int bytesRead;

                while ((bytesRead = inputStream.read(buffer)) != -1) {
                    outputStream.write(buffer, 0, bytesRead);
                }
                // 关闭流资源
                inputStream.close();
                outputStream.close();
            }
        } catch (Exception e) {
            log.error("文件下载失败：" + e.getMessage());
            throw new BaseException(SYSTEM_ERROR, "文件下载失败");
        }
    }

    @NotNull
    private String createOnlinePreviewUrl(String downloadUrl, String userName) {
        String previewTemplate = StrUtil.format(PREVIEW_URL_TEMPLATE, base64UrlEncode(downloadUrl), URLEncoder.encode(userName, StandardCharsets.UTF_8));
        return onlinePreviewUrlPrefix + previewTemplate;
    }

    @NotNull
    private String createDownloadUrl(String attachmentId, String token, DAttachmentDO attachment) {
        String downloadTemplate = StrUtil.format(DOWNLOAD_URL_TEMPLATE, attachmentId, token, URLEncoder.encode(attachment.getFileOriginalName(), StandardCharsets.UTF_8));
        return downloadAttachmentUrlPrefix + downloadTemplate;
    }

}

 注意事项：

　　1、第三步nginx的配置一定要配对，否则预览会有问题，

　　2、下载文件的downloadAttachmentUrl要用公网的地址，否则图片会无法预览

　　3、nginx的第一层匹配路径和kkfileview的application.properties中的base_url要保持一致
