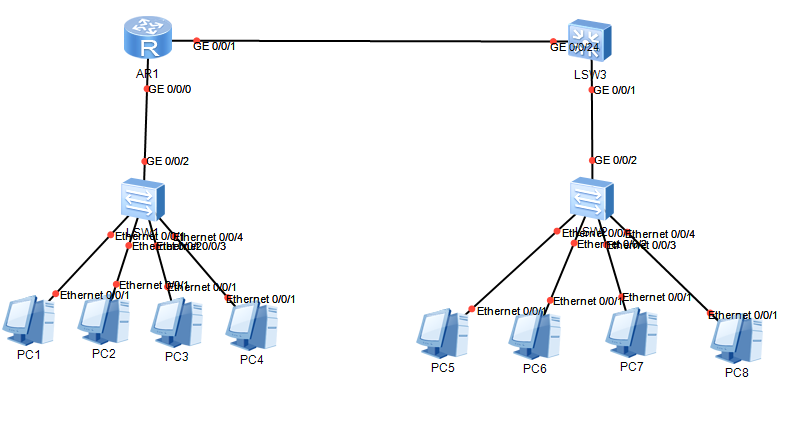

交换机-路由器代码

LSW1:
system-view

vlan batch 10 20
interface  Ethernet 0/0/1
port link-type access
port default vlan 10

interface  Ethernet 0/0/2
port link-type access
port default vlan 10

interface  Ethernet 0/0/3
port link-type access
port default vlan 20

interface  Ethernet 0/0/4
port link-type access
port default vlan 20
quit

interface GigabitEthernet 0/0/2
port link-type trunk
port trunk allow-pass vlan 10  20



LSW2:
system-view

vlan batch 30 40
interface  Ethernet 0/0/1
port link-type access
port default vlan 30

interface  Ethernet 0/0/2
port link-type access
port default vlan 30

interface  Ethernet 0/0/3
port link-type access
port default vlan 40

interface  Ethernet 0/0/4
port link-type access
port default vlan 40
quit

system-view
interface GigabitEthernet 0/0/2
port link-type trunk
port trunk allow-pass vlan 30  40



AR2220:
system-view

interface GigabitEthernet 0/0/0.10
dotlq termination vid 10
ip address 192.168.10.254 24
arp broadcast enable
quit

interface GigabitEthernet 0/0/0.20
dotlq termination vid 20
ip address 192.168.20.254 24
arp broadcast enable
quit

interface GigabitEthernet 0/0/1
ip address 172.16.1.1 24
quit
ip route-static 0.0.0.0 0.0.0.0 172.16.1.1 24
quit
ip route-static 0.0.0.0 0.0.0.0 172.16.1.2



LSW3:
system-view
sysname Hexin
vlan batch 30 40

interface GigabitEthernet 0/0/1
port link-type trunk
port trunk allow-pass vlan 30  40

interface Vlanif 30
ip address 192.168.30.254 24

interface Vlanif 40
ip address 192.168.40.254 24

interface GigabitEthernet 0/0/24
undo portswitch
portswitch
quit
interface Vlanif 1
ip address 172.16.1.2 24
quit
ip route-static 0.0.0.0 0.0.0.0 172.16.1.1
