第一个mybatis程序

思路：搭建环境->导入mybatis-->编写代码-->测试

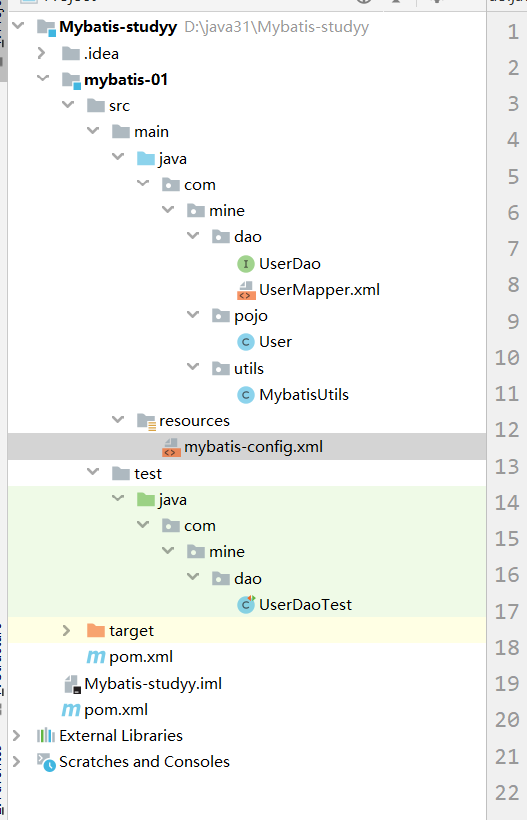

项目总体结构





1）搭建环境

搭建数据库

CREATE DATABASE `mybatis`;
USE `mybatis`;
CREATE TABLE `user`(
  `id` INT(20) NOT NULL PRIMARY KEY,
  `name` VARCHAR(30) DEFAULT NULL,
  `pwd` VARCHAR(30) DEFAULT NULL
)ENGINE=INNODB DEFAULT CHARSET=utf8;

INSERT INTO `user`(`id`,`name`,`pwd`) VALUES
(1,'张三','123456'),
(2,'李四','123459'),
(3,'王五','123450')

2 ）新建项目

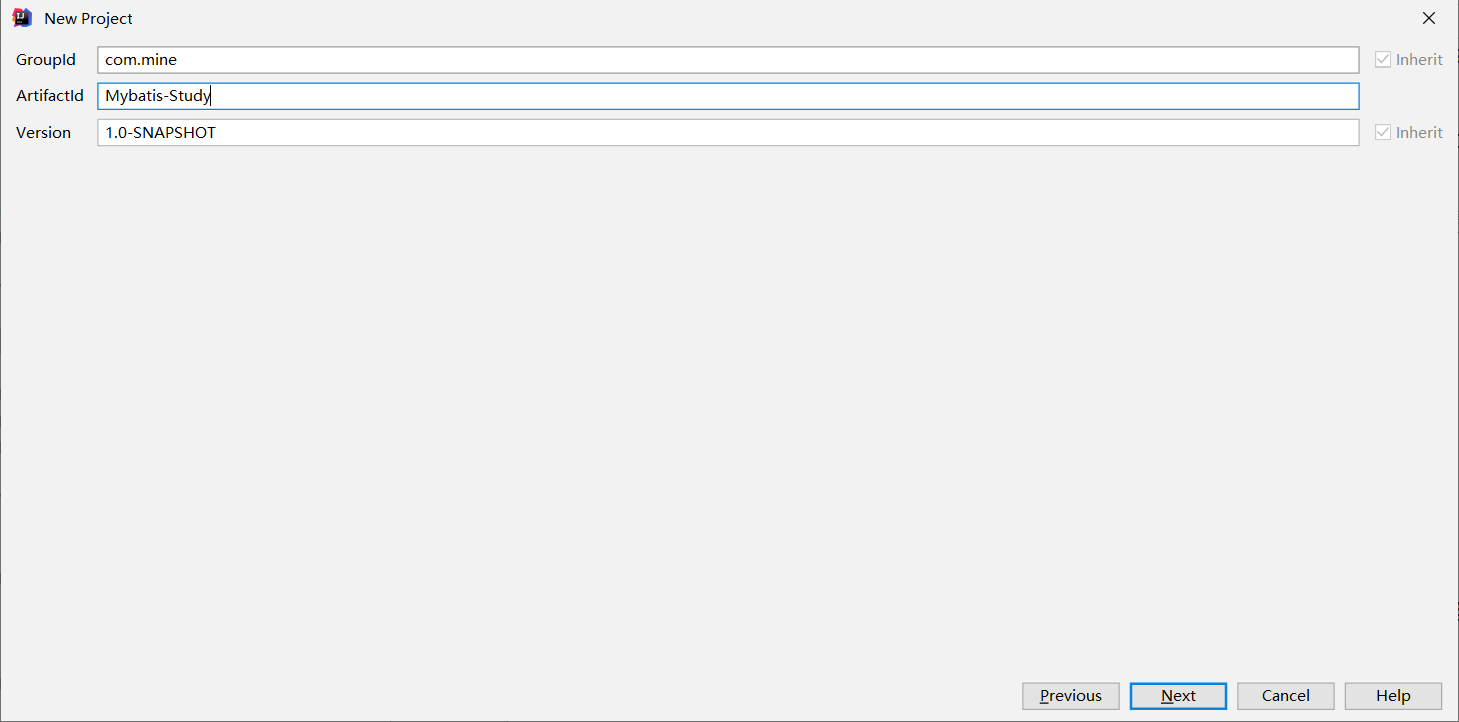

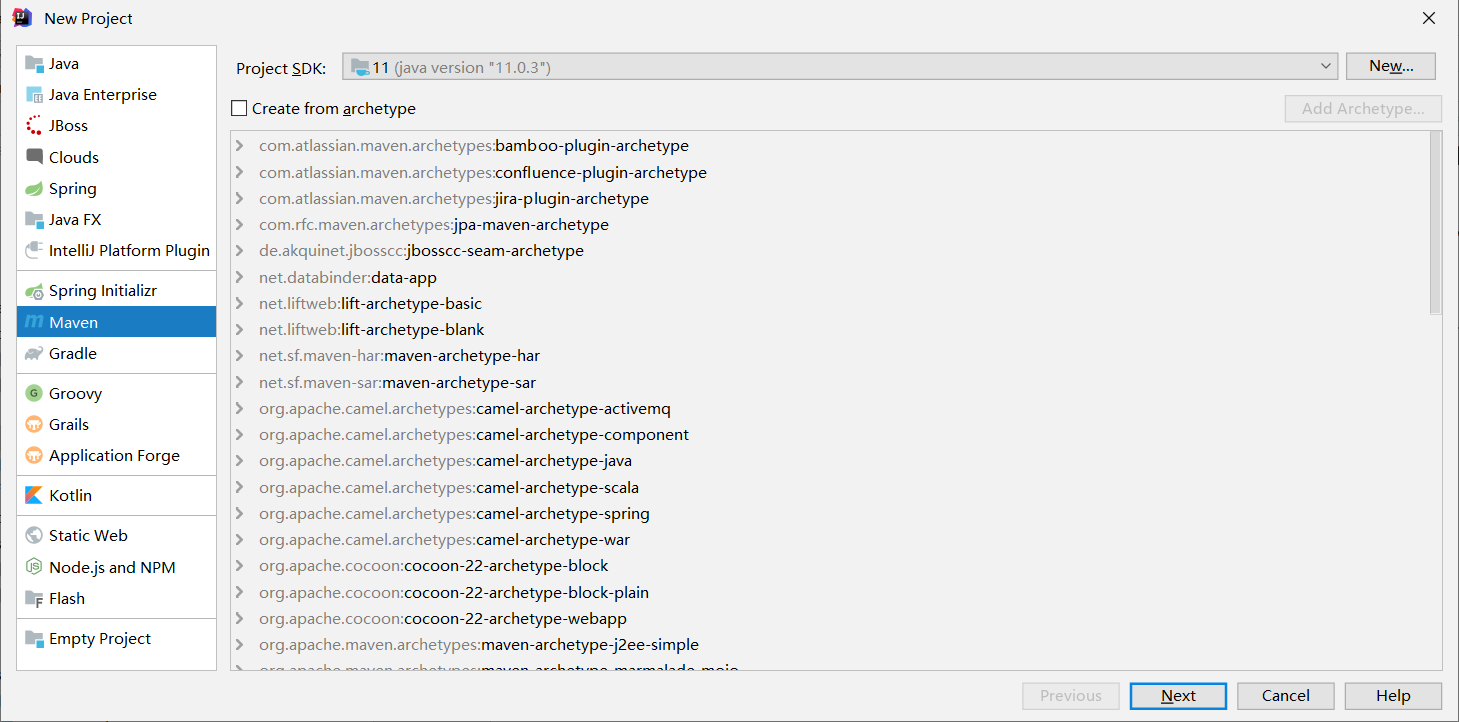

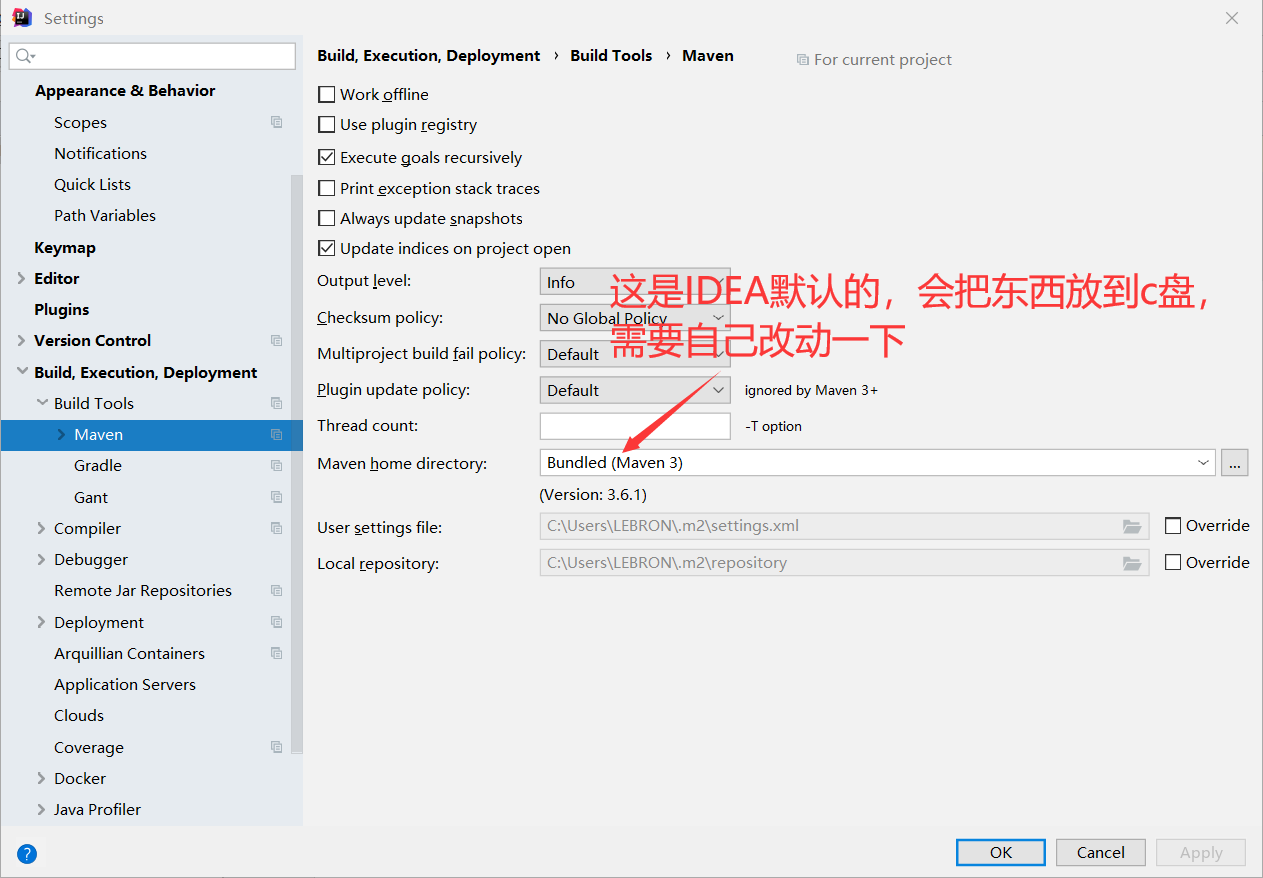

2.1)新建普通maven项目











 2.2删除src目录

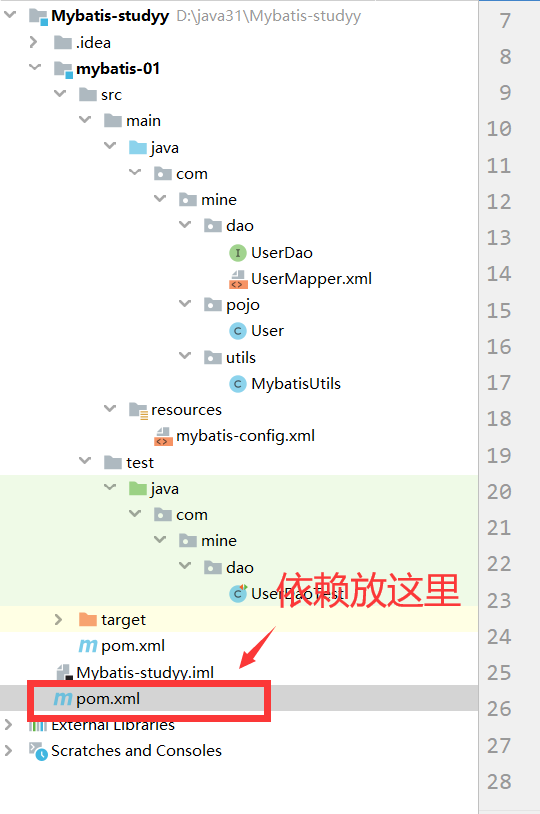

 2.3导入依赖







<!--   导入依赖 -->
    <dependencies>
<!--        mysql驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.46</version>
        </dependency>
<!--        mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
<!--        junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
    </dependencies>

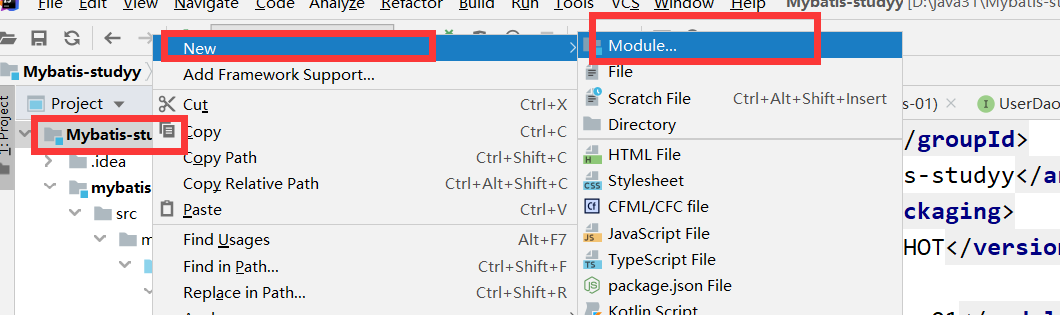

2.4创建核心模块

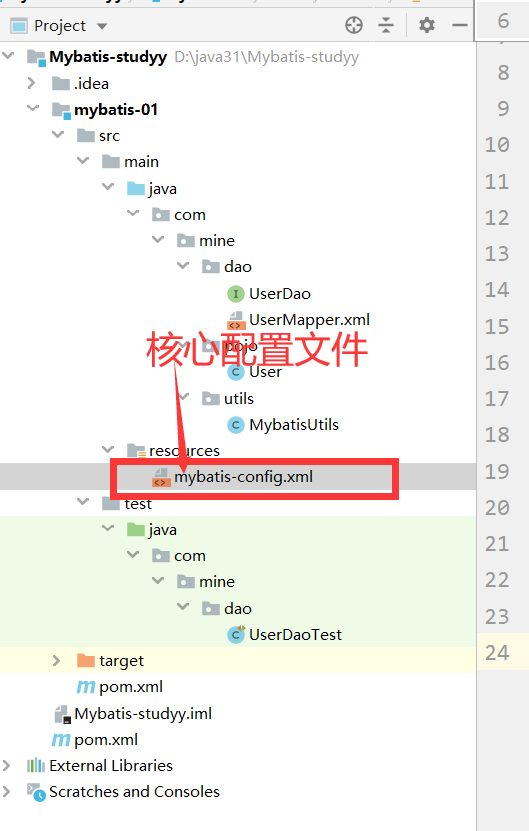

•  编写mybatis的核心配置文件





 注意：如果连接不上数据库报错 把useSSL=true 改为useSSL=false mysql和idea版本不兼容导致

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<!--核心配置文件-->
<configuration>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=true&amp;useUnicode=true&amp;characterEncoding=UTF-8"/>
                <property name="username" value="root"/>
                <property name="password" value="123456"/>
            </dataSource>
        </environment>
    </environments>

</configuration>

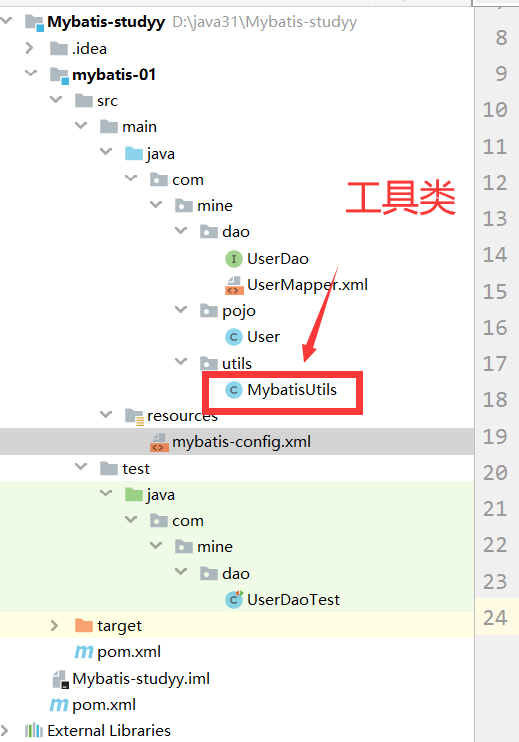

• 编写mybatis的工具类





public class MybatisUtils {
    private static SqlSessionFactory sqlSessionFactory;
    static {

        try {
            // 获取sqlsessionFactory对象

            // 采购建造工厂的原材料
            String resource = "mybatis-config.xml";
            // 把原材料运到目的地
            InputStream inputStream = Resources.getResourceAsStream(resource);
            // 请建筑工人SqlSessionFactoryBuilder去造工厂
             sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    public static SqlSession getSqlSession() {
        // 打开工厂开始生产产品sqlsession
        return sqlSessionFactory.openSession();
    }
}



3 编写代码

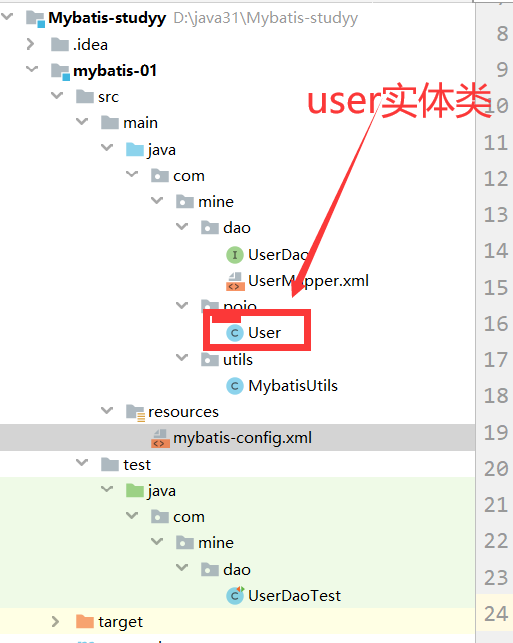

实体类





package com.mine.pojo;

public class User {
    private int id;
    private String name;
    private String pwd;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPwd() {
        return pwd;
    }

    public void setPwd(String pwd) {
        this.pwd = pwd;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", pwd='" + pwd + '\'' +
                '}';
    }
}

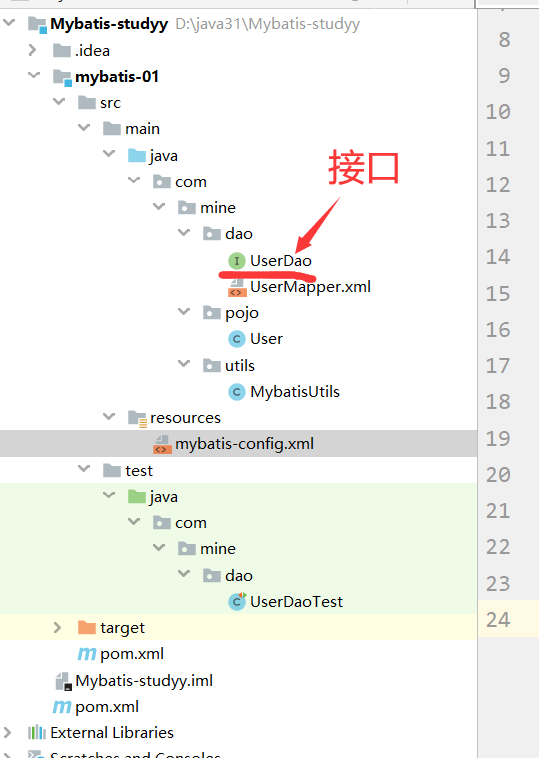

接口





package com.mine.dao;

import com.mine.pojo.User;

import java.util.List;

public interface UserDao {
    List<User> getUserList();

}

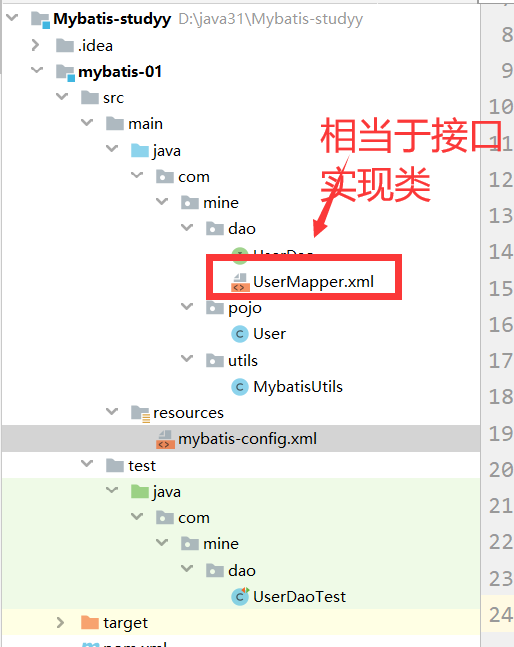

• 接口实现类由原来的impl转换为一个mapper配置文件





<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--namespace=绑定一个对应的dao接口/mapperjiekou -->
<!--这句话相当于原来的实现接口-->
<mapper namespace="com.mine.dao.UserDao">
<!--    查询语句，id对应以前的方法名字-->
    <select id="getUserList" resultType="com.mine.pojo.User">
    select * from mybatis.user;
  </select>
</mapper>

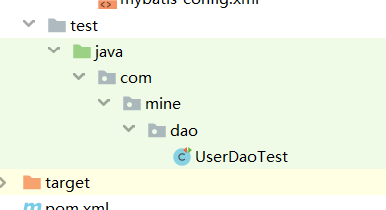

4：测试







public class UserDaoTest {
    @Test
    public void test(){
        // 第一步，获得sqlSession对象
        SqlSession sqlSession = MybatisUtils.getSqlSession();

        // 执行sql
        UserDao mapper = sqlSession.getMapper(UserDao.class);
        List<User> userList = mapper.getUserList();

        for (User user : userList) {
            System.out.println(user);
        }

        // 关闭sqlSession
        sqlSession.close();


    }
}

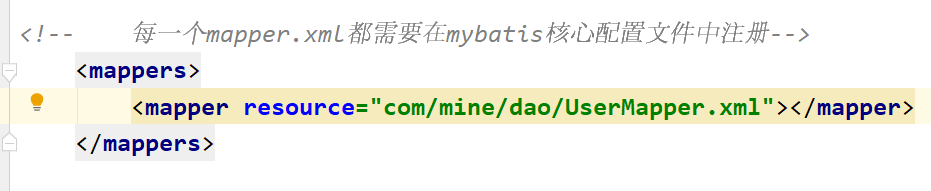

注意点：1)org.apache.ibatis.binding.BindingException: Type interface com.mine.dao.UserDao is not known to the MapperRegistry.

错误原因及解决方案（相当于写javaweb的时候没有去web.xml中注册servlet/filter/listener）

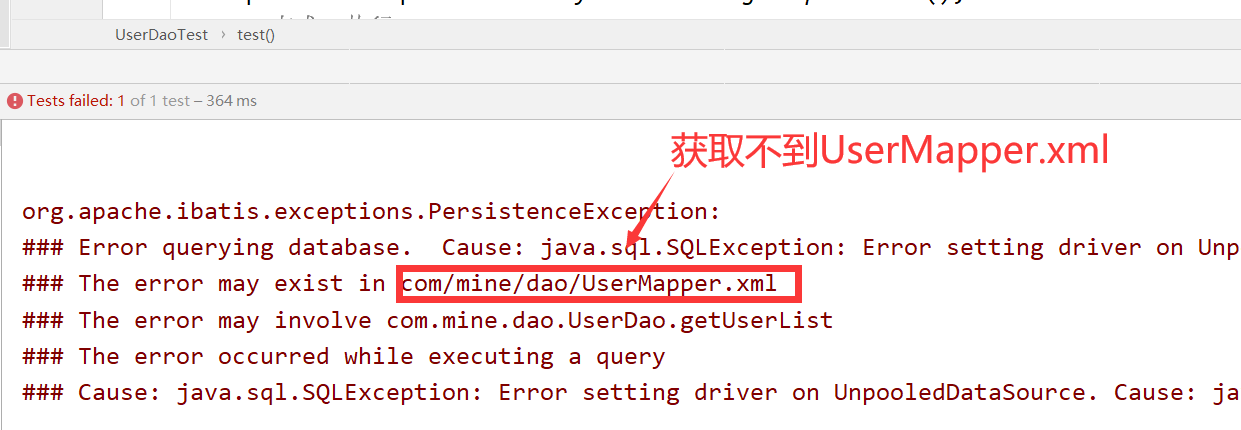

 2)



 错误原因及解决方案

maven默认查找不是在我们自己写的这里，会被过滤掉

解决：pom.xml中添加如下代码让我们写的文件也能被查找到

 <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
