SSM整合 -2025/1/22

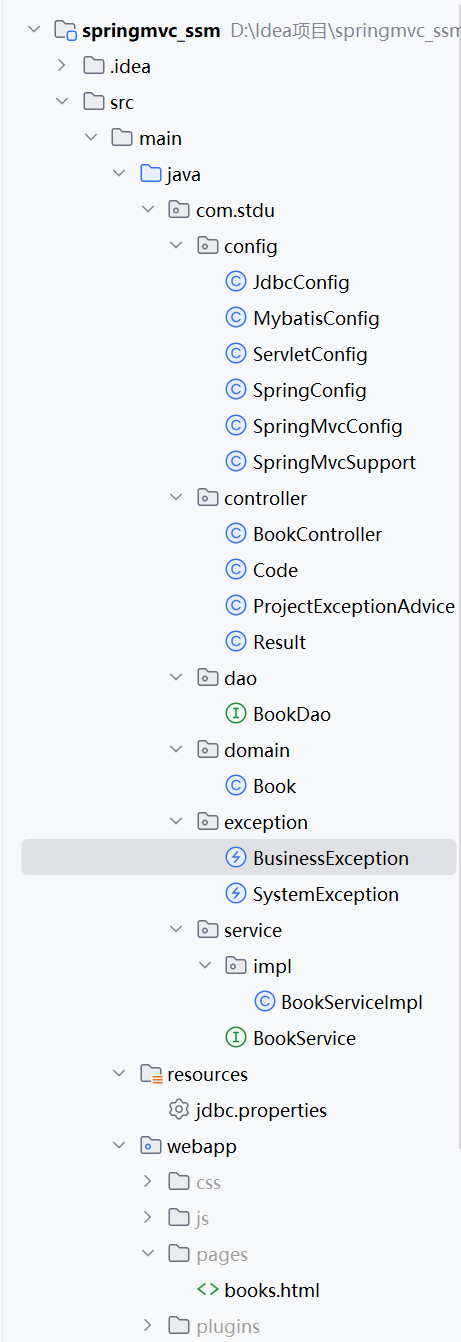

整体框架

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.stdu</groupId>
    <artifactId>springmvc_ssm</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.0</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.5</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.8</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.25</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <path>/</path>
                </configuration>
            </plugin>
        </plugins>

    </build>

</project>

JdbcConfig

package com.stdu.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;

public class JdbcConfig {
    @Value("${jdbc.driver}")
    private String driver;

    @Value("${jdbc.url}")
    private String url;

    @Value("${jdbc.username}")
    private String username;

    @Value("${jdbc.password}")
    private String password;

    /**
     * 创建数据源实例
     *
     * 该方法使用Druid数据源组件来创建一个配置好的数据源实例
     * Druid是一个高性能的数据库连接池，它能够提供数据库连接的配置、获取和管理等功能
     *
     * @return DataSource 返回一个配置好的数据源实例
     */
    @Bean
    public DataSource createDataSource(){
        // 创建一个Druid数据源实例
        DruidDataSource dataSource = new DruidDataSource();

        // 设置数据库驱动类名
        dataSource.setDriverClassName(driver);
        // 设置数据库连接URL
        dataSource.setUrl(url);
        // 设置数据库用户名
        dataSource.setUsername(username);
        // 设置数据库密码
        dataSource.setPassword(password);

        // 返回配置好的Druid数据源实例
        return dataSource;
    }


    @Bean
    public PlatformTransactionManager createTransactionManager(DataSource dataSource){
        DataSourceTransactionManager transactionManager = new DataSourceTransactionManager();
        transactionManager.setDataSource(dataSource);
        return transactionManager;
    }
}

MybatisConfig

package com.stdu.config;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.mapper.MapperScannerConfigurer;
import org.springframework.context.annotation.Bean;

import javax.sql.DataSource;

/**
 * Mybatis配置类，用于创建MyBatis相关的Spring配置组件。
 */
public class MybatisConfig {

    /**
     * 创建SqlSessionFactoryBean实例
     *
     * 该方法用于初始化并返回一个SqlSessionFactoryBean实例，该实例负责创建SqlSession。
     * SqlSessionFactoryBean需要配置数据源和类型别名包路径。
     *
     * @param dataSource 数据源实例，用于数据库连接
     * @return SqlSessionFactoryBean 配置好的SqlSessionFactoryBean实例
     */
    @Bean
    public SqlSessionFactoryBean createSqlSessionFactoryBean(DataSource dataSource) {
        // 初始化SqlSessionFactoryBean
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();

        // 设置数据源
        sqlSessionFactoryBean.setDataSource(dataSource);
        // 设置实体类所在的包路径，以便自动扫描并注册别名
        sqlSessionFactoryBean.setTypeAliasesPackage("com.stdu.domain");

        // 返回配置好的SqlSessionFactoryBean实例
        return sqlSessionFactoryBean;
    }

    /**
     * 创建MapperScannerConfigurer实例
     *
     * 该方法用于初始化并返回一个MapperScannerConfigurer实例，该实例负责扫描指定包下的所有Mapper接口，
     * 并将它们注册为Spring的Bean。
     *
     * @return MapperScannerConfigurer 配置好的MapperScannerConfigurer实例
     */
    @Bean
    public MapperScannerConfigurer createMapperScannerConfigurer() {
        // 初始化MapperScannerConfigurer
        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();

        // 设置基础包路径，用于扫描Mapper接口
        mapperScannerConfigurer.setBasePackage("com.stdu.dao");

        // 返回配置好的MapperScannerConfigurer实例
        return mapperScannerConfigurer;
    }
}

ServletConfig

package com.stdu.config;

import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

import javax.servlet.Filter;

/**
 * Servlet配置类，用于初始化Spring MVC的DispatcherServlet和相关过滤器。
 * 该类继承自AbstractAnnotationConfigDispatcherServletInitializer，以简化Spring MVC的配置。
 */
public class ServletConfig extends AbstractAnnotationConfigDispatcherServletInitializer {

    /**
     * 获取根配置类
     *
     * 该方法返回Spring应用上下文的根配置类，通常包含全局的Bean定义和配置。
     *
     * @return Class<?>[] 根配置类数组
     */
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{SpringConfig.class};
    }

    /**
     * 获取Servlet配置类
     *
     * 该方法返回Spring MVC的配置类，用于配置DispatcherServlet相关的Bean。
     *
     * @return Class<?>[] Servlet配置类数组
     */
    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringMvcConfig.class};
    }

    /**
     * 获取Servlet映射路径
     *
     * 该方法返回DispatcherServlet的映射路径，指定其拦截的URL模式。
     *
     * @return String[] 映射路径数组
     */
    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }

    /**
     * 获取Servlet过滤器
     *
     * 该方法返回一组Servlet过滤器，这些过滤器会在请求到达DispatcherServlet之前处理请求。
     * 这里配置了一个字符编码过滤器，确保所有请求都使用UTF-8编码。
     *
     * @return Filter[] 过滤器数组
     */
    @Override
    protected Filter[] getServletFilters() {
        // 创建字符编码过滤器，并设置编码为UTF-8
        CharacterEncodingFilter characterEncodingFilter = new CharacterEncodingFilter();
        characterEncodingFilter.setEncoding("UTF-8");

        // 返回配置好的过滤器数组
        return new Filter[]{characterEncodingFilter};
    }
}

SpringConfig

package com.stdu.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@ComponentScan({"com.stdu.service","com.stdu.dao"})
@PropertySource("classpath:jdbc.properties")
@Import({JdbcConfig.class, MybatisConfig.class})
@EnableTransactionManagement
public class SpringConfig {

}

SpringMvcConfig

package com.stdu.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

@Configuration
@ComponentScan({"com.stdu.controller","com.stdu.config"})
@EnableWebMvc
public class SpringMvcConfig {
}

SpringMvcSupport

package com.stdu.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

@Configuration
public class SpringMvcSupport extends WebMvcConfigurationSupport {
    ////设置静态资源访问过滤，当前类需要设置为配置类，并被扫描加载
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        //当访问/pages/????时候，从/pages目录下查找内容
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
        registry.addResourceHandler("/js/**").addResourceLocations("/js/");
        registry.addResourceHandler("/css/**").addResourceLocations("/css/");
        registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
    }
}

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/lxy?useSSL=false
jdbc.username=root
jdbc.password=123456

Result&Code

package com.stdu.controller;

public class Code {
    public static final Integer SAVE_OK = 20011;
    public static final Integer DELETE_OK = 20021;
    public static final Integer UPDATE_OK = 20031;
    public static final Integer GET_OK = 20041;

    public static final Integer SAVE_ERROR = 20010;
    public static final Integer DELETE_ERROR = 20020;
    public static final Integer UPDATE_ERROR = 20030;
    public static final Integer GET_ERROR = 20040;

    public static final Integer SYSTEM_UNKNOW_EXCEPTION = 50001;
}

package com.stdu.controller;

public class Result {
    private Object data;
    private Integer code;
    private String msg;

    public Result() {
    }

    public Result(Object data, Integer code, String msg) {
        this.data = data;
        this.code = code;
        this.msg = msg;
    }

    public Result(Object data, Integer code){
        this.data = data;
        this.code = code;
    }

    /**
     * 获取
     * @return data
     */
    public Object getData() {
        return data;
    }

    /**
     * 设置
     * @param data
     */
    public void setData(Object data) {
        this.data = data;
    }

    /**
     * 获取
     * @return code
     */
    public Integer getCode() {
        return code;
    }

    /**
     * 设置
     * @param code
     */
    public void setCode(Integer code) {
        this.code = code;
    }

    /**
     * 获取
     * @return msg
     */
    public String getMsg() {
        return msg;
    }

    /**
     * 设置
     * @param msg
     */
    public void setMsg(String msg) {
        this.msg = msg;
    }

    public String toString() {
        return "Result{data = " + data + ", code = " + code + ", msg = " + msg + "}";
    }
}

ProjectExceptionAdvice


package com.stdu.controller;
import com.stdu.exception.BusinessException;
import com.stdu.exception.SystemException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

//@RestControllerAdvice用于标识当前类为REST风格对应的异常处理器
@RestControllerAdvice
public class ProjectExceptionAdvice {
    //@ExceptionHandler用于设置当前处理器类对应的异常类型
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex){
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(ex.getCode(),null,ex.getMessage());
    }

    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex){
        return new Result(ex.getCode(),null,ex.getMessage());
    }

    //除了自定义的异常处理器，保留对Exception类型的异常处理，用于处理非预期的异常
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex){
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(Code.SYSTEM_UNKNOW_EXCEPTION,null,"系统繁忙，请稍后再试！");
    }
}

BusinessException & SystemException

package com.stdu.exception;

//自定义异常处理器，用于封装异常信息，对异常进行分类
public class BusinessException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public BusinessException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public BusinessException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}





package com.stdu.exception;

//自定义异常处理器，用于封装异常信息，对异常进行分类
public class SystemException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public SystemException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public SystemException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}

posted @ 2025-01-30 20:57 XYu1230 阅读(20) 评论(0) 收藏举报

刷新页面返回顶部

XYu1230

SSM整合 -2025/1/22

整体框架

pom.xml

JdbcConfig

MybatisConfig

ServletConfig

SpringConfig

SpringMvcConfig

SpringMvcSupport

jdbc.properties

Result&Code

ProjectExceptionAdvice

BusinessException & SystemException

公告
