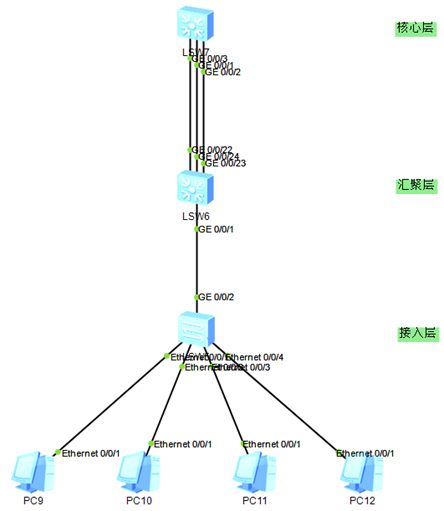

实验 6





PC

192.168.30.1、192.168.30.2

192.168.40.1、192.168.40.2



S3700
system-view
vlan batch 30 40

int e0/0/1
port link-type access
port default vlan 30

int e0/0/2
port link-type access
port default vlan 30

int e0/0/3
port link-type access
port default vlan 40

int e0/0/4
port link-type access
port default vlan 40

int g0/0/2
port link-type trunk
port trunk allow-pass vlan 30 40



S5700-1
system-view
vlan batch 30 40

int g0/0/1
port link-type trunk

port trunk allow-pass vlan 30 40

interface Eth-Trunk 1
mode lacp-static

interface GigabitEthernet 0/0/24
eth-trunk 1
interface GigabitEthernet 0/0/23
eth-trunk 1
interface GigabitEthernet 0/0/22
eth-trunk 1

interface Eth-Trunk 1
port link-type trunk
port trunk allow-pass vlan 30 40



S5700-2
system-view
vlan batch 30 40

interface vlanif 30
ip address 192.168.30.254 24
quit
interface vlanif 40
ip address 192.168.40.254 24

interface Eth-Trunk 1
mode lacp-static

int g0/0/1
eth-trunk 1
int g0/0/2
eth-trunk 1
int g0/0/3
eth-trunk 1
quit

interface Eth-Trunk 1
port link-type trunk
port trunk allow-pass vlan 30 40
