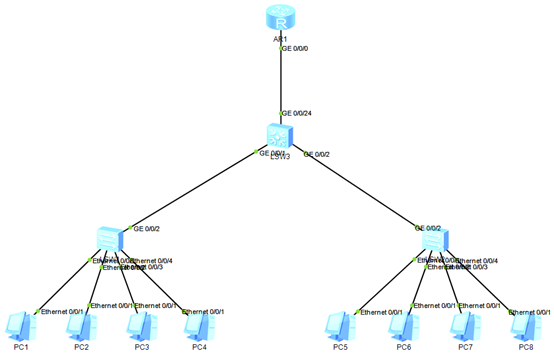

实验 4





PC

192.168.10.1、192.168.10.2

192.168.20.1、192.168.20.2

192.168.10.3、192.168.10.4

192.168.20.3、192.168.20.4



S3700

system-view

vlan batch 10 20

int e0/0/1

port link-type access

port default vlan 10

int e0/0/2

port link-type access

port default vlan 10

int e0/0/3

port link-type access

port default vlan 20

int e0/0/4

port link-type access

port default vlan 20

int g0/0/2

port link-type trunk

port trunk allow-pass vlan 10 20



S5700

vlan batch 10 20

int g0/0/1

port link-type trunk

port trunk allow-pass vlan 10 20

int g0/0/2

port link-type trunk

port trunk allow-pass vlan 10 20

int g0/0/24

port link-type trunk

port trunk allow-pass vlan 10 20



AR2220

system-view

int g0/0/0.10

dot1q termination vid 10

ip address 192.168.10.254 24

arp broadcast enable

int g0/0/0.20

dot1q termination vid 20

ip address 192.168.20.254 24

arp broadcast enable
