Spring-boot整体流程解析

解析源码版本：spring-boot-1.5.7.RELEASE，spring-framework-4.3.11.RELEASE

一、整体流程

1.初始化：初始化器和监听器

org.springframework.boot.SpringApplication#initialize

2.启动监听器

SpringApplicationRunListeners listeners = getRunListeners(args);

listeners.starting();

3.创建环境并载入配置

ConfigurableEnvironment environment = prepareEnvironment(listeners,applicationArguments);

4.创建上下文（同时创建了beanFactory）

context = createApplicationContext();

5.准备上下文，注册bean定义

prepareContext(context, environment, listeners, applicationArguments,

printedBanner);

5.1 设置环境

context.setEnvironment(environment);

5.2 设置bean名称生成器、资源加载器

postProcessApplicationContext(context);

5.3 应用初始化器

applyInitializers(context);

5.4 广播事件：上下文准备完成

listeners.contextPrepared(context);

5.5 上下文载入资源（注册bean定义）

load(context, sources.toArray(new Object[sources.size()]));

5.6 广播事件：上下文加载完成

listeners.contextLoaded(context);

6.刷新上下文(注入bean)

refreshContext(context);



源码：org.springframework.boot.SpringApplication#run(java.lang.String...)

public ConfigurableApplicationContext run(String... args) {
        StopWatch stopWatch = new StopWatch();
        stopWatch.start();
        ConfigurableApplicationContext context = null;
        FailureAnalyzers analyzers = null;
        configureHeadlessProperty();
        SpringApplicationRunListeners listeners = getRunListeners(args);
        // 2.启动监听器
        listeners.starting();
        try {
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(
                    args);
            // 3.创建环境并载入配置
            ConfigurableEnvironment environment = prepareEnvironment(listeners,
                    applicationArguments);
            Banner printedBanner = printBanner(environment);
            // 4.创建上下文（同时基类构造中创建了beanFactory）
            context = createApplicationContext();
            analyzers = new FailureAnalyzers(context);
            // 5.准备上下文，注册bean定义
            prepareContext(context, environment, listeners, applicationArguments,
                    printedBanner);
            // 6.刷新上下文(注入bean)
            refreshContext(context);
            afterRefresh(context, applicationArguments);
            listeners.finished(context, null);
            stopWatch.stop();
            if (this.logStartupInfo) {
                new StartupInfoLogger(this.mainApplicationClass)
                        .logStarted(getApplicationLog(), stopWatch);
            }
            return context;
        }
        catch (Throwable ex) {
            handleRunFailure(context, listeners, analyzers, ex);
            throw new IllegalStateException(ex);
        }
    }



二、刷新上下文过程

// 6.1刷新前准备，比如重置状态、初始化属性 Prepare this context for refreshing.

prepareRefresh();

// 6.2获取刷新后的bean工厂，子类可扩展 Tell the subclass to refresh the internal bean factory.

ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

// 6.3用上下文、环境、内部核心bean等来初始化bean工厂 Prepare the bean factory for use in this context.

prepareBeanFactory(beanFactory);



// 6.4 添加bean的扩展处理 Allows post-processing of the bean factory in context subclasses.

postProcessBeanFactory(beanFactory);



// 6.5 执行bean工厂的扩展处理器 Invoke factory processors registered as beans in the context.

invokeBeanFactoryPostProcessors(beanFactory);



// 6.6添加bean扩展处理器 Register bean processors that intercept bean creation.

registerBeanPostProcessors(beanFactory);



// 6.7初始化messageSource Initialize message source for this context.

initMessageSource();



// 6.8初始化Application事件发布器 Initialize event multicaster for this context.

initApplicationEventMulticaster();



// 6.9初始化其他特殊的bean Initialize other special beans in specific context subclasses.

onRefresh();



// 6.10 注册监听器 Check for listener beans and register them.

registerListeners();



// 6.11 完成beanFactory初始化 Instantiate all remaining (non-lazy-init) singletons.

finishBeanFactoryInitialization(beanFactory);



// 6.12 完成刷新,发布完成事件 Last step: publish corresponding event.

finishRefresh();



源码：org.springframework.context.support.AbstractApplicationContext#refresh

public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// 6.1刷新前准备，比如重置状态、初始化属性 Prepare this context for refreshing.
			prepareRefresh();

			// 6.2获取刷新后的bean工厂，子类可扩展 Tell the subclass to refresh the internal bean factory.
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// 6.3用上下文、环境、内部核心bean等来初始化bean工厂 Prepare the bean factory for use in this context.
			prepareBeanFactory(beanFactory);

			try {
				// 6.4 添加bean的扩展处理 Allows post-processing of the bean factory in context subclasses.
				postProcessBeanFactory(beanFactory);

				//  6.5 执行bean工厂的扩展处理器 Invoke factory processors registered as beans in the context.
				invokeBeanFactoryPostProcessors(beanFactory);

				// 6.6添加bean扩展处理器 Register bean processors that intercept bean creation.
				registerBeanPostProcessors(beanFactory);

				// 6.7初始化messageSource Initialize message source for this context.
				initMessageSource();

				// 6.8初始化Application事件发布器 Initialize event multicaster for this context.
				initApplicationEventMulticaster();

				// 6.9初始化其他特殊的bean Initialize other special beans in specific context subclasses.
				onRefresh();

				// 6.10 注册监听器 Check for listener beans and register them.
				registerListeners();

				// 6.11 完成beanFactory初始化 Instantiate all remaining (non-lazy-init) singletons.
				finishBeanFactoryInitialization(beanFactory);

				// 6.12 完成刷新,发布完成事件 Last step: publish corresponding event.
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}

　　

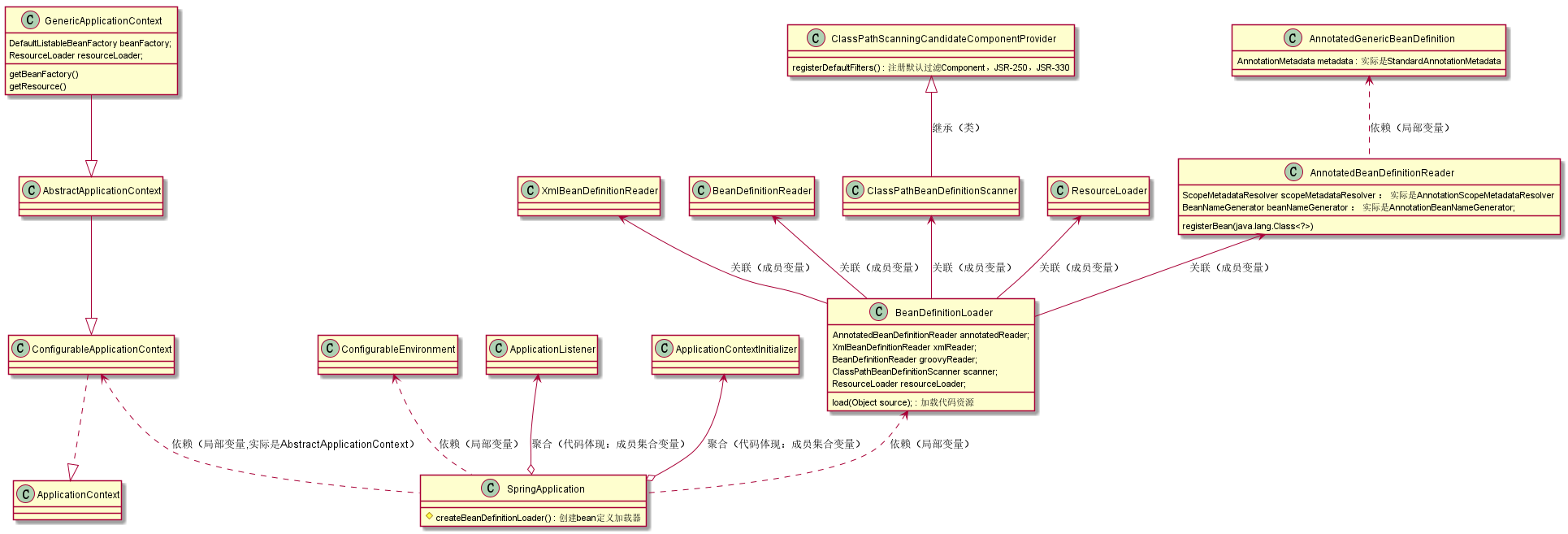

三、类图分析

1.整体过程





2.解析扫描启动类
