LaTeX 表格

• TablesGenerator.com

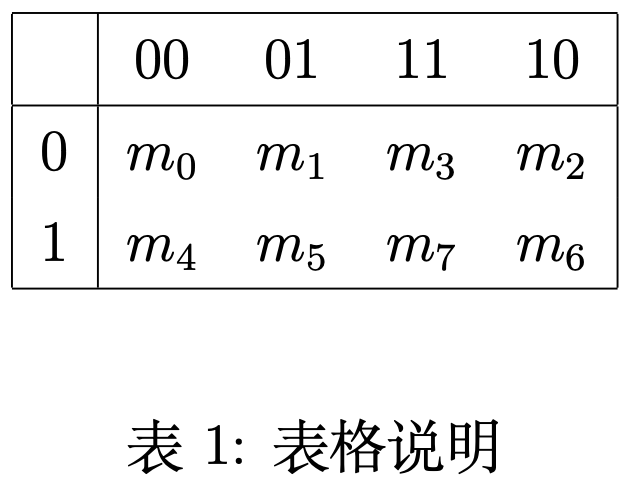

普通表格

Body:

\begin{table}[h]  % h: here, t: top, b: bottom, p: page
\begin{center}
% 一个字母代表一列
\begin{tabular}{|c|cccc|}  % c: center, l: left, r: right
    \hline
      & 00 & 01 & 11 & 10 \\
    \hline
    0 & $m_0$ & $m_1$ & $m_3$ & $m_2$ \\
    1 & $m_4$ & $m_5$ & $m_7$ & $m_6$ \\
    \hline
\end{tabular}
\end{center}
\caption{表格说明}
\label{tab:1}  % 引用标签
\end{table}

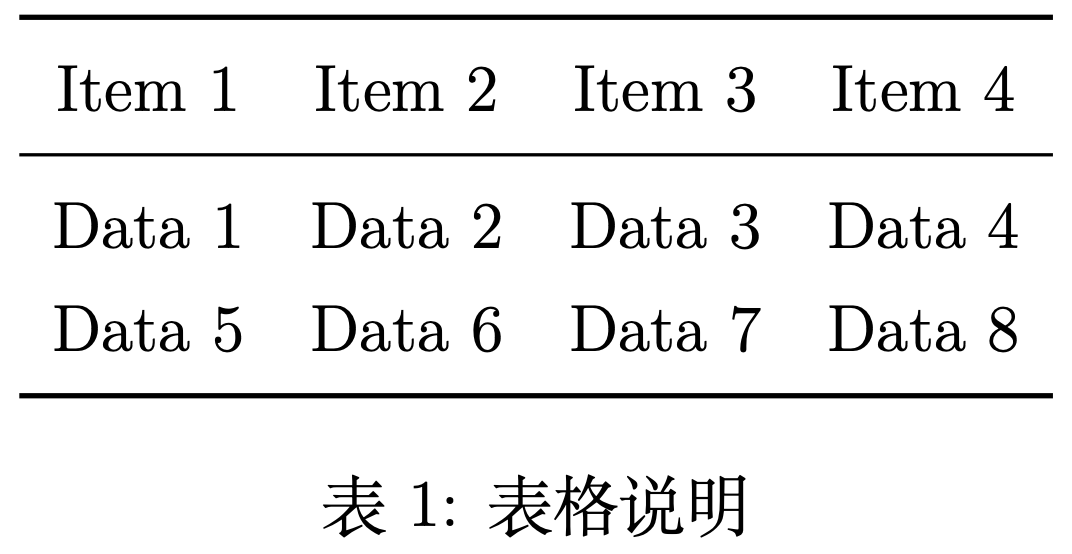

三线表

Preamble:

\usepackage{booktabs}

Body:

\begin{table}[h]
\centering
\begin{tabular}{cccc}
    \toprule     % 第一道横线
    Item 1 & Item 2 & Item 3 & Item 4 \\
    \midrule     % 第二道横线
    Data 1 & Data 2 & Data 3 & Data 4 \\
    Data 5 & Data 6 & Data 7 & Data 8 \\
    \bottomrule  % 第三道横线
\end{tabular}
\caption{表格说明}
\label{tab:2}
\end{table}

center 和 centering 的区别是：center 和上下文之间有垂直间隙，而 centering 没有

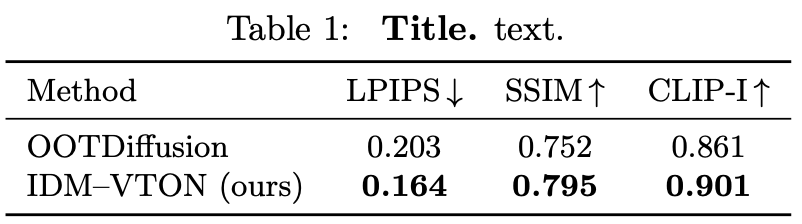

常用示例 1

\begin{table}[ht]
\centering\small
\caption{\textbf{Title.} text.}
\vspace{5pt}
\begin{tabular}{lccc}
    \toprule
    Method & LPIPS\,$\downarrow$ & SSIM\,$\uparrow$ & CLIP-I\,$\uparrow$ \\
    \midrule
    OOTDiffusion &0.203 &0.752 &0.861 \\
    {IDM–VTON} (ours)& \textbf{0.164}  & \textbf{0.795} & \textbf{0.901} \\
    \bottomrule
\end{tabular}
\label{tab:appendix_wild}
\end{table}

粗体表示最高分，下划线表示次高分

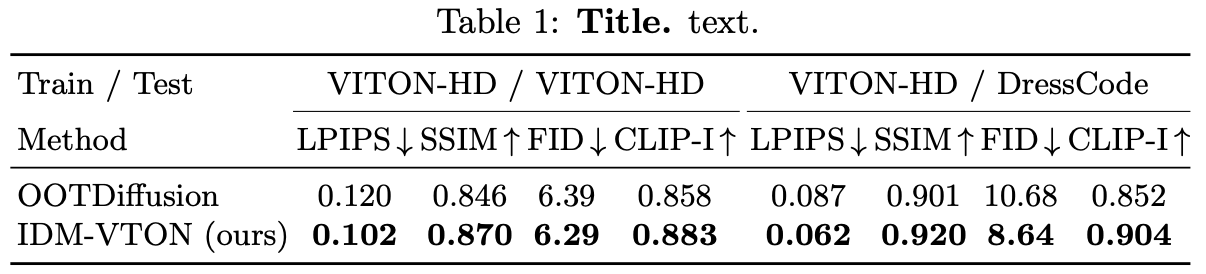

常用示例 2

\begin{table}[ht]
\centering\small
\caption{\textbf{Title.} text.}
\vspace{5pt}
\setlength\tabcolsep{1pt}
\begin{tabular}{@{}ll cccc c cccc@{}}
    \toprule

    &Train / Test & \multicolumn{4}{c}{VITON-HD / VITON-HD} && \multicolumn{4}{c}{ VITON-HD / DressCode} \\
    \cmidrule{3-6}
    \cmidrule{8-11}
    &Method & LPIPS\,$\downarrow$ & SSIM\,$\uparrow$ & FID\,$\downarrow$ & CLIP-I\,$\uparrow$ && LPIPS\,$\downarrow$ & SSIM\,$\uparrow$ & FID\,$\downarrow$ & CLIP-I\,$\uparrow$ \\

    \midrule

    &OOTDiffusion
    &  0.120  & 0.846 & 6.39 &0.858&
    &  0.087 & 0.901 & 10.68 & 0.852 \\

    &IDM-VTON~(ours)
    & \textbf{0.102}   & \textbf{0.870}  & \textbf{6.29} & \textbf{0.883} &
    & \textbf{0.062}   &  \textbf{0.920}  & \textbf{8.64} &\textbf{0.904} \\

    \bottomrule
\end{tabular}
\label{tab:appendix_viton}
\end{table}
