2024.11.18（周一）

某机器人控制程序包含一些简单的英文指令，其文法规则如下：

expression ::= direction action distance | composite

composite ::= expression and expression

direction ::= ‘up’ | ‘down’ | ‘left’ | ‘right’

action ::= ‘move’ | ‘run’

distance ::= an integer //一个整数值

如输入：up move 5，则输出“向上移动5个单位”；输入：down run 10 and left move 20，则输出“向下移动10个单位再向左移动20个单位”。

实验要求：

1. 提交类图；

2. 提交源代码；

3. 注意编程规范。

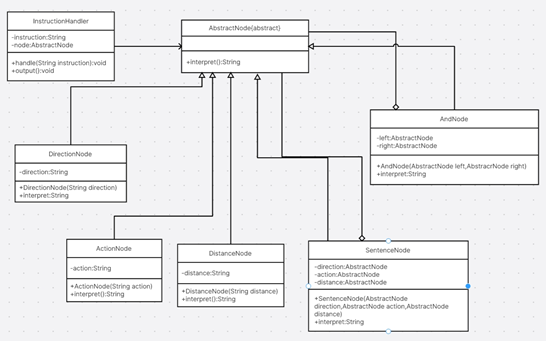

1、类图





2、源代码

#include<iostream>

#include<stack>

#include <sstream>

#include<string>

using namespace std;

class AbstractNode {

public:

    virtual string interpret()=0;

};

class ActionNode:public AbstractNode{

private:

    string action;

public:

    ActionNode(string action) {

        this->action = action;

    }

    string interpret() {

        if (action=="move") {

            return "移动";

        }

        else if (action=="run") {

            return "快速移动";

        }

        else {

            return "无效指令";

        }

    }

};

class AndNode:public AbstractNode{

private:

    AbstractNode *left; //And的左表达式

    AbstractNode *right; //And的右表达式

public:

    AndNode(AbstractNode *left, AbstractNode *right) {

        this->left = left;

        this->right = right;

    }

    //And表达式解释操作

    string interpret() {

        return left->interpret() + "再" + right->interpret();

    }

};

class DirectionNode :public AbstractNode{

private:

    string direction;

public:

    DirectionNode(string direction) {

        this->direction = direction;

    }

    //方向表达式的解释操作

    string interpret() {

        if (direction=="up") {

            return "向上";

        }

        else if (direction=="down") {

            return "向下";

        }

        else if (direction=="left") {

            return "向左";

        }

        else if (direction=="right") {

            return "向右";

        }

        else {

            return "无效指令";

        }

    }

};

class DistanceNode:public AbstractNode{

private:

    string distance;

public:

    DistanceNode(string distance) {

        this->distance = distance;

    }

    //距离表达式的解释操作

    string interpret() {

        return this->distance;

    }

};

class SentenceNode:public AbstractNode{

private:

    AbstractNode *direction;

    AbstractNode *action;

    AbstractNode *distance;



public:

    SentenceNode(AbstractNode *direction,AbstractNode *action,AbstractNode *distance) {

        this->direction = direction;

        this->action = action;

        this->distance = distance;

    }

    //简单句子的解释操作

    string interpret() {

        return direction->interpret() + action->interpret() + distance->interpret();

    }

};

class InstructionHandler {

private:

    string instruction;

    AbstractNode *node;

public:

    void handle(string instruction) {

        AbstractNode *left = NULL, *right = NULL;

        AbstractNode *direction = NULL, *action = NULL, *distance = NULL;

        stack<AbstractNode*> stack; //声明一个栈对象用于存储抽象语法树

        istringstream str1(instruction);

        istringstream str2(instruction);

        string out;

        int j=0,k=0;

        int n;

        //以空格分隔指令字符串

        while (str1 >> out) {

            j++;

        }

        n=j;

        string words[n];

        string out2;

        while (str2 >> out2) {

            words[k]=out2;

            k++;

        }

        for (int i = 0; i <n; i++) {

        //本实例采用栈的方式来处理指令，如果遇到“and”，则将其后的三个单词作为三个终结符表达式连成一个简单句子SentenceNode作为“and”的右表达式，而将从栈顶弹出的表达式作为“and”的左表达式，最后将新的“and”表达式压入栈中。

            if (words[i]=="and") {

                left = stack.top(); //弹出栈顶表达式作为左表达式

                stack.pop();

                string word1= words[++i];

                direction = new DirectionNode(word1);

                string word2 = words[++i];

                action = new ActionNode(word2);

                string word3 = words[++i];

                distance = new DistanceNode(word3);

                right = new SentenceNode(direction,action,distance); //右表达式

                stack.push(new AndNode(left,right)); //将新表达式压入栈中

            }

            //如果是从头开始进行解释，则将前三个单词组成一个简单句子SentenceNode并将该句子压入栈中

            else {

                string word1 = words[i];

                direction = new DirectionNode(word1);

                string word2 = words[++i];

                action = new ActionNode(word2);

                string word3 = words[++i];

                distance = new DistanceNode(word3);

                left = new SentenceNode(direction,action,distance);

                stack.push(left); //将新表达式压入栈中

            }

        }

        this->node = stack.top(); //将全部表达式从栈中弹出

        stack.pop();

    }



    string output() {

        string result = node->interpret(); //解释表达式

        return result;

    }

};

int main(){

    string instruction1 = "up move 5 and down run 10 and left move 5";

    string instruction2="down run 10 and left move 20";

    InstructionHandler *handler = new InstructionHandler();

    handler->handle(instruction1);

    string outString;

    outString = handler->output();

    cout<<outString<<endl;

    handler->handle(instruction2);

    outString = handler->output();

    cout<<outString<<endl;

}
