C#海康工业相机对接及问题汇总

项目背景：

7台相机通过多网口链接到同一台电脑，帧率 50+/s ，每炉次采集大概持续30s，炉次间隔2min左右，要求不能丢帧且保存为BMP格式，不能卡顿闪退，程序正常7x24小时运行。

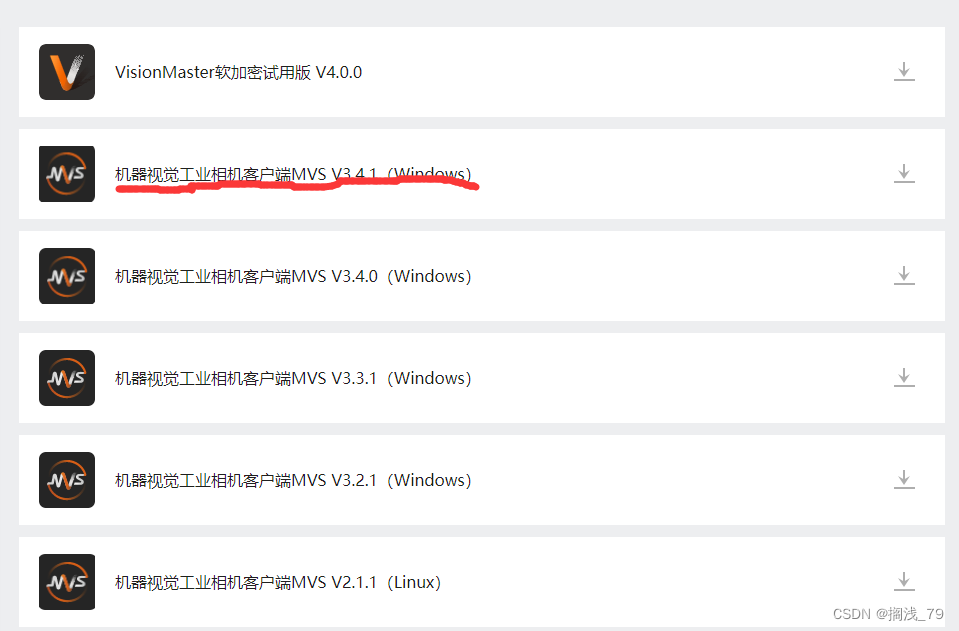

注意：首先得保证所有相机链接成功且使用MVS稳定运行不丢帧

电脑配置：

碰到的问题以及解决方式：

1、丢帧（通过MV_CC_SetImageNodeNum_NET增加节点、增加硬盘读写速率等）

2、内存飙升(无法使用Marshal.Copy内存拷贝，因为数据量大根本顶不住、只能依靠硬盘高速写入从而更快的释放指针，如果数据都存内存肯定顶不住，所以只能存文件)

3、成像异常（时间错乱）

4、内存稳定增长不下去（我这里是WPF程序，前端显示的图片比较大，每次打开没有回收，导致使用内存一直增长，每次打开新图的时候先将他释放再给新数据）



详细源码

采集
using DevComponents.DotNetBar;
using Emgu.CV;
using Emgu.CV.CvEnum;
using Emgu.CV.Dnn;
using Newtonsoft.Json;
using StackExchange.Redis;
using System;
using System.Buffers;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.ComponentModel;
using System.Configuration;
using System.Diagnostics;
using System.IO;
using System.IO.Packaging;
using System.Linq;
using System.Reflection;
using System.Reflection.Metadata;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading;
using System.Threading.Channels;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media.Media3D;
using System.Xml.Linq;
using WaveformStressPatterninSpection.Models;
using WaveformStressPatterninSpection.Models.Enums;
using WaveformStressPatterninSpection.Server.Helper;
using WaveformStressPatterninSpection.Server.HKCamera;
using WaveformStressPatterninSpection.Server.IServer;
using WaveformStressPatterninSpection.Server.Server;
using static WaveformStressPatterninSpection.Server.HKCamera.MyCamera;

namespace WaveformStressPatterninSpection.Server.Base
{
    public class HK_CameraHelper
    {
        private static readonly Lazy<HK_CameraHelper> _instance =
            new Lazy<HK_CameraHelper>(() => new HK_CameraHelper());

        // 提供全局访问点
        public static HK_CameraHelper Instance => _instance.Value;

        // 通过属性注入依赖（公共可写属性）
        public ICancheService _cancheService { get; set; }
        MyCamera.cbOutputExdelegate cbImage;

        int m_nDevNum;
        public MyCamera[] m_pMyCamera;
        MyCamera.MV_CC_DEVICE_INFO[] m_pDeviceInfo;
        MyCamera.MV_CC_DEVICE_INFO_LIST m_pDeviceList = new MyCamera.MV_CC_DEVICE_INFO_LIST();
        public bool m_bGrabbing = false;
        public MyCamera.MV_FRAME_OUT_INFO_EX[] m_stFrameInfo;
        private Object[] m_BufForSaveImageLock;
        int[] m_nFrames;
        public UInt32[] m_nSaveImageBufSize;
        public IntPtr[] m_pSaveImageBuf;
        public string savePathByDB = Path.Combine(Environment.CurrentDirectory, "productPic");
        public bool[] runStatus;
        public string[] snNo;
        public WriteLogFileHelper _writeLogFile = new WriteLogFileHelper();

        public readonly SimpleObjectPool<SaveImageDto> _objectPool = new SimpleObjectPool<SaveImageDto>(20000);
        public ConcurrentDictionary<int, Channel<SaveImageDto>> _perCameraChannels = new();

        private HK_CameraHelper()
        {
            cbImage = new cbOutputExdelegate(ImageCallBack);
            _cancheService = ContainerLocator.Container.Resolve<ICancheService>();
        }

        [DllImport("kernel32.dll", EntryPoint = "RtlMoveMemory", SetLastError = false)]
        public static extern void CopyMemory(IntPtr dest, IntPtr src, uint count);

        public string DeviceListAcq()
        {
            System.GC.Collect();
            int nRet = MyCamera.MV_CC_EnumDevices_NET(MyCamera.MV_GIGE_DEVICE | MyCamera.MV_USB_DEVICE, ref m_pDeviceList);
            m_nDevNum = CommonHelper.UsingCamera.Length;
            m_pMyCamera = new MyCamera[m_nDevNum];
            m_pDeviceInfo = new MyCamera.MV_CC_DEVICE_INFO[m_nDevNum];
            m_BufForSaveImageLock = new Object[m_nDevNum];
            m_nSaveImageBufSize = new UInt32[m_nDevNum];
            m_pSaveImageBuf = new IntPtr[m_nDevNum];
            m_stFrameInfo = new MyCamera.MV_FRAME_OUT_INFO_EX[m_nDevNum];
            m_nFrames = new int[m_nDevNum];
            runStatus = new bool[m_nDevNum];
            snNo = new string[m_nDevNum];

            if (m_nDevNum > 0)
            {
                for (int i = 0; i < m_nDevNum; ++i)
                {
                    m_BufForSaveImageLock[i] = new Object();
                    m_nFrames[i] = 0;
                    m_nSaveImageBufSize[i] = 0;
                    m_pSaveImageBuf[i] = IntPtr.Zero;
                    m_stFrameInfo[i] = new MyCamera.MV_FRAME_OUT_INFO_EX();
                    runStatus[i] = true;
                    snNo[i] = "";
                }

                return bnOpen_Click();
            }
            else
            {
                return "未发现相机，请检查相机是否正确连接或被其他设备占用";
            }
        }

        public string bnOpen_Click()
        {
            string resMes = "";
            List<CameraInfo> cbDeviceList = new List<CameraInfo>();
            List<CameraInfo> detectedCameras = new List<CameraInfo>();
            for (int j = 0; j < (int)m_pDeviceList.nDeviceNum; j++)
            {
                //ch:获取选择的设备信息 | en:Get Selected Device Information
                MyCamera.MV_CC_DEVICE_INFO device = (MyCamera.MV_CC_DEVICE_INFO)Marshal.PtrToStructure(m_pDeviceList.pDeviceInfo[j], typeof(MyCamera.MV_CC_DEVICE_INFO))!;

                string cameraSn = "";
                string chManufacturerName = "";

                if (device.nTLayerType == MyCamera.MV_GIGE_DEVICE)
                {
                    MyCamera.MV_GIGE_DEVICE_INFO_EX gigeInfo = (MyCamera.MV_GIGE_DEVICE_INFO_EX)MyCamera.ByteToStruct(device.SpecialInfo.stGigEInfo, typeof(MyCamera.MV_GIGE_DEVICE_INFO_EX));
                    cameraSn = gigeInfo.chSerialNumber;
                    chManufacturerName = gigeInfo.chManufacturerName;
                }
                else if (device.nTLayerType == MyCamera.MV_USB_DEVICE)
                {
                    MyCamera.MV_USB3_DEVICE_INFO_EX usbInfo = (MyCamera.MV_USB3_DEVICE_INFO_EX)MyCamera.ByteToStruct(device.SpecialInfo.stUsb3VInfo, typeof(MyCamera.MV_USB3_DEVICE_INFO_EX));
                    cameraSn = usbInfo.chSerialNumber;
                    chManufacturerName = usbInfo.chManufacturerName;
                }

                detectedCameras.Add(new CameraInfo { snNo = cameraSn, device = device, chManufacturerName = chManufacturerName });
            }

            for (int i = 0; i < CommonHelper.UsingCamera.Length; i++)
            {
                //ch:打开设备 | en:Open Device
                CameraInfo info = new CameraInfo() { CanmeraId = i };
                var camera = detectedCameras.FirstOrDefault(x => x.snNo == CommonHelper.UsingCamera[i]);
                if (camera == null) continue;

                var device = camera.device;

                if (null == m_pMyCamera[i])
                {
                    m_pMyCamera[i] = new MyCamera();
                    if (null == m_pMyCamera[i])
                    {
                        resMes = "设备初始化失败";
                        continue;
                    }
                }

                int nRet = m_pMyCamera[i].MV_CC_CreateDevice_NET(ref device);
                if (MyCamera.MV_OK != nRet)
                {
                    resMes = "创建失败";
                    continue;
                }

                nRet = m_pMyCamera[i].MV_CC_OpenDevice_NET();
                if (MyCamera.MV_OK != nRet)
                {
                    resMes = "打开失败";
                    continue;
                }
                else
                {

                    m_pDeviceInfo[i] = camera.device;
                    // ch:探测网络最佳包大小(只对GigE相机有效) | en:Detection network optimal package size(It only works for the GigE camera)
                    if (camera.device.nTLayerType == MyCamera.MV_GIGE_DEVICE)
                    {
                        int nPacketSize = m_pMyCamera[i].MV_CC_GetOptimalPacketSize_NET();
                        if (nPacketSize > 0)
                        {
                            nRet = m_pMyCamera[i].MV_CC_SetIntValueEx_NET("GevSCPSPacketSize", nPacketSize);
                            if (nRet != MyCamera.MV_OK)
                            {
                                resMes = "最佳包大小设置失败";
                                continue;
                            }
                        }
                        else
                        {
                        }
                    }

                    nRet = m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerMode", (uint)MyCamera.MV_CAM_TRIGGER_MODE.MV_TRIGGER_MODE_OFF);
                    uint nImageNodeNum = 100;   //这个尽量设置小一点，太大会导致内存回收不及时，多次残余将会导致内存逐渐溢出
                    nRet = m_pMyCamera[i].MV_CC_SetImageNodeNum_NET(nImageNodeNum);
                    if (MV_OK != nRet)
                    {
                        resMes = "节点缓存设置失败";
                        continue;
                    }
                    nRet = m_pMyCamera[i].MV_CC_RegisterImageCallBackEx_NET(cbImage, (IntPtr)i);
                    if (MyCamera.MV_OK != nRet)
                    {
                        resMes = "回调方式设置失败";
                        continue;
                    }
                }

                //加载用户集1,某些情况下海康相机自身Bug导致丢帧，手动加载一下用户集就好了
                nRet = m_pMyCamera[i].MV_CC_SetEnumValue_NET("UserSetSelector", 1);
                if (MV_OK != nRet)
                {
                    resMes = "用户集1加载失败";
                    continue;
                }
                nRet = m_pMyCamera[i].MV_CC_SetCommandValue_NET("UserSetLoad");
                if (MV_OK != nRet)
                {
                    resMes = "用户集1加载失败";
                    continue;
                }

                MyCamera.MVCC_INTVALUE stParam = new MyCamera.MVCC_INTVALUE();
                MVCC_FLOATVALUE mVCC_FLOATVALUE = new MVCC_FLOATVALUE();

                m_pMyCamera[i].MV_CC_GetIntValue_NET("Width", ref stParam);
                info.Width = stParam.nCurValue + "";

                m_pMyCamera[i].MV_CC_GetIntValue_NET("Height", ref stParam);
                info.Height = stParam.nCurValue + "";

                m_pMyCamera[i].MV_CC_GetIntValue_NET("OffsetX", ref stParam);
                info.OffsetX = stParam.nCurValue + "";

                m_pMyCamera[i].MV_CC_GetIntValue_NET("OffsetY", ref stParam);
                info.OffsetY = stParam.nCurValue + "";

                m_pMyCamera[i].MV_CC_GetFloatValue_NET("Gain", ref mVCC_FLOATVALUE);
                info.Gain = mVCC_FLOATVALUE.fCurValue + "";

                m_pMyCamera[i].MV_CC_GetFloatValue_NET("ExposureTime", ref mVCC_FLOATVALUE);
                info.ExposureTime = mVCC_FLOATVALUE.fCurValue + "";


                snNo[i] = camera.snNo;
                info.CanmeraId = i;
                info.snNo = camera.snNo;
                info.chManufacturerName = camera.chManufacturerName;
                info.CanmeraName = "相机" + (1 + i).ToString();
                info.isOpenCamera = false;
                info.isStartCatchPic = true;
                info.device = device;
                info.device_Hik = m_pMyCamera[i];
                info.isOpenCamera = true;
                info.m_BufForSaveImageLock = new object();
                info.m_nFrames = new int();
                info.m_nSaveImageBufSize = 0;
                info.m_pSaveImageBuf = IntPtr.Zero;
                info.m_stFrameInfo = new MyCamera.MV_FRAME_OUT_INFO_EX();
                info.isWave = i > 1;
                info.isSoft = false;

                cbDeviceList.Add(info);
            }

            if (!string.IsNullOrEmpty(resMes))
                return resMes;

            if (cbDeviceList == null || cbDeviceList.Count < 1)
                return "未发现相机，请检查相机是否正确连接或被其他设备占用";

            _cancheService.UpdateCameraSettingByCache(cbDeviceList); //更新缓存中的相机信息
            m_bGrabbing = true;
            LineTrigger();


            for (int i = 0; i < m_pMyCamera.Length; i++)
            {
                int cameraIndex = i;
                var camera = m_pMyCamera[i];
                var nRet = camera.MV_CC_StartGrabbing_NET();

                if (nRet != MyCamera.MV_OK)
                {
                    return "相机打开失败";
                }

                CommonHelper.CreateDirectoryIfNotExists(Path.Combine(Environment.CurrentDirectory, "TempPic"));
                CommonHelper.CreateDirectoryIfNotExists(Path.Combine(Environment.CurrentDirectory, "BackTempPic")); //执行失败后的备份文件
            }

            //todo 完善实际数据数据库然后再放出来
            //var cameraListByDb = _cancheService.GetCameraList();
            //if (cameraListByDb != null && cameraListByDb.Count > 0)
            //{
            //    foreach (var cameraInfo in cameraListByDb)
            //    {
            //        SettingParameter(cameraInfo);     //参数下发
            //    }
            //}

            return "";
        }

        /// <summary>
        /// 工业相机回调方法
        /// </summary>
        /// <param name="pData"></param>
        /// <param name="pFrameInfo"></param>
        /// <param name="pUser"></param>
        public void ImageCallBack(IntPtr pData, ref MyCamera.MV_FRAME_OUT_INFO_EX pFrameInfo, IntPtr pUser)
        {
            if (pData == IntPtr.Zero || pFrameInfo.nFrameLen <= 0)
            {
                _writeLogFile.WriteLog("Error",
                    $"无效帧：Camera={pUser.ToInt64()}, Length={pFrameInfo.nFrameLen}");
                return;
            }
            int cameraIndex = (int)pUser;
            if (snNo == null || snNo.Any(c => string.IsNullOrEmpty(c))) return;

            //var dto = _objectPool.Take();

            try
            {
                //还在获取炉次中，不要创建图片
                if (string.IsNullOrEmpty(CommonHelper._curTemperingInfo.TemperNo)) return;
                long frameId = Interlocked.Increment(ref CommonHelper.CamearaIncrementNum[cameraIndex]);

                Debug.WriteLine("开始创建图片");
                string filePath = Path.Combine(Environment.CurrentDirectory, "TempPic", CommonHelper._curTemperingInfo.TemperNo, $"{snNo[cameraIndex]}", $"{frameId:D6}.bmp");
                using var mat = new Mat(pFrameInfo.nHeight, pFrameInfo.nWidth, DepthType.Cv8U, 1, pData, pFrameInfo.nWidth);
                CvInvoke.Imwrite(filePath, mat);

                //dto.pData = pData;
                //dto.SaveName = $"{frameId:D6}.bmp";
                //// 设置 DTO 属性
                //dto.nIndex = cameraIndex;
                //dto.snNo = snNo[cameraIndex];
                //dto.pFrameInfo = pFrameInfo;

                //var channel = _perCameraChannels.GetOrAdd(cameraIndex, _ =>
                // Channel.CreateBounded<SaveImageDto>(new BoundedChannelOptions(500)
                // {
                //     SingleWriter = true,  // 保证单生产者顺序性
                //     FullMode = BoundedChannelFullMode.DropOldest // 智能背压
                // }));

                //if (!channel.Writer.TryWrite(dto))
                //{
                //    try { dto.Dispose(); } finally { _objectPool.Return(dto); }
                //}
            }
            catch (Exception ex)
            {
                _writeLogFile.WriteLog("Error", $"相机 {cameraIndex} 处理失败：{ex.Message}");
                //if (dto != null)
                //{
                //    try
                //    {
                //        dto.Dispose();
                //    }
                //    finally
                //    {
                //        _objectPool.Return(dto); // 即使 Dispose 抛出异常，仍需归还池
                //    }
                //}
            }
        }

        /// <summary>
        /// 关闭摄像头
        /// </summary>
        /// <returns></returns>
        public string bnClose_Click()
        {
            var resMsg = "";

            for (int i = 0; i < m_nDevNum; ++i)
            {
                try
                {
                    int nRet;
                    if (m_pMyCamera[i] != null)
                    {
                        nRet = m_pMyCamera[i].MV_CC_CloseDevice_NET();
                        if (MyCamera.MV_OK != nRet)
                        {
                            resMsg = "相机关闭失败";
                            continue;
                        }

                        nRet = m_pMyCamera[i].MV_CC_DestroyDevice_NET();
                        if (MyCamera.MV_OK != nRet)
                        {
                            resMsg = "相机关闭失败";
                            continue;
                        }

                        if (m_pSaveImageBuf[i] != IntPtr.Zero)
                        {
                            Marshal.FreeHGlobal(m_pSaveImageBuf[i]);
                            m_pSaveImageBuf[i] = IntPtr.Zero;
                        }
                    }
                }
                catch (Exception ex)
                {
                    continue;
                }
            }

            // ch:取流标志位清零 | en:Zero setting grabbing flag bit
            m_bGrabbing = false;

            return resMsg;
        }

        /// <summary>
        /// 硬触发
        /// </summary>
        /// <returns></returns>
        public void LineTrigger()
        {
            for (int i = 0; i < m_nDevNum; ++i)
            {
                lock (m_BufForSaveImageLock[i])
                {
                    var nRet = m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerMode", (uint)MyCamera.MV_CAM_TRIGGER_MODE.MV_TRIGGER_MODE_ON);
                    nRet = m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerSource", (uint)MyCamera.MV_CAM_TRIGGER_SOURCE.MV_TRIGGER_SOURCE_LINE0);
                }
            }
        }

        /// <summary>
        /// 软触发
        /// </summary>
        /// <param name="device_Hik"></param>
        /// <returns></returns>
        public string SoftTrigger(MyCamera device_Hik)
        {
            int nRet;
            int i = Array.IndexOf(m_pMyCamera, device_Hik);
            if (i == -1) return "";

            m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerMode", (uint)MyCamera.MV_CAM_TRIGGER_MODE.MV_TRIGGER_MODE_ON);
            m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerSource", (uint)MyCamera.MV_CAM_TRIGGER_SOURCE.MV_TRIGGER_SOURCE_SOFTWARE);
            nRet = m_pMyCamera[i].MV_CC_SetCommandValue_NET("TriggerSoftware");
            if (MyCamera.MV_OK != nRet)
            {
                return "";
            }

            MyCamera.MV_FRAME_OUT_INFO_EX pFrameInfo = new MyCamera.MV_FRAME_OUT_INFO_EX();
            MyCamera.MV_FRAME_OUT stFrameInfo = new MyCamera.MV_FRAME_OUT();

            nRet = m_pMyCamera[i].MV_CC_GetImageBuffer_NET(ref stFrameInfo, 1000);
            pFrameInfo = stFrameInfo.stFrameInfo;
            var pData = stFrameInfo.pBufAddr;

            if (nRet != MyCamera.MV_OK)
            {
                _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{snNo[i]}_软触发抓图失败，硬触发进行中！"), StartTime = DateTime.Now });
                return "";
            }

            var picUrl = StartCatchPic(i, m_pMyCamera[i], pFrameInfo, pData);

            // 必须释放缓冲区！
            m_pMyCamera[i].MV_CC_FreeImageBuffer_NET(ref stFrameInfo);
            //保存

            m_pMyCamera[i].MV_CC_SetEnumValue_NET("TriggerSource", (uint)MyCamera.MV_CAM_TRIGGER_SOURCE.MV_TRIGGER_SOURCE_LINE0);
            return picUrl;
        }

        /// <summary>
        /// 软触发抓图
        /// </summary>
        public string StartCatchPic(int nIndex, MyCamera m_MyCameraInfo, MyCamera.MV_FRAME_OUT_INFO_EX pFrameInfo, IntPtr pData = default)
        {
            if (m_MyCameraInfo == null) return "";
            int nRet = 0;

            if (m_pSaveImageBuf[nIndex] == IntPtr.Zero || pFrameInfo.nFrameLen > m_nSaveImageBufSize[nIndex])
            {
                if (m_pSaveImageBuf[nIndex] != IntPtr.Zero)
                {
                    Marshal.Release(m_pSaveImageBuf[nIndex]);
                    m_pSaveImageBuf[nIndex] = IntPtr.Zero;
                }

                m_pSaveImageBuf[nIndex] = Marshal.AllocHGlobal((Int32)pFrameInfo.nFrameLen);
                if (m_pSaveImageBuf[nIndex] == IntPtr.Zero)
                {
                    return "";
                }
                m_nSaveImageBufSize[nIndex] = pFrameInfo.nFrameLen;
            }

            m_stFrameInfo[nIndex] = pFrameInfo;
            CopyMemory(m_pSaveImageBuf[nIndex], pData, pFrameInfo.nFrameLen);

            if (m_stFrameInfo[nIndex].nFrameLen != 0)
            {
                var curTime = DateTime.Now;
                var fileName = string.Format($"{snNo[nIndex]}_Dev_ti{m_stFrameInfo[nIndex].nHostTimeStamp}.jpeg");
                if (!Directory.Exists(savePathByDB))
                {
                    Directory.CreateDirectory(savePathByDB);
                }

                MyCamera.MV_SAVE_IMG_TO_FILE_PARAM stSaveFileParam = new MyCamera.MV_SAVE_IMG_TO_FILE_PARAM();
                stSaveFileParam.enImageType = MyCamera.MV_SAVE_IAMGE_TYPE.MV_Image_Jpeg;
                stSaveFileParam.enPixelType = m_stFrameInfo[nIndex].enPixelType;
                stSaveFileParam.pData = m_pSaveImageBuf[nIndex];
                stSaveFileParam.nDataLen = m_stFrameInfo[nIndex].nFrameLen;
                stSaveFileParam.nHeight = m_stFrameInfo[nIndex].nHeight;
                stSaveFileParam.nWidth = m_stFrameInfo[nIndex].nWidth;
                stSaveFileParam.nQuality = 80;
                stSaveFileParam.iMethodValue = 2;
                stSaveFileParam.pImagePath = Path.Combine(savePathByDB, fileName);
                nRet = m_MyCameraInfo.MV_CC_SaveImageToFile_NET(ref stSaveFileParam);
                if (MyCamera.MV_OK != nRet)
                {
                    _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{snNo[nIndex]}_软触发失败"), StartTime = DateTime.Now });
                    return "";
                }
                else
                {
                    //先清除字典中的无效数据
                    //_cancheService.ClearInVainData();

                    //插入玻璃信息
                    var fileNameByDb = string.Format($"pack://siteoforigin:,,,/productPic/{fileName}");
                    //var temperName = _cancheService.GetCurMaxTemperNo();

                    //var temperNo = _cancheService.GetCurMaxTemperNo();

                    //var insertRes = _cancheService.UpdateTemperingHistory(new TemperingHistory()
                    //{
                    //    TemperName = temperName,
                    //    TemperNo = temperNo,
                    //    ImageSource = fileNameByDb,
                    //    StartTime = curTime,
                    //    Num = 1,
                    //    Status = true,
                    //    GlassSize = "",
                    //});

                    ////插入日志
                    //if (insertRes)
                    //{
                    //_cancheService.UpdateLogging(new Logging() { Content = string.Format($"{temperName}成像完成"), StartTime = curTime });
                    //}

                    return fileNameByDb;
                }
            }

            return "";
        }

        /// <summary>
        /// 更新摄像头状态
        /// </summary>
        public void UpdateCameraStatu()
        {
            for (int i = 0; i < m_nDevNum; i++)
            {
                try
                {
                    runStatus[i] = m_pMyCamera[i]?.MV_CC_IsDeviceConnected_NET()??false;
                }
                catch { runStatus[i] = false; }
            }
        }

        /// <summary>
        /// 参数下发
        /// </summary>
        public string SettingParameter(CameraSetting cameraByDb)
        {
            var cameraInfoByCache = _cancheService.GetCameraListByCache().FirstOrDefault(x => x.snNo == cameraByDb.SnNo);
            if (cameraInfoByCache == null)
            {
                _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{cameraByDb.SnNo} 参数下发失败"), StartTime = DateTime.Now });
                return "参数下发失败";
            }

            int nRet;
            nRet = cameraInfoByCache.device_Hik.MV_CC_StopGrabbing_NET();
            if (nRet != MyCamera.MV_OK)
            {
                return "参数下发失败";
            }

            nRet = cameraInfoByCache.device_Hik.MV_CC_SetFloatValue_NET("ExposureTime", float.Parse(cameraByDb.ExposureTime));
            if (nRet != MyCamera.MV_OK)
            {
                _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{cameraByDb.SnNo} 曝光时间参数下发失败"), StartTime = DateTime.Now });
                return "曝光时间参数下发失败";
            }

            nRet = cameraInfoByCache.device_Hik.MV_CC_SetFloatValue_NET("Gain", float.Parse(cameraByDb.Gain.ToString()));
            if (nRet != MyCamera.MV_OK)
            {
                _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{cameraByDb.SnNo} 增益参数下发失败"), StartTime = DateTime.Now });
                return "增益参数下发失败";
            }

            nRet = cameraInfoByCache.device_Hik.MV_CC_SetWidth_NET(uint.Parse(cameraByDb.Width.ToString()));
            nRet = cameraInfoByCache.device_Hik.MV_CC_SetHeight_NET(uint.Parse(cameraByDb.Height.ToString()));
            nRet = cameraInfoByCache.device_Hik.MV_CC_SetIntValue_NET("OffsetX", uint.Parse(cameraByDb.OffsetX));
            nRet = cameraInfoByCache.device_Hik.MV_CC_SetIntValue_NET("OffsetY", uint.Parse(cameraByDb.OffsetY.ToString()));

            if (0 != nRet)
            {
                _cancheService.UpdateLogging(new Logging() { Content = string.Format($"{cameraByDb.SnNo} ROI参数下发失败"), StartTime = DateTime.Now });
                return "ROI参数下发失败";
            }

            nRet = cameraInfoByCache.device_Hik.MV_CC_StartGrabbing_NET();
            if (nRet != MyCamera.MV_OK)
            {
                return "程序启动失败，请关闭程序重新启动";
            }

            return "";
        }
    }
}

　　

消费保存（1、直接存图  2、通过异步队列边存边消费）

private ConcurrentDictionary<int, Channel<SaveImageDto>> _perCameraChannels = new();

在构造函数中初始化
foreach (var cameraId in Enumerable.Range(0, CommonHelper.UsingCamera.Length))
{
    Task.Run(() => ConsumeCamera(cameraId));
}

private async Task ConsumeCamera(int cameraId)
{
    var channel = _perCameraChannels.GetOrAdd(cameraId,
_ => Channel.CreateBounded<SaveImageDto>(new BoundedChannelOptions(500)
{
    SingleReader = true,
    FullMode = BoundedChannelFullMode.DropOldest
}));
    await foreach (var item in channel.Reader.ReadAllAsync())
    {
        try
        {
            await SaveImageToFileAsync(item);
        }
        finally
        {
            item?.Dispose();
            _objectPool.Return(item);
        }
    }
}

/// <summary>
/// 保存图片到指定文件
/// </summary>
/// <param name="item"></param>
/// <returns></returns>
private async Task SaveImageToFileAsync(SaveImageDto item)
{
    Debug.WriteLine("开始创建图片");
    string filePath = Path.Combine(Environment.CurrentDirectory, "TempPic", CommonHelper._curTemperingInfo.TemperNo, $"{item.snNo}", item.SaveName);

    try
    {
        using var mat = new Mat(item.pFrameInfo.nHeight, item.pFrameInfo.nWidth, DepthType.Cv8U, 1, item.pData, item.pFrameInfo.nWidth);
        CvInvoke.Imwrite(filePath, mat);
    }
    catch (IOException ex) when (ex.Message.Contains("已存在"))
    {
        await writeLogFileHelper.WriteLogAsync("Error.log", $"文件已存在：{filePath}");
    }
    catch (Exception ex)
    {
        await writeLogFileHelper.WriteLogAsync("Error.log", $"保存图像失败：{filePath}，错误：{ex.Message}");
    }
}

　　

以上包含软触发和硬触发两种模式，通过TriggerMode方法触发



错误代码对照：
https://blog.csdn.net/qq_38960753/article/details/127374053
https://blog.csdn.net/qq_43445867/article/details/126283026



常见问题：

1.无法加载 dll“mvcameracontrol.dll”: 找不到指定的模块;缺少运行时，官网上有一个runtime需要安装【官网地址：https://www.hikrobotics.com/cn/machinevision/service/download/?module=0】

 2.dll引用，分为两种方式，一种是引用dll，另一种是直接引用resource下的源文件，如果有框架版本的问题，建议直接使用第二种方式，直接拷贝源码文件【而且还能看到对应方法的注释】

3.mvs工具可以添加虚拟相机，方便代码调试，而且安装目录下面有对应的开发demo
