Java基于Quartz的定时任务调度服务(一)

Quartz的基本用法

一 Quartz的简单介绍

1. Quartz 是 OpenSymphony 开源组织在任务调度领域的一个开源项目，完全基于 Java 实现,一个优秀的开源调度框架,其特点是:强大的调度能力.灵活的应用方式,分布式和集群的能. 官网:http://www.quartz-scheduler.org

2. Quartz的核心元素

   1. Scheduler:任务调度器，是实际执行任务调度的控制器
   2. Trigger：触发器，用于定义任务调度的时间规则，有SimpleTrigger,CronTrigger等,其中SimpleTrigger定义时间规则简单的任务,CronTrigger通过设置Cron表达式定义复杂时间规则的任务
   3. JobDetail:用来描述Job实现类及其它相关的静态信息，如Job/Group名字、关联监听器等信息
   4. Job是一个接口，只有一个方法void execute(JobExecutionContext context),自定义任务只需要实现该方法即可

二 简单使用

1. 新建一个Maven项目,新建完成后,修改pom.xml文件,添加Quartz依赖

<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>4.1.6.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.quartz-scheduler</groupId>
			<artifactId>quartz</artifactId>
			<version>2.2.1</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>4.1.6.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>4.1.6.RELEASE</version>
		</dependency>

1. 新建Job1,Job2两个类,两个类都实现Job接口,并实现executef方法

package quartzDemo.quartz;

import org.quartz.Job;
import org.quartz.JobDataMap;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.quartz.JobKey;

public class Job1 implements Job {

	public void execute(JobExecutionContext context) throws JobExecutionException {

		JobKey jobKey = context.getJobDetail().getKey();
		System.out.println(
				String.format("%s: JobGroup:%s JobName:%s", DateTimeHelper.Now(), jobKey.getGroup(), jobKey.getName()));

		JobDataMap dataMap = context.getMergedJobDataMap();
//
//		String jobData = dataMap.getString("JobDetailData");
//		String triggerData = dataMap.getString("TriggerData");
//
//		System.out.println(String.format("JobDataMap: jobData:%s triggerData:%s", jobData, triggerData));
	}

}

package quartzDemo.quartz;

import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.quartz.JobKey;

public class Job2 implements Job{

	public void execute(JobExecutionContext context) throws JobExecutionException {
		JobKey jobKey = context.getJobDetail().getKey();
		System.out.println(
				String.format("%s: JobGroup:%s JobName:%s", DateTimeHelper.Now(), jobKey.getGroup(), jobKey.getName()));

	}

}

1. 在App.java中新建两个方法,分别初始化job1和job2,并且在main方法中将两个job添加到Scheduler,如下

package quartzDemo.quartz;

import org.quartz.CronScheduleBuilder;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.SchedulerFactory;
import org.quartz.SimpleScheduleBuilder;
import org.quartz.Trigger;
import org.quartz.TriggerBuilder;
import org.quartz.impl.StdSchedulerFactory;

/**
 * @author QIUYANJUN
 */
public class App {
	public static void main(String[] args) {

		String job2cronExpression = "0/5 * * * * ? ";
		JobModel job1 = InitSimpleJob();
		JobModel job2 = InitCronJob(job2cronExpression);

		SchedulerFactory factory = new StdSchedulerFactory();
		Scheduler scheduler;
		try {
			scheduler = factory.getScheduler();
			scheduler.start();
			scheduler.scheduleJob(job1.getJobDetail(), job1.getTrigger());
			scheduler.scheduleJob(job2.getJobDetail(), job2.getTrigger());
			System.out.println(DateTimeHelper.Now());
		} catch (SchedulerException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

	/**
	 * SimpleJob初始化
	 * @return
	 */
	private static JobModel InitSimpleJob() {
		JobKey jobKey = JobKey.jobKey("job1", "group1");
		JobDetail jobDetail = JobBuilder.newJob(Job1.class).withIdentity(jobKey).withDescription("first quartz job")
				.usingJobData("JobDetailData", "Hello JobDetail").build();

		Trigger trigger = TriggerBuilder.newTrigger().withIdentity("trigger1", "group1")
				.withDescription("first quartz trigger").usingJobData("TriggerData", "Hello Trigger").startNow()
				.withSchedule(SimpleScheduleBuilder.simpleSchedule().withIntervalInSeconds(2).withRepeatCount(3))
				.build();

		return new JobModel(jobDetail, trigger);
	}

	/**
	 * CronJob初始化
	 *
	 * @param cronExpression Cron表达式
	 * @return
	 */
	private static JobModel InitCronJob(String cronExpression) {

		JobKey jobKey = JobKey.jobKey("job2", "group1");
		JobDetail jobDetail = JobBuilder.newJob(Job2.class).withIdentity(jobKey).withDescription("second quartz job")
				.usingJobData("JobDetailData", "Hello JobDetail").build();

		Trigger trigger = TriggerBuilder.newTrigger().withIdentity("trigger2", "group1")
				.withDescription("second quartz trigger").usingJobData("TriggerData", "Hello Trigger").startNow()
				// .endAt(DateTimeHelper.AddSecond(50))
				.withSchedule(CronScheduleBuilder.cronSchedule(cronExpression)).build();

		return new JobModel(jobDetail, trigger);
	}
}

1. 其他需要用到的类

package quartzDemo.quartz;

import org.quartz.JobDetail;
import org.quartz.Trigger;

public class JobModel {

	private JobDetail jobDetail;

	private Trigger trigger;

	public JobDetail getJobDetail() {
		return jobDetail;
	}

	public void setJobDetail(JobDetail jobDetail) {
		this.jobDetail = jobDetail;
	}

	public Trigger getTrigger() {
		return trigger;
	}

	public void setTrigger(Trigger trigger) {
		this.trigger = trigger;
	}

	public JobModel() {
	}

	public JobModel(JobDetail jobDetail, Trigger trigger) {
		super();
		this.jobDetail = jobDetail;
		this.trigger = trigger;
	}
}

package quartzDemo.quartz;

import java.text.SimpleDateFormat;
import java.util.Date;

public class DateTimeHelper {

	private static SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:MM:ss");

	public static String Now() {
		Date date = new Date();
		return simpleDateFormat.format(date);
	}

	public static Date AddSecond(int second) {
		Date date = new Date();
		date.setTime(date.getTime() + second * 1000);
		return date;
	}

	public static String Format(Date date, String pattern) {
		if (!pattern.isEmpty()) {
			pattern = "yyyy-MM-dd HH:MM:ss";
		}
		simpleDateFormat = new SimpleDateFormat(pattern);
		return simpleDateFormat.format(date);
	}
}

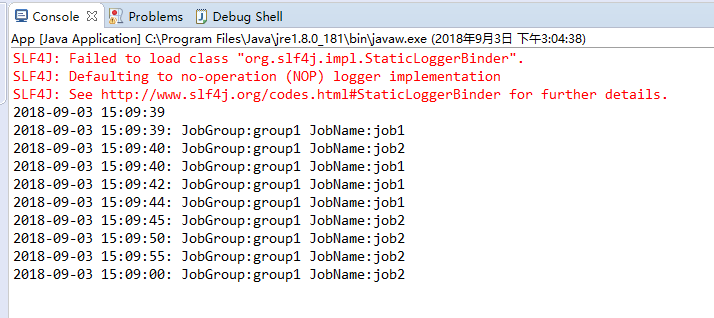

1. 最后,运行App.java中的mian方法,查看输出,如下
