Data Access Application block

Data Access Application Block提供了通用的数据访问的功能,随着2.0版本的推出有了很大变化。

一.改进

在DAAB1.1里面我们知道Database方法返回或者创建一个DBCommandWrapper对象,而在DAAB2.0里面移除了DBCommandWrapper类,用ADO.NET2.0里面的DBCommand类代替实现类似的功能,这样使得DAAB跟我们的.NET类库的结合更加紧密,回忆一下我们在1.1里面用DBCommandWrapper来访问数据时的代码:

Database db = DatabaseFactory.CreateDatabase();

DBCommandWrapper dbCommand
= db.GetStoredProcCommandWrapper("GetProductsByCategory"
);

dbCommand.AddInParameter(
"CategoryID"
, DbType.Int32, Category);

DataSet productDataSet
= db.ExecuteDataSet(dbCommand);

而用了新的DBCommand类之后则变成了:

Database db = DatabaseFactory.CreateDatabase();

DbCommand dbCommand
= db.GetStoredProcCommand("GetProductsByCategory"
);

db.AddInParameter(dbCommand,
"CategoryID"
, DbType.Int32, Category);

DataSet productDataSet
= db.ExecuteDataSet(dbCommand);

数据库连接字符串在我们基于数据库的开发永远是少不了的,但是在DAAB1.1下,它所使用的字符串跟我们在.NET类库中使用的连接字符串却是不能共享的,它们分别保存在不同的位置。而在2.0的Data Access Application Block使用了ADO.NET2.0里面<connectionStrings>配置区,这样带来的一个好处是连接字符串可以在Application Block和自定义的.NET类之间共享使用该配置区,如:

<connectionStrings>

<add

name="DataAccessQuickStart"

            providerName
="System.Data.SqlClient"

            connectionString
="server=(local)"SQLEXPRESS;database=EntLibQuickStarts;Integrated Security=true" />
</connectionStrings>

在.NET2.0下,泛型编程已经成为了一个核心,而2.0版的DAAB中也新增了一个GenericDatabase对象。DAAB中虽然已经包含了SqlDatabase和OrcaleDatabase,但是如果我们需要使用其他的像DB2等数据库时,就需要用到GenericDatabase,它可以用于任何.NET类库中的数据提供者,包括OdbcProvider和OleDbProvider。

二.使用示例

DAAB2.0的配置非常简单,主要有以下几方面的配置:

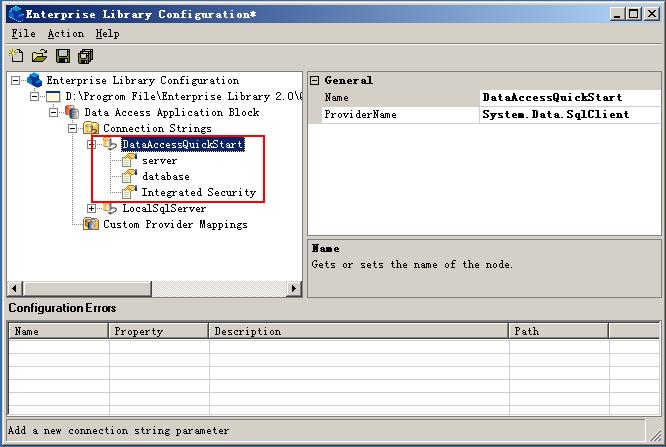

配置连接字符串

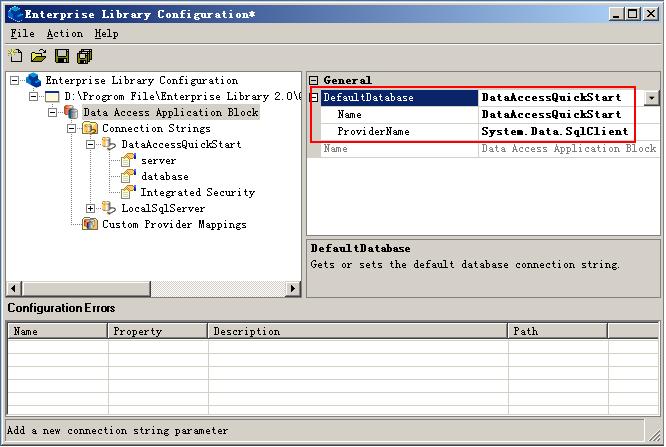

配置默认数据库

添加相关的命名空间:

using Microsoft.Practices.EnterpriseLibrary.Data;
using System.Data;

使用Data Access Application Block进行数据的读取和操作,一般分为三步:

1.创建Database对象

2.提供命令参数,如果需要的话

3.执行命令

下面分别看一下DataAccessQuickStart中提供的一些例子:

执行静态的SQL语句

public string GetCustomerList()
{
// 创建Database对象

Database db = DatabaseFactory.CreateDatabase();
// 使用SQL语句创建DbCommand对象

string sqlCommand = "Select CustomerID, Name, Address, City, Country, PostalCode " +

"From Customers";
DbCommand dbCommand
=
 db.GetSqlStringCommand(sqlCommand);

StringBuilder readerData
= new
 StringBuilder();

// 调用ExecuteReader方法

using (IDataReader dataReader = db.ExecuteReader(dbCommand))
{

while
 (dataReader.Read())

{

// Get the value of the 'Name' column in the DataReader

        readerData.Append(dataReader["Name"]);
        readerData.Append(Environment.NewLine);
    }

}


return readerData.ToString();
}

执行存储过程并传递参数,返回DataSet

public DataSet GetProductsInCategory(int Category)
{

//
 Create the Database object, using the default database service. The

// default database service is determined through configuration.

    Database db = DatabaseFactory.CreateDatabase();


string sqlCommand = "GetProductsByCategory"
;
    DbCommand dbCommand
=
 db.GetStoredProcCommand(sqlCommand);


// Retrieve products from the specified category.

    db.AddInParameter(dbCommand, "CategoryID", DbType.Int32, Category);


// DataSet that will hold the returned results

    DataSet productsDataSet = null;

    productsDataSet
=
 db.ExecuteDataSet(dbCommand);


// Note: connection was closed by ExecuteDataSet method call



return productsDataSet;
}

利用DataSet更新数据

public int UpdateProducts()
{

//
 Create the Database object, using the default database service. The

// default database service is determined through configuration.

    Database db = DatabaseFactory.CreateDatabase();

    DataSet productsDataSet
= new
 DataSet();


string sqlCommand = "Select ProductID, ProductName, CategoryID, UnitPrice, LastUpdate " +


"From Products";
    DbCommand dbCommand
=
 db.GetSqlStringCommand(sqlCommand);


string productsTable = "Products"
;


// Retrieve the initial data

    db.LoadDataSet(dbCommand, productsDataSet, productsTable);


// Get the table that will be modified

    DataTable table = productsDataSet.Tables[productsTable];


// Add a new product to existing DataSet

    DataRow addedRow = table.Rows.Add(new object[] {DBNull.Value, "New product"1125});


// Modify an existing product

    table.Rows[0]["ProductName"= "Modified product";


// Establish our Insert, Delete, and Update commands

    DbCommand insertCommand = db.GetStoredProcCommand("AddProduct");
    db.AddInParameter(insertCommand,
"ProductName", DbType.String, "ProductName"
, DataRowVersion.Current);
    db.AddInParameter(insertCommand,
"CategoryID", DbType.Int32, "CategoryID"
, DataRowVersion.Current);
    db.AddInParameter(insertCommand,
"UnitPrice", DbType.Currency, "UnitPrice"
, DataRowVersion.Current);

    DbCommand deleteCommand
= db.GetStoredProcCommand("DeleteProduct"
);
    db.AddInParameter(deleteCommand,
"ProductID", DbType.Int32, "ProductID"
, DataRowVersion.Current);

    DbCommand updateCommand
= db.GetStoredProcCommand("UpdateProduct"
);
    db.AddInParameter(updateCommand,
"ProductID", DbType.Int32, "ProductID"
, DataRowVersion.Current);
    db.AddInParameter(updateCommand,
"ProductName", DbType.String, "ProductName"
, DataRowVersion.Current);
    db.AddInParameter(updateCommand,
"LastUpdate", DbType.DateTime, "LastUpdate"
, DataRowVersion.Current);


// Submit the DataSet, capturing the number of rows that were affected

    int rowsAffected = db.UpdateDataSet(productsDataSet, "Products", insertCommand, updateCommand,
                                        deleteCommand, UpdateBehavior.Standard);


return
 rowsAffected;

}

通过ID获取记录详细信息

public string GetProductDetails(int productID)
{

//
 Create the Database object, using the default database service. The

// default database service is determined through configuration.

    Database db = DatabaseFactory.CreateDatabase();


string sqlCommand = "GetProductDetails"
;
    DbCommand dbCommand
=
 db.GetStoredProcCommand(sqlCommand);


//
 Add paramters

// Input parameters can specify the input value

    db.AddInParameter(dbCommand, "ProductID", DbType.Int32, productID);

// Output parameters specify the size of the return data

    db.AddOutParameter(dbCommand, "ProductName", DbType.String, 50);
    db.AddOutParameter(dbCommand,
"UnitPrice", DbType.Currency, 8
);

    db.ExecuteNonQuery(dbCommand);


// Row of data is captured via output parameters

    string results = string.Format(CultureInfo.CurrentCulture, "{0}, {1}, {2:C} ",
                                   db.GetParameterValue(dbCommand,
"ProductID"
),
                                   db.GetParameterValue(dbCommand,
"ProductName"
),
                                   db.GetParameterValue(dbCommand,
"UnitPrice"
));


return
 results;
}

以XML格式返回数据

public string GetProductList()
{

// Use a named database instance that refers to a SQL Server database.

    SqlDatabase dbSQL = DatabaseFactory.CreateDatabase() as SqlDatabase;


// Use "FOR XML AUTO" to have SQL return XML data

    string sqlCommand = "Select ProductID, ProductName, CategoryID, UnitPrice, LastUpdate " +

"From Products FOR XML AUTO";
    DbCommand dbCommand
=
 dbSQL.GetSqlStringCommand(sqlCommand);

    XmlReader productsReader
= null
;
    StringBuilder productList
= new
 StringBuilder();


try


{
        productsReader
=
 dbSQL.ExecuteXmlReader(dbCommand);


// Iterate through the XmlReader and put the data into our results.

        while (!productsReader.EOF)

{

if
 (productsReader.IsStartElement())

{
                productList.Append(productsReader.ReadOuterXml());
                productList.Append(Environment.NewLine);
            }

        }

    }


finally

{

// Close the Reader.

      if (productsReader != null)

{
          productsReader.Close();
      }



// Explicitly close the connection. The connection is not closed

// when the XmlReader is closed.

      if (dbCommand.Connection != null)

{
        dbCommand.Connection.Close();
      }

    }



return productList.ToString();
}

使用事务

public bool Transfer(int transactionAmount, int sourceAccount, int destinationAccount)
{

bool result = false
;


//
 Create the Database object, using the default database service. The

// default database service is determined through configuration.

    Database db = DatabaseFactory.CreateDatabase();


//
 Two operations, one to credit an account, and one to debit another

// account.

    string sqlCommand = "CreditAccount";
    DbCommand creditCommand
=
 db.GetStoredProcCommand(sqlCommand);

    db.AddInParameter(creditCommand,
"AccountID"
, DbType.Int32, sourceAccount);
    db.AddInParameter(creditCommand,
"Amount"
, DbType.Int32, transactionAmount);

    sqlCommand
= "DebitAccount"
;
    DbCommand debitCommand
=
 db.GetStoredProcCommand(sqlCommand);

    db.AddInParameter(debitCommand,
"AccountID"
, DbType.Int32, destinationAccount);
    db.AddInParameter(debitCommand,
"Amount"
, DbType.Int32, transactionAmount);


using (DbConnection connection =
 db.CreateConnection())

{
        connection.Open();
        DbTransaction transaction
=
 connection.BeginTransaction();


try


{

// Credit the first account

            db.ExecuteNonQuery(creditCommand, transaction);

// Debit the second account

            db.ExecuteNonQuery(debitCommand, transaction);


// Commit the transaction

            transaction.Commit();

            result
= true
;
        }


catch

{

// Rollback transaction

            transaction.Rollback();
        }

        connection.Close();


return result;
    }

}

三.常见功能

1.创建Database对象

创建一个默认的Database对象

Database dbSvc = DatabaseFactory.CreateDatabase();

默认的数据库在配置文件中:

<dataConfiguration defaultDatabase="DataAccessQuickStart" />

创建一个实例Database对象

// Use a named database instance that refers to an arbitrary database type,
// which is determined by configuration information.

Database myDb = DatabaseFactory.CreateDatabase("DataAccessQuickStart");

创建一个具体的类型的数据库对象

// Create a SQL database.
SqlDatabase dbSQL = DatabaseFactory.CreateDatabase("DataAccessQuickStart"as SqlDatabase;

2.创建DbCommand对象

静态的SQL语句创建一个DbCommand

Database db = DatabaseFactory.CreateDatabase();
string sqlCommand = "Select CustomerID, LastName, FirstName From Customers"
;
DbCommand dbCommand
= db.GetSqlStringCommand(sqlCommand);

存储过程创建一个DbCommand

Database db = DatabaseFactory.CreateDatabase();
DbCommand dbCommand
= db.GetStoredProcCommand("GetProductsByCategory");

3.管理对象

当连接对象打开后,不需要再次连接

Database db = DatabaseFactory.CreateDatabase();
string sqlCommand = "Select ProductID, ProductName From Products"
;
DbCommand dbCommand
=
 db.GetSqlStringCommand(sqlCommand);
// No need to open the connection; just make the call.

DataSet customerDataSet = db.ExecuteDataSet(dbCommand);

使用Using及早释放对象

Database db = DatabaseFactory.CreateDatabase();
DbCommand dbCommand
= db.GetSqlStringCommand("Select Name, Address From Customers"
);
using (IDataReader dataReader =
 db.ExecuteReader(dbCommand))
{
// Process results

}

4.参数处理

Database类提供了如下的方法,用于参数的处理:

AddParameter. 传递参数给存储过程
AddInParameter.
传递输入参数给存储过程

AddOutParameter.
传递输出参数给存储过程
GetParameterValue.
得到指定参数的值

SetParameterValue.
设定参数值

使用示例如下:

Database db = DatabaseFactory.CreateDatabase();
string sqlCommand = "GetProductDetails"
;
DbCommand dbCommand
=
 db.GetStoredProcCommand(sqlCommand);
db.AddInParameter(dbCommand,
"ProductID", DbType.Int32, 5
);
db.AddOutParameter(dbCommand,
"ProductName", DbType.String, 50
);
db.AddOutParameter(dbCommand,
"UnitPrice", DbType.Currency, 8);

Database db = DatabaseFactory.CreateDatabase();
DbCommand insertCommand
= db.GetStoredProcCommand("AddProduct"
);
db.AddInParameter(insertCommand,
"ProductName", DbType.String, "ProductName"
, DataRowVersion.Current);
db.AddInParameter(insertCommand,
"CategoryID", DbType.Int32, "CategoryID"
, DataRowVersion.Current);
db.AddInParameter(insertCommand,
"UnitPrice", DbType.Currency, "UnitPrice", DataRowVersion.Current);

四.使用场景

DAAB2.0是对ADO.NET2.0的补充,它允许你使用相同的数据访问代码来支持不同的数据库,您通过改变配置文件就在不同的数据库之间切换。目前虽然只提供SQLServer和Oracle的支持,但是可以通过GenericDatabase和ADO.NET 2.0下的DbProviderFactory对象来增加对其他数据库的支持。如果想要编写出来的数据库访问程序具有更好的移植性,则DAAB2.0是一个不错的选择,但是如果您想要针对特定数据库的特性进行编程,就要用ADO.NET了。

参考:Enterprise Libaray –January 2006帮助文档及QuickStart

作者:TerryLee
