【0127】【项目实战】-【组件化封装思想实战Android App】-【10】课程详情页面开发

1.效果及思路

1.1 效果

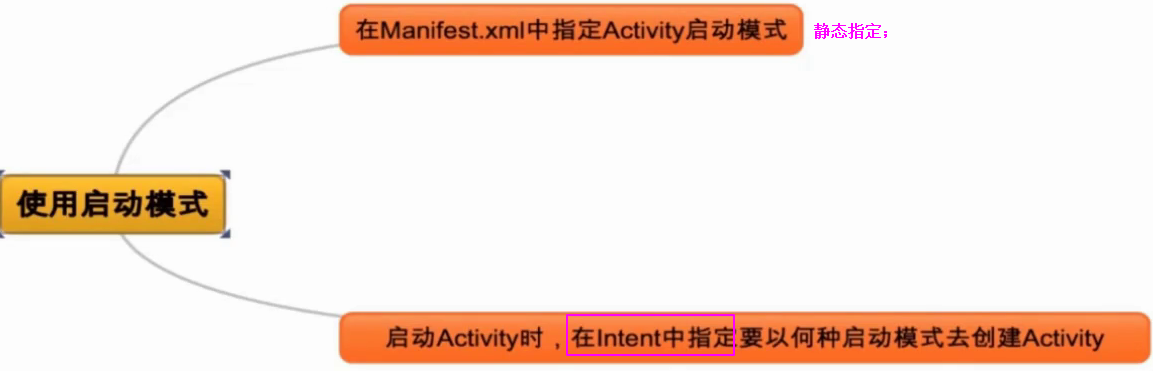

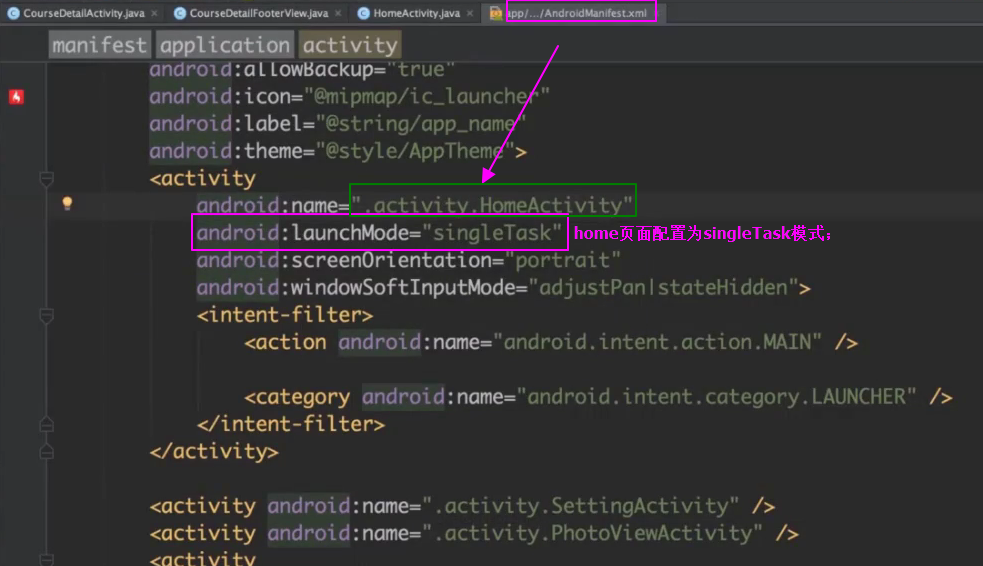

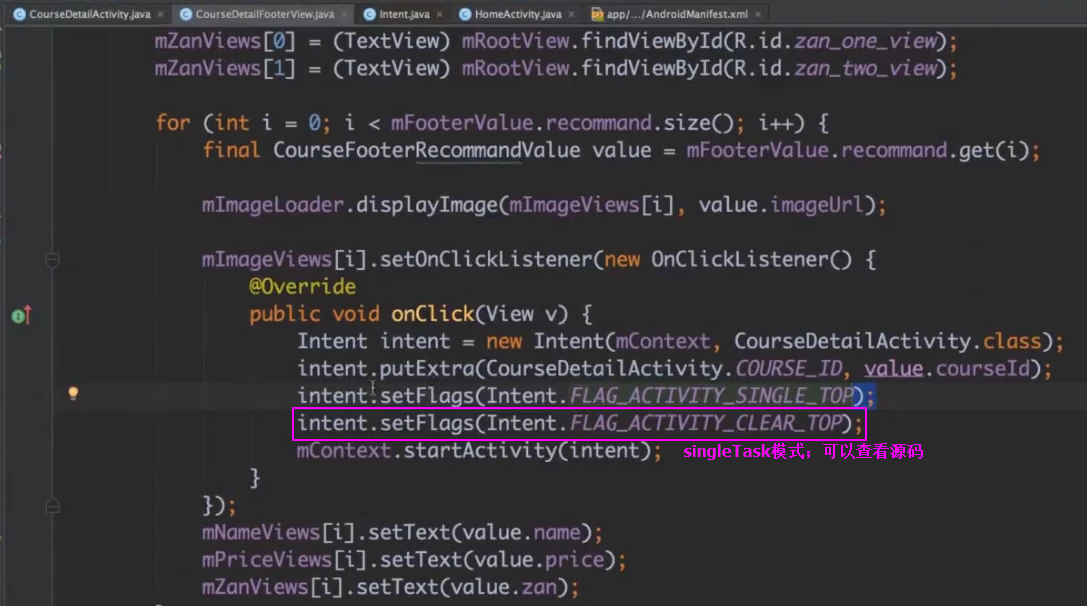

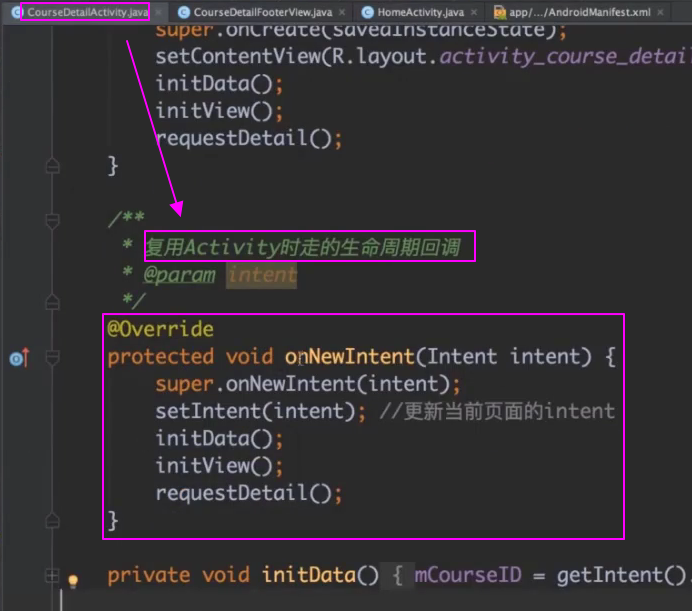

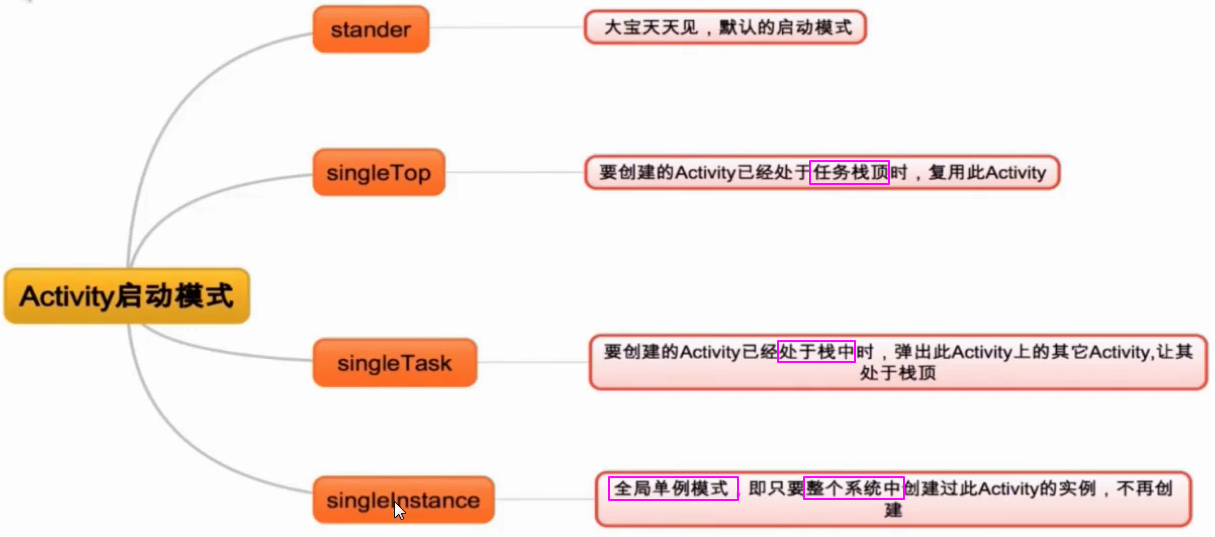

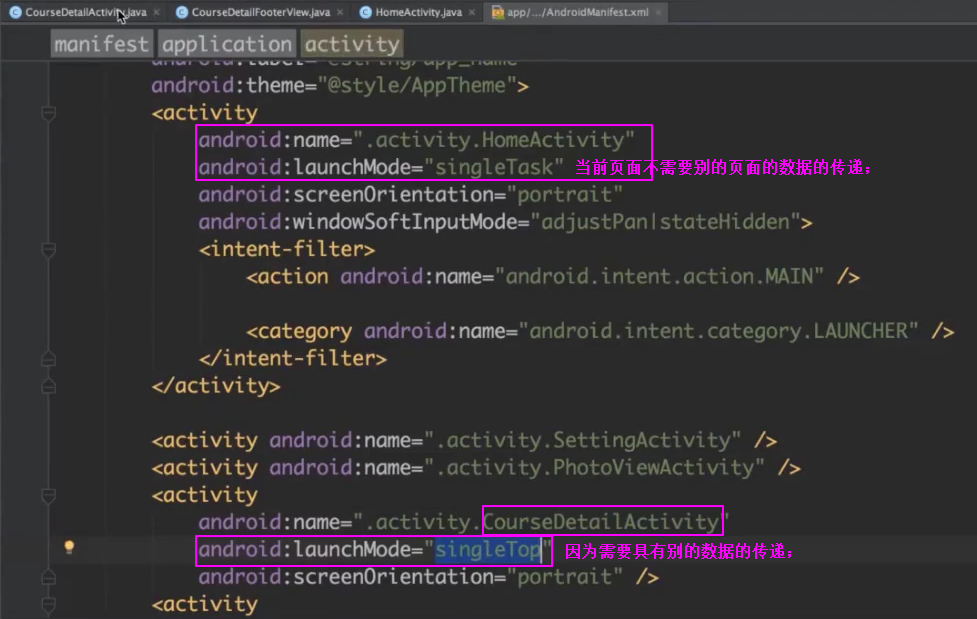

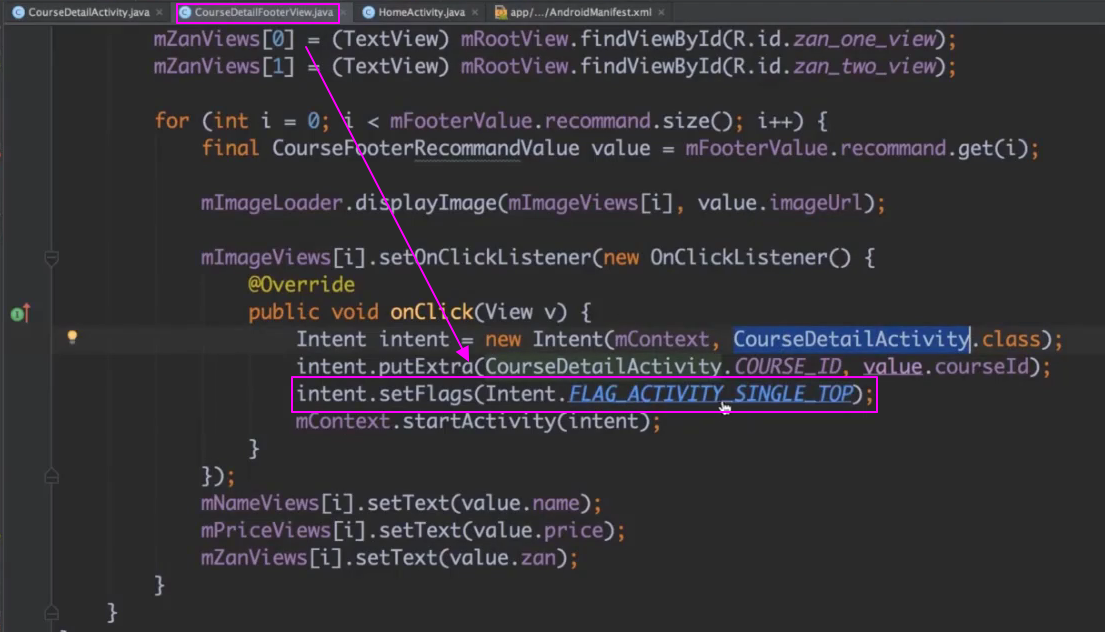

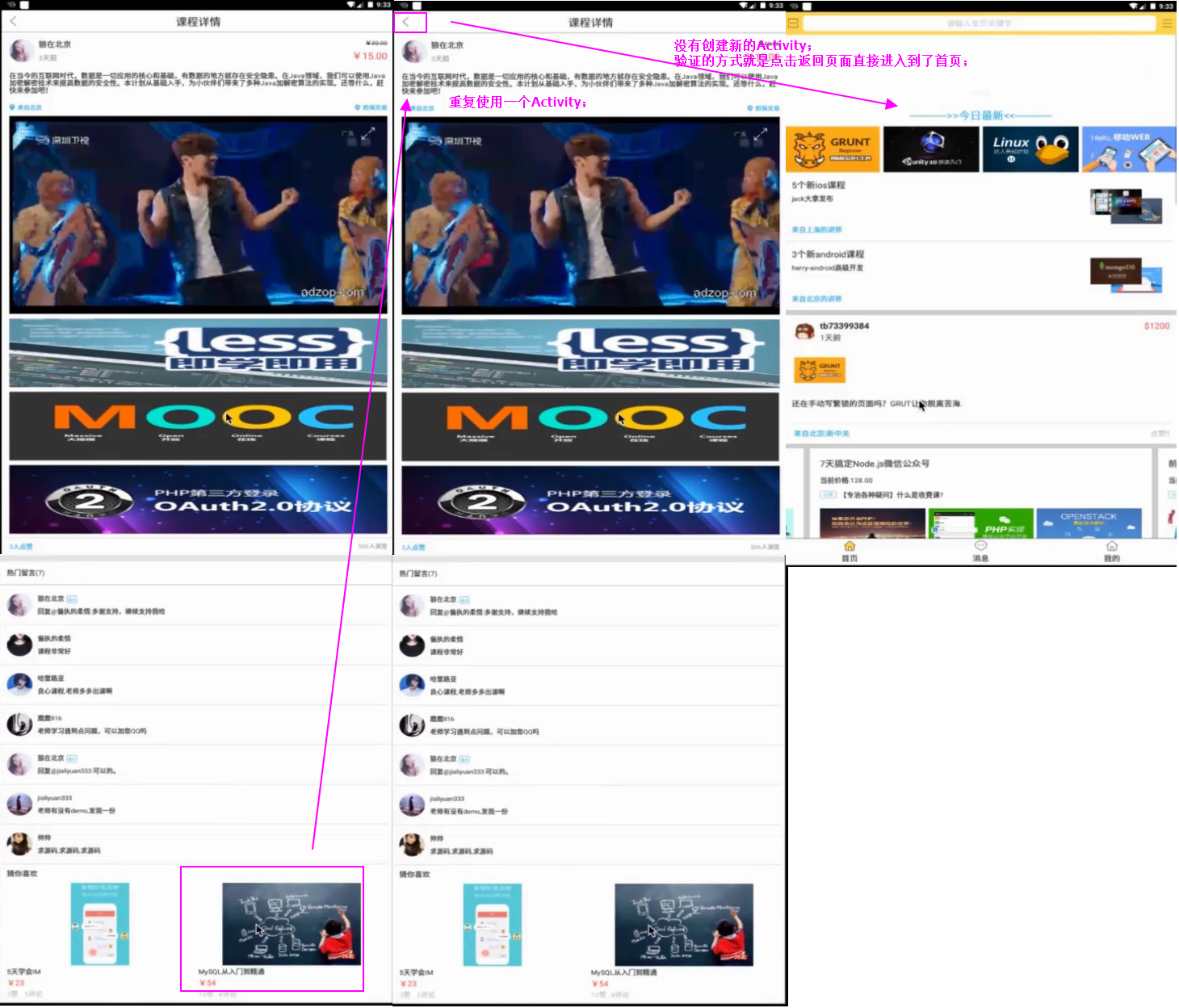

【效果】在点击两次不同的页面之后，点击一次返回按钮就返回，返回的页面是首页；关键使用到的是activity的4种启动模式；

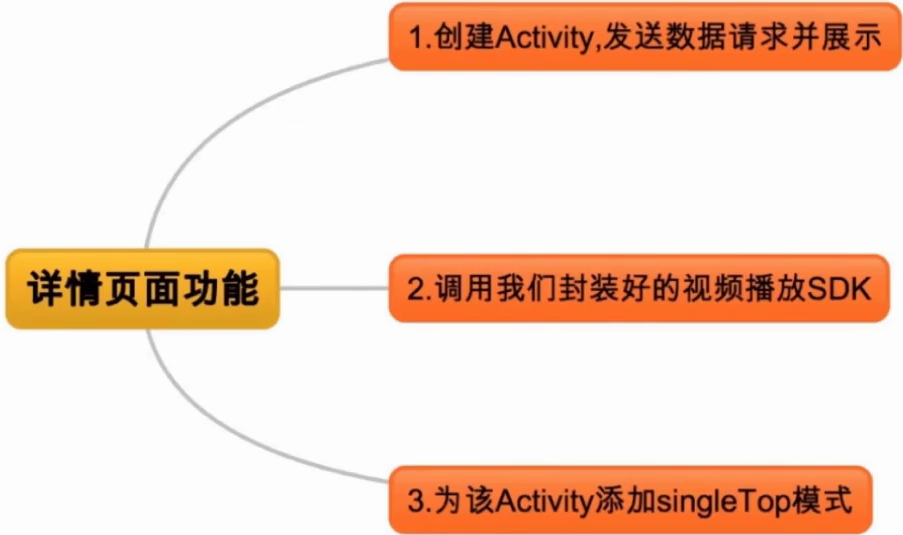

1.2 功能

2. 实现

2.1 布局及listView适配器数据的生成

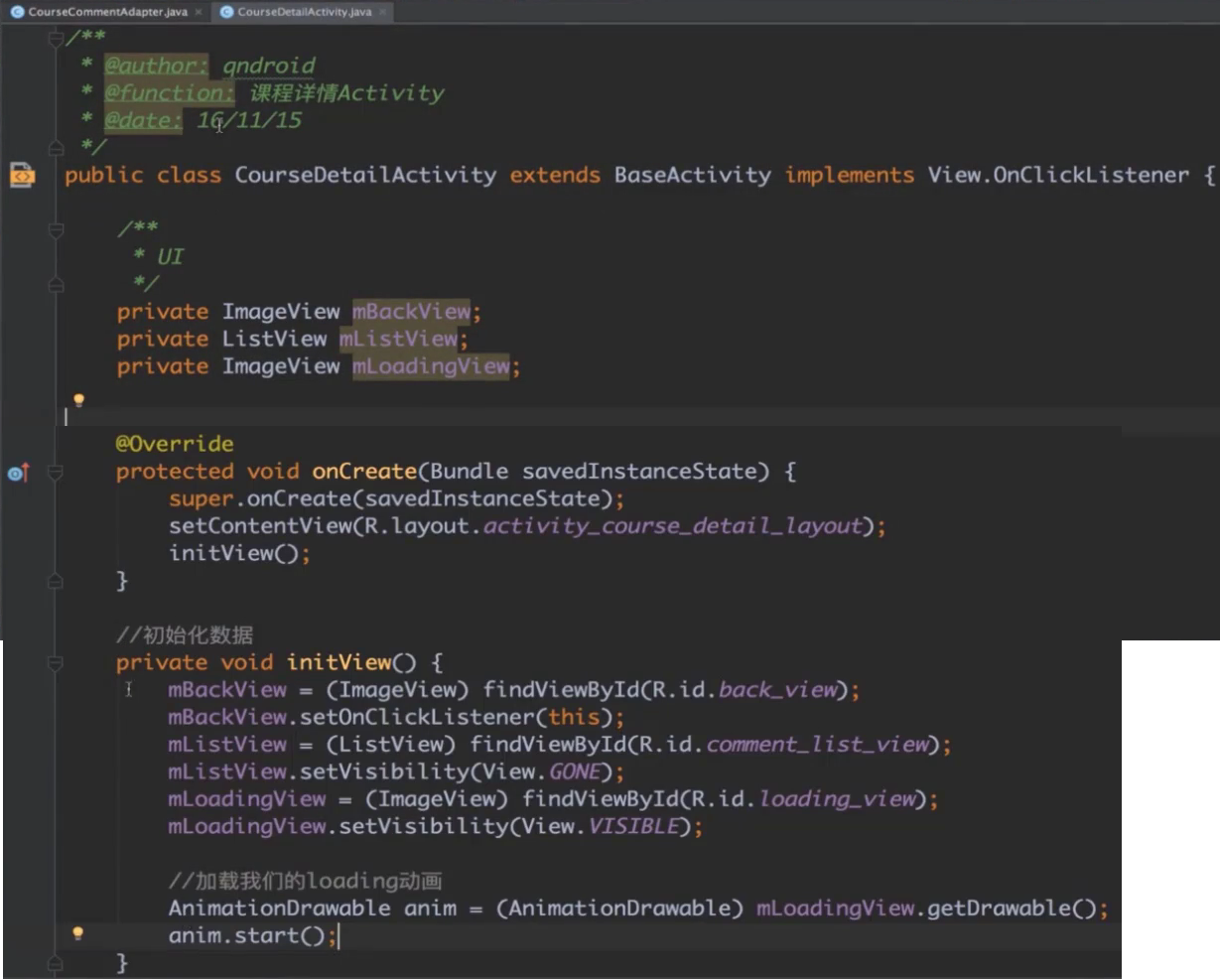

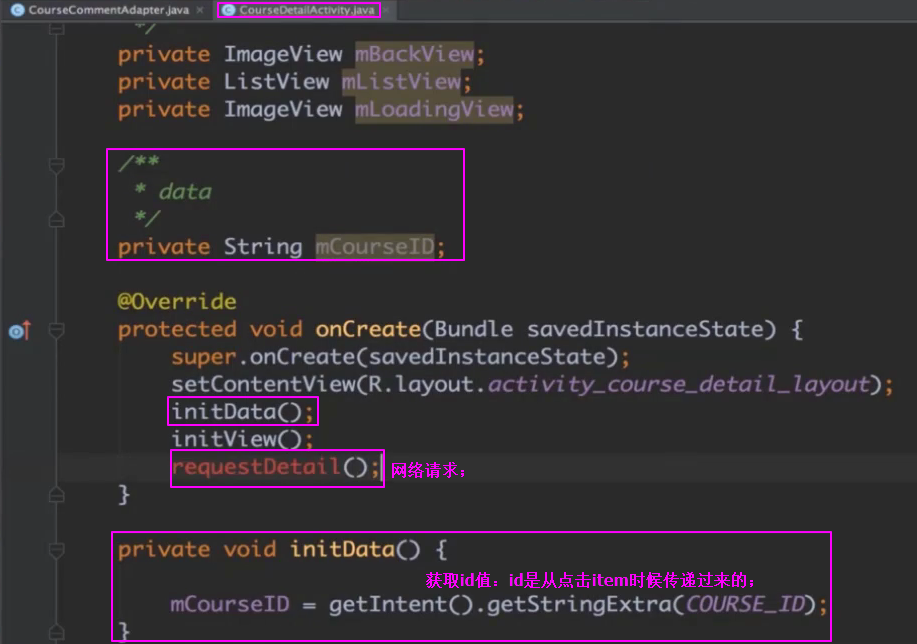

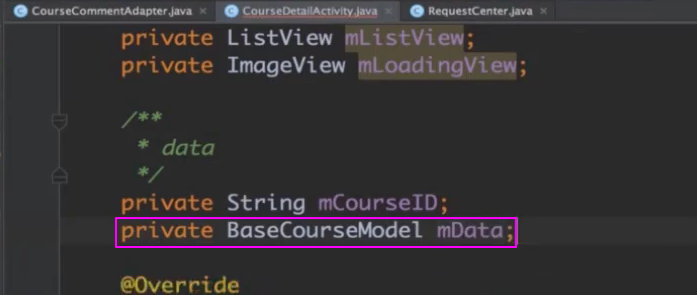

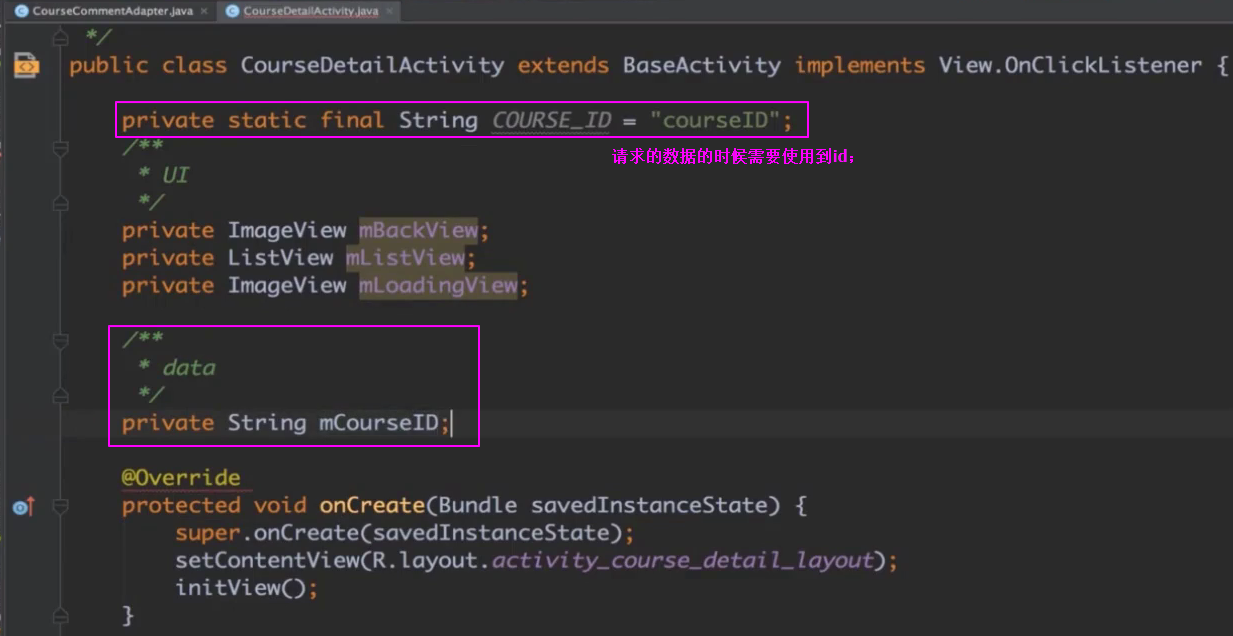

【初始化数据】

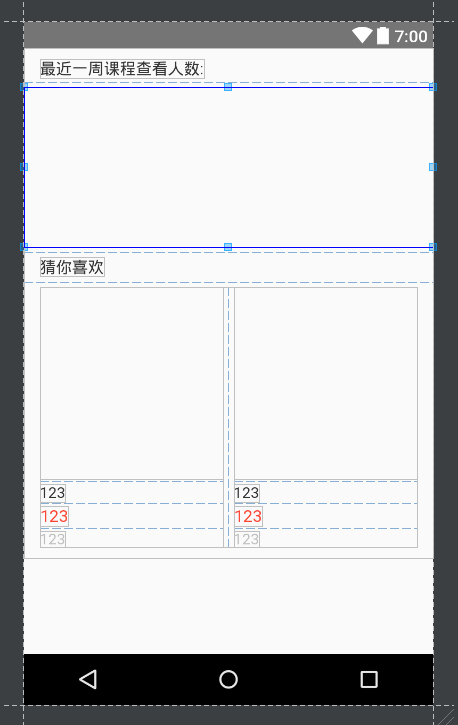

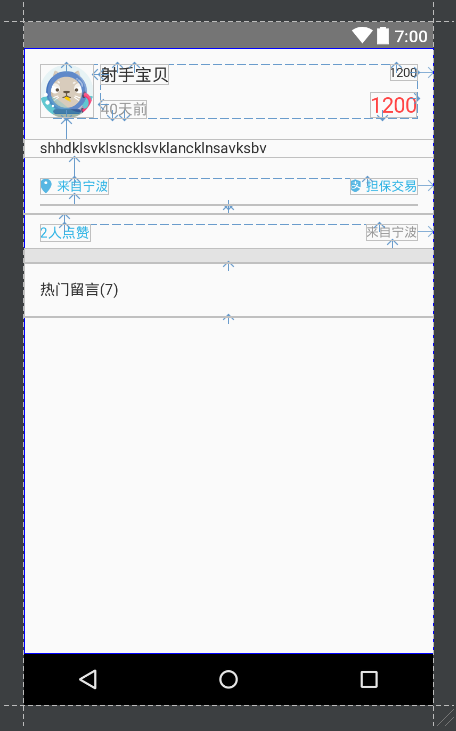

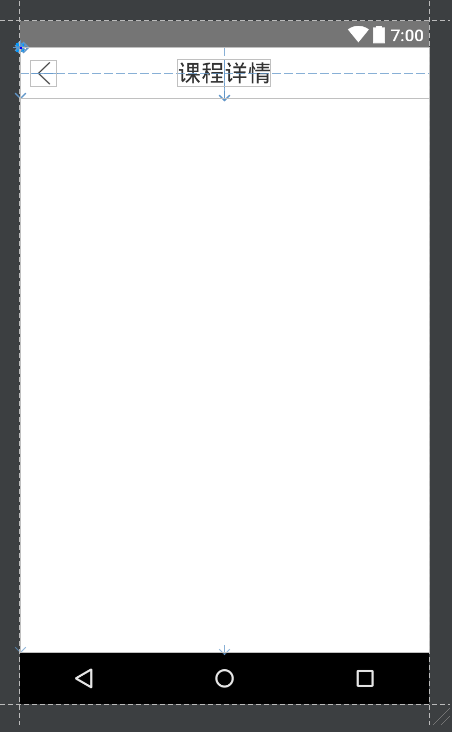

【布局】

  1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2                 android:layout_width="match_parent"
  3                 android:layout_height="match_parent"
  4                 android:background="@color/white"
  5     >
  6
  7     <RelativeLayout
  8         android:id="@+id/title_layout"
  9         android:layout_width="match_parent"
 10         android:layout_height="48dp"
 11         >
 12
 13         <ImageView
 14             android:id="@+id/back_view"
 15             android:layout_width="25dp"
 16             android:layout_height="25dp"
 17             android:layout_centerVertical="true"
 18             android:layout_marginLeft="10dp"
 19             android:background="@drawable/comment_back_normal"
 20             />
 21
 22         <TextView
 23             android:layout_width="wrap_content"
 24             android:layout_height="wrap_content"
 25             android:layout_centerInParent="true"
 26             android:text="@string/course_detail"
 27             android:textColor="@color/color_333333"
 28             android:textSize="22sp"
 29             />
 30
 31         <View
 32             android:layout_width="match_parent"
 33             android:layout_height="0.5dp"
 34             android:layout_alignParentBottom="true"
 35             android:background="@color/color_999999"
 36             />
 37     </RelativeLayout>
 38
 39     <ImageView
 40         android:id="@+id/loading_view"
 41         android:layout_width="match_parent"
 42         android:layout_height="match_parent"
 43         android:layout_below="@id/title_layout"
 44         android:background="@color/white"
 45         android:scaleType="center"
 46         android:src="@drawable/loading_data_anim"
 47         android:visibility="gone"
 48         />
 49
 50     <RelativeLayout
 51         android:id="@+id/bottom_layout"
 52         android:layout_width="match_parent"
 53         android:layout_height="50dp"
 54         android:layout_alignParentBottom="true"
 55         android:visibility="gone"
 56         >
 57
 58         <View
 59             android:id="@+id/divider"
 60             android:layout_width="match_parent"
 61             android:layout_height="0.5dp"
 62             android:background="@color/color_999999"
 63             />
 64
 65         <ImageView
 66             android:id="@+id/jianpan_view"
 67             android:layout_width="30dp"
 68             android:layout_height="30dp"
 69             android:layout_below="@id/divider"
 70             android:layout_margin="6dp"
 71             android:background="@drawable/icon_jianpan"
 72             />
 73
 74         <View
 75             android:id="@+id/divider_2"
 76             android:layout_width="0.5dp"
 77             android:layout_height="match_parent"
 78             android:layout_toRightOf="@id/jianpan_view"
 79             android:background="@color/color_999999"
 80             />
 81
 82         <EditText
 83             android:id="@+id/comment_edit_view"
 84             android:layout_width="match_parent"
 85             android:layout_height="match_parent"
 86             android:layout_centerVertical="true"
 87             android:layout_margin="8dp"
 88             android:layout_toRightOf="@id/divider_2"
 89             android:background="@null"
 90             android:hint="@string/input_comment"
 91             android:paddingLeft="10dp"
 92             android:textColor="@color/color_333333"
 93             android:textColorHint="@color/color_cccccc"
 94             android:textSize="16sp"/>
 95
 96         <TextView
 97             android:id="@+id/send_view"
 98             android:layout_width="wrap_content"
 99             android:layout_height="match_parent"
100             android:layout_alignParentRight="true"
101             android:layout_centerVertical="true"
102             android:layout_margin="8dp"
103             android:background="@color/color_ffff4444"
104             android:gravity="center"
105             android:paddingLeft="14dp"
106             android:paddingRight="14dp"
107             android:text="@string/send"
108             android:textColor="@color/white"
109             android:textSize="16sp"
110             />
111     </RelativeLayout>
112
113     <ListView
114         android:id="@+id/comment_list_view"
115         android:layout_width="match_parent"
116         android:layout_height="match_parent"
117         android:layout_above="@id/bottom_layout"
118         android:layout_below="@+id/title_layout"
119         android:alwaysDrawnWithCache="false"
120         android:divider="@color/color_cccccc"
121         android:dividerHeight="0.5dp"
122         android:visibility="gone"
123         />
124 </RelativeLayout>

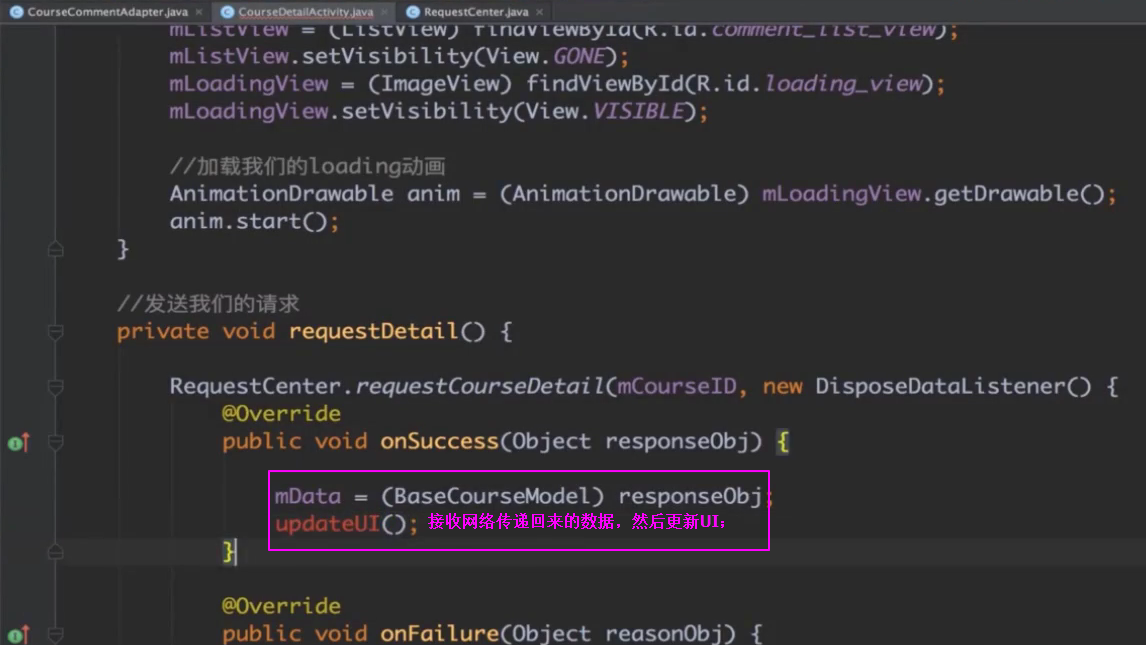

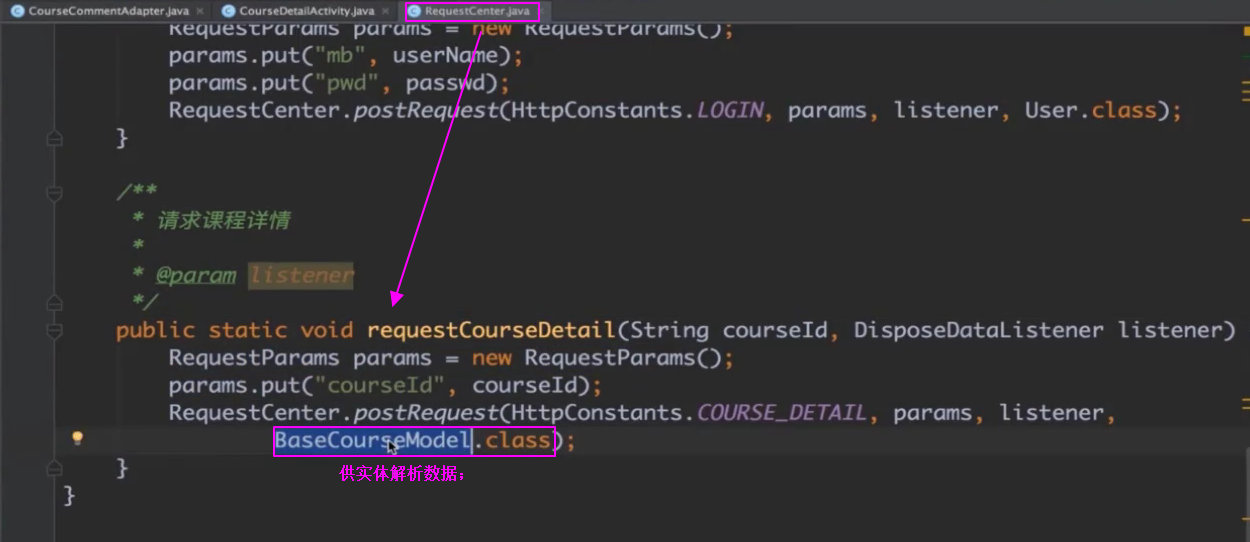

【发出网络请求】

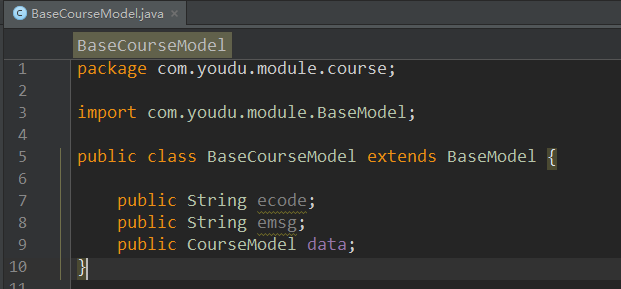

【接收网络传递回来的数据】

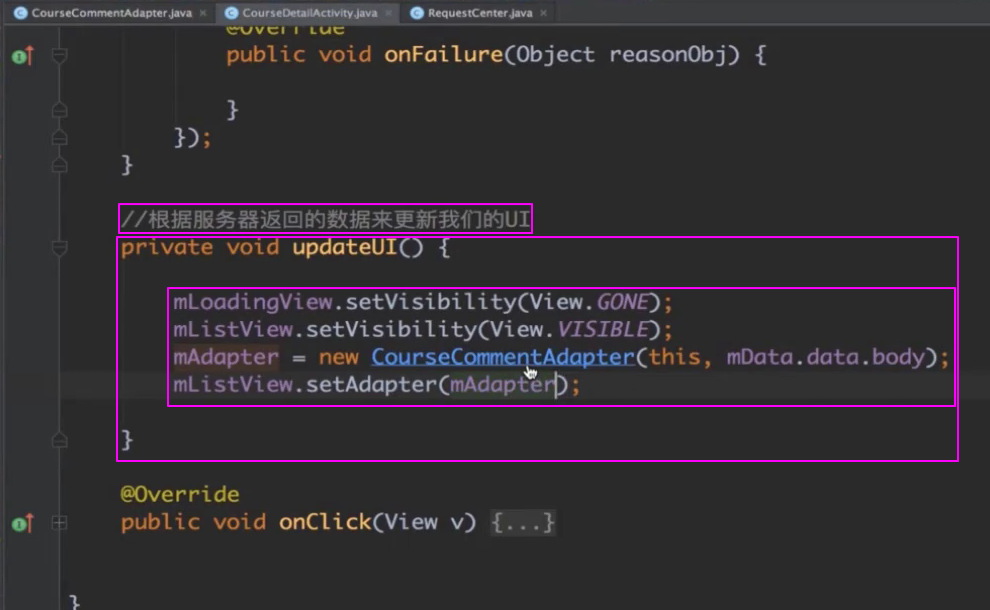

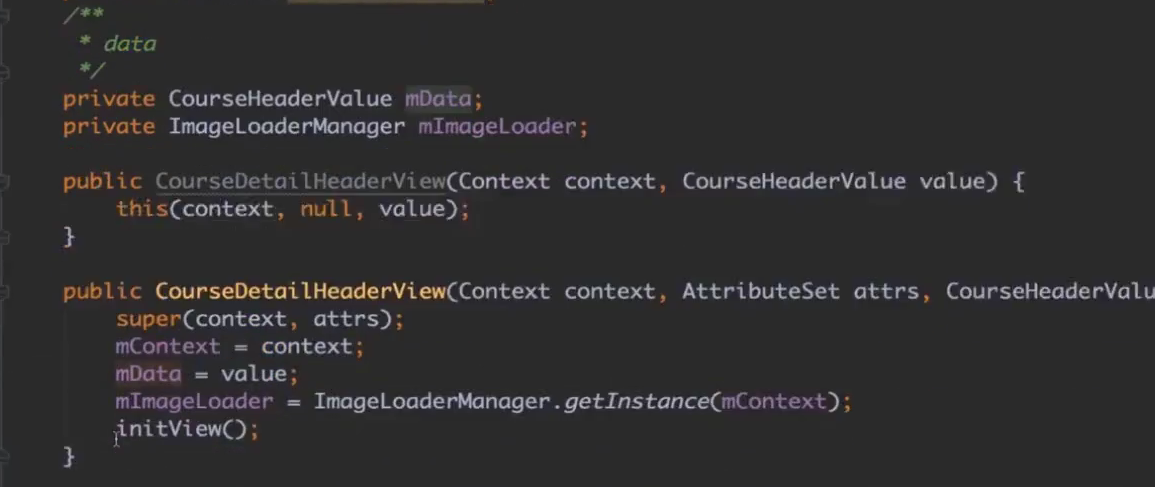

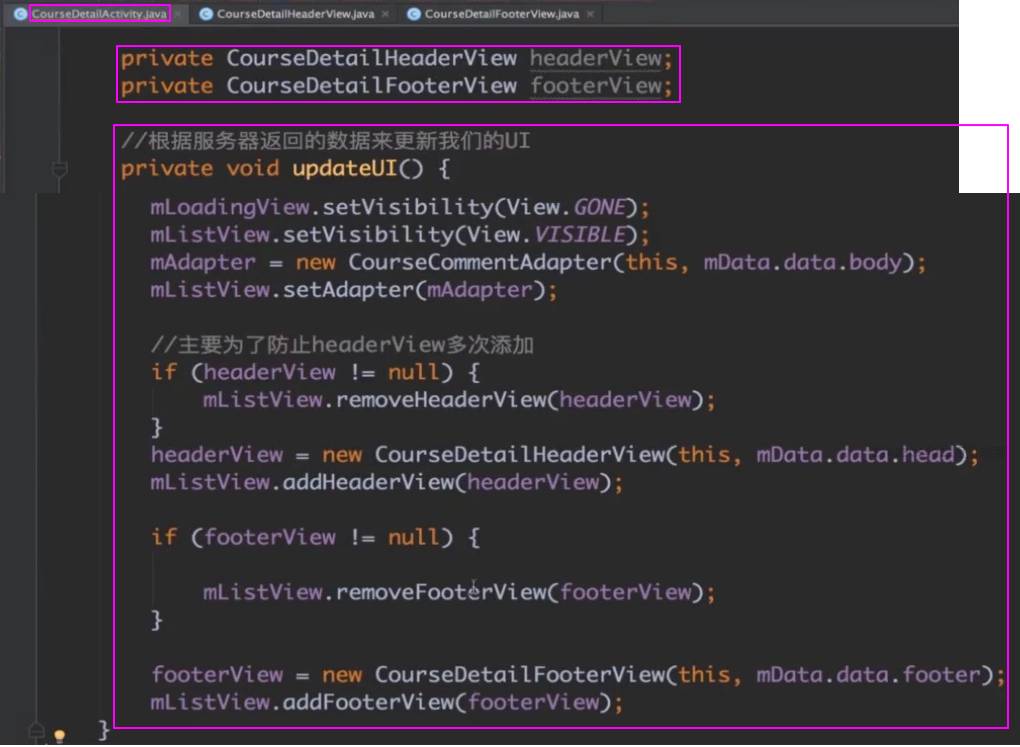

【更新UI】

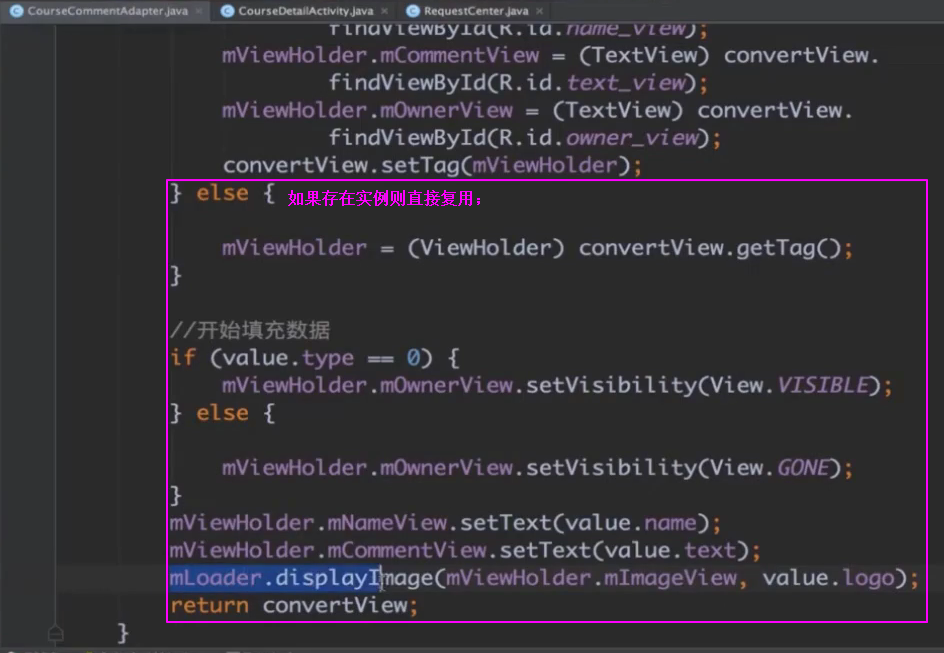

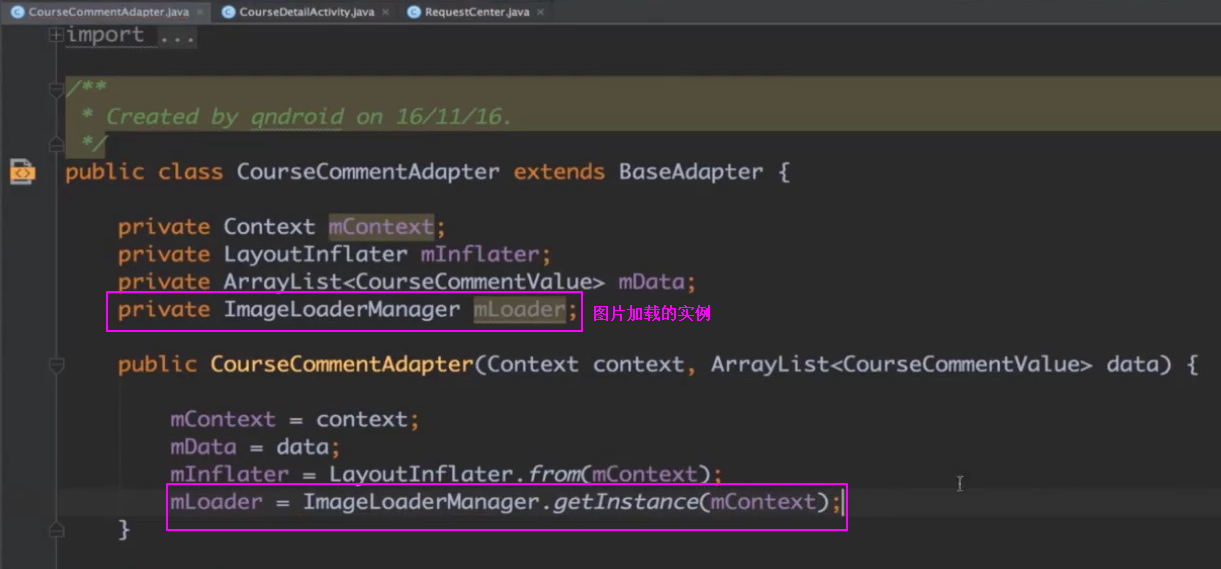

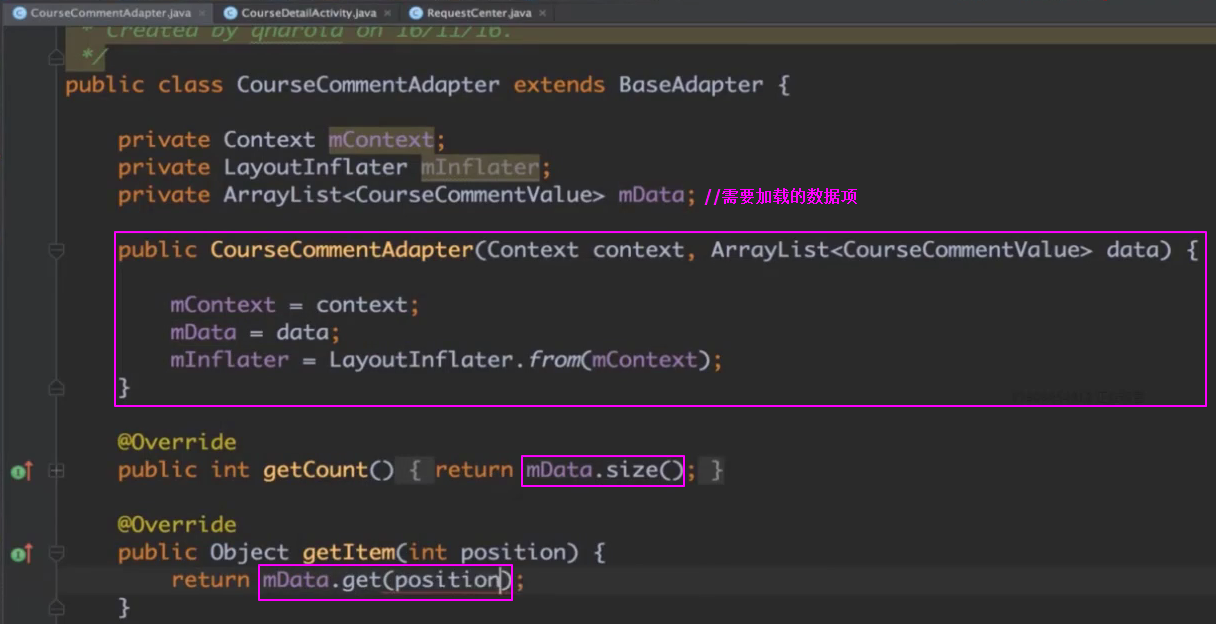

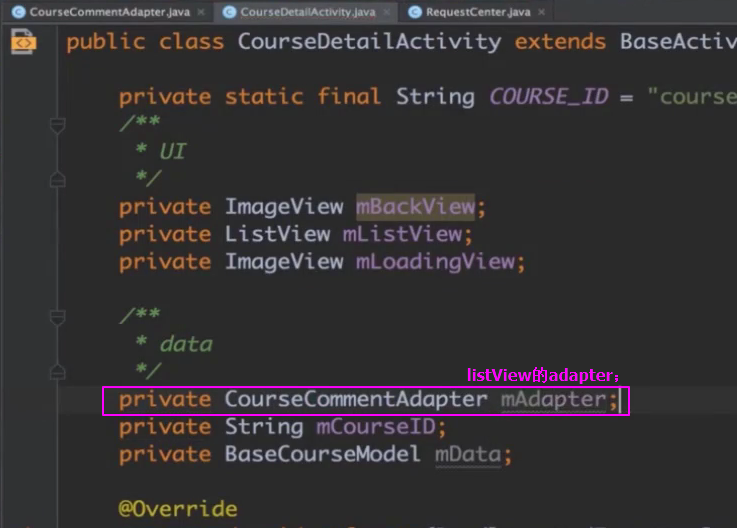

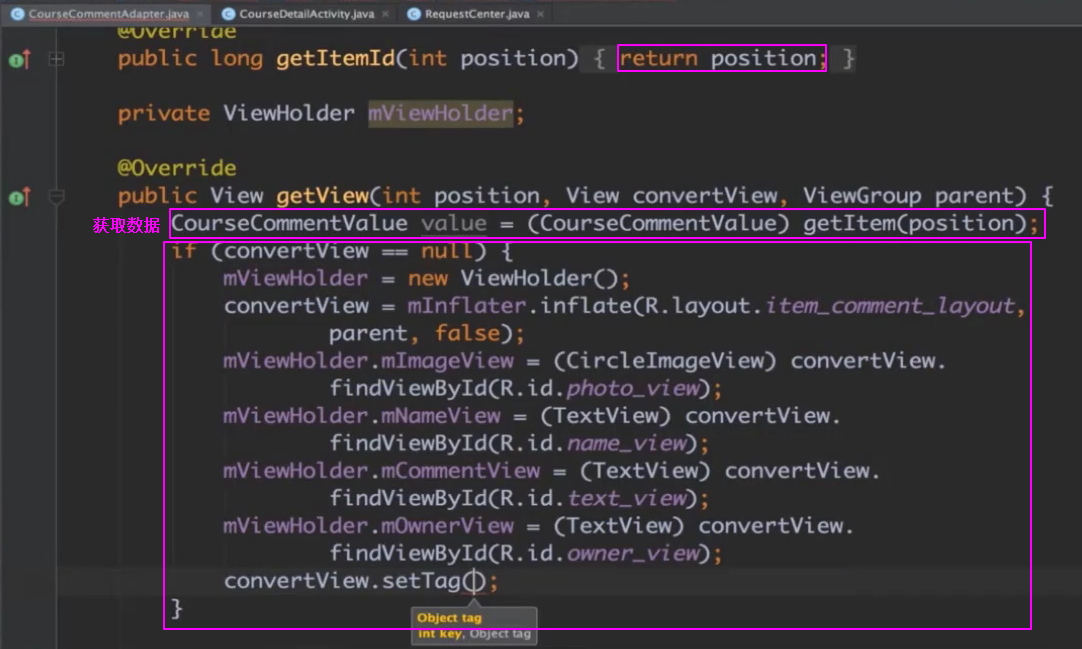

【数据适配器】

【源码】

  1 package com.youdu.adapter;
  2
  3 import android.content.Context;
  4 import android.content.Intent;
  5 import android.support.v4.view.ViewPager;
  6 import android.view.LayoutInflater;
  7 import android.view.View;
  8 import android.view.View.OnClickListener;
  9 import android.view.ViewGroup;
 10 import android.widget.BaseAdapter;
 11 import android.widget.ImageView;
 12 import android.widget.LinearLayout;
 13 import android.widget.RelativeLayout;
 14 import android.widget.TextView;
 15
 16 import com.google.gson.Gson;
 17 import com.youdu.R;
 18 import com.youdu.activity.AdBrowserActivity;
 19 import com.youdu.activity.PhotoViewActivity;
 20 import com.youdu.core.AdContextInterface;
 21 import com.youdu.core.video.VideoAdContext;
 22 import com.youdu.module.recommand.RecommandBodyValue;
 23 import com.youdu.share.ShareDialog;
 24 import com.youdu.util.ImageLoaderManager;
 25 import com.youdu.util.Util;
 26 import com.youdu.adutil.Utils;
 27
 28 import java.util.ArrayList;
 29
 30 import cn.sharesdk.framework.Platform;
 31 import de.hdodenhof.circleimageview.CircleImageView;
 32
 33 /**
 34  * @author: qndroid
 35  * @function:
 36  * @date: 16/6/15
 37  */
 38 public class CourseAdapter extends BaseAdapter {
 39     /**
 40      * 不同的item类型的标示
 41      */
 42     private static final int CARD_COUNT = 4;
 43     private static final int VIDOE_TYPE = 0x00; //视频类型的item
 44     private static final int CARD_TYPE_ONE = 0x01; //
 45     private static final int CARD_TYPE_TWO = 0x02;
 46     private static final int CARD_TYPE_THREE = 0x03;
 47
 48     private LayoutInflater mInflate;  //布局加载器；
 49     private Context mContext; //上下文；
 50     private ArrayList<RecommandBodyValue> mData; //需要加载的数据项；
 51     private ViewHolder mViewHolder;
 52     private VideoAdContext mAdsdkContext;
 53     private ImageLoaderManager mImagerLoader;
 54
 55     public CourseAdapter(Context context, ArrayList<RecommandBodyValue> data) {
 56         mContext = context;
 57         mData = data;
 58         mInflate = LayoutInflater.from(mContext);
 59         mImagerLoader = ImageLoaderManager.getInstance(mContext);
 60     }
 61
 62     @Override
 63     public int getCount() {
 64         return mData.size();
 65     }
 66
 67     @Override
 68     public Object getItem(int position) {
 69         return mData.get(position);
 70     }
 71
 72     @Override
 73     public long getItemId(int position) {
 74         return position;
 75     }
 76
 77     @Override
 78     public int getViewTypeCount() {
 79         return CARD_COUNT;
 80     }
 81
 82     @Override
 83     public int getItemViewType(int position) {
 84         RecommandBodyValue value = (RecommandBodyValue) getItem(position);
 85         return value.type;
 86     }
 87
 88
 89     @Override
 90     public View getView(int position, View convertView, ViewGroup parent) {
 91         int type = getItemViewType(position);
 92         final RecommandBodyValue value = (RecommandBodyValue) getItem(position);
 93         //无tag时
 94         if (convertView == null) {
 95             switch (type) {
 96                 case VIDOE_TYPE:
 97                     //显示video卡片
 98                     mViewHolder = new ViewHolder();
 99                     convertView = mInflate.inflate(R.layout.item_video_layout, parent, false);
100                     mViewHolder.mVieoContentLayout = (RelativeLayout)
101                         convertView.findViewById(R.id.video_ad_layout);
102                     mViewHolder.mLogoView = (CircleImageView) convertView.findViewById(R.id.item_logo_view);
103                     mViewHolder.mTitleView = (TextView) convertView.findViewById(R.id.item_title_view);
104                     mViewHolder.mInfoView = (TextView) convertView.findViewById(R.id.item_info_view);
105                     mViewHolder.mFooterView = (TextView) convertView.findViewById(R.id.item_footer_view);
106                     mViewHolder.mShareView = (ImageView) convertView.findViewById(R.id.item_share_view);
107                     //为对应布局创建播放器
108                     mAdsdkContext = new VideoAdContext(mViewHolder.mVieoContentLayout,
109                         new Gson().toJson(value), null);
110                     mAdsdkContext.setAdResultListener(new AdContextInterface() {
111                         @Override
112                         public void onAdSuccess() {
113                         }
114
115                         @Override
116                         public void onAdFailed() {
117                         }
118
119                         @Override
120                         public void onClickVideo(String url) {
121                             Intent intent = new Intent(mContext, AdBrowserActivity.class);
122                             intent.putExtra(AdBrowserActivity.KEY_URL, url);
123                             mContext.startActivity(intent);
124                         }
125                     });
126                     break;
127                 case CARD_TYPE_ONE:
128                     mViewHolder = new ViewHolder();
129                     convertView = mInflate.inflate(R.layout.item_product_card_one_layout, parent, false);
130                     mViewHolder.mLogoView = (CircleImageView) convertView.findViewById(R.id.item_logo_view);
131                     mViewHolder.mTitleView = (TextView) convertView.findViewById(R.id.item_title_view);
132                     mViewHolder.mInfoView = (TextView) convertView.findViewById(R.id.item_info_view);
133                     mViewHolder.mFooterView = (TextView) convertView.findViewById(R.id.item_footer_view);
134                     mViewHolder.mPriceView = (TextView) convertView.findViewById(R.id.item_price_view);
135                     mViewHolder.mFromView = (TextView) convertView.findViewById(R.id.item_from_view);
136                     mViewHolder.mZanView = (TextView) convertView.findViewById(R.id.item_zan_view);
137                     mViewHolder.mProductLayout = (LinearLayout) convertView.findViewById(R.id.product_photo_layout);
138                     break;
139                 case CARD_TYPE_TWO:
140                     mViewHolder = new ViewHolder();
141                     convertView = mInflate.inflate(R.layout.item_product_card_two_layout, parent, false);
142                     mViewHolder.mLogoView = (CircleImageView) convertView.findViewById(R.id.item_logo_view);
143                     mViewHolder.mTitleView = (TextView) convertView.findViewById(R.id.item_title_view);
144                     mViewHolder.mInfoView = (TextView) convertView.findViewById(R.id.item_info_view);
145                     mViewHolder.mFooterView = (TextView) convertView.findViewById(R.id.item_footer_view);
146                     mViewHolder.mProductView = (ImageView) convertView.findViewById(R.id.product_photo_view);
147                     mViewHolder.mPriceView = (TextView) convertView.findViewById(R.id.item_price_view);
148                     mViewHolder.mFromView = (TextView) convertView.findViewById(R.id.item_from_view);
149                     mViewHolder.mZanView = (TextView) convertView.findViewById(R.id.item_zan_view);
150                     break;
151                 case CARD_TYPE_THREE:
152                     mViewHolder = new ViewHolder();
153                     convertView = mInflate.inflate(R.layout.item_product_card_three_layout, null, false);
154                     mViewHolder.mViewPager = (ViewPager) convertView.findViewById(R.id.pager);
155                     //add data
156                     ArrayList<RecommandBodyValue> recommandList = Util.handleData(value);
157                     mViewHolder.mViewPager.setPageMargin(Utils.dip2px(mContext, 12));
158                     mViewHolder.mViewPager.setAdapter(new HotSalePagerAdapter(mContext, recommandList));
159                     mViewHolder.mViewPager.setCurrentItem(recommandList.size() * 100);
160                     break;
161             }
162             convertView.setTag(mViewHolder);
163         }//有tag时
164         else {
165             mViewHolder = (ViewHolder) convertView.getTag();
166         }
167         //填充item的数据
168         switch (type) {
169             case VIDOE_TYPE:
170                 mImagerLoader.displayImage(mViewHolder.mLogoView, value.logo);
171                 mViewHolder.mTitleView.setText(value.title);
172                 mViewHolder.mInfoView.setText(value.info.concat(mContext.getString(R.string.tian_qian)));
173                 mViewHolder.mFooterView.setText(value.text);
174                 mViewHolder.mShareView.setOnClickListener(new OnClickListener() {
175                     @Override
176                     public void onClick(View v) {
177                         ShareDialog dialog = new ShareDialog(mContext, false);
178                         dialog.setShareType(Platform.SHARE_VIDEO);
179                         dialog.setShareTitle(value.title);
180                         dialog.setShareTitleUrl(value.site);
181                         dialog.setShareText(value.text);
182                         dialog.setShareSite(value.title);
183                         dialog.setShareTitle(value.site);
184                         dialog.setUrl(value.resource);
185                         dialog.show();
186                     }
187                 });
188                 break;
189             case CARD_TYPE_ONE:
190                 mImagerLoader.displayImage(mViewHolder.mLogoView, value.logo);
191                 mViewHolder.mTitleView.setText(value.title);
192                 mViewHolder.mInfoView.setText(value.info.concat(mContext.getString(R.string.tian_qian)));
193                 mViewHolder.mFooterView.setText(value.text);
194                 mViewHolder.mPriceView.setText(value.price);
195                 mViewHolder.mFromView.setText(value.from);
196                 mViewHolder.mZanView.setText(mContext.getString(R.string.dian_zan).concat(value.zan));
197                 mViewHolder.mProductLayout.setOnClickListener(new OnClickListener() {
198                     @Override
199                     public void onClick(View v) {
200                         Intent intent = new Intent(mContext, PhotoViewActivity.class);
201                         intent.putStringArrayListExtra(PhotoViewActivity.PHOTO_LIST, value.url);
202                         mContext.startActivity(intent);
203                     }
204                 });
205                 mViewHolder.mProductLayout.removeAllViews();
206                 //动态添加多个imageview
207                 for (String url : value.url) {
208                     mViewHolder.mProductLayout.addView(createImageView(url));
209                 }
210                 break;
211             case CARD_TYPE_TWO:
212                 mImagerLoader.displayImage(mViewHolder.mLogoView, value.logo);
213                 mViewHolder.mTitleView.setText(value.title);
214                 mViewHolder.mInfoView.setText(value.info.concat(mContext.getString(R.string.tian_qian)));
215                 mViewHolder.mFooterView.setText(value.text);
216                 mViewHolder.mPriceView.setText(value.price);
217                 mViewHolder.mFromView.setText(value.from);
218                 mViewHolder.mZanView.setText(mContext.getString(R.string.dian_zan).concat(value.zan));
219                 //为单个ImageView加载远程图片
220                 mImagerLoader.displayImage(mViewHolder.mProductView, value.url.get(0));
221                 break;
222             case CARD_TYPE_THREE:
223                 break;
224         }
225         return convertView;
226     }
227
228     //自动播放方法
229     public void updateAdInScrollView() {
230         if (mAdsdkContext != null) {
231             mAdsdkContext.updateAdInScrollView();
232         }
233     }
234
235     //动态添加ImageView
236     private ImageView createImageView(String url) {
237         ImageView photoView = new ImageView(mContext);
238         LinearLayout.LayoutParams params = new LinearLayout.
239             LayoutParams(Utils.dip2px(mContext, 100),
240             LinearLayout.LayoutParams.MATCH_PARENT);
241         params.leftMargin = Utils.dip2px(mContext, 5);
242         photoView.setLayoutParams(params);
243         mImagerLoader.displayImage(photoView, url);
244         return photoView;
245     }
246
247     private static class ViewHolder {
248         //所有Card共有属性
249         private CircleImageView mLogoView;
250         private TextView mTitleView;
251         private TextView mInfoView;
252         private TextView mFooterView;
253         //Video Card特有属性
254         private RelativeLayout mVieoContentLayout;
255         private ImageView mShareView;
256
257         //Video Card外所有Card具有属性
258         private TextView mPriceView;
259         private TextView mFromView;
260         private TextView mZanView;
261         //Card One特有属性
262         private LinearLayout mProductLayout;
263         //Card Two特有属性
264         private ImageView mProductView;
265         //Card Three特有属性
266         private ViewPager mViewPager;
267     }
268 }

3.增加listView的头布局和脚布局

3.1增加listView的头

【头布局数据】

【源码】D:\BaiduYunDownload\q0pwzp\Client_Code\app\src\main\java\com\youdu\view\course\CourseDetailHeaderView.java

  1 package com.youdu.view.course;
  2
  3 import android.content.Context;
  4 import android.content.Intent;
  5 import android.graphics.Paint;
  6 import android.text.TextUtils;
  7 import android.util.AttributeSet;
  8 import android.view.LayoutInflater;
  9 import android.view.View;
 10 import android.view.ViewGroup;
 11 import android.widget.ImageView;
 12 import android.widget.LinearLayout;
 13 import android.widget.RelativeLayout;
 14 import android.widget.TextView;
 15
 16 import com.google.gson.Gson;
 17 import com.youdu.R;
 18 import com.youdu.activity.PhotoViewActivity;
 19 import com.youdu.core.video.VideoAdContext;
 20 import com.youdu.module.course.CourseHeaderValue;
 21 import com.youdu.adutil.ImageLoaderUtil;
 22 import com.youdu.adutil.Utils;
 23
 24 import de.hdodenhof.circleimageview.CircleImageView;
 25

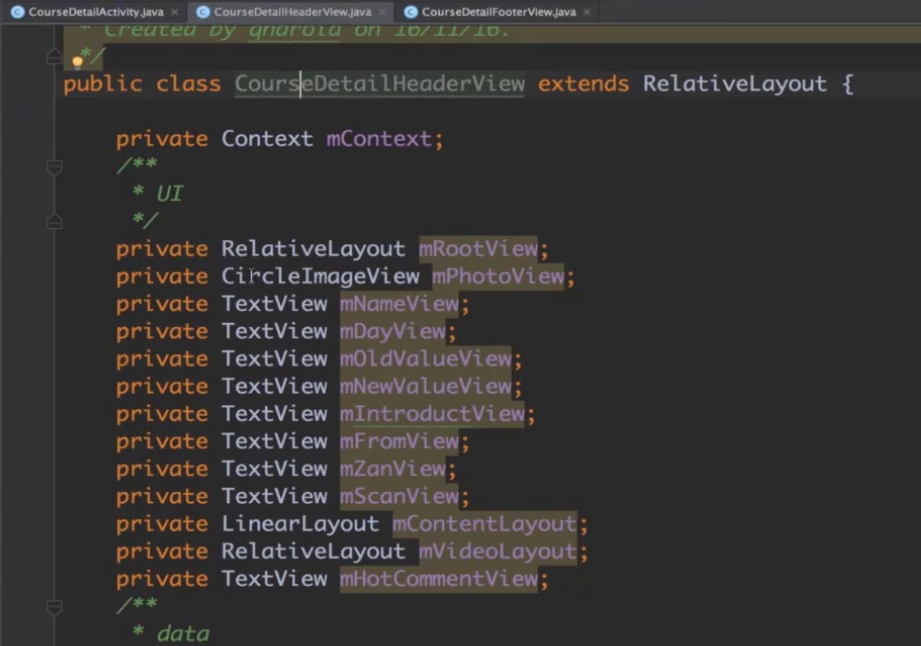

 26 public class CourseDetailHeaderView extends RelativeLayout {
 27
 28     private Context mContext;
 29     /**
 30      * UI
 31      */
 32     private RelativeLayout mRootView;
 33     private CircleImageView mPhotoView;
 34     private TextView mNameView;
 35     private TextView mDayView;
 36     private TextView mOldValueView;
 37     private TextView mNewValueView;
 38     private TextView mIntroductView;
 39     private TextView mFromView;
 40     private TextView mZanView;
 41     private TextView mScanView;
 42     private LinearLayout mContentLayout;
 43     private RelativeLayout mVideoLayout;
 44     private TextView mHotCommentView;
 45     /**
 46      * data
 47      */
 48     private CourseHeaderValue mData;
 49     private ImageLoaderUtil mImageLoader;
 50
 51     public CourseDetailHeaderView(Context context, CourseHeaderValue value) {
 52         this(context, null, value);
 53     }
 54
 55     public CourseDetailHeaderView(Context context, AttributeSet attrs, CourseHeaderValue value) {
 56         super(context, attrs);
 57         mContext = context;
 58         mData = value;
 59         mImageLoader = ImageLoaderUtil.getInstance(mContext);
 60         initView();
 61     }
 62
 63     private void initView() {
 64         mRootView = (RelativeLayout) LayoutInflater.from(mContext).
 65                 inflate(R.layout.listview_course_comment_head_layout, this);
 66         mPhotoView = (CircleImageView) mRootView.findViewById(R.id.photo_view);
 67         mNameView = (TextView) mRootView.findViewById(R.id.name_view);
 68         mDayView = (TextView) mRootView.findViewById(R.id.day_view);
 69         mOldValueView = (TextView) mRootView.findViewById(R.id.old_value_view);
 70         mNewValueView = (TextView) mRootView.findViewById(R.id.new_value_view);
 71         mIntroductView = (TextView) mRootView.findViewById(R.id.introduct_view);
 72         mFromView = (TextView) mRootView.findViewById(R.id.from_view);
 73         mContentLayout = (LinearLayout) mRootView.findViewById(R.id.picture_layout);
 74         mContentLayout.setOnClickListener(new OnClickListener() {
 75             @Override
 76             public void onClick(View v) {
 77                 Intent intent = new Intent(mContext, PhotoViewActivity.class);
 78                 intent.putStringArrayListExtra(PhotoViewActivity.PHOTO_LIST, mData.photoUrls);
 79                 mContext.startActivity(intent);
 80             }
 81         });
 82         mVideoLayout = (RelativeLayout) mRootView.findViewById(R.id.video_view);
 83         mZanView = (TextView) mRootView.findViewById(R.id.zan_view);
 84         mScanView = (TextView) mRootView.findViewById(R.id.scan_view);
 85         mHotCommentView = (TextView) mRootView.findViewById(R.id.hot_comment_view);
 86
 87         mImageLoader.displayImage(mPhotoView, mData.logo);
 88         mNameView.setText(mData.name);
 89         mDayView.setText(mData.dayTime);
 90         mOldValueView.setText(mData.oldPrice);
 91         mOldValueView.getPaint().setFlags(Paint.STRIKE_THRU_TEXT_FLAG);
 92         mNewValueView.setText(mData.newPrice);
 93         mIntroductView.setText(mData.text);
 94         mFromView.setText(mData.from);
 95         mZanView.setText(mData.zan);
 96         mScanView.setText(mData.scan);
 97         mHotCommentView.setText(mData.hotComment);
 98         /**
 99          * //根据服务器返回的url的数量，动态的创建createItem(url)；
100          * 然后将imageView添加到布局中；
101         */
102         for (String url : mData.photoUrls) {
103             mContentLayout.addView(createItem(url));
104         }
105         if (!TextUtils.isEmpty(mData.video.resource)) {
106             //调用封装好的sdk，创建视频播放器
107             new VideoAdContext(mVideoLayout,
108                     new Gson().toJson(mData.video), null);
109         }
110     }
111
112     private ImageView createItem(String url) {
113         //实例化view对象；
114         ImageView imageView = new ImageView(mContext);
115         //添加布局参数；
116         LinearLayout.LayoutParams params = new LinearLayout.
117                 LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, Utils.dip2px(mContext, 150));
118         params.topMargin = Utils.dip2px(mContext, 10);
119         imageView.setLayoutParams(params);
120         imageView.setScaleType(ImageView.ScaleType.FIT_XY);
121         //加载ImageView的数据；
122         mImageLoader.displayImage(imageView, url);
123         //返回实例对象；
124         return imageView;
125     }
126 }

【布局】

  1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2                 android:layout_width="match_parent"
  3                 android:layout_height="match_parent"
  4
  5 >
  6     <de.hdodenhof.circleimageview.CircleImageView
  7         android:id="@+id/photo_view"
  8         android:layout_width="50dp"
  9         android:layout_height="50dp"
 10         android:layout_marginLeft="15dp"
 11         android:layout_marginTop="15dp"
 12         android:background="@drawable/default_user_avatar"
 13     />
 14     <TextView
 15         android:id="@+id/name_view"
 16         android:layout_width="wrap_content"
 17         android:layout_height="wrap_content"
 18         android:layout_alignTop="@id/photo_view"
 19         android:layout_marginLeft="7dp"
 20         android:layout_toRightOf="@id/photo_view"
 21         android:text="射手宝贝"
 22         android:textColor="@color/color_333333"
 23         android:textSize="16sp"
 24     />
 25     <TextView
 26         android:id="@+id/day_view"
 27         android:layout_width="wrap_content"
 28         android:layout_height="wrap_content"
 29         android:layout_alignBottom="@id/photo_view"
 30         android:layout_alignLeft="@id/name_view"
 31         android:text="40天前"
 32         android:textColor="@color/color_999999"
 33     />
 34     <TextView
 35         android:id="@+id/old_value_view"
 36         android:layout_width="wrap_content"
 37         android:layout_height="wrap_content"
 38         android:layout_alignParentRight="true"
 39         android:layout_alignTop="@id/name_view"
 40         android:layout_marginRight="15dp"
 41         android:text="1200"
 42         android:textColor="@color/color_333333"
 43         android:textSize="12sp"
 44     />
 45     <TextView
 46         android:id="@+id/new_value_view"
 47         android:layout_width="wrap_content"
 48         android:layout_height="wrap_content"
 49         android:layout_alignBottom="@id/day_view"
 50         android:layout_alignRight="@id/old_value_view"
 51         android:text="1200"
 52         android:textColor="@color/color_ffff4444"
 53         android:textSize="20sp"
 54     />
 55     <TextView
 56         android:id="@+id/introduct_view"
 57         android:layout_width="match_parent"
 58         android:layout_height="wrap_content"
 59         android:layout_below="@id/photo_view"
 60         android:layout_marginTop="20dp"
 61         android:paddingLeft="15dp"
 62         android:paddingRight="15dp"
 63         android:text="shhdklsvklsncklsvklancklnsavksbv"
 64         android:textColor="@color/color_333333"
 65         android:textSize="14sp"
 66     />
 67     <TextView
 68         android:id="@+id/from_view"
 69         android:layout_width="wrap_content"
 70         android:layout_height="wrap_content"
 71         android:layout_below="@id/introduct_view"
 72         android:layout_marginLeft="15dp"
 73         android:layout_marginTop="20dp"
 74         android:drawableLeft="@drawable/icon_position"
 75         android:drawablePadding="5dp"
 76         android:text="来自宁波"
 77         android:textColor="@color/color_ff33b5e5"
 78         android:textSize="12sp"
 79     />
 80     <TextView
 81         android:id="@+id/danbao_view"
 82         android:layout_width="wrap_content"
 83         android:layout_height="wrap_content"
 84         android:layout_alignParentRight="true"
 85         android:layout_alignTop="@id/from_view"
 86         android:layout_marginRight="15dp"
 87         android:drawableLeft="@drawable/icon_alipay"
 88         android:drawablePadding="5dp"
 89         android:text="@string/danbao_trade"
 90         android:textColor="@color/color_ff33b5e5"
 91         android:textSize="12sp"
 92     />
 93
 94     <RelativeLayout
 95         android:id="@+id/video_view"
 96         android:layout_width="match_parent"
 97         android:layout_height="wrap_content"
 98         android:layout_below="@id/from_view"
 99         android:layout_marginLeft="15dp"
100         android:layout_marginRight="15dp"
101         android:layout_marginTop="10dp"
102     />
103
104     <LinearLayout
105         android:id="@+id/picture_layout"
106         android:layout_width="match_parent"
107         android:layout_height="wrap_content"
108         android:layout_below="@id/video_view"
109         android:layout_marginLeft="15dp"
110         android:layout_marginRight="15dp"
111         android:orientation="vertical"
112     />
113     <View
114         android:id="@+id/divider"
115         android:layout_width="match_parent"
116         android:layout_height="0.5dp"
117         android:layout_below="@id/picture_layout"
118         android:layout_marginTop="8dp"
119         android:background="@color/color_cdcdcd"
120     />
121     <TextView
122         android:id="@+id/zan_view"
123         android:layout_width="wrap_content"
124         android:layout_height="wrap_content"
125         android:layout_below="@id/divider"
126         android:layout_marginLeft="15dp"
127         android:layout_marginTop="10dp"
128         android:text="2人点赞"
129         android:textColor="@color/color_ff33b5e5"
130         android:textSize="13sp"
131     />
132     <TextView
133         android:id="@+id/scan_view"
134         android:layout_width="wrap_content"
135         android:layout_height="wrap_content"
136         android:layout_alignParentRight="true"
137         android:layout_alignTop="@id/zan_view"
138         android:layout_marginRight="15dp"
139         android:text="来自宁波"
140         android:textColor="@color/color_999999"
141         android:textSize="12sp"
142     />
143     <View
144         android:id="@+id/divider2"
145         android:layout_width="match_parent"
146         android:layout_height="14dp"
147         android:layout_below="@id/scan_view"
148         android:layout_marginTop="8dp"
149         android:background="@color/color_e3e3e3"
150     />
151     <TextView
152         android:id="@+id/hot_comment_view"
153         android:layout_width="match_parent"
154         android:layout_height="50dp"
155         android:layout_below="@id/divider2"
156         android:gravity="center_vertical"
157         android:paddingLeft="15dp"
158         android:text="热门留言(7)"
159         android:textColor="@color/color_333333"
160         android:textSize="14sp"
161     />
162     <View
163         android:layout_width="match_parent"
164         android:layout_height="0.5dp"
165         android:layout_below="@id/hot_comment_view"
166         android:background="@color/color_cdcdcd"
167     />
168 </RelativeLayout>

3.2 增加listView的尾

  1 package com.youdu.view.course;
  2
  3 import android.content.Context;
  4 import android.content.Intent;
  5 import android.content.res.Resources;
  6 import android.util.AttributeSet;
  7 import android.view.LayoutInflater;
  8 import android.view.View;
  9 import android.widget.ImageView;
 10 import android.widget.LinearLayout;
 11 import android.widget.RelativeLayout;
 12 import android.widget.TextView;
 13
 14 import com.github.mikephil.charting.charts.LineChart;
 15 import com.github.mikephil.charting.components.XAxis;
 16 import com.github.mikephil.charting.components.YAxis;
 17 import com.github.mikephil.charting.data.Entry;
 18 import com.github.mikephil.charting.data.LineData;
 19 import com.github.mikephil.charting.data.LineDataSet;
 20 import com.youdu.R;
 21 import com.youdu.activity.CourseDetailActivity;
 22 import com.youdu.module.course.CourseFooterDateValue;
 23 import com.youdu.module.course.CourseFooterRecommandValue;
 24 import com.youdu.module.course.CourseFooterValue;
 25 import com.youdu.util.DateFormatHelper;
 26 import com.youdu.adutil.ImageLoaderUtil;
 27
 28 import java.util.ArrayList;
 29
 30 /**
 31  * @author: vision
 32  * @function:
 33  * @date: 16/9/8
 34  */
 35 public class CourseDetailFooterView extends RelativeLayout {
 36
 37     private Context mContext;
 38     /**
 39      * UI
 40      */
 41     private RelativeLayout mRootView;
 42     /**
 43      * 图表相关UI
 44      */
 45     private LinearLayout contentLayout;
 46     private LineChart lineView;
 47     private Resources resource;
 48     private float yAxisMax = -1.0f;
 49     private float yAxisMin = 100.0f;
 50     private float yAxisGap = 10f;
 51     private int yAxislabelNum = 5;
 52     /**
 53      * 推荐相关UI
 54      */
 55     private ImageView[] mImageViews = new ImageView[2];
 56     private TextView[] mNameViews = new TextView[2];
 57     private TextView[] mPriceViews = new TextView[2];
 58     private TextView[] mZanViews = new TextView[2];
 59     /**
 60      * data
 61      */
 62     private ImageLoaderUtil mImageLoader;
 63     private CourseFooterValue mFooterValue;
 64
 65     public CourseDetailFooterView(Context context, CourseFooterValue footerValue) {
 66         this(context, null, footerValue);
 67     }
 68
 69     public CourseDetailFooterView(Context context, AttributeSet attrs, CourseFooterValue footerValue) {
 70         super(context, attrs);
 71         mContext = context;
 72         resource = mContext.getResources();
 73         mImageLoader = ImageLoaderUtil.getInstance(mContext);
 74         mFooterValue = footerValue;
 75         initView();
 76     }
 77
 78     private void initView() {
 79         LayoutInflater inflater = LayoutInflater.from(mContext);
 80         mRootView = (RelativeLayout) inflater.inflate(R.layout.listview_course_comment_footer_layout, this);
 81         contentLayout = (LinearLayout) mRootView.findViewById(R.id.line_Layout);
 82         mImageViews[0] = (ImageView) mRootView.findViewById(R.id.image_one_view);
 83         mImageViews[1] = (ImageView) mRootView.findViewById(R.id.image_two_view);
 84         mNameViews[0] = (TextView) mRootView.findViewById(R.id.name_one_view);
 85         mNameViews[1] = (TextView) mRootView.findViewById(R.id.name_two_view);
 86         mPriceViews[0] = (TextView) mRootView.findViewById(R.id.price_one_view);
 87         mPriceViews[1] = (TextView) mRootView.findViewById(R.id.price_two_view);
 88         mZanViews[0] = (TextView) mRootView.findViewById(R.id.zan_one_view);
 89         mZanViews[1] = (TextView) mRootView.findViewById(R.id.zan_two_view);
 90
 91         for (int i = 0; i < mFooterValue.recommand.size(); i++) {
 92             final CourseFooterRecommandValue value = mFooterValue.recommand.get(i);
 93             mImageLoader.displayImage(mImageViews[i], value.imageUrl);
 94             mImageViews[i].setOnClickListener(new OnClickListener() {
 95                 //跳转到新的CourseDetailActivity页面；
 96                 @Override
 97                 public void onClick(View v) {
 98                     Intent intent = new Intent(mContext, CourseDetailActivity.class);
 99                     intent.putExtra(CourseDetailActivity.COURSE_ID, value.courseId);
100                     mContext.startActivity(intent);
101                 }
102             });
103             mNameViews[i].setText(value.name);
104             mPriceViews[i].setText(value.price);
105             mZanViews[i].setText(value.zan);
106         }
107
108         addLineChartView();
109     }
110
111     /**
112      * 获取最大最小值
113      *
114      * @param currentNum
115      */
116     private void initMaxMin(float currentNum) {
117         if (currentNum >= yAxisMax) {
118             yAxisMax = currentNum;
119         }
120         if (currentNum < yAxisMin) {
121             yAxisMin = currentNum;
122         }
123     }
124
125     /**
126      * 绘制图表
127      */
128     private void addLineChartView() {
129         lineView = new LineChart(mContext);
130         lineView.setDescription("");
131         lineView.setScaleEnabled(false);
132         lineView.getAxisRight().setEnabled(true);
133         lineView.setDrawGridBackground(false);
134         lineView.setTouchEnabled(false);
135         lineView.getLegend().setEnabled(false);
136         lineView.setHardwareAccelerationEnabled(true);
137
138         ArrayList<Entry> yRawData = new ArrayList<>();
139         ArrayList<String> xRawDatas = new ArrayList<>();
140         int index = 0;
141         for (int i = mFooterValue.time.size() - 1; i >= 0; i--) {
142             if (mFooterValue.time.get(i) != null) {
143                 CourseFooterDateValue value = mFooterValue.time.get(i);
144                 yRawData.add(new Entry(Float.parseFloat(value.count), index));
145                 xRawDatas.add(DateFormatHelper.formatDate(value.dt
146                         .concat("000"), DateFormatHelper.DateFormat.DATE_1));
147                 index++;
148                 initMaxMin(Float.parseFloat(value.count));
149             }
150         }
151         /**
152          * x轴样式设置
153          */
154         XAxis xAxis = lineView.getXAxis();
155         xAxis.setPosition(XAxis.XAxisPosition.BOTTOM);// 设置x轴在底部显示
156         xAxis.setAvoidFirstLastClipping(true);
157         xAxis.setXOffset(0); // x轴间距
158         xAxis.setTextColor(resource.getColor(R.color.color_999999));
159         xAxis.setAxisLineColor(resource.getColor(R.color.color_dddddd));
160         xAxis.setDrawGridLines(true);
161         xAxis.setGridColor(resource.getColor(R.color.color_dddddd));
162         /**
163          * y轴样式设置
164          */
165         YAxis leftAxis = lineView.getAxisLeft();
166         leftAxis.resetAxisMinValue();
167         leftAxis.setLabelCount(yAxislabelNum, true);
168         leftAxis.setDrawLimitLinesBehindData(true);
169         leftAxis.setTextColor(resource.getColor(R.color.color_999999));
170         leftAxis.setAxisLineColor(resource.getColor(R.color.color_dddddd));
171         leftAxis.setDrawGridLines(true);
172         leftAxis.setGridColor(resource.getColor(R.color.color_dddddd));
173         leftAxis.setAxisMaxValue(yAxisMax + yAxisGap); // 设置Y轴最大值
174         leftAxis.setAxisMinValue(yAxisMin - yAxisGap);// 设置Y轴最小值
175
176         YAxis rightAxis = lineView.getAxisRight();
177         rightAxis.setDrawLabels(false);
178         rightAxis.setDrawGridLines(false);
179         rightAxis.setAxisLineColor(resource.getColor(R.color.color_dddddd));
180
181
182         /**
183          * 曲线样式设置
184          */
185         LineDataSet set = new LineDataSet(yRawData, "");
186         set.setDrawCubic(true);
187         set.setCubicIntensity(0.2f);
188         set.setLineWidth(2.0f);
189         set.setColor(resource.getColor(R.color.color_fd4634));
190         set.setCircleSize(3.0f);
191         set.setCircleColor(resource.getColor(R.color.color_fd4634));
192         set.setFillColor(resource.getColor(R.color.color_fd4634));
193         set.setFillAlpha(128);
194         set.setDrawFilled(true);
195         set.setDrawValues(false);
196
197         LineData data = new LineData(xRawDatas, set);
198         lineView.setData(data);
199         lineView.invalidate();
200
201         LayoutParams params = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);
202         contentLayout.addView(lineView, params);
203     }
204 }

【布局】

  1 <?xml version="1.0" encoding="utf-8"?>
  2 <LinearLayout
  3     xmlns:android="http://schemas.android.com/apk/res/android"
  4     android:layout_width="match_parent"
  5     android:layout_height="wrap_content"
  6     android:orientation="vertical"
  7 >
  8     <TextView
  9         android:layout_width="wrap_content"
 10         android:layout_height="wrap_content"
 11         android:layout_marginLeft="15dp"
 12         android:layout_marginTop="10dp"
 13         android:text="@string/last_week_visti"
 14         android:textColor="@color/color_333333"
 15         android:textSize="15sp"
 16     />
 17     <LinearLayout
 18         android:id="@+id/line_Layout"
 19         android:layout_width="match_parent"
 20         android:layout_height="150dp"
 21         android:layout_marginTop="8dp"
 22         android:orientation="vertical"/>
 23
 24     <TextView
 25         android:layout_width="wrap_content"
 26         android:layout_height="wrap_content"
 27         android:layout_marginBottom="10dp"
 28         android:layout_marginLeft="15dp"
 29         android:layout_marginTop="10dp"
 30         android:text="@string/guess_you_like"
 31         android:textColor="@color/color_333333"
 32         android:textSize="15sp"
 33     />
 34     <LinearLayout
 35         android:layout_width="match_parent"
 36         android:layout_height="wrap_content"
 37         android:layout_marginBottom="10dp"
 38         android:layout_marginLeft="15dp"
 39         android:layout_marginRight="15dp"
 40         android:orientation="horizontal"
 41     >
 42         <LinearLayout
 43             android:layout_width="match_parent"
 44             android:layout_height="wrap_content"
 45             android:layout_marginRight="5dp"
 46             android:layout_weight="1"
 47             android:orientation="vertical"
 48         >
 49             <ImageView
 50                 android:id="@+id/image_one_view"
 51                 android:layout_width="match_parent"
 52                 android:layout_height="180dp"
 53             />
 54             <TextView
 55                 android:id="@+id/name_one_view"
 56                 android:layout_width="wrap_content"
 57                 android:layout_height="wrap_content"
 58                 android:layout_marginTop="4dp"
 59                 android:text="123"
 60                 android:textColor="@color/color_333333"
 61                 android:textSize="14sp"
 62             />
 63             <TextView
 64                 android:id="@+id/price_one_view"
 65                 android:layout_width="wrap_content"
 66                 android:layout_height="wrap_content"
 67                 android:layout_marginTop="4dp"
 68                 android:text="123"
 69                 android:textColor="@color/color_fd4634"
 70                 android:textSize="16sp"
 71             />
 72             <TextView
 73                 android:id="@+id/zan_one_view"
 74                 android:layout_width="wrap_content"
 75                 android:layout_height="wrap_content"
 76                 android:layout_marginTop="4dp"
 77                 android:text="123"
 78                 android:textColor="@color/color_bfbfbf"
 79                 android:textSize="14sp"
 80             />
 81         </LinearLayout>
 82         <LinearLayout
 83             android:layout_width="match_parent"
 84             android:layout_height="wrap_content"
 85             android:layout_marginLeft="5dp"
 86             android:layout_weight="1"
 87             android:orientation="vertical"
 88         >
 89             <ImageView
 90                 android:id="@+id/image_two_view"
 91                 android:layout_width="match_parent"
 92                 android:layout_height="180dp"
 93             />
 94             <TextView
 95                 android:id="@+id/name_two_view"
 96                 android:layout_width="wrap_content"
 97                 android:layout_height="wrap_content"
 98                 android:layout_marginTop="4dp"
 99                 android:text="123"
100                 android:textColor="@color/color_333333"
101                 android:textSize="14sp"
102             />
103             <TextView
104                 android:id="@+id/price_two_view"
105                 android:layout_width="wrap_content"
106                 android:layout_height="wrap_content"
107                 android:layout_marginTop="4dp"
108                 android:text="123"
109                 android:textColor="@color/color_fd4634"
110                 android:textSize="16sp"
111             />
112             <TextView
113                 android:id="@+id/zan_two_view"
114                 android:layout_width="wrap_content"
115                 android:layout_height="wrap_content"
116                 android:layout_marginTop="4dp"
117                 android:text="123"
118                 android:textColor="@color/color_bfbfbf"
119                 android:textSize="14sp"
120             />
121         </LinearLayout>
122     </LinearLayout>
123 </LinearLayout>
