Message Type ID:
| 0×01 | Chunk Size | changes the chunk size for packets |
| 0×02 | Unknown | anyone know this one? |
| 0×03 | Bytes Read | send every x bytes read by both sides |
| 0×04 | Ping | ping is a stream control message, has subtypes |
| 0×05 | Server BW | the servers downstream bw |
| 0×06 | Client BW | the clients upstream bw |
| 0×07 | Unknown | anyone know this one? |
| 0×08 | Audio Data | packet containing audio |
| 0×09 | Video Data | packet containing video data |
| 0x0A - 0×11 | Unknown | anyone know? |
| 0×12 | Notify | an invoke which does not expect a reply |
| 0×13 | Shared Object | has subtypes |
| 0×14 | Invoke | like remoting call, used for stream actions too. |
type id 1-7为协议控制消息
- 设置Chunk大小 Set Chunk Size， 后跟4个字节的chunk size
- 退出消息（Abort Message）,后跟4个字节的Chunk stream id
当消息包分成多个chunk，已经发送若干包，若不再发送，就是Abort Message,通知接收端终止接收消息，并且丢弃已经接收的Chunk.
1-2 的Message stream id均为0
3.确认命令 Acknowledgement
文档比较模糊，通知Window size, Window size就是一次发送数据，接收方可不作应答的最大长度。
4.用户控制消息 User Control Message
+------------------------------+-------------------------
| Event Type ( 2- bytes ) | Event Data
+------------------------------+-------------------------
Figure 5 Pay load for the ‘User Control Message’.
+---------------+--------------------------------------------------+
| Event | Description |
+---------------+--------------------------------------------------+
|Stream Begin | The server sends this event to notify the client |
| (=0) | that a stream has become functional and can be |
| | used for communication. By default, this event |
| | is sent on ID 0 after the application connect |
| | command is successfully received from the |
| | client. The event data is 4-byte and represents |
| | the stream ID of the stream that became |
| | functional. |
+---------------+--------------------------------------------------+
| Stream EOF | The server sends this event to notify the client |
| (=1) | that the playback of data is over as requested |
| | on this stream. No more data is sent without |
| | issuing additional commands. The client discards |
| | the messages received for the stream. The |
| | 4 bytes of event data represent the ID of the |
| | stream on which playback has ended. |
+---------------+--------------------------------------------------+
| StreamDry | The server sends this event to notify the client |
| (=2) | that there is no more data on the stream. If the |
| | server does not detect any message for a time |
| | period, it can notify the subscribed clients |
| | that the stream is dry. The 4 bytes of event |
| | data represent the stream ID of the dry stream. |
+---------------+--------------------------------------------------+
| SetBuffer | The client sends this event to inform the server |
| Length (=3) | of the buffer size (in milliseconds) that is |
| | used to buffer any data coming over a stream. |
| | This event is sent before the server starts |
| | processing the stream. The first 4 bytes of the |
| | event data represent the stream ID and the next |
| | 4 bytes represent the buffer length, in |
| | milliseconds. |
+---------------+--------------------------------------------------+
| StreamIs | The server sends this event to notify the client |
| Recorded (=4) | that the stream is a recorded stream. The |
| | 4 bytes event data represent the stream ID of |
| | the recorded stream. |
+---------------+--------------------------------------------------+
| PingRequest | The server sends this event to test whether the |
| (=6) | client is reachable. Event data is a 4-byte |
| | timestamp, representing the local server time |
| | when the server dispatched the command. The |
| | client responds with kMsgPingResponse on |
| | receiving kMsgPingRequest. |
+---------------+--------------------------------------------------+
| PingResponse | The client sends this event to the server in |
| (=7) | response to the ping request. The event data is |
| | a 4-byte timestamp, which was received with the |
| | kMsgPingRequest request. |
+-----------------+--------------------------------------------------------+
.5. Window Acknowledgement Size (5)
0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Acknowledgement Window size (4 bytes) |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Figure 6 Pay load for ‘Window Acknowledgement Size’.
6.Set Peer Bandwidth (6)
0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Acknowledgement Window size |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Limit type |
+-+-+-+-+-+-+-+-+
Figure 7 Pay load for ‘Set Peer Bandwidth’
rtmp协议规定在客户端发送connect函数后服务端向客户端发此消息。
rtmp消息分类
- 音频消息
- 视频消息
- 命令消息（command messages)
- 共享对象消息（shared object messages）
- 数据消息（data messages)
- 用户控制消息（message control messages)

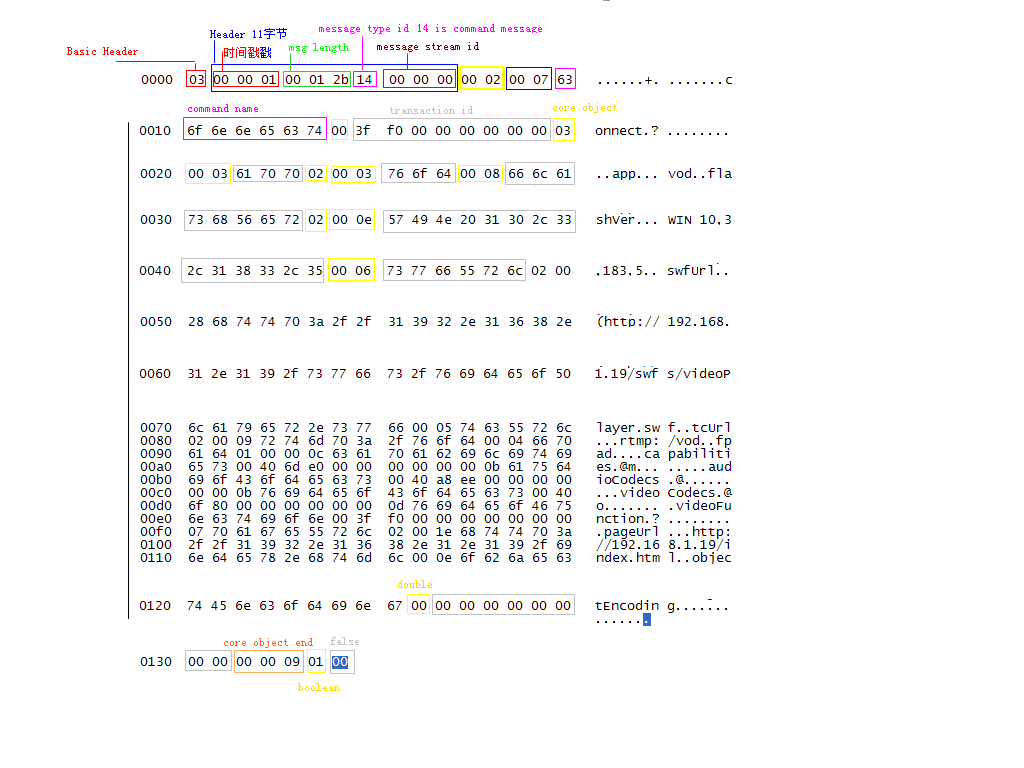

命令消息(0x08-0x14)：
命令消息有如connect, createStream, publish, play, pause on the peer等函数，还有onstatus, result 等。
一个命令由命令名称（string类型）、事务ID（Number类型，4字节）和包含参数的命令对象（command object）组成。
| 类型说明(ObjType) | 数据 | dataSize |
| CORE_String | 0x02 | 2字节 (2字节的数据纪录了String的实际长度) |
| CORE_Object | 0x03 | 0字节（开始嵌套0x00000009表示嵌套结束） |
| NULL | 0x05 | 0字节 空字节无意义 |
| CORE_NUMBER | 0x00 | 8字节 |
| CORE_Map | 0x08 | 4字节（开始嵌套） |
| CORE_BOOLEAN | 0x01 | 1字节 |
AMF0数据的嵌套关系如下:
Object={ObjType + ObjValue}
ObjType={CORE_BOOLEAN、CORE_NUMBER、CORE_STRING、CORE_DATE、CORE_ARRAY、CORE_MAP、CORE_OBJECT}
CORE_BOOLEAN={Value(1 Byte)}
CORE_NUMBER={Value(8 Byte)}
CORE_String={StringLen(2 Byte) + StringValue(StringLen Byte)}
CORE_DATE={value(10 Byte)}
CORE_Array={ArrayLen(4 Byte) + Object}
CORE_Map={MapNum(4 Byte) + CORE_Object}
CORE_Object={CORE_String + Object}
