AIR-PWR-A\AIR-PWR-B\AIR-PWR-C

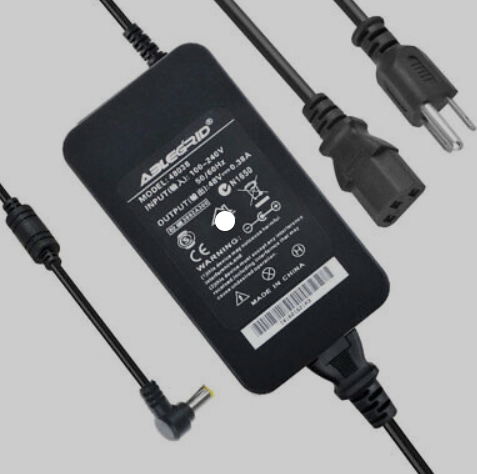

CISCO AIR-PWR-A AIRONET POWER SUPPLY:Power supply for the 1130AG, 1200, 1300 series Access Points

AIR-PWR-A (USED) Overview

Power supply for the 1130AG, 1200, 1300 series Access Points

100-240VAC Out: 48VDC 380mA-1100

AIR-PWR-A (USED) Specification

Power supply for the 1130AG, 1200, 1300 series Access Points

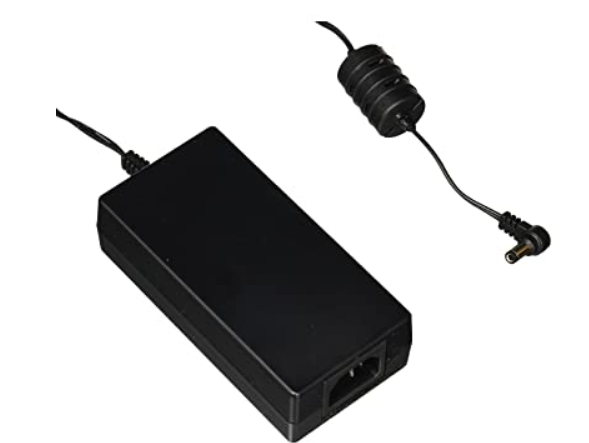

Cisco AP power option AIR-PWR-B PwrSpply:100-240VAC,48VDC:AP1130,1140,1240,1260,1300,3500

The single-port Cisco Aironet Power Injector AIR-PER-B provides 802.3af power and data signal, sending both to the Cisco Aironet Access Point.

AIR-PWR-B Specification
Dimensions	8 x 7.5 x 2 inches
Number of USB 2.0 ports	1
Cooling Type	Air
Input Voltage Range	100 V AC to 240 V AC
Output Voltage	48 V DC
Maximum Output Current	380 mA

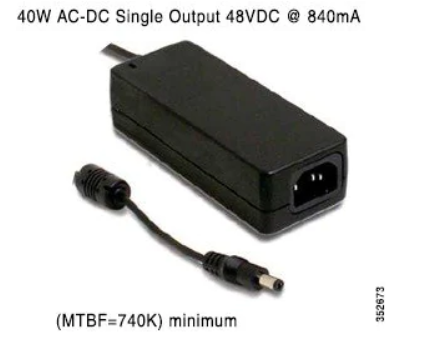

 AIR-PWR-C=:Cisco Aironet power supply. Power supply type: Indoor, Input voltage: 85-264 V, Input frequency: 47/63 Hz. DC output voltage: 48V.

Features
Adjustable output voltage	False
Input current	1 A
Output current	0.84 A
Power supply type	Indoor
Input frequency	47/63 Hz
Output power	40 W
Efficiency	91 %
Output voltage	48 V
Input voltage	85-264 V
Design
Product colour	Black
Power
DC output voltage	48V

Compatible Power Injectors and DC power supplies

Table 2 lists all officially supported PoE injectors for latest Cisco AP models:

AP Model	PoE Injectors	AC / DC Power Adapter
9130	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
9124	AIR-PWRINJ6= (medium power) AIR-PWRINJ-60RGD1= (full power), AIR-PWRINJ-60RGD2= (full power)	X
9120	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
9117	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
9115	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
9105	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
4800	AIR-PWRINJ6= (full power)	AIR-PWR-50= (full power)
3800	AIR-PWRINJ6= (full power)	AIR-PWR-50= (full power)
2800	AIR-PWRINJ6= (full power)	X
3700	AIR-PWRINJ6= (full power), AIR-PWRINJ4= (medium power)	AIR-PWR-B= (full power)
2700	AIR-PWRINJ6= (full power), AIR-PWRINJ4= (full power)	AIR-PWR-C= (full power), AIR-PWR-D= (full power)
1700	AIR-PWRINJ5= (full power)	AIR-PWR-C= (full power), AIR-PWR-D= (full power)
1850	AIR-PWRINJ4= (full power), AIR-PWRINJ5= (medium power)	AIR-PWR-C= (full power)
1840	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	X
1830	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (medium power)	AIR-PWR-C= (full power)
1815i & 1815m	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (full power)	X
1815t	X	AIR-PWR-D= (full power)
1815w	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (full power)	X
1810	AIR-PWRINJ6= (full power), AIR-PWRINJ5= (full power)	AIR-PWR-D= (full power)
1572	AIR-PWRINJ1500-2= (full power)
1562I	AIR-PWRINJ-60RGD1= (full power), AIR-PWRINJ-60RGD2= (full power), AIR-PWRINJ6= (medium power)	AIR-PWRADPT-RGD1= (full power),
1562E & 1562D	AIR-PWRINJ-60RGD1= (full power), AIR-PWRINJ-60RGD2= (full power), AIR-PWRINJ6= (full power)	AIR-PWRADPT-RGD1= (full power)
1542	AIR-PWRINJ-60RGD1= (full power), AIR-PWRINJ-60RGD2= (full power), AIR-PWRINJ6= (full power), AIR-PWRINJ5= (full power)	X
IW6300	AIR-PWRINJ6= (full power)	IW-6300H-AC-X-K9 (full power), IW-6300H-DC-X–K9 (full power), IW-6300H-DCW-X-K9 (full power)
IW3700	AIR-PWRINJ1500-2= (full power), AIR-PWRINJ-60RGD1= (full power), AIR-PWRINJ-60RGD2= (full power)	AIR-PWRADPT3700NA= (full power), AIR-PWRADPT3700IN= (full power)

Table 2. Power Injectors and DC Power Adapters
