3D旋转 + SVG路径动画

3D旋转 + SVG路径动画

注：涉及到图片的位置需要替换图片换成自己的路径

<template>
    <div>
        <!-- 封面 -->
        <div v-if="!iframeShow" class="faHomePage">
            <div class="faTitle">
                <span class="fa_title_style">驾驶舱</span>
            </div>
            <div class="fa_container">
                <div class="container">
                    <!-- 圆心 -->
                    <div class="circle"></div>

                    <!-- 旋转 -->
                    <div class="borther">
                        <div id="lopp2"></div>
                        <div ref="menu" v-for="(item, index) in items" class="ball ball2" @mouseover="onMouseGo(index)" @mouseout="onMouseMove(index)"
                             :style="getItemStyle(index)">
                            <div class="borther_div" @click="clickUp(index, item)">
                                <img :src="isMouseEnter ? getTitleImgUrl(item.id, 1) : getTitleImgUrl(item.id, 2)" />
                                <div class="borther_name">{{ item.name }}</div>
                            </div>
                        </div>
                    </div>

                    <!-- 底座 -->
                    <div class="fmdz"></div>
                </div>
            </div>
        </div>

        <!-- 内容 -->
        <div v-if="iframeShow" class="main_pageBox">
            <!--  大屏内容  -->
            <div v-if="iframeShow" class="detailPage" style="position: absolute; width: 100%; height: 100%">
                <component :is="curDetailPage"/>
                <div class="btnReturnToHome" @click="toHomePage"/>
            </div>
        </div>
    </div>
</template>

<script>
    // 引组件
    import jbxx from '@/scopes/project/jiLJYZT/modulePart/jbxxfxNew/jbxxfxNew'

    export default {
        // VUE命名
        name: 'page',
        // 声明组件
        components: {
            jbxx,
        },
        // 声明变量
        data() {
            return {
                components: [
                    {name: '菜单一', zjName: 'null', detailPage: 'jbxxfxNew',},
                ],
                iframeShow: false, // iframe页面展示
                curDetailPage: '',

                isMouseEnter: true,
                items: [
                    {id: 1, name: '菜单一', detailPage: 'jbxx', srcPath: "menu1@1x.png"},
                    {id: 2, name: '菜单二', detailPage: 'czxzjy', srcPath: "menu2@1x.png"},
                    {id: 3, name: '菜单三', detailPage: 'ncldlzy', srcPath: "menu3@1x.png"},
                    {id: 4, name: '菜单四', detailPage: 'jywczb', srcPath: "menu4@1x.png"},
                    {id: 5, name: '菜单五', detailPage: 'yeWBLQKJK', srcPath: "menu5@1x.png"},
                    {id: 6, name: '菜单六', detailPage: 'djsyry', srcPath: "menu6@1x.png"},
                ]
            }
        },
        watch: {

        },

        created() {

        },

        mounted() {
            this.$nextTick(() => {
                // this.init() // 数据初始化方法
            })
        },

        methods: {


            toHomePage() {
                faceConfig.resDataConfig.submitParameter = {
                    _modulePartId_: this.resourceId,
                }


                this.curDetailPage = this.components[0].detailPage
                this.iframeShow = false
            },

            onMouseGo(i) {
                this._i = i;
                this.$refs.menu.forEach(item => {
                    item.classList.add('active')
                })

                this.isMouseEnter = !this.isMouseEnter;
            },

            onMouseMove(i) {
                this.$refs.menu.forEach(item => {
                    item.classList.remove('active')
                })

                this.isMouseEnter = !this.isMouseEnter;
            },

            clickUp(index, item) {
                this.curDetailPage = item.detailPage;
                this.iframeShow = !this.iframeShow;
            },

            getTitleImgUrl(i, type) {
                if (type == 1) {
                    return require(`./img/menu${i}@1x.png`)
                }

                if (type == 2 && i == this._i + 1) {
                    return require(`./img/menu${i}@1s.png`)
                } else {
                    return require(`./img/menu${i}@1x.png`)
                }
            },

　　　　　　　 // 暂时6个图片可以平均分，要是数量不一致，可以调整一下s的值
            getItemStyle(index) {
                const s = 3.4
                return {
                    animationDelay: '-' + (5 + index * s) + 's, -' + (0 + index * s) + 's, -' + (0 + index * s) + 's'
                }
            },
        },
    }
</script>

<style scoped type="text/less" lang="less">
    //主页面样式
    .faHomePage {
        width: 1920px;
        height: 1080px;
        position: absolute;
        background: url("./img/封面动态背景.gif") no-repeat;
        background-size: 100% 100%;
        margin: 0;
        padding: 0;

        .faTitle {
            width: 1920px;
            height: 1080px;
            position: absolute;
            background: url("./img/封面动态背景框.png") no-repeat;
            background-size: 100% 100%;
            margin: 0;
            padding: 0;

            //标题样式
            .fa_title_style {
                font-size: 40px;
                font-weight: bold;
                //文字之间相隔间距
                letter-spacing: 5px;
                background-image: -webkit-linear-gradient(bottom, white, #bce8f1);
                -webkit-background-clip: text;
                -webkit-text-fill-color: transparent;
                position: absolute;
                left: 850px;
                top: 15px;
            }
        }

        .fa_container {
            position: absolute;

            @keyframes animX{
                0% {
                    left: 0px;
                }
                100% {
                    left: 200px;
                }
            }

            @keyframes animY{
                0% {
                    top: 0px;
                }
                100% {
                    top: 300px;
                }
            }

            @keyframes scale {
                0% {
                    transform: scale(0.4);
                    z-index: 0
                }
                50% {
                    transform: scale(1);
                    z-index: 3
                }
                100% {
                    transform: scale(0.5);
                    z-index: 0
                }
            }

            .ball {
                width: 5px;
                height: 9px;
                border-radius: 50%;
                position: absolute;
                color:#fff;
                font-size:22px;
                display:flex;
                align-items:center;
                justify-content:center;
                background-size: 100% 100%;
                -webkit-background-size: 100% 100%;
                z-index: 3;
                animation-duration: 10s, 10s, 20s;
                animation-timing-function: cubic-bezier(0.36,0,0.64,1);
                animation-iteration-count: infinite;
                animation-direction: alternate;
                animation-name: animX, animY,scale;
            }

            #lopp {
                width: 500px;
                height: 300px;
                border: 2px solid #999;
                border-radius: 50%;
                position: absolute;
                left: 50px;
                top: 70px;
            }

            .active {
                animation-play-state: paused;
            }

            @keyframes anim2X{
                0% {
                    left: 30px;
                }
                100% {
                    left: 700px;
                }
            }

            @keyframes anim2Y{
                0% {
                    top: 50px;
                }
                100% {
                    top: 450px;
                }
            }

            .ball2 {
                z-index: 3;
                width: 88px;
                height: 88px;
                border-radius: 50%;
                position: absolute;
                color:#fff;
                font-size:22px;
                display:flex;
                align-items:center;
                justify-content:center;
                background-size: 100% 100%;
                -webkit-background-size: 100% 100%;
                animation-duration: 10s, 10s, 20s;
                animation-timing-function: cubic-bezier(0.36,0,0.64,1);
                animation-iteration-count: infinite;
                animation-direction: alternate;
                animation-name: anim2X, anim2Y,scale;
                cursor: pointer;
            }

            #lopp2 {
                width: 600px;
                height: 400px;
                border-radius: 50%;
                position: absolute;
                left: 100px;
                top: 100px;
            }

            .circle {
                position: absolute;
                top: -7rem;
                left: -4rem;
                min-width: 900px;
                min-height: 400px;
                background: url("./img/封面地图.gif") no-repeat center center;
                mix-blend-mode: screen;
                background-size: 100% auto;
                z-index: 3;
                display: -webkit-box;
                display: -ms-flexbox;
                display: flex;
                -webkit-box-pack: center;
                -ms-flex-pack: center;
                justify-content: center;
            }

            .container {
                position: relative;
                transform: rotateX(20deg);
                width: 800px;
                height: 800px;
                margin: 20rem 0 0 36rem;
                mix-blend-mode: screen;

                .borther_div {
                    .borther_name {
                        font-family: Source Han Sans;
                        font-size: 20px;
                        font-weight: bold;
                        width: 12rem;
                        padding: 0 2rem;
                        margin-top: -5rem;
                        text-align: center;
                        font-variation-settings: "opsz" auto;
                        font-feature-settings: "kern" on;
                        background: linear-gradient(180deg, #C8DDEC 11%, #EFF5FC 50%, #EAF0F5 88%);
                        -webkit-background-clip: text;
                        -webkit-text-fill-color: transparent;
                        background-clip: text;
                        text-shadow: 0px 0px 8px #6788F3;
                    }
                }
            }

            .fmdz {
                position: absolute;
                top: 0;
                left: 0;
                min-width: 800px;
                min-height: 800px;
                background: url("./img/封面底座.gif") no-repeat center center;
                mix-blend-mode: screen;
                background-size: 100% auto;
                z-index: 2;
            }
        }
    }

    .main_pageBox {
　　　　// 具体内容样式
    }
</style>

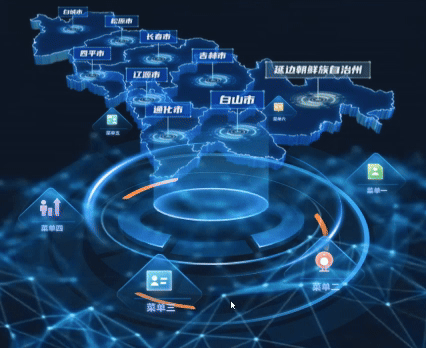

效果图：
