05、spring Aop 事务注解入门配置

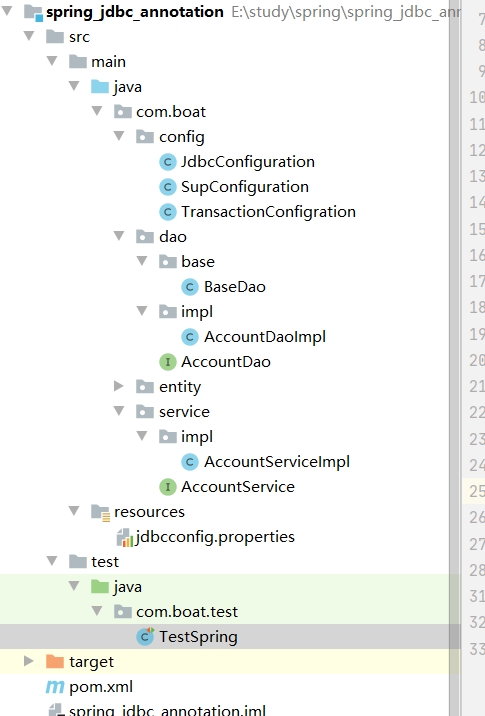

项目目录结构：







1、导入依赖

<dependencies>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>5.3.7</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.3.7</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-tx</artifactId>
        <version>5.3.7</version>
    </dependency>
    <dependency>
        <groupId>org.aspectj</groupId>
        <artifactId>aspectjweaver</artifactId>
        <version>1.9.6</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.6</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>5.3.7</version>
    </dependency>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
        <scope>test</scope>
    </dependency>
</dependencies>

2、创建实体类（数据库表以类的属性一致）

public class Account implements Serializable {

    private Integer id;
    private String name;
    private double money;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public double getMoney() {
        return money;
    }

    public void setMoney(double money) {
        this.money = money;
    }

    @Override
    public String toString() {
        return "Account{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

3、创建JdbcBase类

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.JdbcTemplate;

public class BaseDao {

    @Autowired
    private JdbcTemplate jdbcTemplate;

    public JdbcTemplate getJdbcTemplate() {
        return jdbcTemplate;
    }
}

4、创建DAO

接口：

import com.boat.entity.Account;

import java.util.List;

public interface AccountDao{

    int save(Account account);

    List<Account> listAccount();

}

实现类：

import com.boat.dao.AccountDao;
import com.boat.dao.base.BaseDao;
import com.boat.entity.Account;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public class AccountDaoImpl extends BaseDao implements AccountDao {
    @Override
    public int save(Account account) {
        Integer flag = getJdbcTemplate().update("insert into account(name,money) values(?,?)",account.getName(),account.getMoney());
        return flag;
    }

    @Override
    public List<Account> listAccount() {
        return getJdbcTemplate().query("select * from account",new BeanPropertyRowMapper<>(Account.class));
    }
}

5、创建service服务

接口：

import com.boat.entity.Account;

import java.util.List;

public interface AccountService {

    public abstract int save(Account account);

    public abstract List<Account> listAccount();
}

实现类：

@Service
@Transactional(propagation = Propagation.SUPPORTS, readOnly = true)
public class AccountServiceImpl implements AccountService {

    @Autowired
    private AccountDao accountDao;

    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }

    @Override
    @Transactional(propagation = Propagation.REQUIRED, readOnly = false)
    public int save(Account account) {
        int falg = accountDao.save(account);
        int i = 1 / 0;
        return falg;
    }

    @Override
    public List<Account> listAccount() {
        return accountDao.listAccount();
    }

}

6、配置config配置类

主配置类：

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.PropertySource;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@ComponentScan("com.boat")
@PropertySource("jdbcconfig.properties")
@Import(value = {JdbcConfiguration.class,TransactionConfigration.class})
@EnableTransactionManagement
public class SupConfiguration {

}

数据源配置类：

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.datasource.DriverManagerDataSource;

import javax.sql.DataSource;

public class JdbcConfiguration {

    @Value("${jdbc.driveclass}")
    private String driveclass;
    @Value("${jdbc.url}")
    private String url;
    @Value("${jdbc.username}")
    private String username;
    @Value("${jdbc.password}")
    private String password;

    @Bean("jdbcTemplate")
    public JdbcTemplate createJdbcTemplate(DataSource dataSource){
        return new JdbcTemplate(dataSource);
    }

    @Bean("datasource")
    public DataSource createDatasource(){
        DriverManagerDataSource dataSource = new DriverManagerDataSource();
        dataSource.setDriverClassName(driveclass);
        dataSource.setUrl(url);
        dataSource.setUsername(username);
        dataSource.setPassword(password);
        return dataSource;
    }

}

配置事务管理器：

import org.springframework.context.annotation.Bean;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;

public class TransactionConfigration {

    @Bean("transactionManager")
    public DataSourceTransactionManager createDataSourceTransactionManager(DataSource dataSource){
        return new DataSourceTransactionManager(dataSource);
    }

}

7、配置jdbcconfig.properties文件，配置连接数据库的参数

jdbc.driveclass=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/mydb
jdbc.username=xxx
jdbc.password=xxx

8、测试事务

import com.boat.config.SupConfiguration;
import com.boat.entity.Account;
import com.boat.service.AccountService;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SupConfiguration.class)
public class TestSpring {

    @Autowired
    private AccountService accountService;

    @Test
    public void save(){
        Account account = new Account();
        account.setName("高某");
        account.setMoney(1000);
        accountService.save(account);
    }

    @Test
    public void list(){
        System.out.println(accountService.listAccount());
    }

}

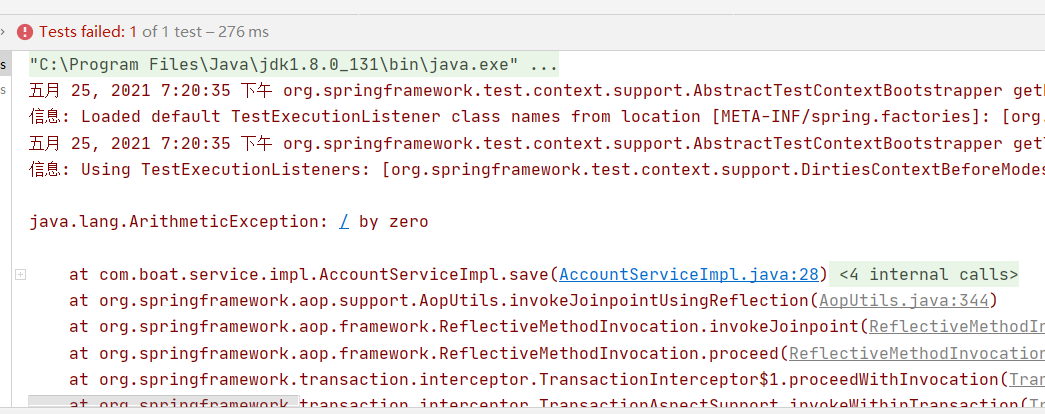

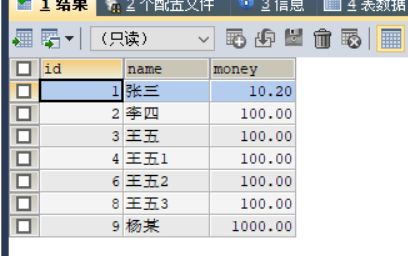

运行结果，并检查数据是否回滚，如果数据库没有插入数据，表示配置成功。
