实验5：开源控制器实践——POX

目录

• 一、基础要求
  • 1. 验证hub
    • h1 ping h2 与h1 ping h3
  • 2. 验证switch
    • h1 ping h2 与h1 ping h3
  • 3. L2_learning模板代码流程图
• 二、进阶要求
  • 1. SendFlowInSingle3
    • 1）代码
    • 2）运行结果
  • 2. SendPoxHardTime
    • 1）代码
    • 2）运行结果
• 三、心得体会

一、基础要求

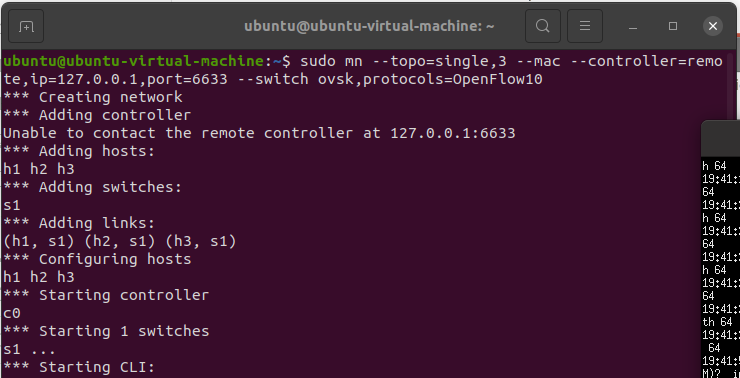

1. 验证hub

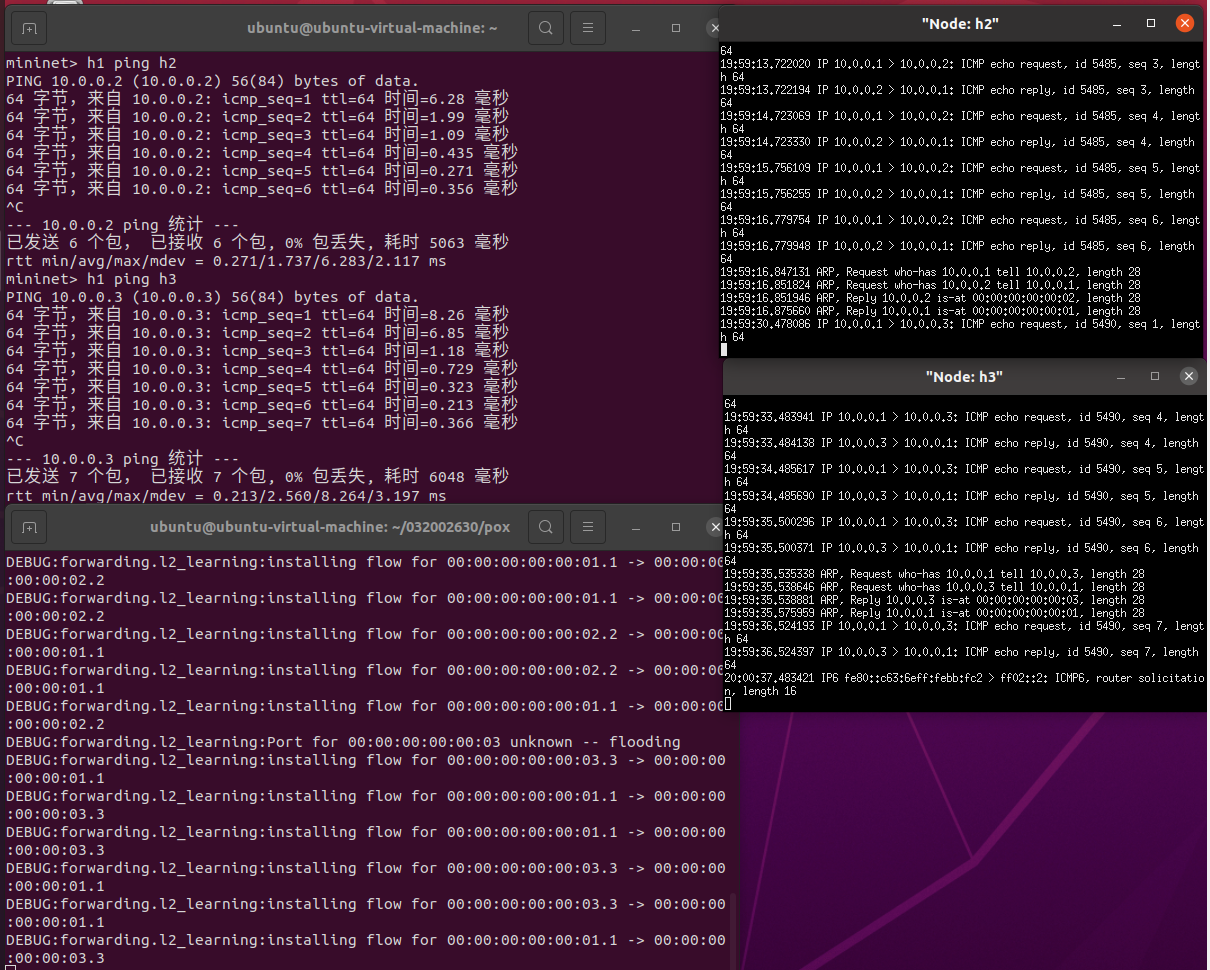

h1 ping h2 与h1 ping h3

2. 验证switch

h1 ping h2 与h1 ping h3

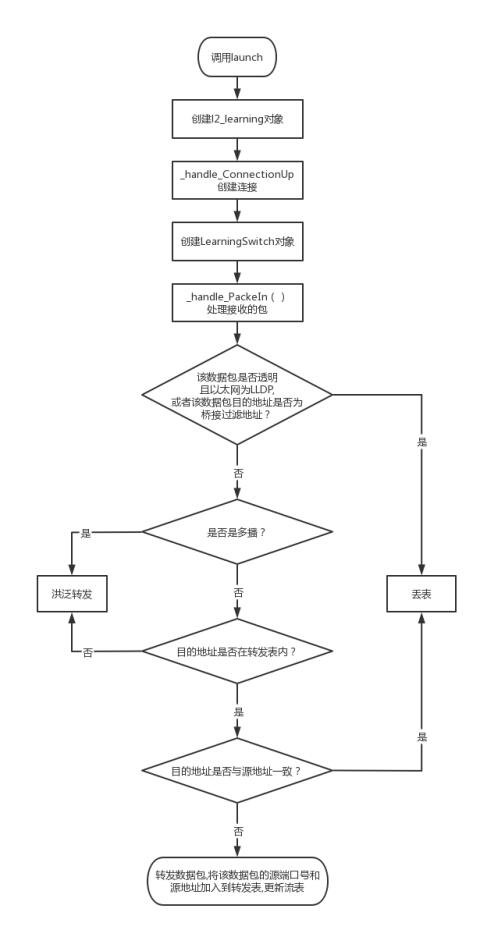

3. L2_learning模板代码流程图

二、进阶要求

1. SendFlowInSingle3

1）代码

from pox.core import core
import pox.openflow.libopenflow_01 as of
class SendFlowInSingle3(object):
    def __init__ (self):
        core.openflow.addListeners(self)

    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendFlowInSingle3)

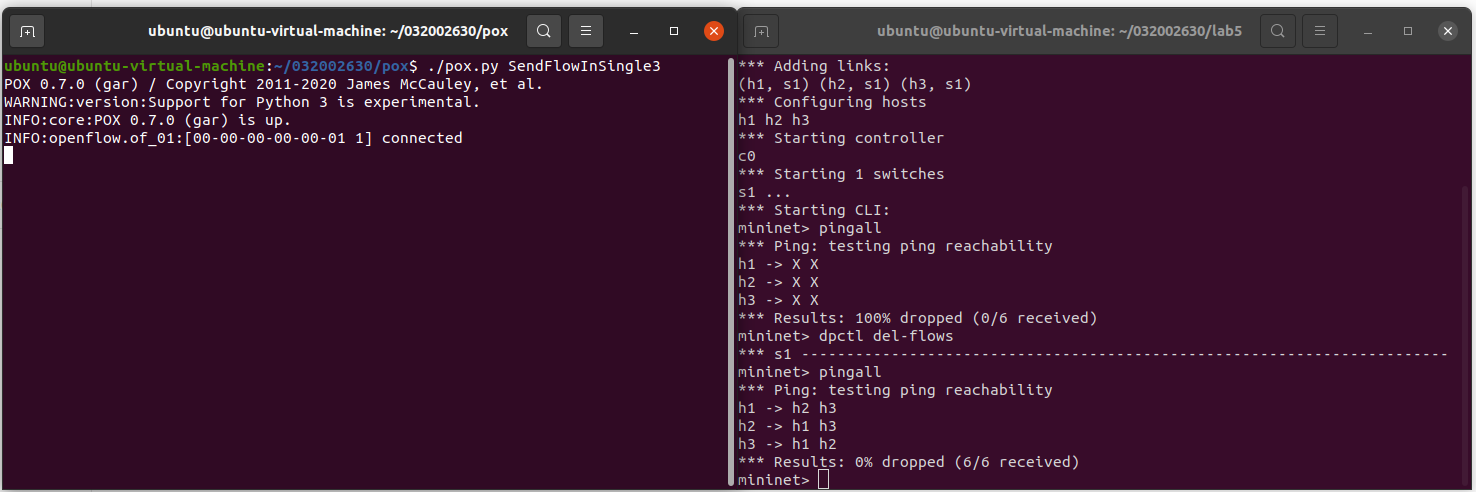

2）运行结果

2. SendPoxHardTime

1）代码

from pox.core import core
import pox.openflow.libopenflow_01 as of
from pox.openflow.of_json import *

def _handle_ConnectionUp(event):
    msg = of.ofp_flow_mod()
    msg.priority = 1
    msg.match.in_port = 1
    msg.actions.append(of.ofp_action_output(port=2))
    #msg.actions.append(of.ofp_action_output(port=3))
    event.connection.send(msg)

    msg = of.ofp_flow_mod()
    msg.priority = 1
    msg.match.in_port = 2
    msg.actions.append(of.ofp_action_output(port=1))
    msg.actions.append(of.ofp_action_output(port=3))
    event.connection.send(msg)

    msg = of.ofp_flow_mod()
    msg.priority = 1
    msg.match.in_port = 3
    #msg.actions.append(of.ofp_action_output(port=1))
    msg.actions.append(of.ofp_action_output(port=2))
    event.connection.send(msg)

def launch():
    core.openflow.addListenerByName("ConnectionUp", _handle_ConnectionUp)

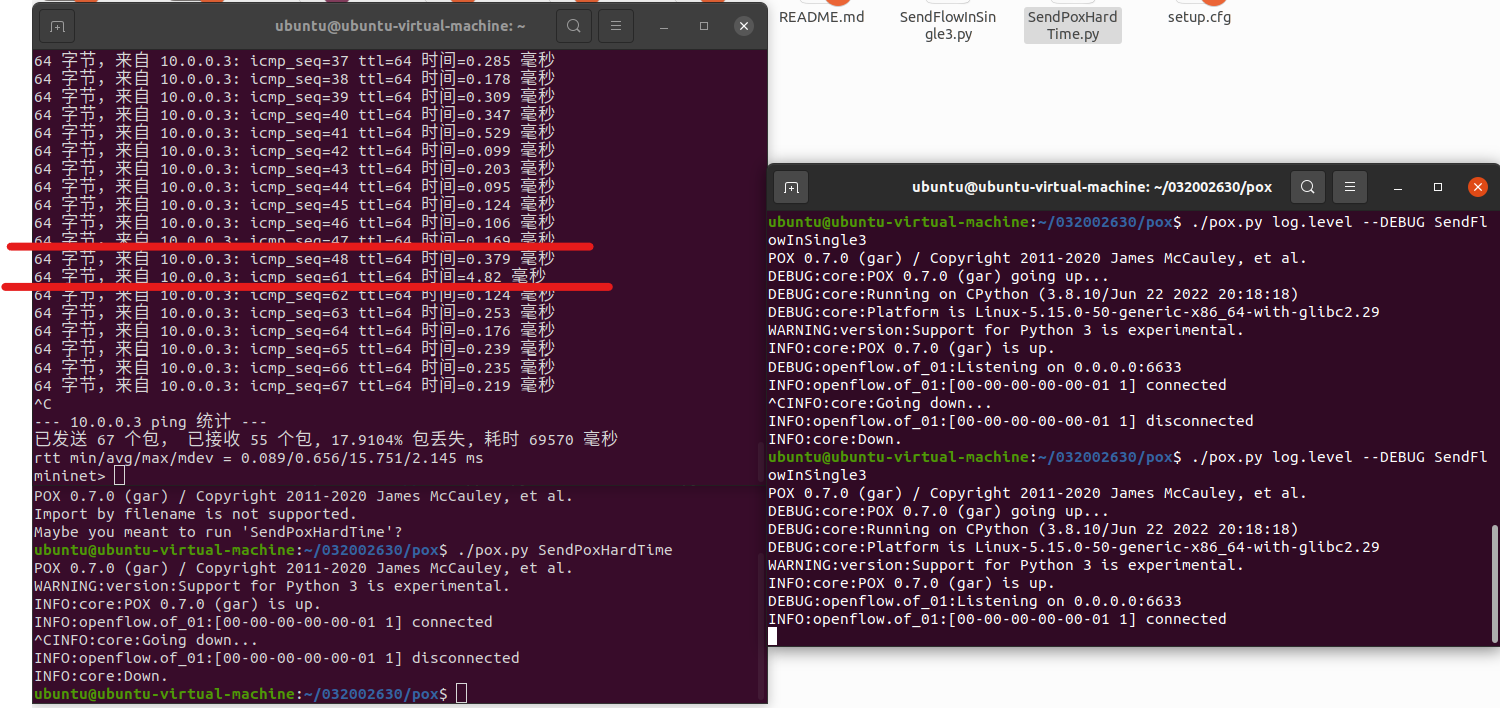

2）运行结果

三、心得体会

在做基础部分还是比较得心应手，难度卡在了进阶部分2。我一开始以为只能同时运行，但没办法同时运行。看了下其他人博客，是先运行SendFlowInSingle3，同时执行ping操作，之后执行SendPoxHardTimeOut，停止运SendPoxHardTimeOut，再次运行运行SendFlowInSingle3。按照这种操着，很快得出了想要的结果。
