window安装EMQX和node.js
- 进入网站
https://www.emqx.io/zh/downloads?os=Windows
![]()
- 可能会报错MSVRC120.dll
https://learn.microsoft.com/zh-CN/cpp/windows/latest-supported-vc-redist?view=msvc-170
下载64位的即可启动emqx - 进入nodejs官网

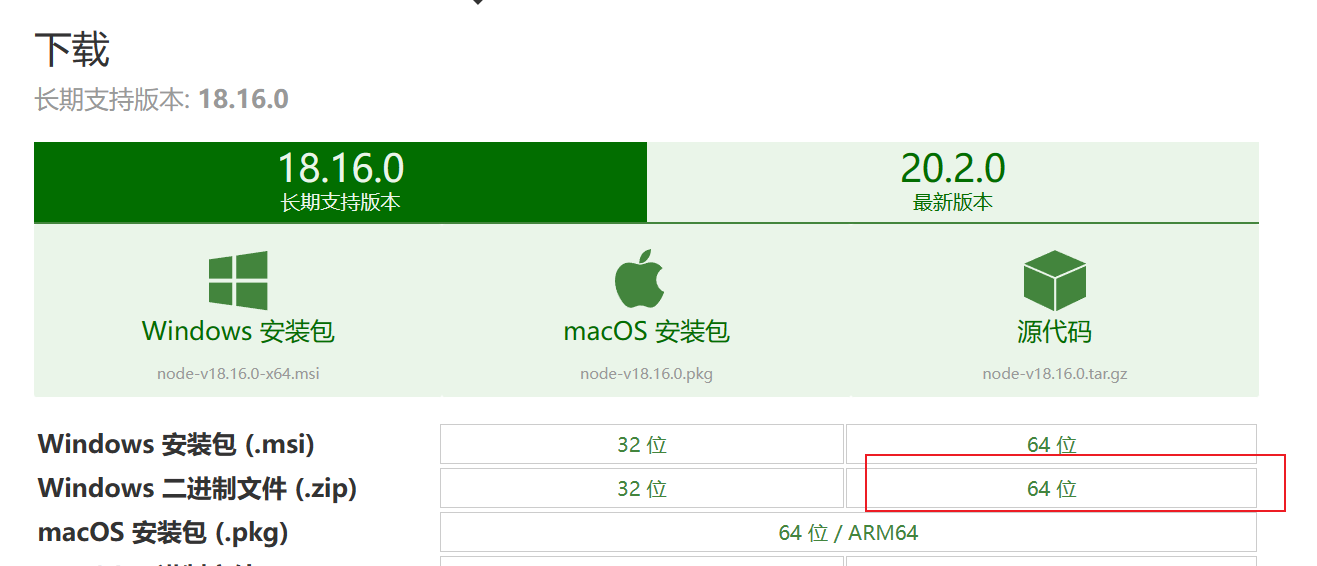

https://nodejs.cn/download/
下载
![]()
新建group
考试node-red配置
点击查看代码
[
{
"id": "4480a22badcc80b5",
"type": "tab",
"label": "时间戳生成数据",
"disabled": false,
"info": "",
"env": []
},
{
"id": "a43d7c5856dc2fea",
"type": "function",
"z": "4480a22badcc80b5",
"name": "function 2-zwl2007331220",
"func": "var msg1 = {payload:msg.payload};\nvar mysql = \"INSERT INTO zwlled VALUES ('%s')\";\nvar tem2007331220 = msg1.payload;\nvar msg3 = {\n\n \"topic\": util.format(mysql,tem2007331220)\n}\n\nreturn [[msg1],[msg3]];\n",
"outputs": 2,
"noerr": 1,
"initialize": "",
"finalize": "",
"libs": [],
"x": 530,
"y": 860,
"wires": [
[
"a27e6a3f73ac9865",
"e210add1d2c28b25"
],
[
"0b66d280d274ed81"
]
]
},
{
"id": "e210add1d2c28b25",
"type": "ui_gauge",
"z": "4480a22badcc80b5",
"name": "",
"group": "86d9dae2c7d6e7e6",
"order": 3,
"width": "0",
"height": "0",
"gtype": "gage",
"title": "温度",
"label": "units",
"format": "{{value}}",
"min": 0,
"max": "100",
"colors": [
"#00b500",
"#e6e600",
"#ca3838"
],
"seg1": "",
"seg2": "",
"diff": false,
"className": "",
"x": 830,
"y": 760,
"wires": []
},
{
"id": "2af280ae9cb6d059",
"type": "mqtt in",
"z": "4480a22badcc80b5",
"name": "",
"topic": "zwl2007331220",
"qos": "2",
"datatype": "auto-detect",
"broker": "f7ad174f.17a3c",
"nl": false,
"rap": true,
"rh": 0,
"inputs": 0,
"x": 240,
"y": 860,
"wires": [
[
"a43d7c5856dc2fea"
]
]
},
{
"id": "0b66d280d274ed81",
"type": "mysql",
"z": "4480a22badcc80b5",
"mydb": "c3ed5a2b931be081",
"name": "",
"x": 830,
"y": 900,
"wires": [
[]
]
},
{
"id": "a27e6a3f73ac9865",
"type": "ui_chart",
"z": "4480a22badcc80b5",
"name": "",
"group": "194aa3cb24375fc7",
"order": 1,
"width": "0",
"height": "0",
"label": "温度折线图",
"chartType": "line",
"legend": "false",
"xformat": "HH:mm:ss",
"interpolate": "linear",
"nodata": "",
"dot": false,
"ymin": "0",
"ymax": "101",
"removeOlder": 1,
"removeOlderPoints": "",
"removeOlderUnit": "3600",
"cutout": 0,
"useOneColor": false,
"useUTC": false,
"colors": [
"#1f77b4",
"#aec7e8",
"#ff7f0e",
"#2ca02c",
"#98df8a",
"#d62728",
"#ff9896",
"#9467bd",
"#c5b0d5"
],
"outputs": 1,
"useDifferentColor": false,
"className": "",
"x": 850,
"y": 840,
"wires": [
[]
]
},
{
"id": "edc7ed0408f90779",
"type": "inject",
"z": "4480a22badcc80b5",
"name": "",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": true,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 220,
"y": 160,
"wires": [
[
"7eea001d4cf904e6"
]
]
},
{
"id": "2d621c5113bccb2d",
"type": "mqtt out",
"z": "4480a22badcc80b5",
"name": "",
"topic": "zwl2007331220",
"qos": "2",
"retain": "true",
"respTopic": "",
"contentType": "",
"userProps": "",
"correl": "",
"expiry": "",
"broker": "f7ad174f.17a3c",
"x": 860,
"y": 160,
"wires": []
},
{
"id": "1b5e58fdeae07547",
"type": "debug",
"z": "4480a22badcc80b5",
"name": "debug 22",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 840,
"y": 100,
"wires": []
},
{
"id": "7eea001d4cf904e6",
"type": "random",
"z": "4480a22badcc80b5",
"name": "",
"low": 1,
"high": "111",
"inte": "true",
"property": "payload",
"x": 480,
"y": 160,
"wires": [
[
"1b5e58fdeae07547",
"2d621c5113bccb2d"
]
]
},
{
"id": "345eb7e648e3d8b7",
"type": "serial out",
"z": "4480a22badcc80b5",
"name": "LED灯串口",
"serial": "8fd3b110b3c6dcee",
"x": 850,
"y": 360,
"wires": []
},
{
"id": "5c15c59c62795e9c",
"type": "function",
"z": "4480a22badcc80b5",
"name": "function 1-zwl2007331220",
"func": "var temp0 = new Buffer([0x00]);\nvar temp1 = new Buffer([0x01]);\nvar temp2 = new Buffer([0x02]);\nvar temp3 = new Buffer([0x03]);\nvar msg1 = { payload: msg.payload };\nif(msg.topic === \"zwl2007331220\"){\nif (msg1.payload >100) {\n msg.payload = temp0;\n} else if (msg1.payload >= 70 && msg1.payload <= 100) {\n msg.payload = temp1;\n} else if (msg1.payload >= 40 && msg1.payload < 70) {\n msg.payload = temp2;\n}else{\n msg.payload = temp3;\n}\nreturn msg;\n}else if (msg.topic === \"topic\"){\n msg.payload = temp0;\n return msg;}\nelse if (msg.topic === \"topic2\") {\n msg.payload = temp1;\n return msg;\n}else{\n if (msg1.payload > 100) {\n msg.payload = temp0;\n } else if (msg1.payload >= 70 && msg1.payload <= 100) {\n msg.payload = temp1;\n } else if (msg1.payload >= 40 && msg1.payload < 70) {\n msg.payload = temp2;\n } else {\n msg.payload = temp3;\n }\n return msg;\n}\n\n\n\n",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 530,
"y": 320,
"wires": [
[
"345eb7e648e3d8b7",
"bb94797d502b77c0"
]
]
},
{
"id": "004918129e3a3871",
"type": "mqtt in",
"z": "4480a22badcc80b5",
"name": "",
"topic": "zwl2007331220",
"qos": "2",
"datatype": "auto-detect",
"broker": "f7ad174f.17a3c",
"nl": false,
"rap": true,
"rh": 0,
"inputs": 0,
"x": 240,
"y": 340,
"wires": [
[
"5c15c59c62795e9c"
]
]
},
{
"id": "aabbee4a48ead696",
"type": "ui_button",
"z": "4480a22badcc80b5",
"name": "",
"group": "338b06a7370dade5",
"order": 3,
"width": "0",
"height": "0",
"passthru": false,
"label": "断开",
"tooltip": "",
"color": "",
"bgcolor": "",
"className": "",
"icon": "",
"payload": "true",
"payloadType": "bool",
"topic": "topic",
"topicType": "str",
"x": 210,
"y": 420,
"wires": [
[
"5c15c59c62795e9c",
"9a5a2572d0e79fa4"
]
]
},
{
"id": "bb94797d502b77c0",
"type": "debug",
"z": "4480a22badcc80b5",
"name": "debug 24",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 840,
"y": 300,
"wires": []
},
{
"id": "7c8dec03ee16b37c",
"type": "ui_button",
"z": "4480a22badcc80b5",
"name": "",
"group": "338b06a7370dade5",
"order": 1,
"width": 0,
"height": 0,
"passthru": false,
"label": "换灯",
"tooltip": "",
"color": "",
"bgcolor": "",
"className": "",
"icon": "",
"payload": "true",
"payloadType": "bool",
"topic": "topic2",
"topicType": "str",
"x": 210,
"y": 260,
"wires": [
[
"5c15c59c62795e9c",
"9a5a2572d0e79fa4"
]
]
},
{
"id": "9a5a2572d0e79fa4",
"type": "function",
"z": "4480a22badcc80b5",
"name": "function3-zwl2007331220",
"func": "var msg2 = { payload: msg.payload};\n\n\n\n\nif (msg.topic === \"zwl2007331220\") {\n if (msg2.payload > 100) {\n msg.payload = '00';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '灰色')\n }\n } else if (msg2.payload >= 70 && msg2.payload <= 100) {\n msg.payload = '01';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '红色')\n }\n } else if (msg2.payload >= 40 && msg2.payload < 70) {\n msg.payload = '02';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '绿色')\n }\n } else {\n msg.payload = '03';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '蓝色')\n }\n }\n return [[msg], [msg3]];\n \n} else if (msg.topic === \"topic\") {\n msg.payload = '00';\n return msg;\n} else {\n if (msg2.payload > 100) {\n msg.payload = '00';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '灰色')\n }\n } else if (msg2.payload >= 70 && msg2.payload <= 100) {\n msg.payload = '01';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '红色')\n }\n } else if (msg2.payload >= 40 && msg2.payload < 70) {\n msg.payload = '02';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '绿色')\n }\n } else {\n msg.payload = '03';\n var mysql = \"INSERT INTO LED2zwl VALUES ('%s')\";\n var msg3 = {\n\n \"topic\": util.format(mysql, '蓝色')\n }\n }\n return [[msg], [msg3]];\n \n}",
"outputs": 2,
"noerr": 8,
"initialize": "",
"finalize": "",
"libs": [],
"x": 530,
"y": 560,
"wires": [
[
"f77a74cfabb08859",
"e48172629f8912c2"
],
[
"100482b02e6f35b3",
"445bc122a3d75bf1"
]
]
},
{
"id": "9c17c2b665b8d758",
"type": "mqtt in",
"z": "4480a22badcc80b5",
"name": "",
"topic": "zwl2007331220",
"qos": "2",
"datatype": "auto-detect",
"broker": "f7ad174f.17a3c",
"nl": false,
"rap": true,
"rh": 0,
"inputs": 0,
"x": 240,
"y": 560,
"wires": [
[
"9a5a2572d0e79fa4"
]
]
},
{
"id": "f77a74cfabb08859",
"type": "ui_led",
"z": "4480a22badcc80b5",
"order": 1,
"group": "86d9dae2c7d6e7e6",
"width": 0,
"height": 0,
"label": "",
"labelPlacement": "left",
"labelAlignment": "left",
"colorForValue": [
{
"color": "#808080",
"value": "00",
"valueType": "str"
},
{
"color": "#ff0000",
"value": "01",
"valueType": "str"
},
{
"color": "#008000",
"value": "02",
"valueType": "str"
},
{
"color": "#0000ff",
"value": "03",
"valueType": "str"
}
],
"allowColorForValueInMessage": false,
"shape": "circle",
"showGlow": true,
"name": "",
"x": 830,
"y": 560,
"wires": []
},
{
"id": "100482b02e6f35b3",
"type": "debug",
"z": "4480a22badcc80b5",
"name": "debug 32",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 840,
"y": 620,
"wires": []
},
{
"id": "e48172629f8912c2",
"type": "debug",
"z": "4480a22badcc80b5",
"name": "debug 33",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 840,
"y": 500,
"wires": []
},
{
"id": "445bc122a3d75bf1",
"type": "mysql",
"z": "4480a22badcc80b5",
"mydb": "c3ed5a2b931be081",
"name": "",
"x": 830,
"y": 680,
"wires": [
[]
]
},
{
"id": "86d9dae2c7d6e7e6",
"type": "ui_group",
"name": "温度显示界面",
"tab": "91403e6c2ad42c28",
"order": 2,
"disp": true,
"width": "6",
"collapse": false,
"className": ""
},
{
"id": "f7ad174f.17a3c",
"type": "mqtt-broker",
"name": "",
"broker": "localhost:18083",
"port": "1883",
"clientid": "",
"autoConnect": true,
"usetls": false,
"compatmode": false,
"protocolVersion": "4",
"keepalive": "60",
"cleansession": true,
"birthTopic": "",
"birthQos": "0",
"birthPayload": "",
"birthMsg": {},
"closeTopic": "",
"closePayload": "",
"closeMsg": {},
"willTopic": "",
"willQos": "0",
"willPayload": "",
"willMsg": {},
"userProps": "",
"sessionExpiry": ""
},
{
"id": "c3ed5a2b931be081",
"type": "MySQLdatabase",
"name": "",
"host": "127.0.0.1",
"port": "3306",
"db": "test",
"tz": "",
"charset": "UTF8"
},
{
"id": "194aa3cb24375fc7",
"type": "ui_group",
"name": "数据分析界面",
"tab": "91403e6c2ad42c28",
"order": 3,
"disp": true,
"width": "13",
"collapse": false,
"className": ""
},
{
"id": "8fd3b110b3c6dcee",
"type": "serial-port",
"z": "4480a22badcc80b5",
"serialport": "COM3",
"serialbaud": "115200",
"databits": "8",
"parity": "none",
"stopbits": "1",
"waitfor": "",
"dtr": "none",
"rts": "none",
"cts": "none",
"dsr": "none",
"newline": "\\n",
"bin": "false",
"out": "char",
"addchar": "",
"responsetimeout": "10000"
},
{
"id": "338b06a7370dade5",
"type": "ui_group",
"name": "控制LED亮灭界面",
"tab": "91403e6c2ad42c28",
"order": 1,
"disp": true,
"width": "6",
"collapse": false,
"className": ""
},
{
"id": "91403e6c2ad42c28",
"type": "ui_tab",
"name": "Tab 1",
"icon": "dashboard",
"order": 1
}
]
