以NettyRPC项目为例，源码分析：
public void run() {
//netty的reactor线程组
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
//服务端启动配置类
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
//server端parentchannel的option
.option(ChannelOption.SO_BACKLOG, 128)
//server端childchannel的handler、option、attr等的配置
.childHandler(new RpcServerInitializer(serviceMap, threadPoolExecutor))
.childOption(ChannelOption.SO_KEEPALIVE, true);
String[] array = serverAddress.split(":");
String host = array[0];
int port = Integer.parseInt(array[1]);
//绑定
ChannelFuture future = bootstrap.bind(host, port).sync();
if (serviceRegistry != null) {
serviceRegistry.registerService(host, port, serviceMap);
}
logger.info("Server started on port {}", port);
future.channel().closeFuture().sync();
} catch (Exception e) {
if (e instanceof InterruptedException) {
logger.info("Rpc server remoting server stop");
} else {
logger.error("Rpc server remoting server error", e);
}
} finally {
//资源回收
try {
serviceRegistry.unregisterService();
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception ex) {
logger.error(ex.getMessage(), ex);
}
}
}
});
thread.start();
}

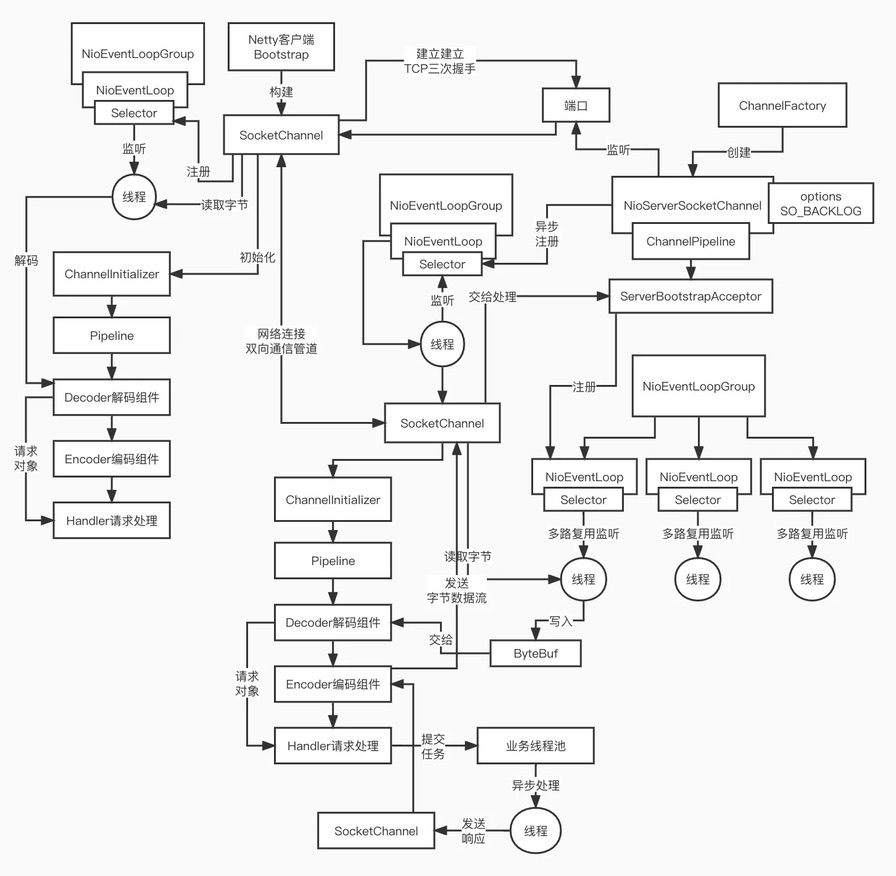

Netty启动流程如下：
Netty的启动和运行流程，需要结合NIO编程逻辑，关联性的学习。
第一节 NioEventLoopGroup初始化分析
TAG1 NioEventLoopGroup
public class NioEventLoopGroup extends MultithreadEventLoopGroup {
public NioEventLoopGroup() {
this(0);
}
public NioEventLoopGroup(int nEventLoops) {
this(nEventLoops, (Executor) null);
}
public NioEventLoopGroup(int nEventLoops, Executor executor) {
//executor 当前group所含的executor
//provider：两个方法——provider()、openServerSocketChannel（用来创建原生serverSocketChannel）
this(nEventLoops, executor, SelectorProvider.provider());
}
public NioEventLoopGroup(
int nThreads, Executor executor, final SelectorProvider selectorProvider) {
//传入策略选择器工厂类实例
this(nThreads, executor, selectorProvider, DefaultSelectStrategyFactory.INSTANCE);
}
public NioEventLoopGroup(int nThreads, Executor executor, final SelectorProvider selectorProvider,
final SelectStrategyFactory selectStrategyFactory) {
super(nThreads, executor, selectorProvider, selectStrategyFactory, RejectedExecutionHandlers.reject());
}
}
TAG2 MultithreadEventLoopGroup
protected MultithreadEventLoopGroup(int nThreads, Executor executor, Object... args) {
//构造函数参数为0，初始换时设置为2*CPU数量
super(nThreads == 0 ? DEFAULT_EVENT_LOOP_THREADS : nThreads, executor, args);
}

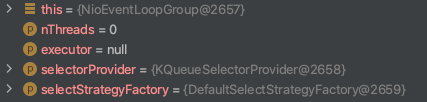

无参构造group的过程中，线程数默认设置为2*CPU数量；
SelectorProvider.provider()，是当前JVM中唯一单例的provider对象。provider用来创建selector选择器、创建NIO原生serverSocketChannel。
TAG3 MultithreadEventExecutorGroup
protected MultithreadEventExecutorGroup(int nThreads, Executor executor, Object... args) {
//eventExecutor选择器工厂类（用来在group中选择
this(nThreads, executor, DefaultEventExecutorChooserFactory.INSTANCE, args);
}
protected MultithreadEventExecutorGroup(int nThreads, Executor executor,
EventExecutorChooserFactory chooserFactory, Object... args) {
if (nThreads <= 0) {
throw new IllegalArgumentException(String.format("nThreads: %d (expected: > 0)", nThreads));
}
if (executor == null) {
//TAG3.1 ThreadPerTaskExecutor
//该executor将来会传递到children内的NioEventLoop内，在调用nioEventLoop.execute()时，方法内调用executor.execute()创建线程
executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
}
//group内nioeventloop集合
children = new EventExecutor[nThreads];
for (int i = 0; i < nThreads; i ++) {
boolean success = false;
try {
//TAG3.2 newChild(executor, args)
//初始化group内的NioEventLoop集合
children[i] = newChild(executor, args);
success = true;
} catch (Exception e) {
// TODO: Think about if this is a good exception type
throw new IllegalStateException("failed to create a child event loop", e);
} finally {
//初始化children中任何一个nioeventloop创建失败，就遍历关闭
if (!success) {
for (int j = 0; j < i; j ++) {
children[j].shutdownGracefully();
}
for (int j = 0; j < i; j ++) {
EventExecutor e = children[j];
try {
while (!e.isTerminated()) {
e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
}
} catch (InterruptedException interrupted) {
// Let the caller handle the interruption.
Thread.currentThread().interrupt();
break;
}
}
}
}
}
//eventexecutor选择器
chooser = chooserFactory.newChooser(children);
//netty的future、listener监听器机制
//创建操作完成的监听器listener
final FutureListener<Object> terminationListener = new FutureListener<Object>() {
@Override
public void operationComplete(Future<Object> future) throws Exception {
if (terminatedChildren.incrementAndGet() == children.length) {
terminationFuture.setSuccess(null);
}
}
};
//为children每个EventExecutor添加终止时的监听器
for (EventExecutor e: children) {
e.terminationFuture().addListener(terminationListener);
}
//将children集合内的eventloop，转换为set集合
Set<EventExecutor> childrenSet = new LinkedHashSet<EventExecutor>(children.length);
Collections.addAll(childrenSet, children);
readonlyChildren = Collections.unmodifiableSet(childrenSet);
}
在MultithreadEventExecutorGroup的构造函数中完成group真正的实例化过程。
TAG3.1 ThreadPerTaskExecutor(newDefaultThreadFactory())--group内executor
public final class ThreadPerTaskExecutor implements Executor {
private final ThreadFactory threadFactory;
public ThreadPerTaskExecutor(ThreadFactory threadFactory) {
if (threadFactory == null) {
throw new NullPointerException("threadFactory");
}
this.threadFactory = threadFactory;
}
//线程工厂创建新线程并启动
@Override
public void execute(Runnable command) {
threadFactory.newThread(command).start();
}
}
这个executor是group内对象，其execute()方法，通过线程工厂类创建新的线程并启动。
TAG3.2 newChild(executor, args)
NioEventLoopGroup
@Override
//args参数是前面传入的汇总
protected EventLoop newChild(Executor executor, Object... args) throws Exception {
EventLoopTaskQueueFactory queueFactory = args.length == 4 ? (EventLoopTaskQueueFactory) args[3] : null;
//TAG3.2.1 NioEventLoop
return new NioEventLoop(this, executor, (SelectorProvider) args[0],
((SelectStrategyFactory) args[1]).newSelectStrategy(), (RejectedExecutionHandler) args[2], queueFactory);
}
TAG3.2.1 NioEventLoop
NioEventLoop中的executor，为NioEventLoopGroup中创建的ThreadPerTaskExecutor对象。
NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider,
SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler,
EventLoopTaskQueueFactory queueFactory) {
//TAG3.2.1.1 newTaskQueue
//TAG3.2.1.2
super(parent, executor, false, newTaskQueue(queueFactory), newTaskQueue(queueFactory),
rejectedExecutionHandler);
if (selectorProvider == null) {
throw new NullPointerException("selectorProvider");
}
if (strategy == null) {
throw new NullPointerException("selectStrategy");
}
provider = selectorProvider;
final SelectorTuple selectorTuple = openSelector();
//创建选择器二元组（一个是原生selector，一个是包装过selector）
selector = selectorTuple.selector;
unwrappedSelector = selectorTuple.unwrappedSelector;
selectStrategy = strategy;
}
TAG3.2.1.1 newTaskQueue
创建NioEventLoop内的两个任务队列taskQueue
NioEventLoop
private static Queue<Runnable> newTaskQueue(
EventLoopTaskQueueFactory queueFactory) {
if (queueFactory == null) {
return newTaskQueue0(DEFAULT_MAX_PENDING_TASKS);
}
return queueFactory.newTaskQueue(DEFAULT_MAX_PENDING_TASKS);
}
private static Queue<Runnable> newTaskQueue0(int maxPendingTasks) {
// This event loop never calls takeTask()
//创建taskQueue
return maxPendingTasks == Integer.MAX_VALUE ? PlatformDependent.<Runnable>newMpscQueue()
: PlatformDependent.<Runnable>newMpscQueue(maxPendingTasks);
}
TAG3.2.1.2 SingleThreadEventLoop
protected SingleThreadEventLoop(EventLoopGroup parent, Executor executor,
boolean addTaskWakesUp, Queue<Runnable> taskQueue, Queue<Runnable> tailTaskQueue,
RejectedExecutionHandler rejectedExecutionHandler) {
//TAG3.2.1.2.1
super(parent, executor, addTaskWakesUp, taskQueue, rejectedExecutionHandler);
tailTasks = ObjectUtil.checkNotNull(tailTaskQueue, "tailTaskQueue");
}
传入两个任务队列，一个taskqueue，一个收尾队列tailTaskQueue------Queue
TAG3.2.1.2.1 SingleThreadEventExecutor
protected SingleThreadEventExecutor(EventExecutorGroup parent, Executor executor,
boolean addTaskWakesUp, Queue<Runnable> taskQueue,
RejectedExecutionHandler rejectedHandler) {
super(parent); //绑定当前nioeventloop的parent是EventExecutorGroup
this.addTaskWakesUp = addTaskWakesUp;
this.maxPendingTasks = DEFAULT_MAX_PENDING_EXECUTOR_TASKS;
//TAG3.2.1.2.1.1ThreadExecutorMap.apply(executor
//NioEventLoop内的executor的初始化
this.executor = ThreadExecutorMap.apply(executor, this);//第一个参数为group内创建的executor，第二个参数是nioeventloop
this.taskQueue = ObjectUtil.checkNotNull(taskQueue, "taskQueue");
rejectedExecutionHandler = ObjectUtil.checkNotNull(rejectedHandler, "rejectedHandler");
}
//绑定EventExecutorGroup为parent
protected AbstractEventExecutor(EventExecutorGroup parent) {
this.parent = parent;
}
TAG3.2.1.2.1.1ThreadExecutorMap.apply(executor----nioEventLoop内executor初始化
这里负责nioeventloop内executor的初始化（初始化，使用group内创建的executor）
ThreadExecutorMap
//第一个参数为group内创建的executor，第二个参数是nioeventloop
public static Executor apply(final Executor executor, final EventExecutor eventExecutor) {
ObjectUtil.checkNotNull(executor, "executor");
ObjectUtil.checkNotNull(eventExecutor, "eventExecutor");
return new Executor() {
@Override
public void execute(final Runnable command) {
//APPLY1 apply(command, eventExecutor)
//APPLY2 executor.execute
//调用group内的executor.execute;
executor.execute(apply(command, eventExecutor));//第二个参数为当前nioeventloop
}
};
}
//APPLY1 apply(command, eventExecutor)
包装command为runnable。
//对command的包装类，在执行command.run前后，设置setCurrentEventExecutor为当前NioEventLoop
public static Runnable apply(final Runnable command, final EventExecutor eventExecutor) {
ObjectUtil.checkNotNull(command, "command");
ObjectUtil.checkNotNull(eventExecutor, "eventExecutor");
return new Runnable() {
@Override
public void run() {
setCurrentEventExecutor(eventExecutor);
try {
command.run();
} finally {
setCurrentEventExecutor(null);
}
}
};
}
//APPLY2 executor.execute(ThreadPerTaskExecutor)
public final class ThreadPerTaskExecutor implements Executor {
private final ThreadFactory threadFactory;
public ThreadPerTaskExecutor(ThreadFactory threadFactory) {
if (threadFactory == null) {
throw new NullPointerException("threadFactory");
}
this.threadFactory = threadFactory;
}
@Override
public void execute(Runnable command) {
//使用线程工厂类，创建线程并开启
threadFactory.newThread(command).start();
}
}
NioEventLoop内的属性包括parent（所属的group组）、executor对象（为group中创建的ThreadPerTaskExecutor)、两个队列（一个任务队列、一个收尾队列）。

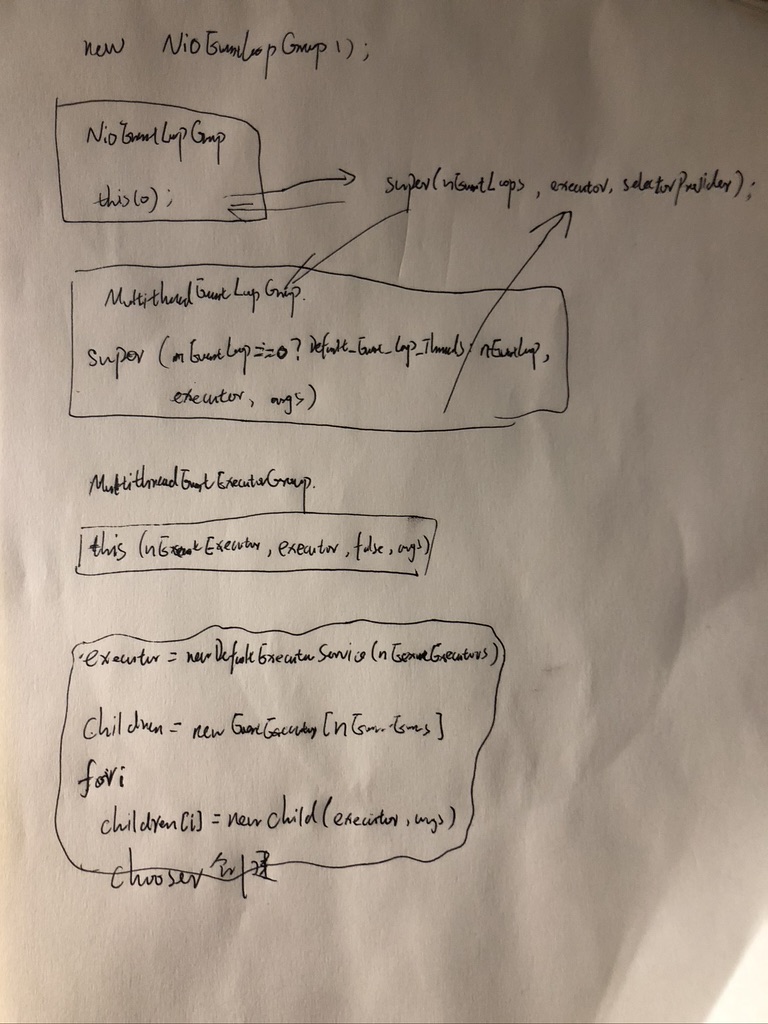

此时，NioEventLoopGroup初始化过程结束，画个图，复盘一下创建流程。
